for Desktop PC, Notebook, Tablet, Smartphone, Monitor, Memory Card Reader, Projector - Charging Capability - Memory Card Reader - microSD, SD - USB Type C - 4K @ 60Hz, 4K, 4K UHD - 3840 x 2160 - 3 x USB Ports - 2 x USB 3.0 - 2 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - HDMI - Black - Wired - 100W - Portable
Genuine Rocstor through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Y10A309-B1
Category
Docking Stations
Overview

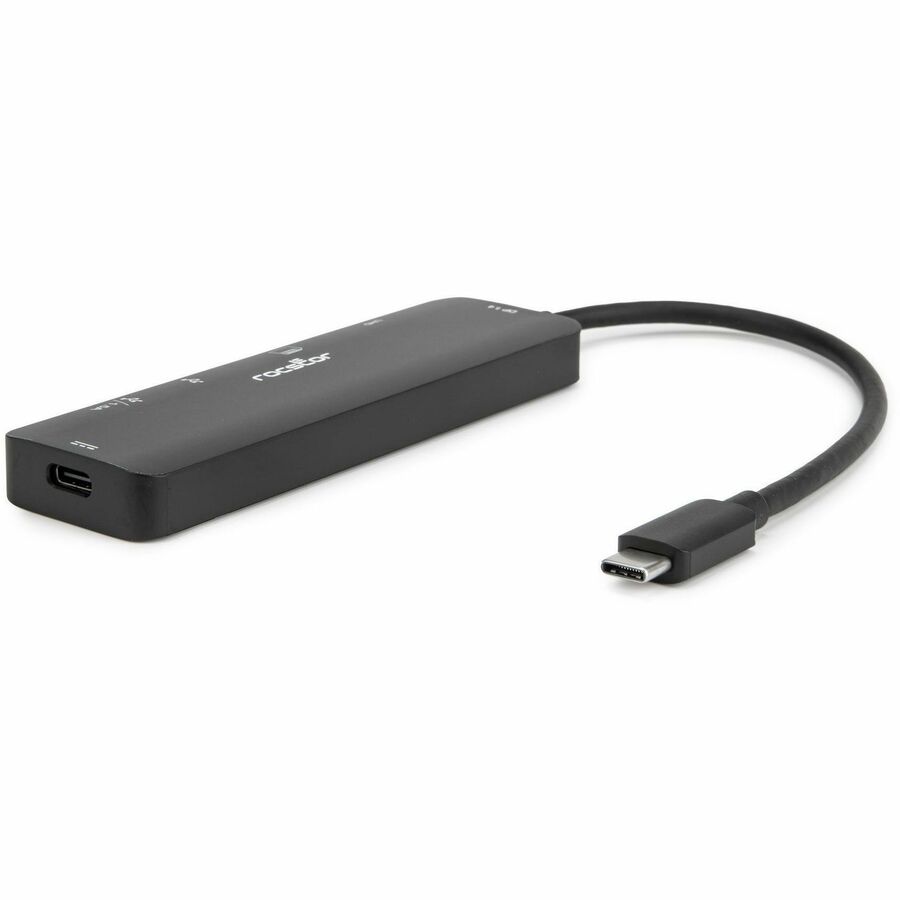

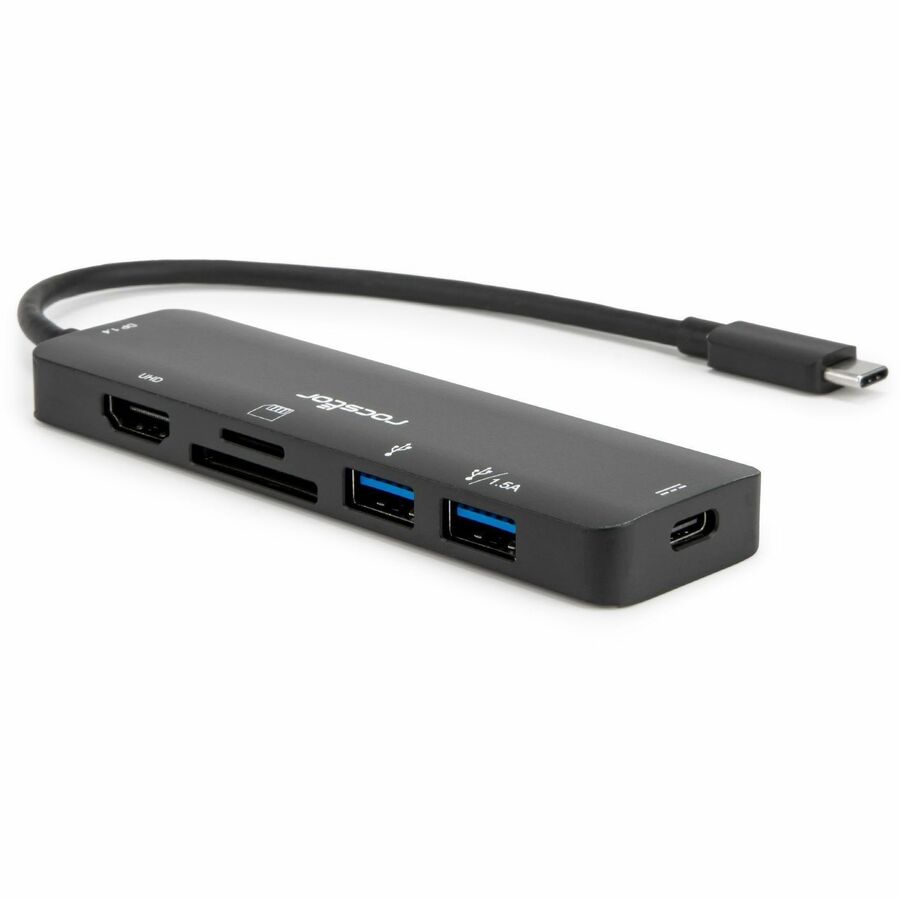

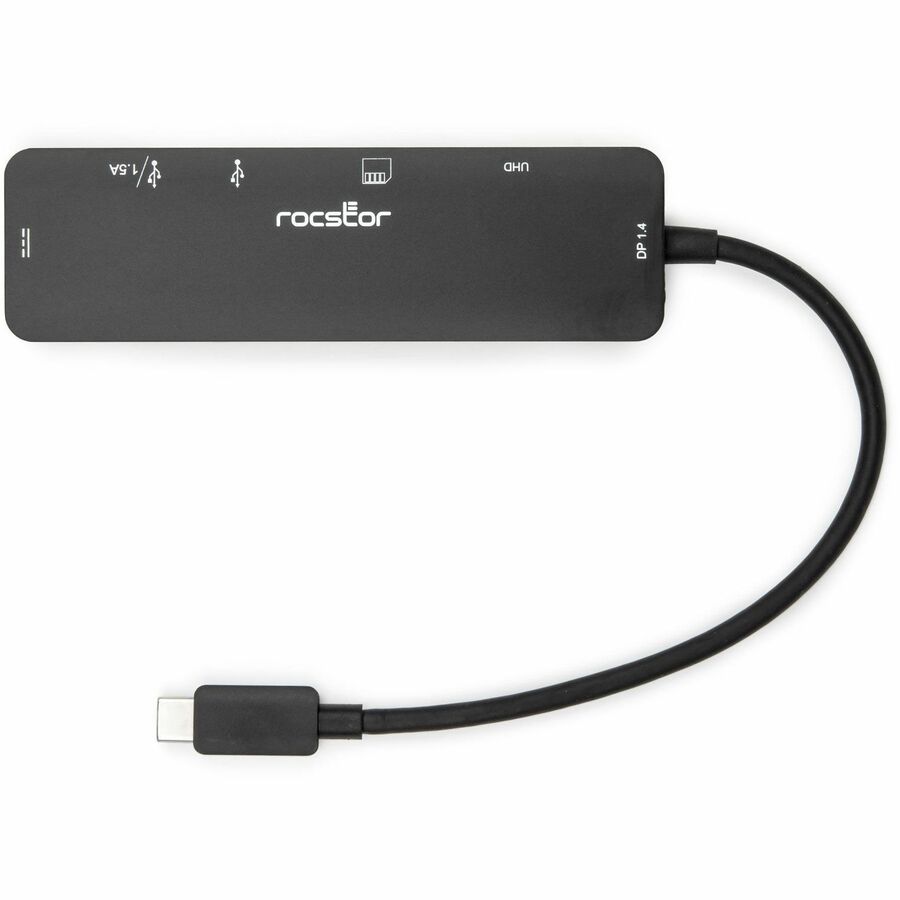

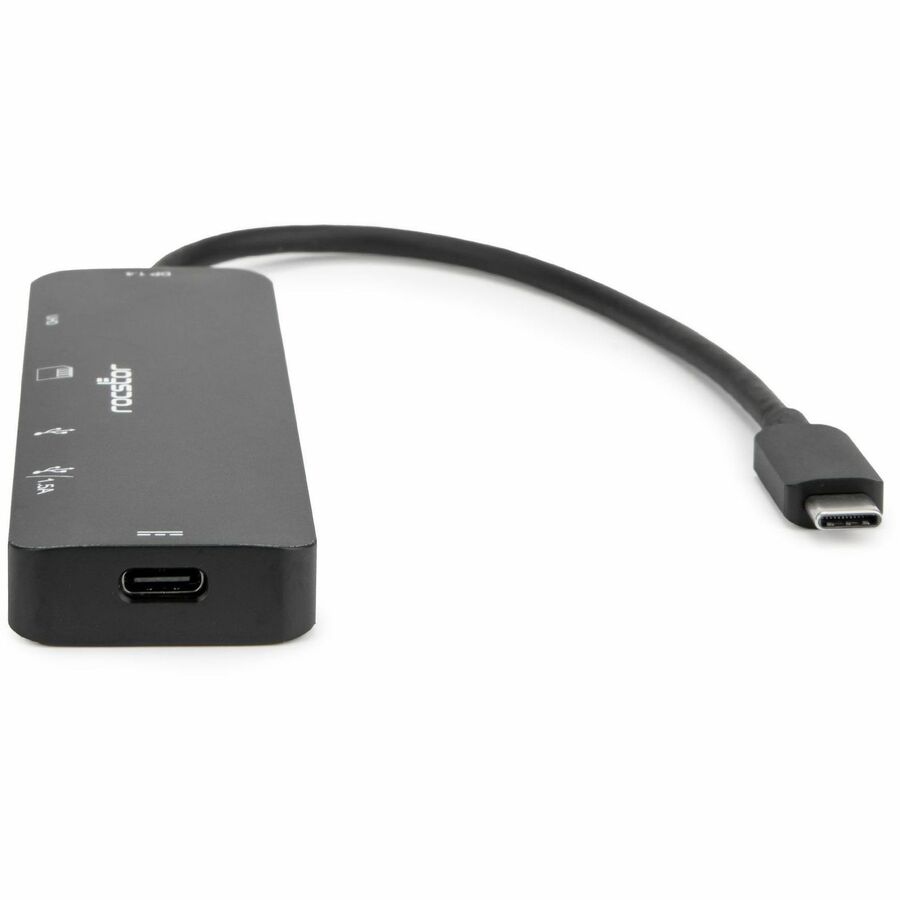

The Rocstor Premium USB Type-C 6-in-1 4K Multiport Adapter is designed to enhance the connectivity options of Type-C and Thunderbolt 3/4 hosts, including PCs, laptops, and mobile phones. This versatile hub features an HDMI port, two USB-A ports, SD and Micro SD card slots, and a Type-C female port. It is perfect for devices with only one Type-C port, offering a comprehensive solution for various connectivity needs. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K/60Hz while simultaneously enabling USB 3.0 data transfer at speeds up to 5Gbps.
The Rocstor 6-in-1 Adapter not only supports dual USB-A ports for connecting multiple devices but also includes SD/Micro SD slots that allow for the simultaneous use of two cards for efficient data transfer and information exchange. Additionally, the Type-C female port supports PD 3.0 charging with a maximum power delivery of 100W, ensuring your devices remain charged and ready for use. Compatible with all DP Alt mode supported Type-C hosts, this hub guarantees versatile compatibility and enhanced functionality.
Designed for robust performance and convenience, the Rocstor 6-in-1 Multiport Adapter supports HDR, HDCP 2.2 & 2.3, and HDCP 1.4, along with various color depth outputs, ensuring an exceptional visual experience. Whether you are using Windows or MacOS, this adapter is an essential accessory for maximizing your device's connectivity and productivity. Backed by Rocstor 3-year limited warranty and lifetime free technical support.
Highlights

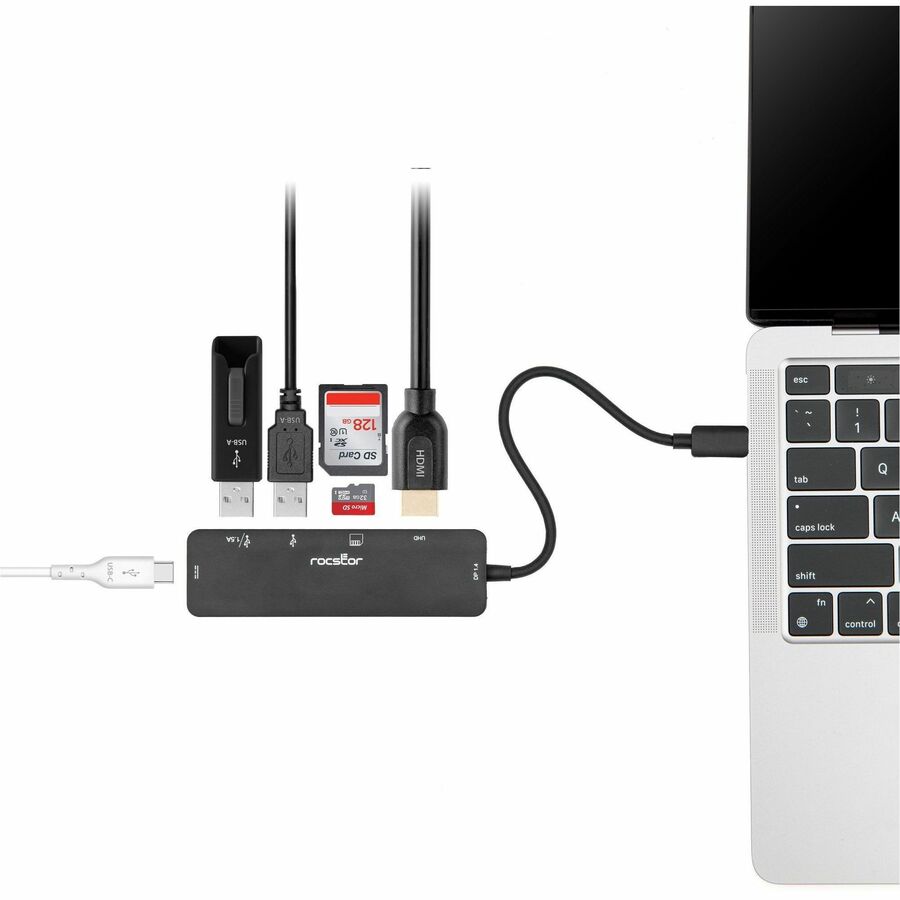

Multiport Expansion: Connects a single Type-C port to HDMI, two USB-A ports, SD/Micro SD card slots, and a Type-C PD charging port.
High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode.
Dual USB-A Ports: Provide up to 5Gbps data transfer per port, with one port supporting max 7.5W (5V/1.5A) and the other supporting max 900mA downstream charging.
Type-C PD Charging Port: Supports up to 100W PD charging with PD 3.0 Fast Role Swap, ensuring the connected device does not disconnect when plugging in or out the PD adapter.
SD/Micro SD Card Slots: Allow simultaneous use of both cards, supporting Secure Digital v3.0 UHS-I for high-speed data transfer.
HDR and HDCP Support: Ensures optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.
Multiple Color Depth Outputs: Supports 6/8/10/12 bit color depth and various pixel formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0).
Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.
Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.
Warranty: Rocstor 3-Year Limited Warranty
Specifications
Package Contents
Premium Docking Station
1 x User Manual
Host Interface
USB Type C
Product Type
Docking Station
Compatibility
Compatible Devices: Microsoft Surface Pro 7 Microsoft Surface Pro 8 Apple iPad Pro HP Elite Apple MacBook
Windows 8, Windows 10, Windows 11, Android, ChromeOS, iPadOS, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 10.15 Catalina, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra, macOS 14
Memory Card Supported
microSD, SD
Country of Origin
Vietnam
Height
0.43"
Width
1.78"
Environmentally Friendly
Yes
Memory Card Reader
Yes
HDMI
Yes
Number of HDMI Outputs
1
Total Number of USB Ports
3
Number of USB 3.0 Ports
2
USB Type-C
Yes
USB Type-C Detail
1 x Type-C Female (PD 100W)
Number of USB Type-C Ports
1
Number of USB Type-A Ports
2
Product Color
Black
USB Power Delivery
100W
Supported Resolutions
3840 x 2160
USB Type-A
Yes
Screen Mode Supported
4K @ 60Hz, 4K, 4K UHD
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
