for Notebook, Tablet - Charging Capability - Memory Card Reader - SD, microSD - USB Type C - 2 Displays Supported - 4K @ 60Hz - 3840 x 2160 - 3 x USB Ports - 2 x USB 3.0 - 2 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - Space Gray - Wired - Gigabit Ethernet - 100W - Portable
Genuine Rocstor through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Y10A305-S1
Category
Docking Stations
Overview

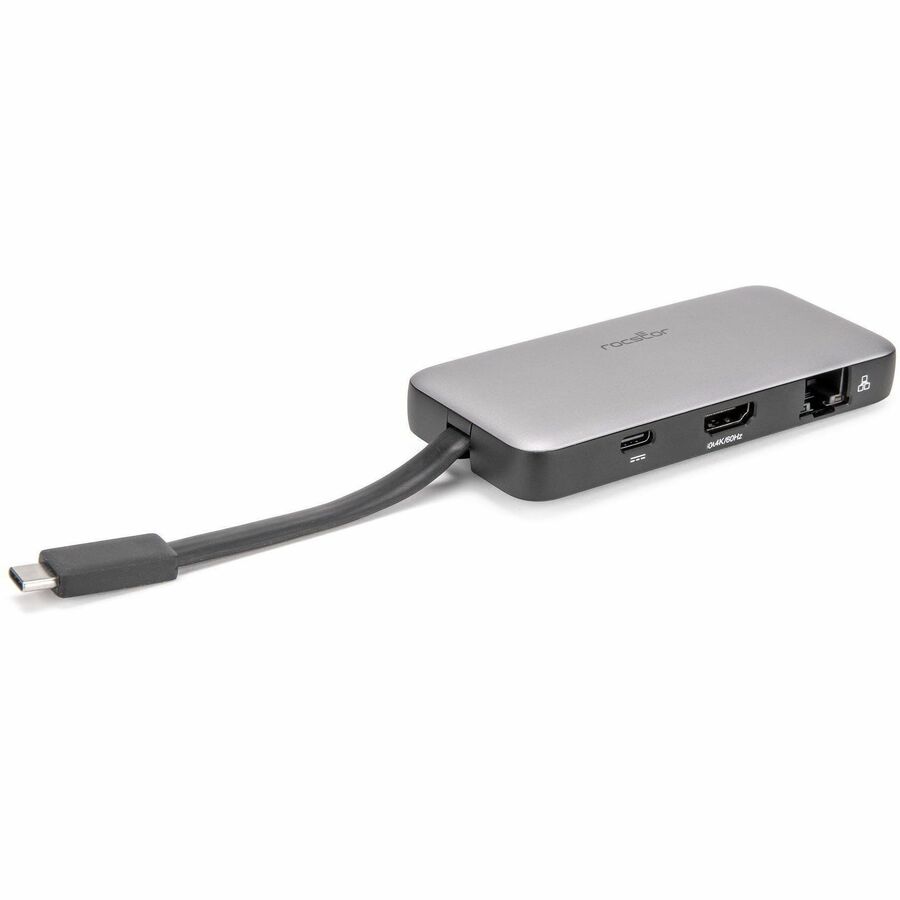

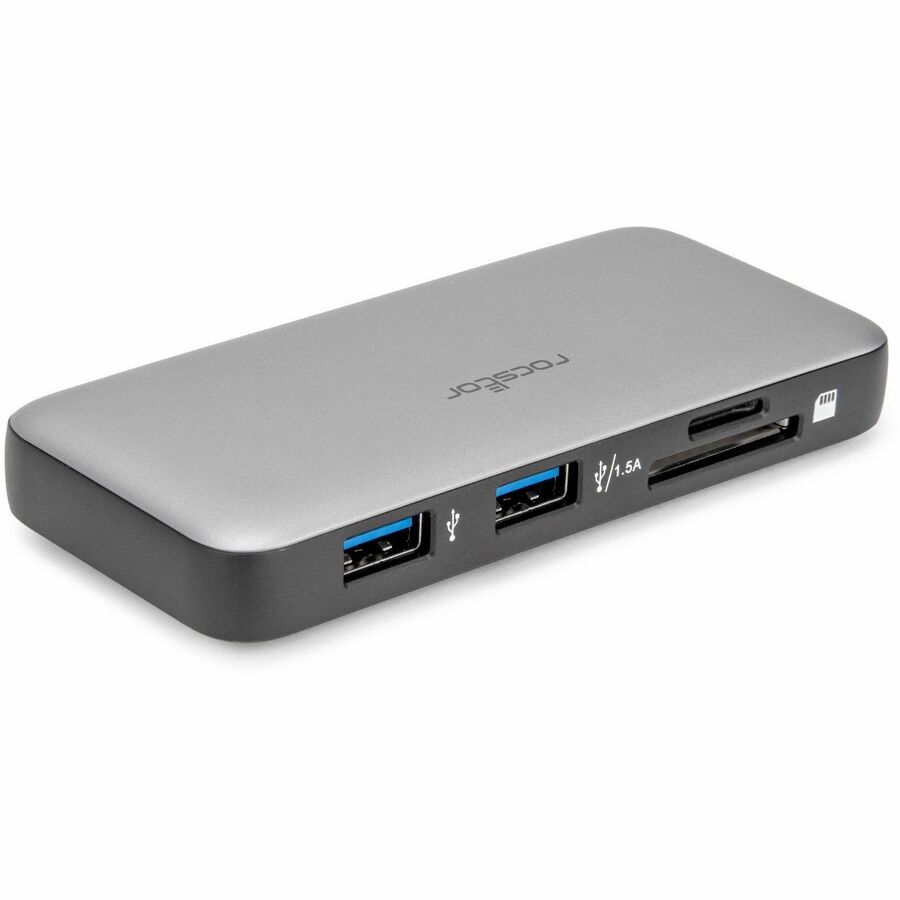

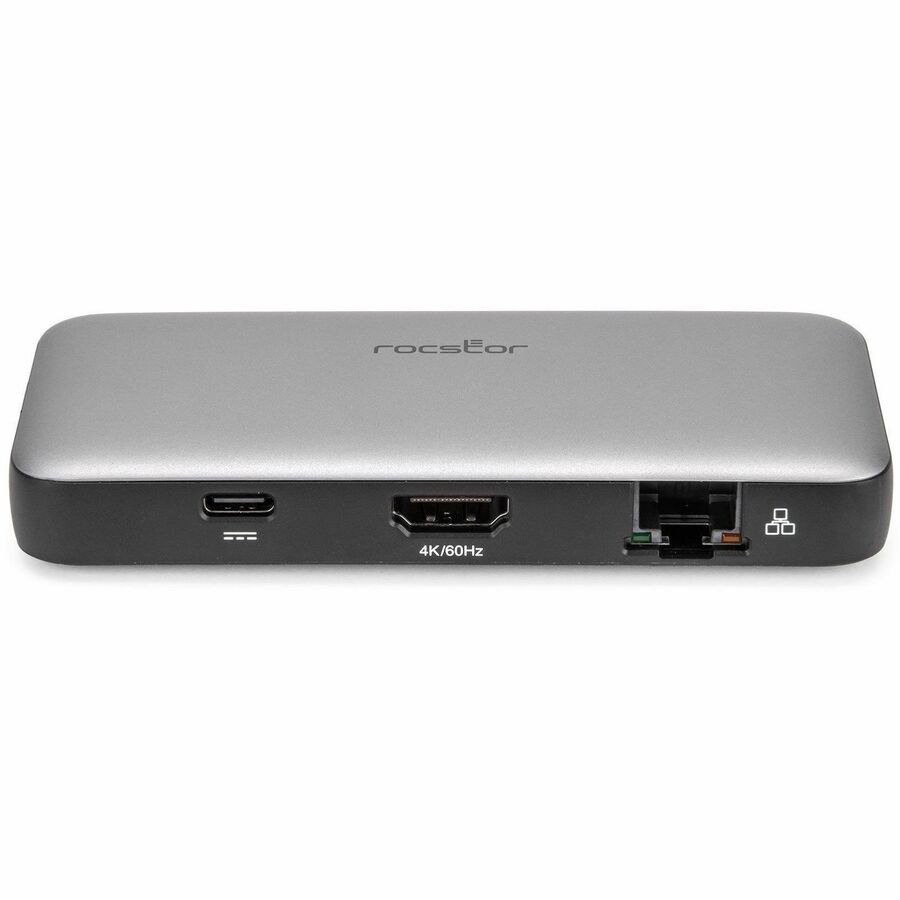

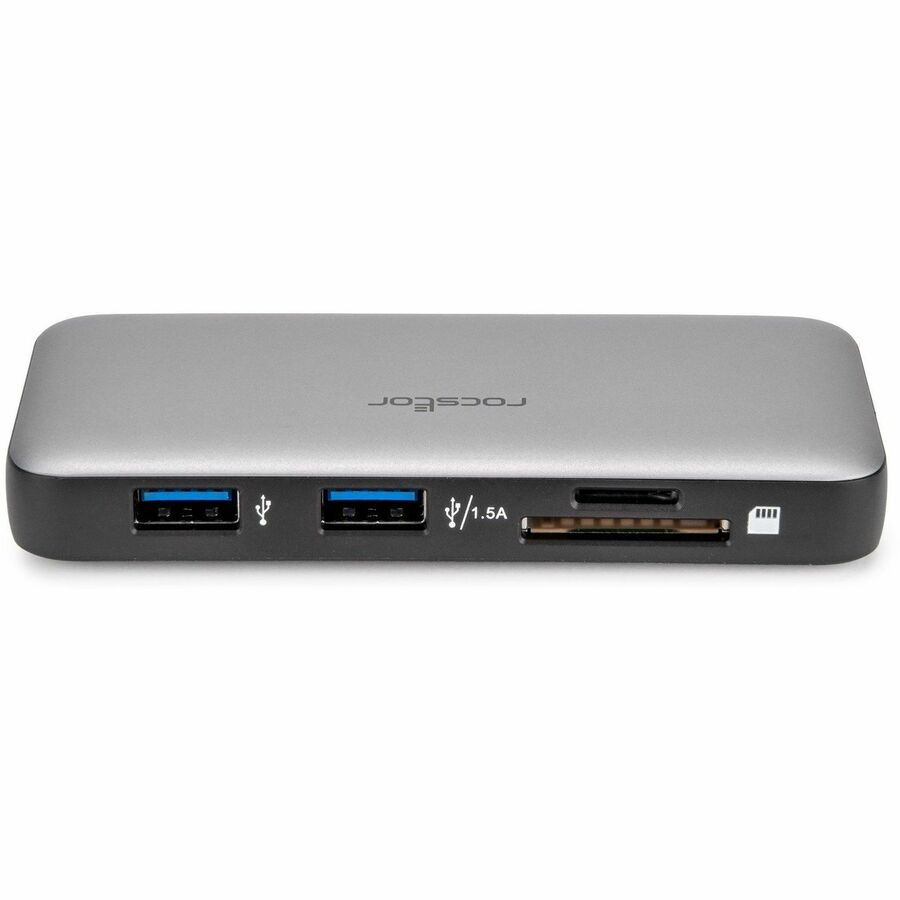

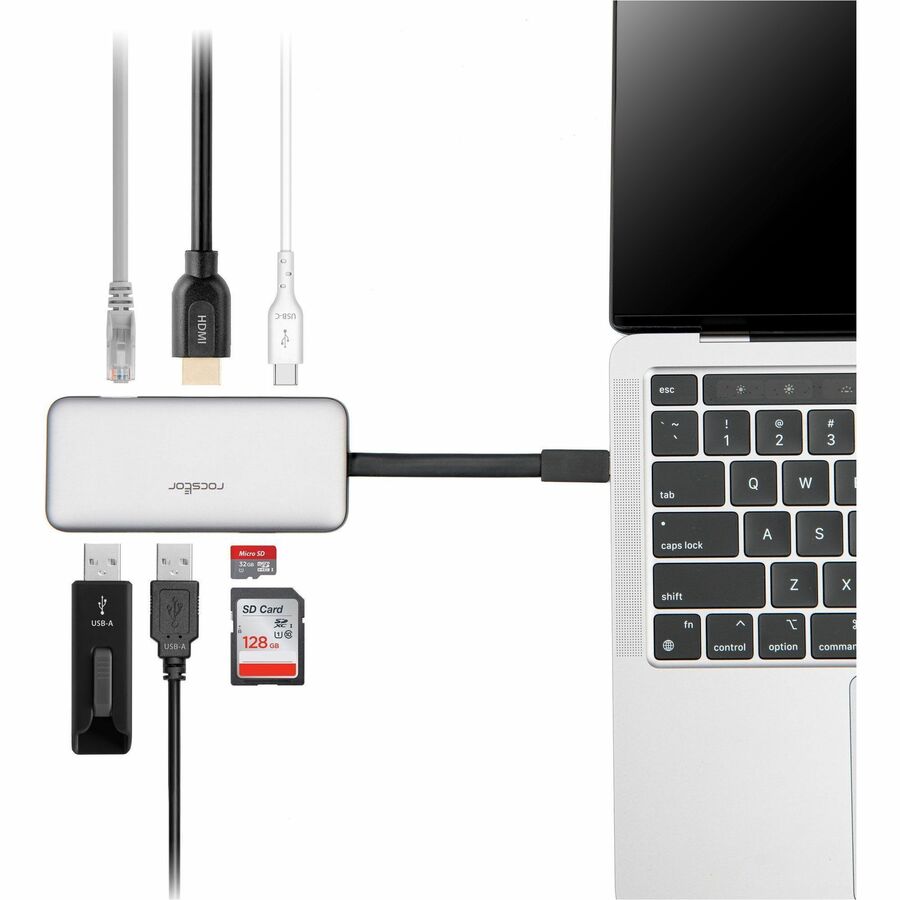

The Rocstor Premium USB Type-C 7-in-1 4K Multiport Adapter is designed to expand the connectivity options for Type-C or Thunderbolt 3/4 hosts, including PCs, laptops, and mobile phones. This versatile hub features an HDMI port, two USB-A ports, an RJ45 Ethernet port, SD and Micro SD card slots, and a Type-C female port. Its integrated captive cable wraps conveniently at the bottom, enhancing user experience and portability.
Equipped with advanced DisplayPort 1.4 Alt mode technology, the adapter supports dual 4K/60Hz HDMI video output and USB 3.1 data transfer at up to 5Gbps. The HDMI port supports a maximum resolution of 4K/60Hz, while the Gigabit Ethernet port provides fast and reliable internet connectivity. The two USB-A ports allow simultaneous connection of multiple USB devices, and the SD/Micro SD card slots support concurrent usage for seamless data transmission. Additionally, the Type-C female port supports PD 3.0 with a maximum power delivery of 100W, ensuring efficient charging for your host device.
Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 7-in-1 Adapter ensures seamless integration and enhanced functionality. The hub supports HDR, HDCP 2.2 & 1.4, and multiple color depth outputs, providing an exceptional visual experience. Designed with robust features like short-circuit, over-current, and over-voltage protection, this adapter guarantees safe and reliable performance. The Rocstor USB Type-C 7-in-1 4K Multiport Adapter is the ideal solution for maximizing your device's connectivity and productivity. Backed by Rocstor 3-year limited warranty and lifetime free technical support.
Highlights
Multiport Expansion: Connects a single Type-C port to HDMI, USB-A, RJ45 Ethernet, SD/Micro SD card slots, and a Type-C PD charging port.
High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode and HBR3.
Dual USB-A Ports: Provide up to 5Gbps data transmission per port, with max 7.5W and 900mA downstream charging.
Gigabit Ethernet Port: Ensures fast Ethernet connectivity (10M/100M/1000M) with Wake-On-LAN support.
SD/Micro SD Card Slots: Support SD/microSD 3.0 (TF3.0) UHS-I up to 104MBps data rate and simultaneous usage.
Type-C PD Charging Port: Supports up to 100W PD charging with PD 3.0 Fast Role Swap.
Integrated Captive Cable: Conveniently wraps at the bottom for enhanced portability.
HDR and HDCP Support: Provides optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.
Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.
Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.
Warranty: Rocstor 3-Year Limited Warranty
Specifications
Package Contents
Premium Docking Station
1 x User Guide
Host Interface
USB Type C
Product Type
Docking Station
Compatibility
Surface Pro 7
Surface Pro 8
iPad Pro
HP Elite
MacBook
Device Supported
Notebook, Tablet
Manufacturer Part Number
Y10A305-S1
Packaged Quantity
1
Limited Warranty
3 Year
Weight (Approximate)
0.15 oz
Connectivity Technology
Wired
Form Factor
Portable
Manufacturer
Rocstor
Product Name
Premium Docking Station
Product Line
Premium
Brand Name
Rocstor
Charging Capability
Yes
Operating System Supported
Windows 10, Windows 8, Windows 11, Android, iPadOS, ChromeOS, macOS 14, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 10.15 Catalina, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra
Memory Card Supported
SD, microSD
Country of Origin
Vietnam
Height
0.65"
Width
4.33"
Environmentally Friendly
Yes
Memory Card Reader
Yes
Ethernet Technology
Gigabit Ethernet
HDMI
Yes
Number of HDMI Ports
1
Network (RJ-45)
Yes
Number of HDMI Outputs
1
Total Number of USB Ports
3
Number of USB 3.0 Ports
2
Number of Displays Supported
2
Number of RJ-45 Ports
1
USB Type-C
Yes
USB Type-C Detail
1 x Type-C Female
Number of USB Type-C Ports
1
Number of USB Type-A Ports
2
Product Color
Space Gray
USB Power Delivery
100W
Supported Resolutions
3840 x 2160
USB Type-A
Yes
Screen Mode Supported
4K @ 60Hz
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
