Genuine Plugable Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
USBC-6950UE
Category
Docking Stations
Overview

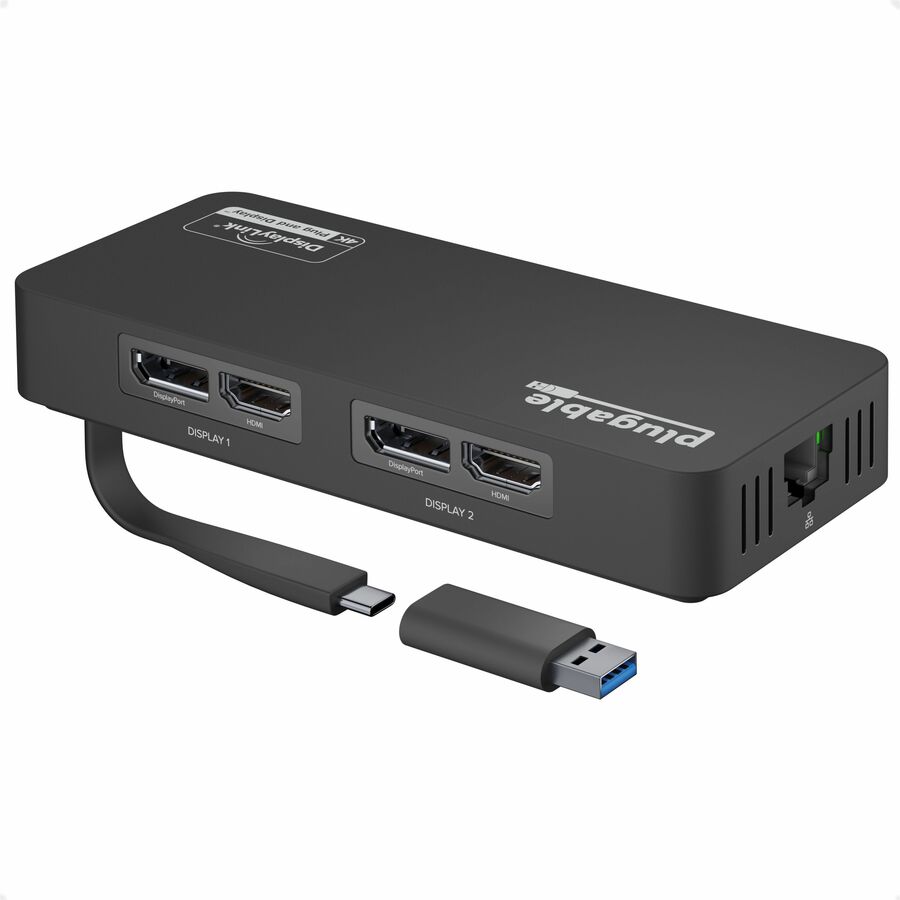

Plugable USB 3.0 and USB-C Dual 4K DisplayLink Video Graphics Adapter (USBC-6950UE) allows you to connect up to two additional displays that support up to 3840x2160@60Hz resolutions each. Whether you need an HDMI adapter for dual monitors or a USB to DisplayPort for a dual mointor setup, this device has you covered. Our adapter is compatible with Windows and ChromeOS laptops and desktops that have a USB 3.0 or USB Type-C port. Performance Equipped with the state of the art DisplayLink DL-6950 chipset, our adapter can support two external HDMI 2.0 or DP 1.2 displays up to 4K resolutions per display from the HDMI 2.0 or DP 1.2 outputs. Please note that a monitor with HDMI 2.0 and/or DP1.2 input ports and a HDMI 2.0 or DP 1.2 cable is required to achieve 3840x2160@60Hz. Supports popular resolutions such as 1440p, 1080p, and lower at a maximum 60Hz refresh rate. Non-Compatible Systems: Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). Not compatible with Linux/Unix or ARM-based Windows. Does not support Dual-Link DVI conversions Does not support HDCP copy protected content. Not recommended for gaming. In the Box Plugable USB 3.0 and USB-C Dual 4K Display Adapter (USBC-6950UE) Quick Start Guide More from the Manufacturer
Highlights
Dual 4k Monitors: USB video adapter with dual monitor DisplayPort and HDMI ports for dual 4k 60Hz monitors and Gigabit Ethernet network connectivity; ideal for USB 3.0 to HDMI or USB to DisplayPort needs

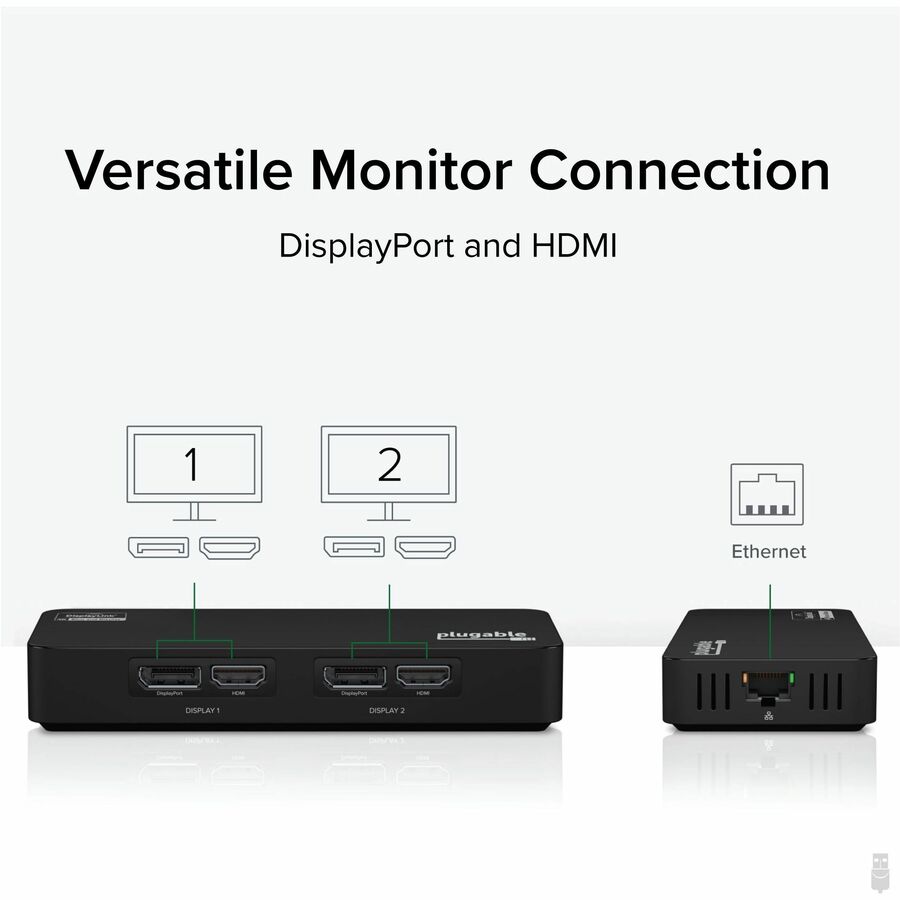

Flexible Connection: Displaylink dual HDMI adapter supports Displayport for a versatile 1 in 2 out solution; also functions as a USB Ethernet adapter for reliable network connection

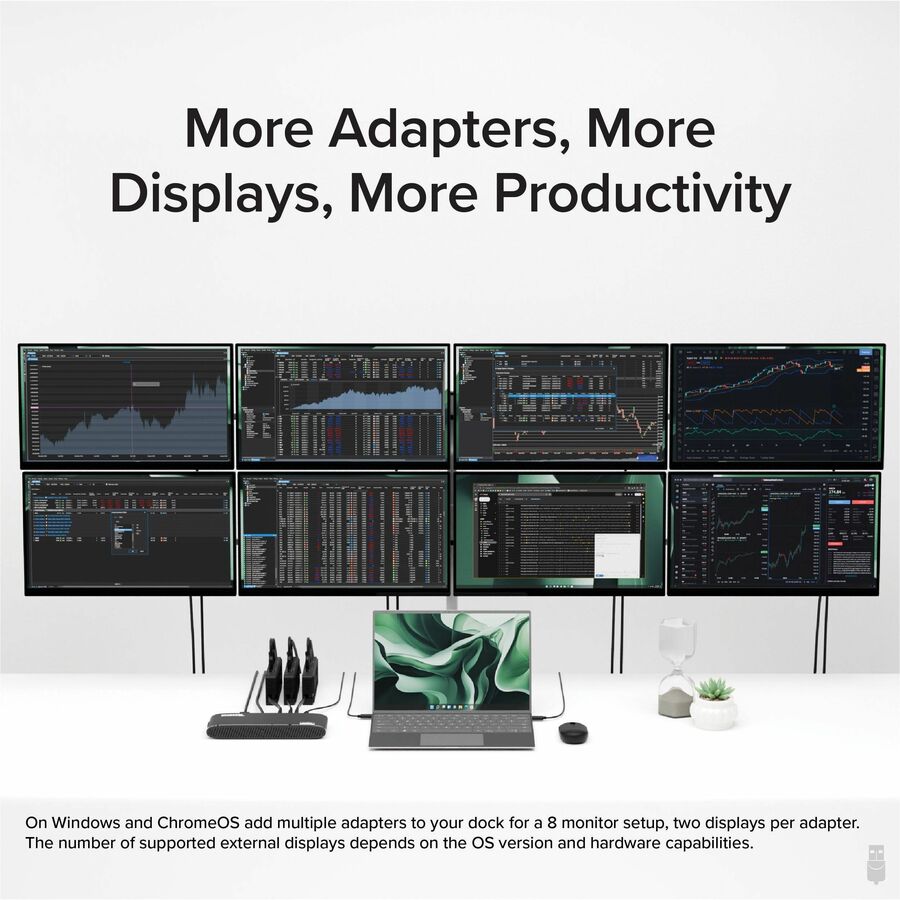

Expand Your Workspace with Multiple Monitors: This USB to DisplayPort Adapter not only allows two additional 4K displays, but also allows you to customize your setup further with the options for a quad or triple display by combining the adapter with a single USB-C dock. Windows and ChromeOS users can use this adapter with an existing docking station to support up to eight 1920x1080 (HD) displays using multiple adapters (two 1080p displays per adapter)

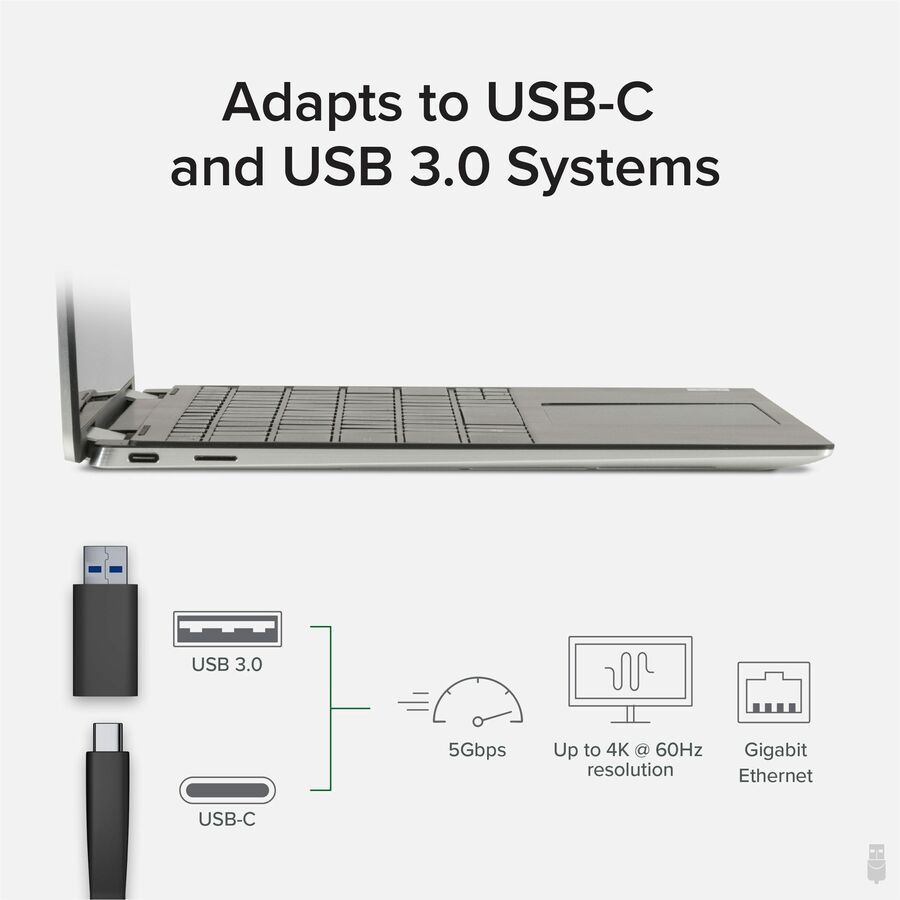

Compatibility: DisplayLink adapter compatible with Windows 10 and 11, ChromeOS 100.x or later; plug and play driver installation via Windows update
Recommended Use: Ideal for web and productivity software at home or the office; not suitable for gaming; does not support HDCP, will not playback encrypted or copy-protected content
Specifications
Package Contents
USB Type-C Dual 4K HDMI and Gigabit Ethernet Adapter
1 x Quick Start Guide
Host Interface
USB 3.0 Type C
Product Type
Docking Station
Compatibility
Windows 10, 8.x, and 7 computers/laptops
Device Supported
Notebook, Monitor
Manufacturer Part Number
USBC-6950UE
Packaged Quantity
1
Limited Warranty
2 Year
Weight (Approximate)
5.50 oz
Connectivity Technology
Wired
Manufacturer
Plugable Technologies
Product Name
USB Type-C Dual 4K HDMI and Gigabit Ethernet Adapter
Brand Name
Plugable
Operating System Supported
Windows
Country of Origin
Taiwan
Height
1"
Width
5.40"
Ethernet Technology
Gigabit Ethernet
HDMI
Yes
Network (RJ-45)
Yes
Number of HDMI Outputs
2
Number of Displays Supported
2
Number of RJ-45 Ports
1
TAA Compliant
Yes
Supported Resolutions
3840 x 2160, 3840 x 1600, 3440 x 1440, 2560 x 1440, 2560 x 1080, 1920 x 1080, 1600 x 900, 1280 x 1024, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480
