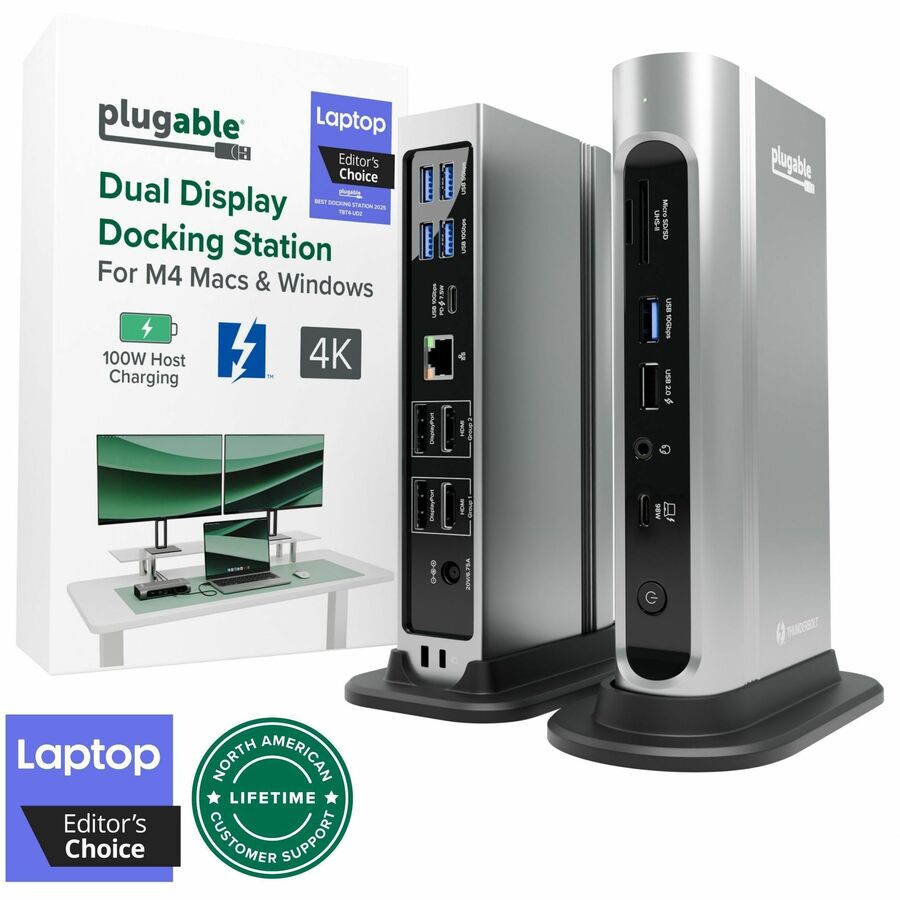

Thunderbolt Certified Dock with 2x HDMI, 2x DisplayPort, 2.5G Ethernet, 7x USB, SD
MSRP$409.99
$308.94
Save 25%In stock: 20
Genuine Plugable Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The Thunderbolt Certified 16-in-1 Quad docking station from Plugable delivers peak performance. The innovation starts with our display connections. Connect your 4K screens through 2x HDMI ports and 2x DisplayPort ports - a rare level of display flexibility in a Thunderbolt dock. But the real expansion picks up at the ports. Offering sixteen total ports to park your peripherals, including 7x USB ports, SD and microSD card readers, Audio, and 2.5Gbps Ethernet. It even adapts to your desk with an included stand for vertical or horizontal orientation options.

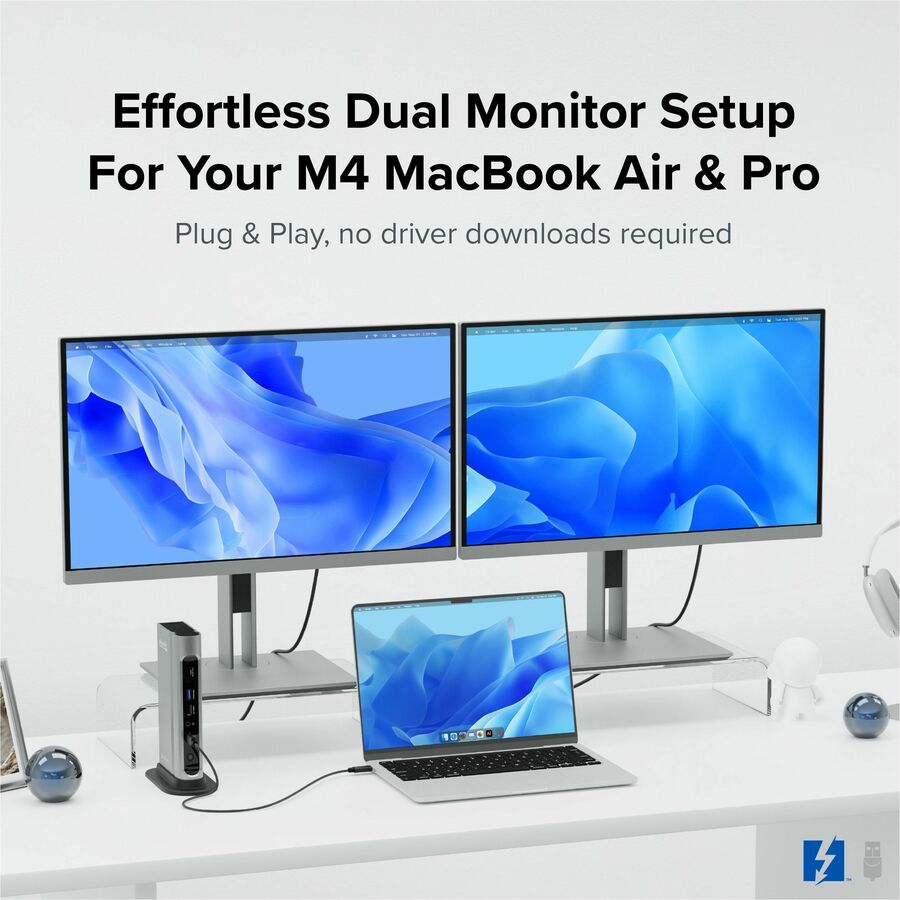

Quad Display
With this Thunderbolt 4 docking station Windows computers can use the 2x HDMI ports, and 2x DisplayPort ports to connect as many as 4x screens at up to 4K 60Hz. Can also be used a single, dual, or triple display docking station.
On Mac (Intel, M1 / M2 / M3 Pro/Max, M4/ Pro/Max CPU), extend your desktop to 2x screens using any combination of HDMI and/or DisplayPort. Macs with an M1 / M2 / M3 CPU only support one external display.

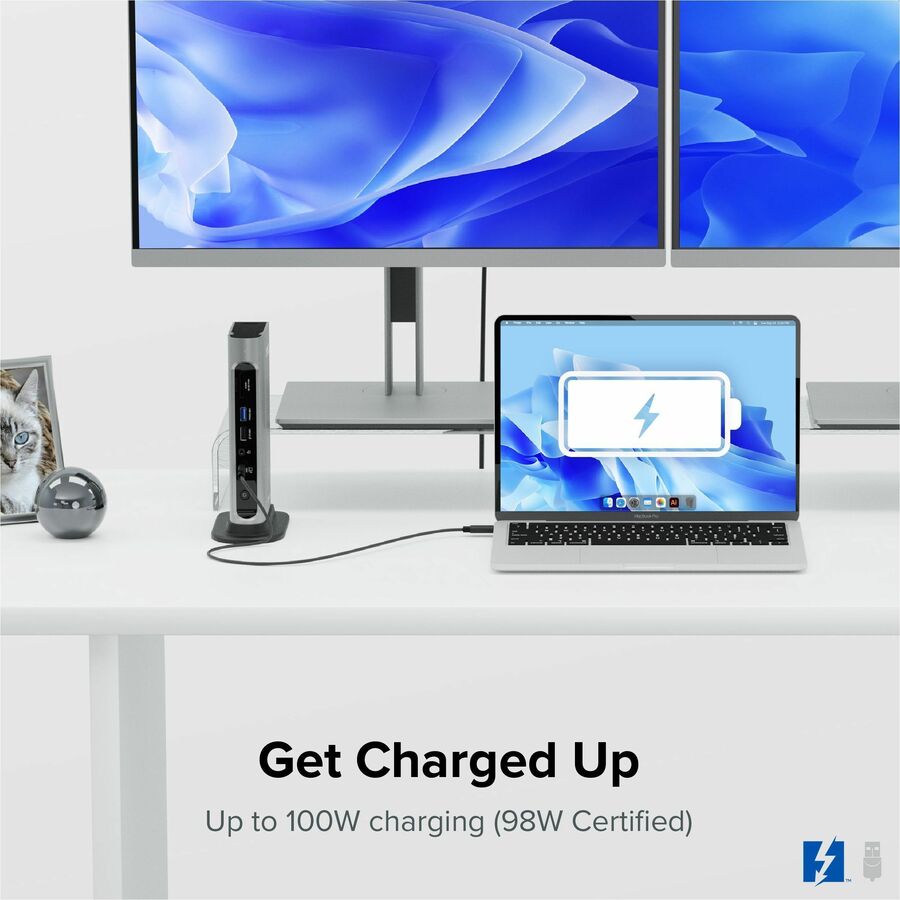

100W Power Delivery
The laptop Thunderbolt docking station offers USB Power Delivery up to 100W (98W certified) - no more climbing under the desk to get plugged in.
Not all laptop docking stations handle power the same. With the TBT4-UDZ, if your laptop needs less power, the docking station adjusts and only sends the optimal wattage.
And with 6x available USB ports, and one USB-C port, your devices will always have a place to connect.
Compatibility
The TBT4-UDZ is compatible with *Windows 10 and later and **macOS 11+.
Actual number of screens that can be extended depends on capabilities of the host computer. Be sure to see the Display Compatibility Chart below.
*On some Windows laptops, enabling four displays may require a Windows settings change to disable the internal screen.
**On Macs, additional monitors beyond specs below may not function, and/or will ""mirror"" rather than extend.
More from the Manufacturer
Display Options
2x 4K 60Hz on M4 and M3 Macs & all Pro/Max CPUs
1x 4K 60Hz on base M1/M2 CPUs
4x 4K 60Hz on Windows
100W Charging
Up to 100W charging (98W to host) to keep you going all day.

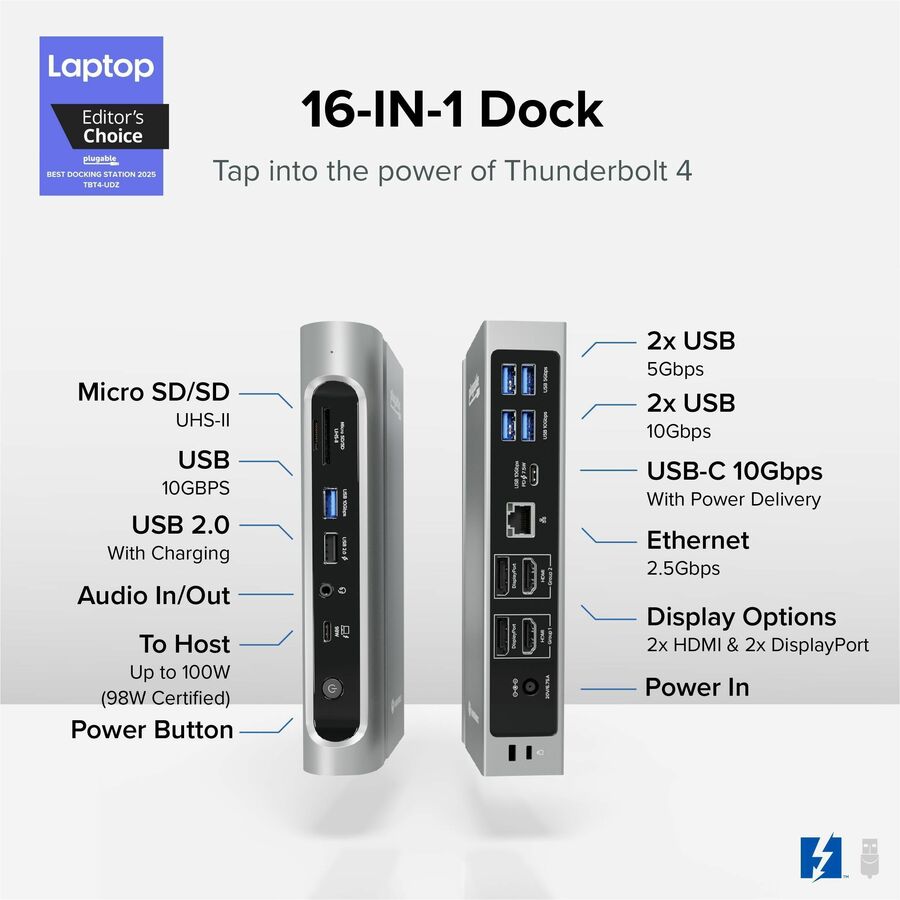

2x HDMI 2x DisplayPort 1x Thunderbolt 4 (to host) 1x USB-C (10Gbps) 6x USB SD/microSD Audio Ethernet
About Plugable Plugable Technologies is a US-based electronics company that has been trusted by IT Professionals for over a decade. Plugable offers a wide range of universal products that are tested to fit any desk environment with guaranteed compatibility. Our local support team consists of the very engineers who design our products, and our industry-leading product information gives you the confidence you need to find the right solution for your business. Connect This With That .
| General Information | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | TBT4-UDZ |
| Brand Name | Plugable |
| Product Model | TBT4-UDZ |
| Product Name | Thunderbolt 4 & USB4 Quad Display Docking Station With 98W Charging |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4, USB Type C |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C, Rear, USB 3.2 Gen 2 (10Gbps) |
| Number of USB Type-A Ports | 6 |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs | 2 |
| DisplayPort | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Outputs | 2 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 1.40" |
| Width | 4.10" |
| Weight (Approximate) | 1.42 lb |
| Power Description | |
| Maximum Power Supply Wattage | 98 W |
| Software | |
| Operating System Supported | Windows 10, macOS Big Sur, Windows 11 |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 4 |
| Device Supported | Monitor, Notebook, Desktop PC |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Memory Card Reader | Yes |
| Memory Card Supported | microSD, SD, SDXC, SDHC, MultiMediaCard (MMC) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Apple MacBook |
