11-Port Thunderbolt 4 Dock with 2.5Gb Ethernet, HDMI, SD Card Reader, USB, and USB-C to HDMI Adapter - (Replaced by TBT4-UDZ)
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Plugable Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

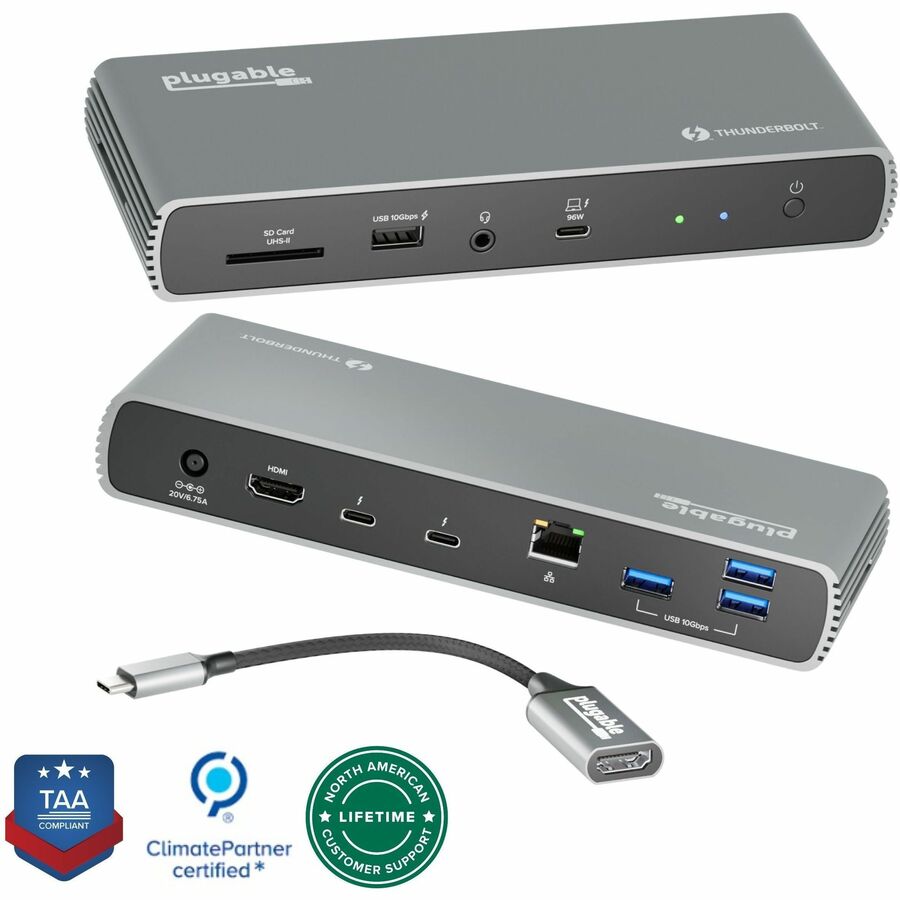

Upgrade your setup with the Plugable TBT4-UDX1, a TAA-compliant Thunderbolt 4 docking station designed for modern laptops. With up to 100W (96W certified) power delivery, it charges your laptop while expanding connectivity through 11 essential ports-most notably two USB4 compatible downstream Thunderbolt 4 ports that share the full 40Gbps bandwidth, giving your most demanding peripherals the performance they need. Spread out across two 4K 60Hz monitors-one through HDMI, the other via the included USB-C to HDMI adapter. And if you really want to pack in the pixels, skip the adapters and go straight Thunderbolt for a single 8K 30Hz display. Note for MacBooks: dual displays are supported only on M1/M2/M3 Pro/Max and all M4 MacBook systems. Base M1/M2/M3 models are limited to one external display.
Designed for modern, ultra-thin and port-limited workstations like the Surface Pro 8 and 9, Dell XPS, HP Spectre, Lenovo ThinkPad, and MacBook Pro, this Thunderbolt 4 dock offers the ports you're missing. The included 3' (1m) certified 40Gbps Thunderbolt 4 cable delivers reliable performance for HDMI video, 4x 10Gbps USB-A ports, 2.5 Gigabit Ethernet, SD card reader, and a combination audio jack.ensures stable, high-speed access to HDMI video output, 4x 10Gbps USB-A ports, 2.5 Gigabit Ethernet, SD card reader, and a combination audio jack.
Whether deployed in enterprise IT environments or used in a home office, the TBT4-UDX1 combines enterprise-grade compliance, robust connectivity, and Plugable's lifetime U.S.-based support, making it the docking station you can depend on.
More from the Manufacturer
Connect with a Plugable docking station designed for modern laptops. The Plugable Thunderbolt 4 and USB4 Docking Station (TBT4-UDX1) with 100W charging offers something a lot of Thunderbolt docking stations lack, Thunderbolt ports (which are fully USB4 compatible, by the way). In addition to the 40Gbps Thunderbolt connection to the host, get 2x downstream ports (40Gbps) for your most powerful peripherals.
Get powered up. With 100W charging (96W certified), charge a MacBook Pro 14” from 0%-50% in about 30 minutes*. Charge a Dell XPS 15 9520 from 0%-50% in about 60 minutes**. Extra Thunderbolt ports offer more than data. Each one borrows 15W from the host power supply to provide power to connected devices. When one Thunderbolt device is connected, the host receives 81W, and if two Thunderbolt devices are connected, the host receives 66W.
Laptop docking stations like the Plugable TBT4-UDX1 let you spread out on two screens at up to 4K 60Hz. If you’re presenting to clients or streaming some shows, the 4K HDMI port connects an extra display at up to 60Hz. An included USB-C to HDMI adapter lets you connect a second 4K 60Hz monitor. But if you really want to pack in the pixels, go straight to the Thunderbolt port to connect an 8K monitor up to 30Hz.
Diving deeper into its features, the 11-port expansion on this USB C hub is perfect for ultra-thin devices like the Surface Pro 8. Get instant access to 1x HDMI port, 4x USB 3.0 ports, a 2.5 Gigabit Ethernet port, an SD Card reader, and even a combination audio jack. And the convenience continues with an included 3’ (1m) Thunderbolt cable. Just a heads up, on Mac, dual display is only available on M1 / M2 / M3 systems with a Pro or Max chip, like the Macbook Pro M1 Pro/Max, M2 Pro/Max, M3 Pro/Max.
*Internal testing based on solo charging a MacBook Pro 14" M1 Pro starting from 0% battery
**Internal testing based on solo charging a Dell XPS 15 9520 with a 12th generation Intel CPU running Windows 11
Thunderbolt 4 Certified
Get three Powerful Thunderbolt 4 ports (USB 4 compatible). 1x to the host, 2x downstream.
Thunderbolt Docking Station Dual Monitor
Connect 2x displays up to 4K 60Hz (USB-C to HDMI adapter included), or 1x 8K 30Hz via Thunderbolt
100W Charging
USB C dock provides up to 100W (96W certified) to laptop, 20W charging to Thunderbolt ports.
Compatibility
Compatible with Windows 10+, macOS 11.2+ (Dual display limited to M1 Pro/Max, M2 Pro/Max systems).
About Plugable Plugable Technologies is a US-based electronics company that has been trusted by IT Professionals for over a decade. Plugable offers a wide range of universal products that are tested to fit any desk environment with guaranteed compatibility. Our local support team consists of the very engineers who design our products, and our industry-leading product information gives you the confidence you need to find the right solution for your business. Connect This With That .
| Host Interface | Thunderbolt 4 |
|---|---|
| Product Type | Docking Station |
| Device Supported | Monitor |
| Manufacturer Part Number | TBT4-UDX1 |
| Packaged Quantity | 1 |
| Weight (Approximate) | 15.70 oz |
| Connectivity Technology | Wired |
| Manufacturer | Plugable Technologies |
| Product Name | Docking Station |
| Brand Name | Plugable |
| Height | 1.20" |
| Width | 7.90" |
| Thunderbolt | Yes |
| Number of Displays Supported | 2 |
| Thunderbolt Ports Quantity | 2 |
| USB Power Delivery | 100W |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
Matched on Monitor · Wired
