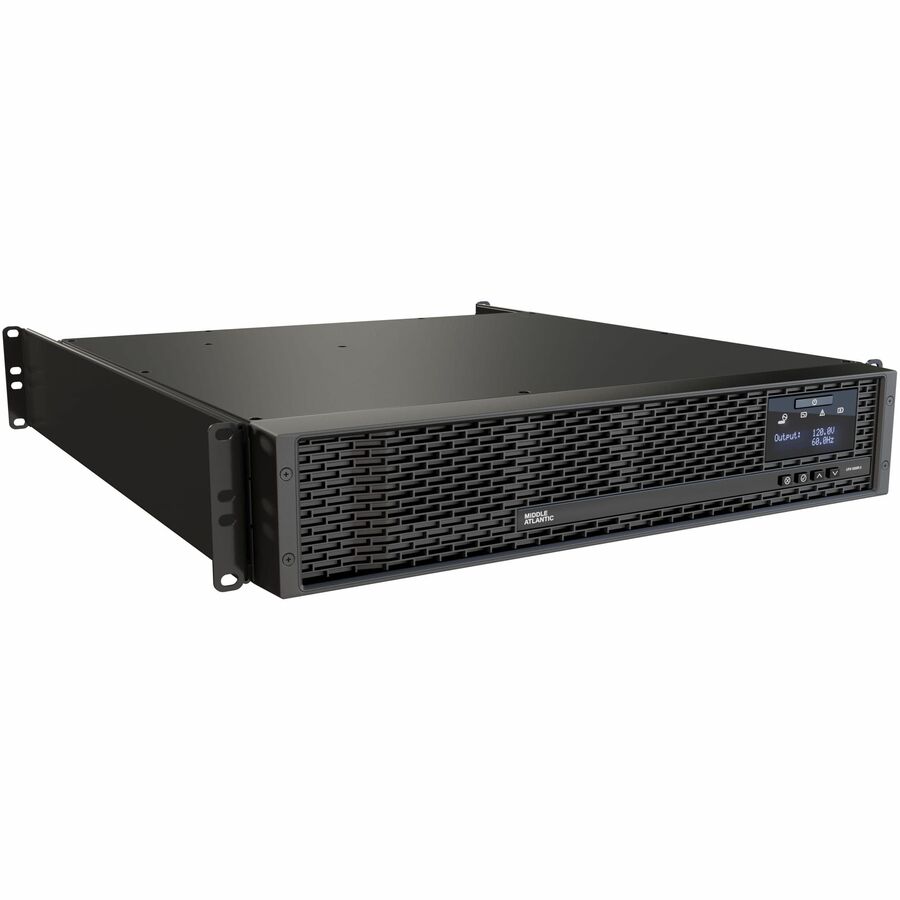

2U Rack-mountable - AVR - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - LCD Display - 8 x NEMA 5-15R Receptacle(s)
MSRP$2,690.00
$1,537.14
Save 43%In stock: 50
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. 1500VA & 15 Amp. 8 Outlets with Bank Control. (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rail. The battery is already connected so just plug it in. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6ft (1.8m) IEC power cord. Easily locate the Serial Number, replacement Battery Part Number, Battery Replacement Date, and UPS Firmware Version via the front LCD screen. You can even see the battery installation date. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards. Hot swappable battery from the front access panel for easy service without disrupting the system. The NEXSYS UPS is RackLink compatible (RackLink card sold separately) and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices. Included RS232 port for control. (2) dry contact ports for alerts. 1 contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold. 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.
| Additional Warranty Information | 2 Years Battery |
|---|---|
| Application/Usage | Audio/Video Equipment |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | UPX-1500R-2 |
| Limited Warranty | 3 Year |
| Output Voltage | 110 V AC, 120 V AC, 127 V AC |
| Weight (Approximate) | 44.09 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Legrand Group |
| Product Name | NEXSYS 1500VA Rack-mountable UPS |
| Product Line | NEXSYS |
| Waveform Type | Pure Sine Wave |
| Rack Height | 2U |
| Brand Name | Middle Atlantic |
| Plug/Connector Type | NEMA 5-15P |
| Country of Origin | China |
| Height | 3.46" |
| Width | 19.02" |
| Depth | 15.98" |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1350 W |
| Energy Star | Yes |
| AVR | Yes |
| DC System Voltage | 36 V DC |
| Product Color | Black |
| Receptacle Detail | 8 x NEMA 5-15R |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
