1920 x 1080 Video - Exmor R CMOS Sensor - Network (RJ-45)
$7,911.68
In stock: 1
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
COMING SOON! Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoom TM Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera's powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.
More from the Manufacturer
Vaddio RoboSHOT 30E HDBaseT OneLINK Bridge Video Conferencing System - Includes PTZ Camera
Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoom
TM
Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera's powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.
Package Contents:
RoboSHOT 30E HDBT OneLINK Bridge System
Thin Profile Wall Mount with Mounting Hardware and Installation Manual
Vaddio IR Remote Commander
OneLINK Bridge Interface
48V Power Supply with AC Cord Set(s)
EZCamera RS-232 Control Adapter
Quick-Start Guides
4 x 3-position Phoenix-style Connectors
6' (1.8m) USB 3.0 Cable, Type A to B

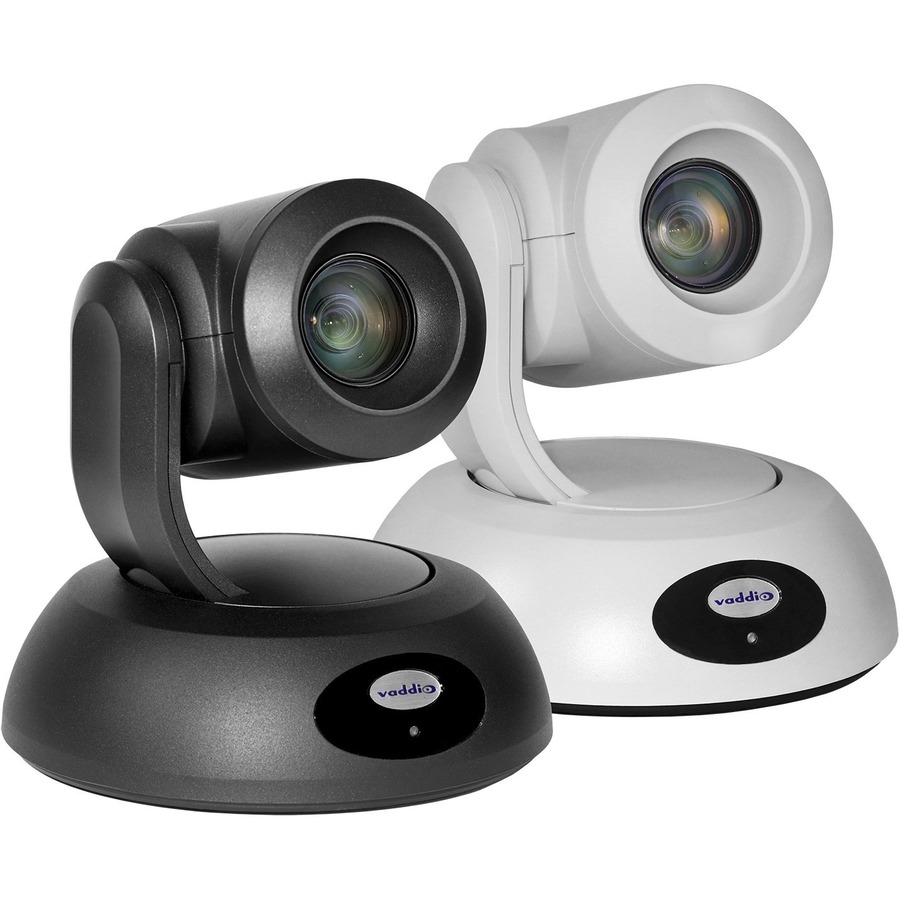

VADDIO’S NEXT-GENERATION OF PROFESSIONAL PTZ CAMERAS
RoboSHOT® Elite Series cameras are outstanding HD-quality PTZ cameras offering 12x and 30x zoom, silky-smooth motor movement and outstanding image quality.
No matter where they’re used – university lecture halls, houses of worship, government chambers, corporate meeting rooms and beyond, RoboSHOT Elite Series cameras promise truly brilliant HD video footage for streaming and recording.

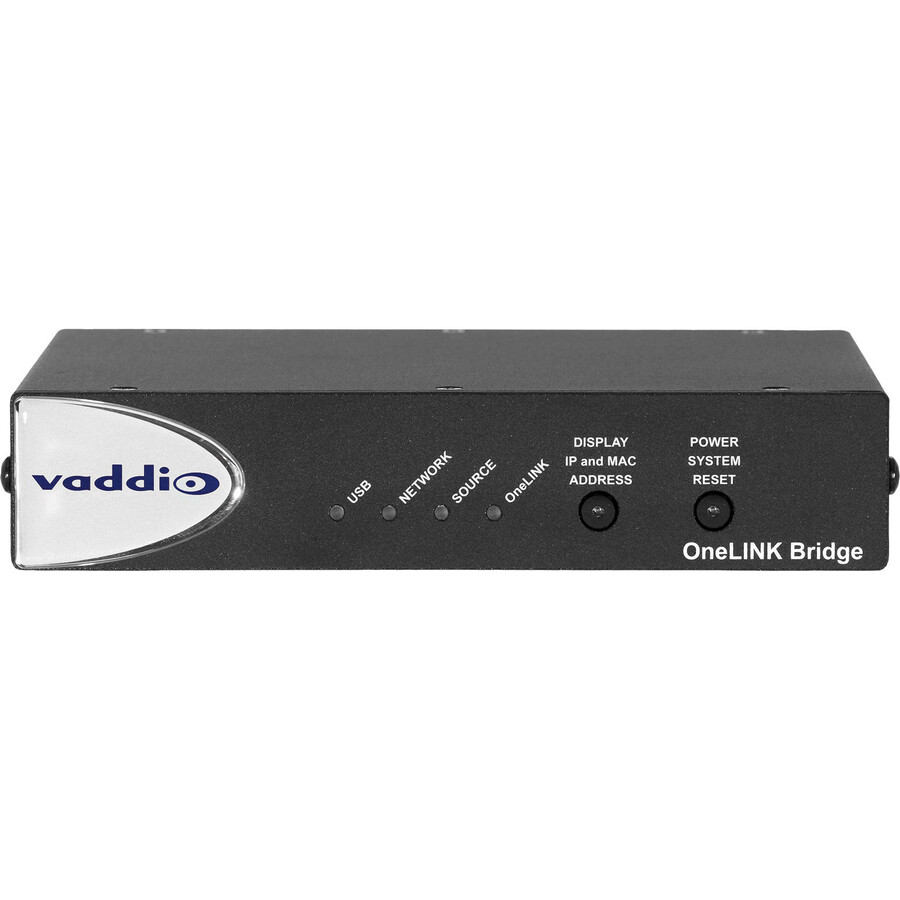

OneLINK Bridge
Features
Converts any conference room to a BYOD environment, connecting professional AV equipment and delivering a USB 3.0 audio and video stream for soft-conferencing clients
Two balanced audio inputs, line level or mic level; two balanced audio outputs, line level
Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3Gb/s HD-SDI; passes camera IP stream if available
Administrative control via web interface; passes web, Telnet, and RS-232 serial control to connected devices
Simple, clutter-free camera installation – power, control, video, and streaming over one cable
Extends camera installation distance up to 100 m (328 ft.) using Cat-6 cable; 230 ft (70 m) using Cat-5e
Compatible with Vaddio HDBaseT cameras
Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs

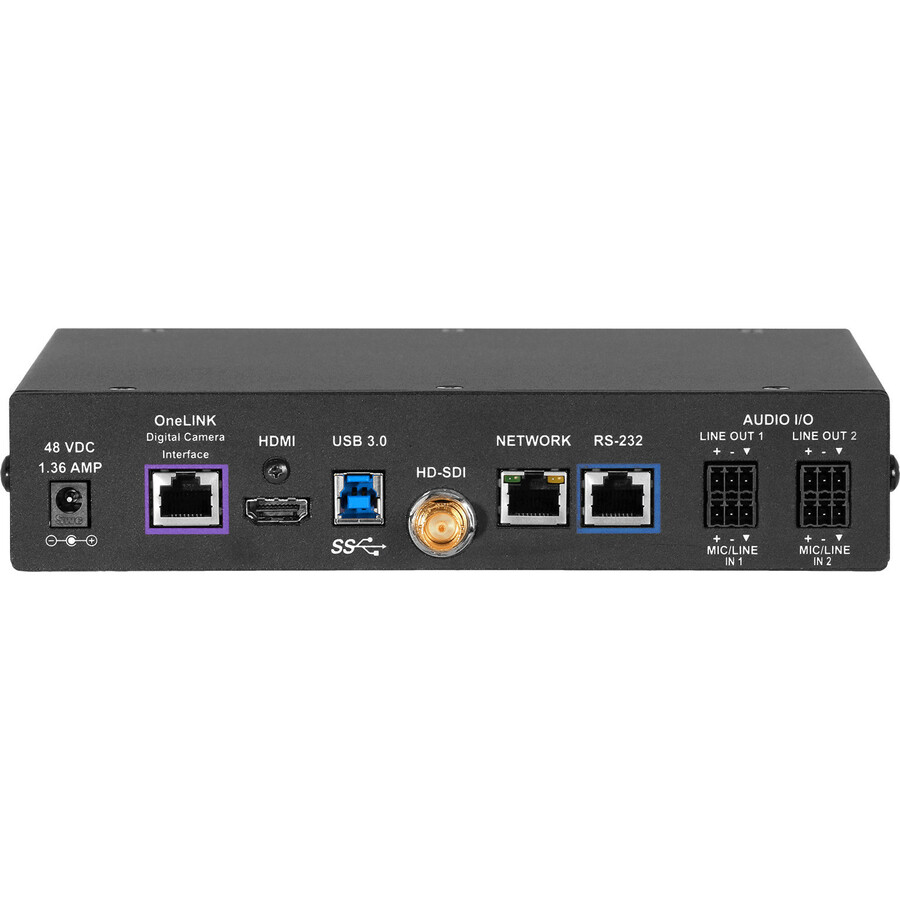

Connector Panel
Power input jack – Use the supplied 48VDC, 1.36A power supply
OneLINK interface port – Connect a Cat-5e (or better) cable to the EZIM, or to the camera if your OneLINK kit or system did not include an EZIM. This bidirectional connection carries video, audio (if available), network connectivity including H.264 IP streaming from the camera (if available), RS-232 control, and 12 VDC power
HDMI output – HDMI output to a connected display
USB 3.0 – Uncompressed video output with PCM audio for conferencing applications
HD-SDI – Video output from the camera
Network port – H.264 IP streaming (if available from the camera), web interface access, and third-party IP control via Telnet API
RS-232 port – Connect to a camera controller
Audio I/O Line Out 1 and Line Out 2 – Far-end audio from conferencing application or as configured in the audio matrix
Audio I/O Mic/Line In 1 and Mic/Line In 2 – Microphone or other audio inputs
Professional Results for Any Market
Corporate
With RoboSHOT Elite Series cameras, video conferencing
meetings can have an even greater impact on productivity
and the bottom line – with PTZ cameras that can zoom in on individual speakers or capture the room with an image that always puts your best foot forward.
House of Worship
Ideal for churches and worship areas, the 12x or 30x zoom
expands your reach. Enhanced WDR compensates for bright windows and dark corners. RoboSHOT Elite Series cameras provide fantastic high definition footage with built-in live streaming capabilities for recording worship services, special events, wedding ceremonies and more.
Education
Whether it’s lecture capture, live streaming or zooming in nice and close so students can view complicated techniques on a large classroom monitor, RoboSHOT
Elite Series cameras enhance learning in the modern classroom
Training
Make training sessions more effective no matter where
participants are located with cameras that capture demonstrations and keep attendees highly engaged with the instructor.
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Vaddio RoboSHOT 30E HDBT OneLINK Bridge System
| Display & Graphics | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Image Sensor Type | Exmor R CMOS |
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 999-99630-200W |
| Brand Name | Vaddio |
| Product Line | RoboSHOT |
| Product Name | RoboSHOT 30E HDBT OneLINK Bridge PTZ Camera System - TAA Compliant - White |
| Product Type | Video Conferencing Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Miscellaneous | |
| Package Contents |
|
