2.4 Megapixel Interpolated - 1920 x 1080 Video - Exmor CMOS Sensor - Auto/Manual - 10x Digital Zoom - Network (RJ-45) - Computer, Tablet
$2,442.99
In stock: 9
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
This conference room AV system is ideal for small to medium-sized videoconferencing rooms, choose color, power cord, speaker and microphone options to build the perfect ConferenceSHOT AV bundle for your space.
• Powerful: ConferenceSHOT AV integrates a 10x zoom HD PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphones and an external speaker to the camera. The ConferenceSHOT AV is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Microsoft Teams, WebEx and Google Meet.
• Simple: ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC - just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.
• Enterprise-Class: ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
This USB-based solution makes it easy for your organization to collaborate using your preferred videoconferencing software like Microsoft Teams, Google Meet and more.
ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It's a significant step up in performance from the current webcam-based technology offerings.
More from the Manufacturer
ConferenceSHOT 10 Camera
Professional conferencing camera designed for compatibility with soft conferencing clients. Simultaneous IP (H.264) and uncompressed USB 3.0 streaming. Recommended for huddle and conference rooms, training rooms, and classrooms that require a wide angle of view.
Features
2.14 Megapixel (effective), full HD (native 1080p/60) image
sensor
10x optical zoom, horizontal field of view of 74° in super-wide
mode
Smooth, silent direct-drive motors for precise pan and tilt
movements at up to 90° per second
Simultaneous uncompressed USB 3.0 and IP (H.264)
streaming outputs at resolutions up to 1080p/60
Universal Video Class (UVC) drivers supported in Windows®,
Mac® OS, and Linux operating systems, compatible with
most UC conferencing applications
Presenter-friendly IR remote control
Integration-ready Telnet or serial RS-232 control
Full administrative control via web interface; manage remotely
while monitoring the stream separately.

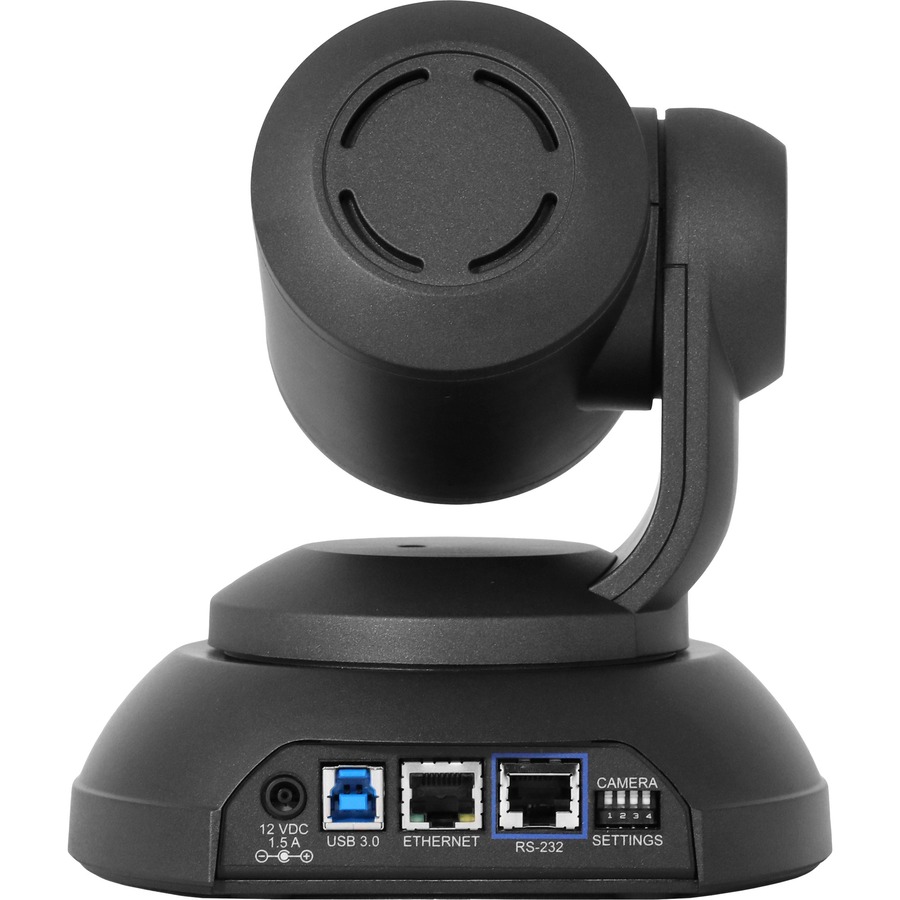

Back Panel
12 VDC, 3.0 Amp power connector – Connect only the
power supply shipped with the camera.
USB 3.0 type B video device connector – Streams
uncompressed UVC standard video
Ethernet RJ-45 – Connect to the network for IP streaming
and camera control via web interface or Telnet
DIP switches – Set IR frequency, IR on/off, and image flip
(camera is invertible)
RS-232 port – Connect to a controller to manage the
camera using a modified VISCA protocol.
ConferenceSHOT PTZ Camera
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.
Limited Warranty: 3 Year
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
| Display & Graphics | |
|---|---|
| Effective Resolution | 2.1 Megapixel |
| Interpolated Resolution | 2.4 Megapixel |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Image Sensor Type | Exmor CMOS |
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 999-9995-000B |
| Brand Name | Vaddio |
| Product Line | ConferenceSHOT AV |
| Product Name | ConferenceSHOT AV HD Conference Room System |
| Product Type | Video Conferencing Camera |
| Interfaces/Ports | |
| Host Interface | USB 3.0 |
| Network (RJ-45) | Yes |
| Lens | |
| Focus Modes | Auto/Manual |
| Digital Zoom | 10x |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.3" |
| Width | 6.1" |
| Depth | 5.5" |
| Weight (Approximate) | 3 lb |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Device Supported | Computer, Tablet |
| TAA Compliant | Yes |
