SKU
999-9960-100
Category
WebCams
Overview

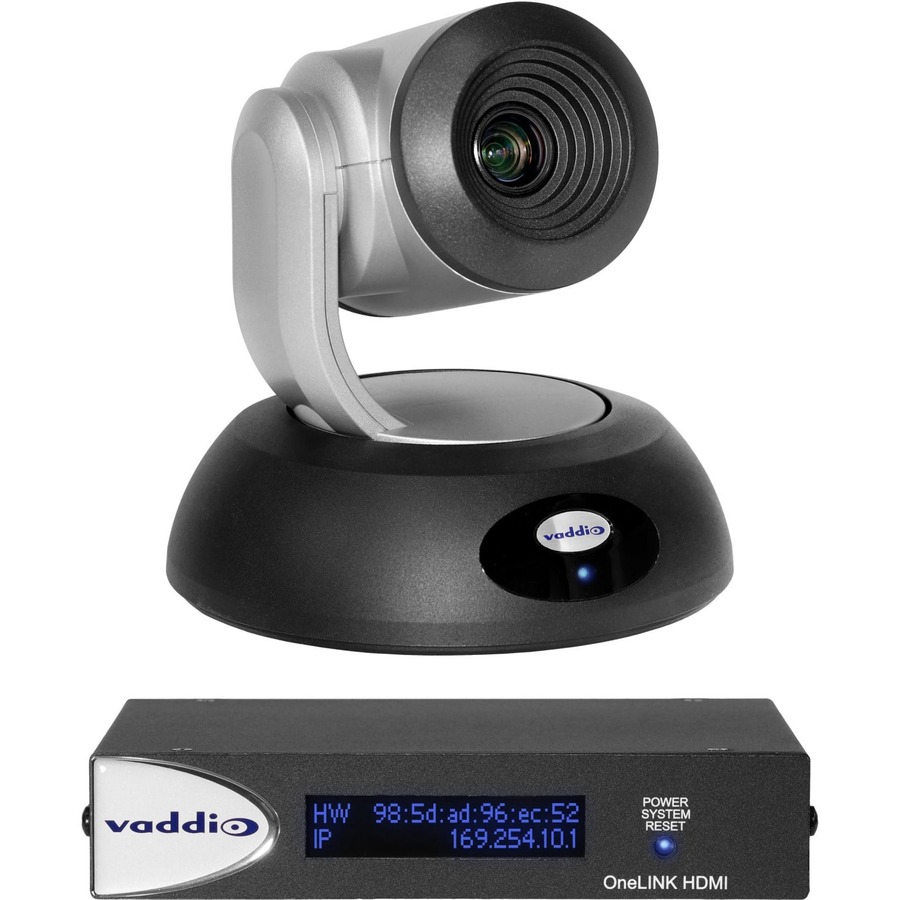

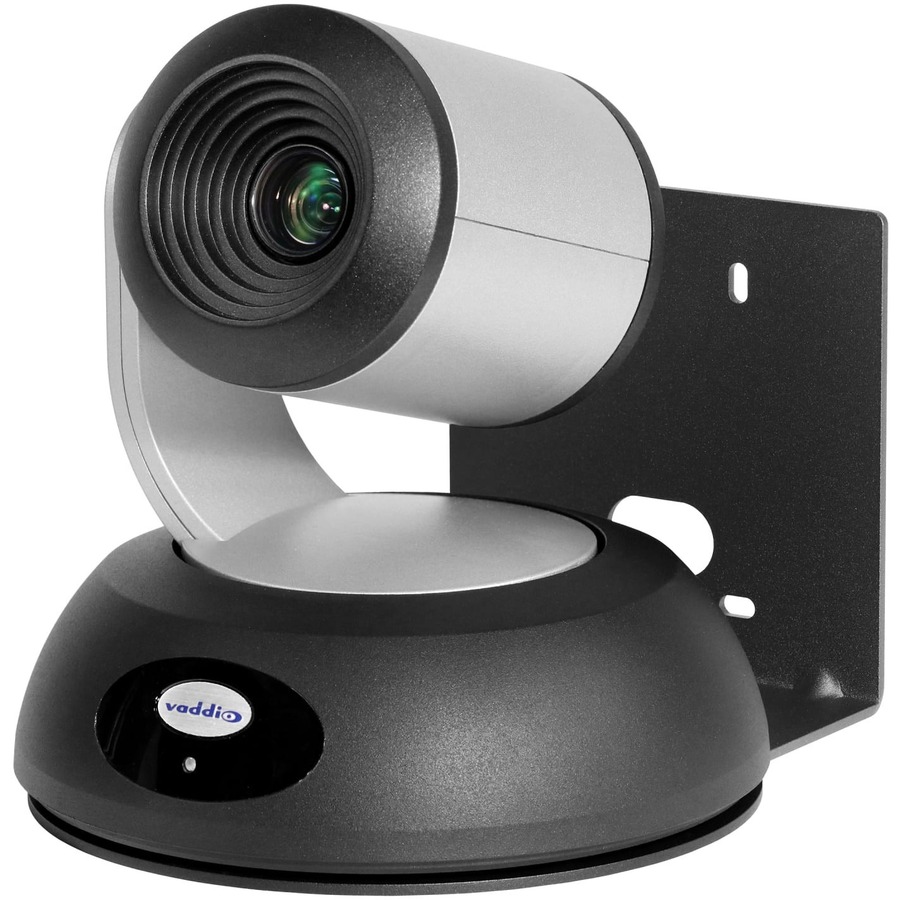

Combine a RoboSHOT 12 HDBT camera, OneLINK HDMI Extension Module for HDBaseT Cameras, and Thin Profile Wall Mount into one convenient kit. Result: Simple installation and integration.

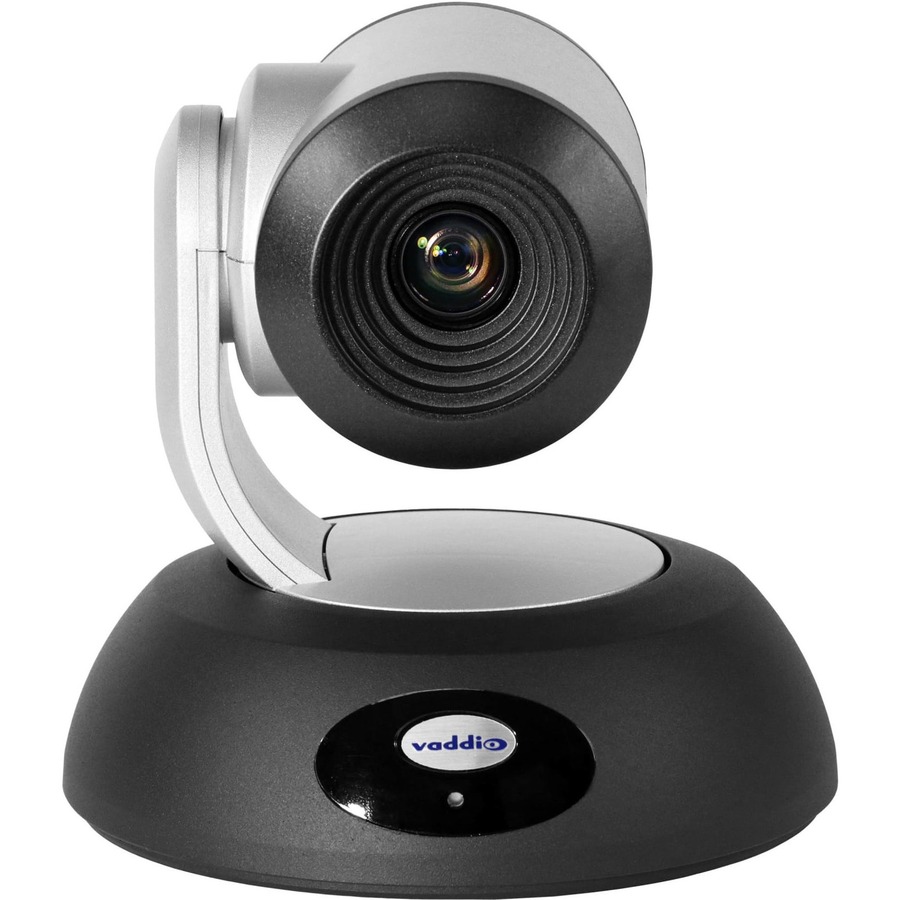

The included RoboSHOT 12 HDBT camera offers razor-sharp high-definition (1080p) video and 12x zoom with 73° horizontal field of view in super-wide mode, 6.6° fully zoomed in. Improved color mapping for true, precise color representation. The wide dynamic range (WDR) setting provides clear detail in high-contrast, bright lighting conditions, and Tri-Synchronous Motion technology allows all three axes of the camera (pan, tilt and zoom) to move simultaneously for ultra-smooth, natural camera motion.
The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.
This system is recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.
Warranty
Limited Warranty: 2 Year
Highlights
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Simultaneous HDMI and IP Streaming outputs
Specifications
Display & Graphics
Effective Resolution
2.1 Megapixel
Interpolated Resolution
2.4 Megapixel
Maximum Video Resolution
1920 x 1080
Maximum Frame Rate
60 fps
Image Sensor Type
Exmor CMOS
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-9960-100
Brand Name
Legrand
Product Line
RoboSHOT
Product Name
RoboSHOT 12 HDBT OneLINK HDMI System
Product Type
Video Conferencing Camera
Interfaces/Ports
Network (RJ-45)
Yes
HDMI Out
Yes
Lens
Focus Modes
Auto/Manual
Physical Characteristics
Product Color
Silver, Black
Height
6.9"
Width
7.1"
Depth
6.8"
Weight (Approximate)
4.85 lb
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
RoboSHOT 12 HDBT OneLINK HDMI System
Thin Profile Wall Mount with Mounting Hardware and Installation Manual
