8.6 Megapixel Interpolated - 1920 x 1080 Video - Exmor R CMOS Sensor - Auto/Manual - Network (RJ-45)
$6,048.69
In stock: 9
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.
The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.
More from the Manufacturer
Vaddio RoboSHOT 12E HDBT OneLINK HDMI Video Conferencing System - Includes PTZ Camera and HDMI Interface
Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.
The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.
Package Contents:

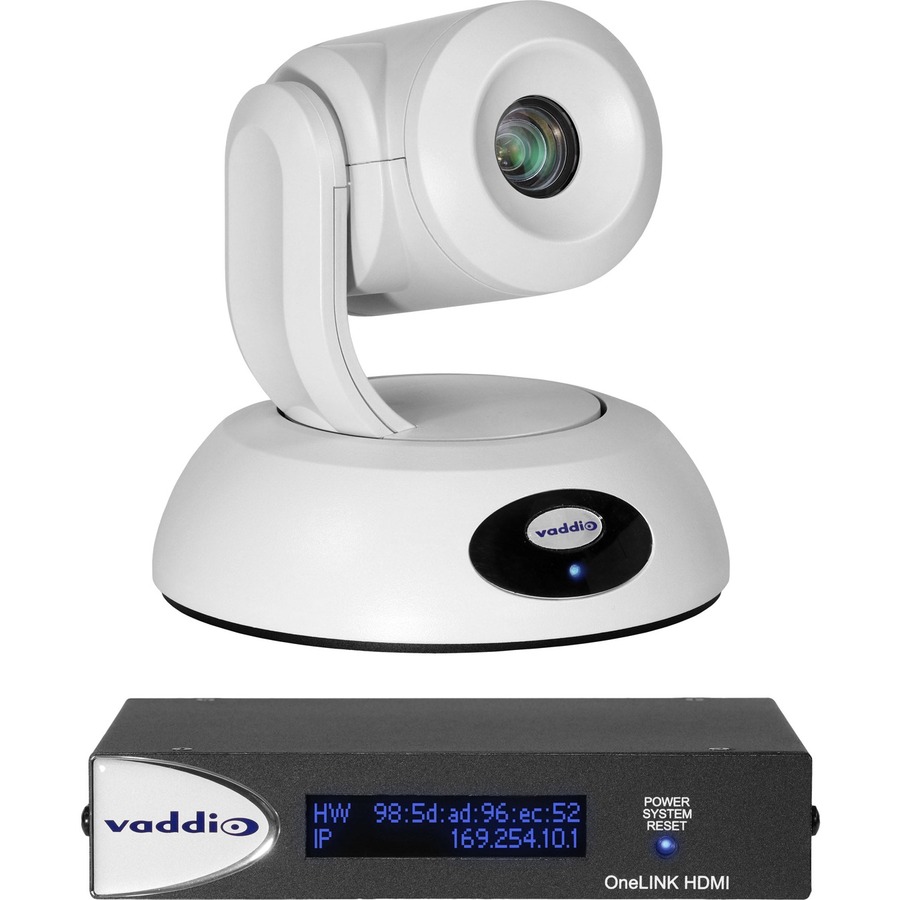

RoboSHOT 12E HDBT OneLINK HDMI System
Thin Profile Wall Mount with Mounting Hardware and Installation Manual
Vaddio IR Remote Commander
OneLINK HDMI Interface
48V Power Supply with AC Cord Set(s)
EZCamera RS-232 Control Adapter
Quick-Start Guides
VADDIO’S NEXT-GENERATION OF PROFESSIONAL PTZ CAMERAS
RoboSHOT® Elite Series cameras are outstanding HD-quality PTZ cameras offering 12x and 30x zoom, silky-smooth motor movement and outstanding image quality.
No matter where they’re used – university lecture halls, houses of worship, government chambers, corporate meeting rooms and beyond, RoboSHOT Elite Series cameras promise truly brilliant HD video footage for streaming and recording.

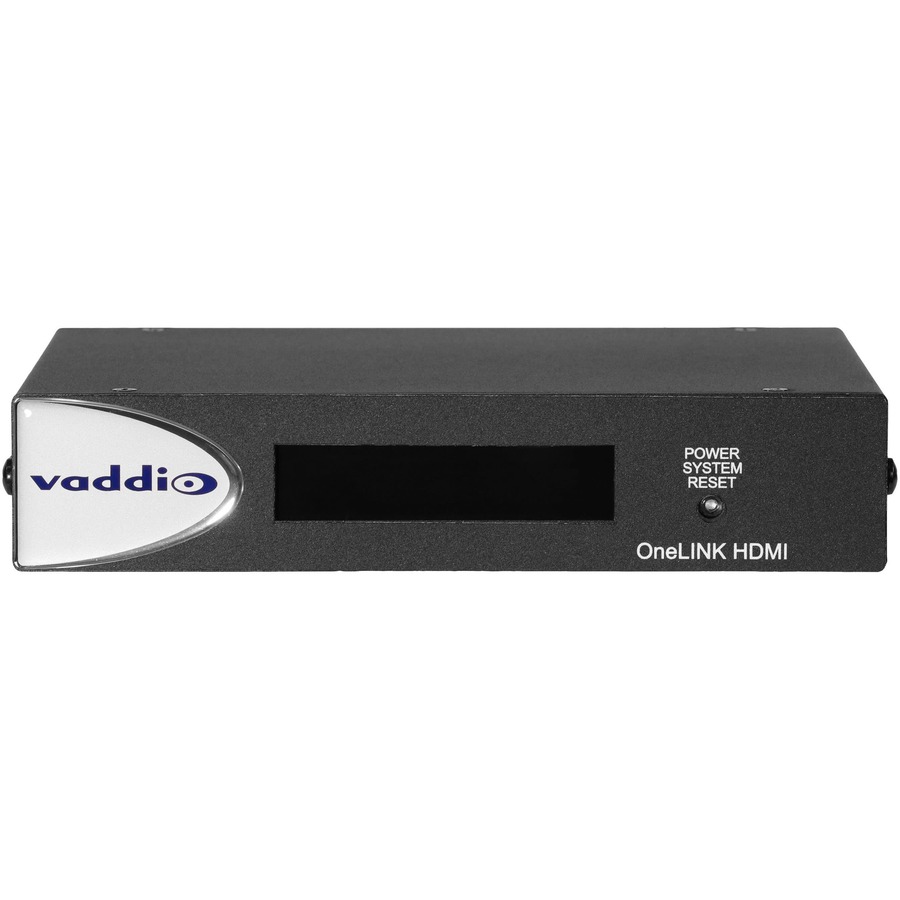

OneLINK HDMI
Features
Simple, fast, clutter-free camera installation – power, control, video, and network connectivity over a single cable
Extends camera installation distance up to 100 m (328 ft.) using Cat-6 cable; 230 ft (70 m) using Cat-5e
Passes uncompressed HDMI® video up to 2160p/29.97
Bidirectional control via Ethernet and RS-232
Compatible with Vaddio HDBaseT cameras
Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs and HDMI cameras

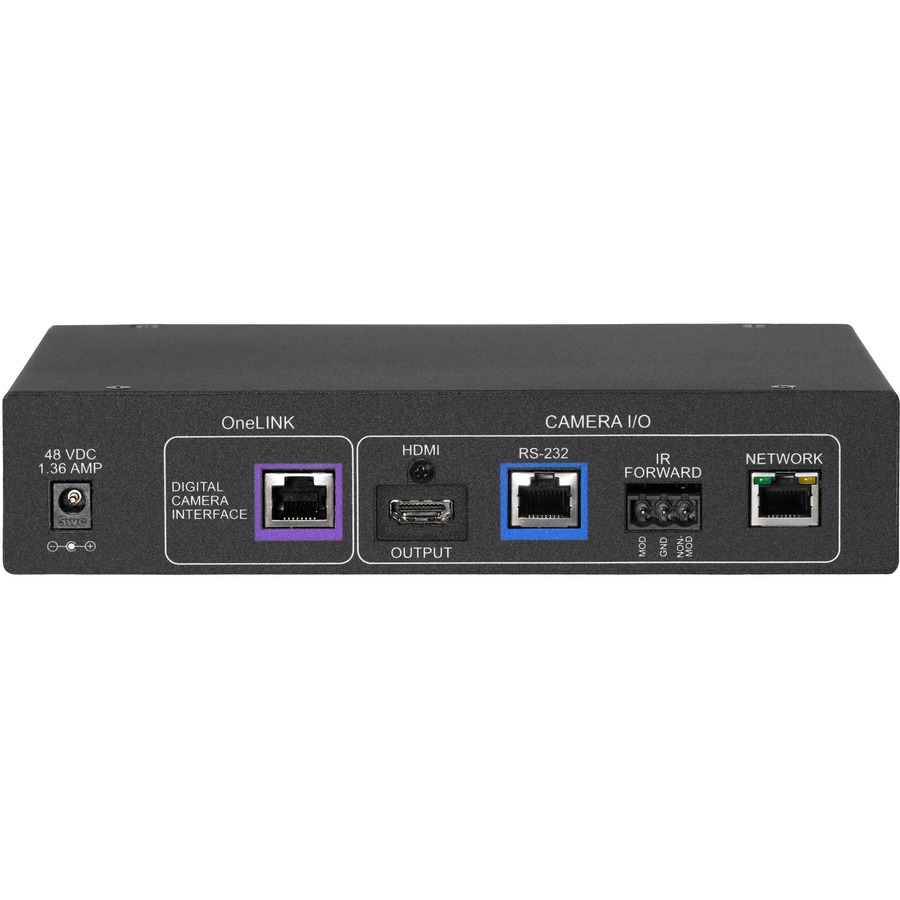

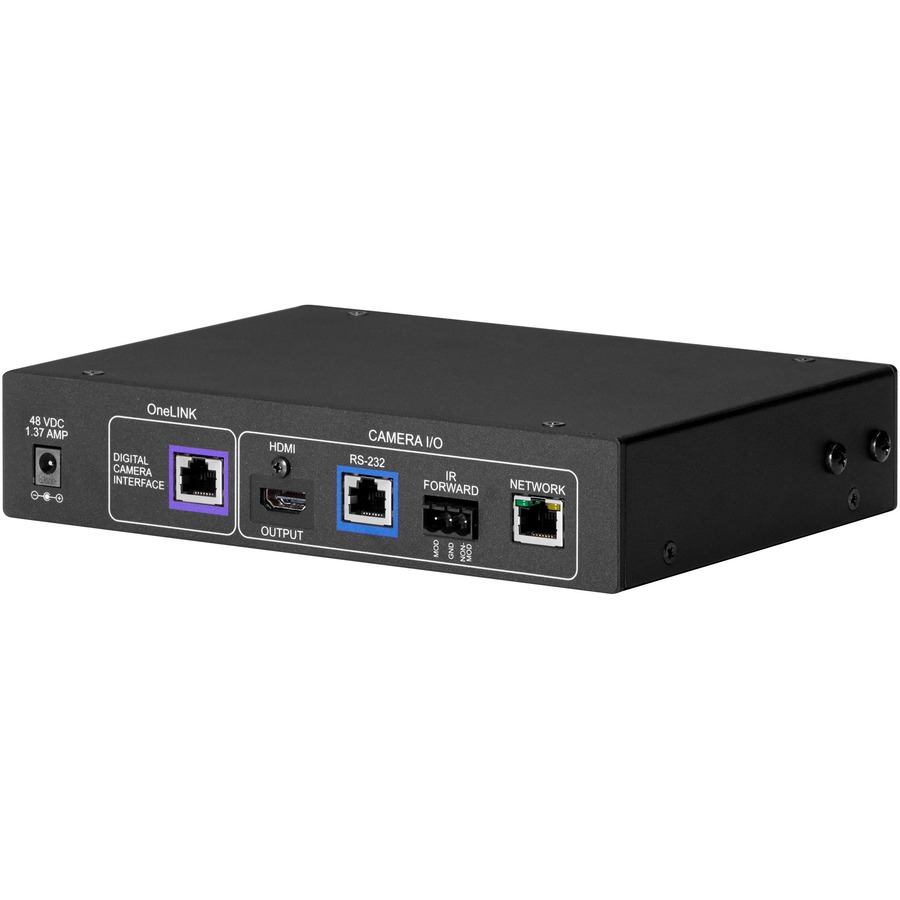

Connector Panel
Power input jack – Use the supplied 48VDC, 1.36A power supply.
OneLINK interface port – Connect a Cat-5e (or better) cable to the EZIM, or to the camera if your OneLINK kit
or system did not include an EZIM. This bidirectional connection carries video, network connectivity including H.264 IP streaming from the camera (if available), RS-232 control, and 12 VDC power.
HDMI output – HDMI output to a connected display.
RS-232 port – Connect to a camera controller.
IR forwarding port – To forward IR signals from the camera, if available. Modulated and non-modulated
outputs provided.
Network port – H.264 IP streaming (if available from the camera), web interface access, and third-party IP
control via Telnet API.

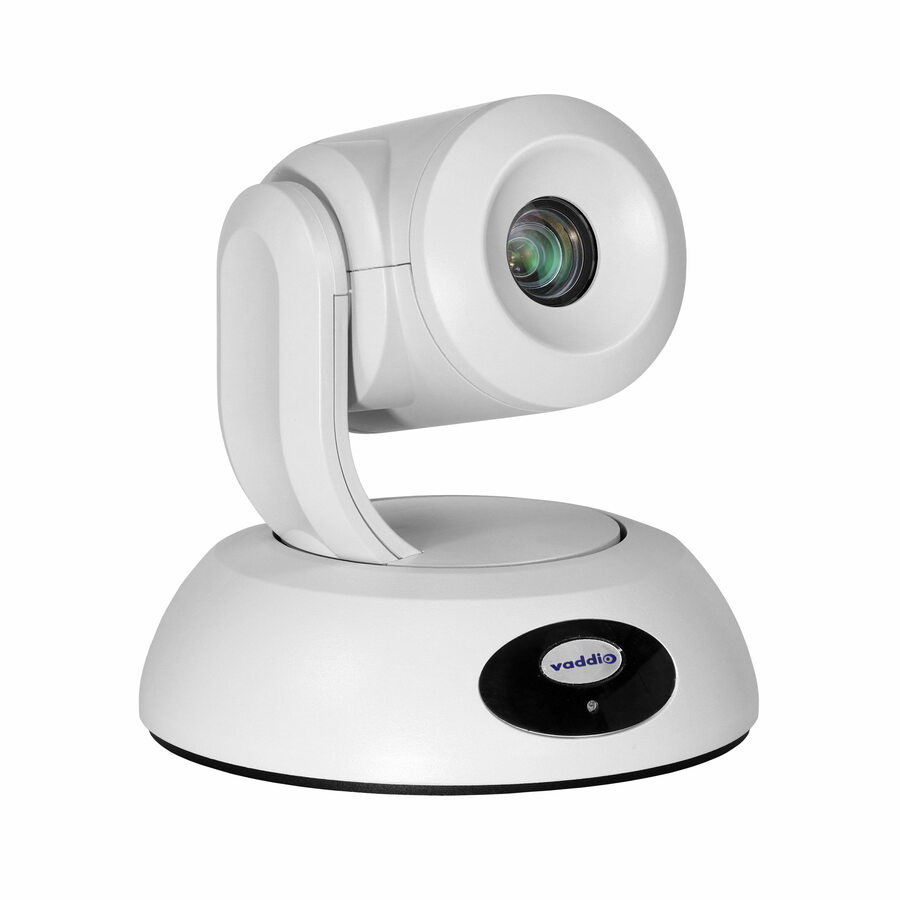

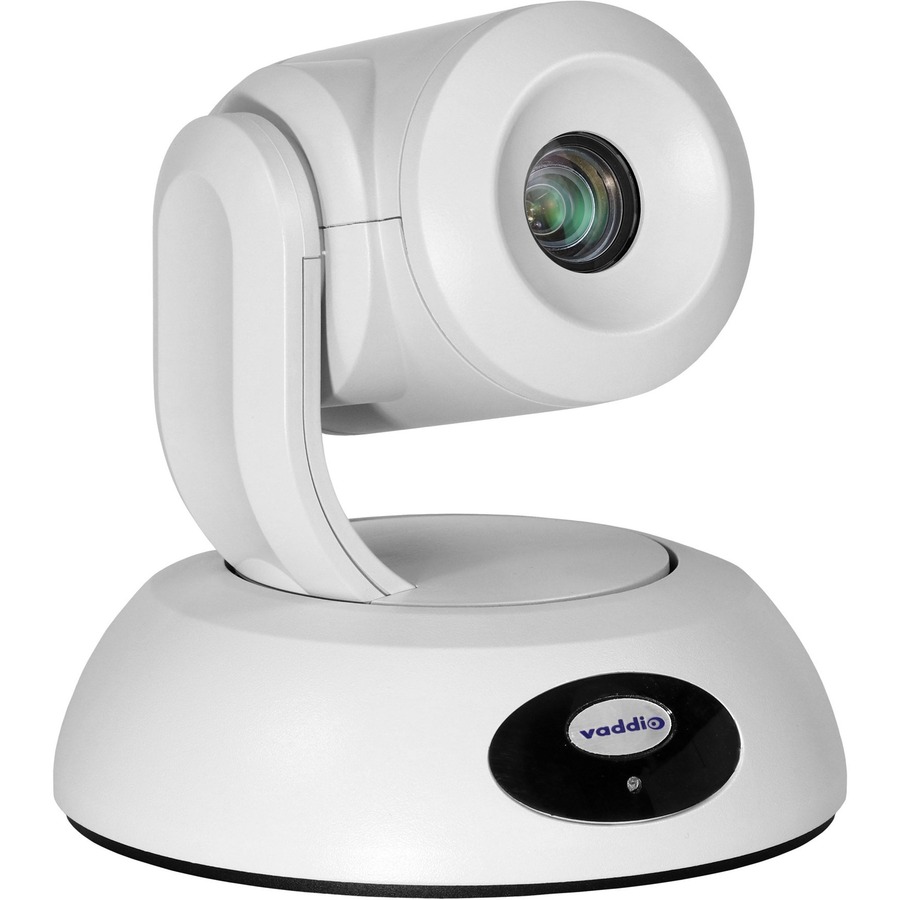

RoboSHOT Elite HDBT PTZ Camera
Smooth Tri-Synchronous Motion
The Elite Series of RoboSHOT PTZ cameras is equipped with
Vaddio’s industry-leading Tri-Synchronous Motion technology
allowing all three axes of the camera to move simultaneously for
ultra-smooth, natural camera motion.
Flexible Video Outputs
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264)
streaming. Connect directly to HDBaseT-compatible devices or pair
with Vaddio OneLINK receivers to simplify cabling and extend
installation distance.
The RoboSHOT 12E cameras are recommended for small to
medium spaces such as conference rooms, training rooms, and
classrooms that require a wide angle of view.
The RoboSHOT 30E cameras are ideal for larger spaces such as
large meeting rooms, lecture halls, conference centers and houses
of worship.
Features
Back-illuminated 8.51 Megapixel, high definition 1/2.5 Type Exmor R CMOS Sensor delivers 1080p/60 video
RoboSHOT 12E Models feature 12x Optical Zoom
RoboSHOT 30E Models feature 30x Zoom including IntelliZoom™ Image Processing
Simultaneous HDBT, HDMI and IP (H.264) streaming outputs
Full administrative control via web interface; manage remotely while monitoring the stream separately
Professional Resu;ts for Any Market
Corporate
With RoboSHOT Elite Series cameras, video conferencing
meetings can have an even greater impact on productivity
and the bottom line – with PTZ cameras that can zoom in on individual speakers or capture the room with an image that always puts your best foot forward
House of Worship
Ideal for churches and worship areas, the 12x or 30x zoom
expands your reach. Enhanced WDR compensates for bright windows and dark corners. RoboSHOT Elite Series cameras provide fantastic high definition footage with built-in live streaming capabilities for recording worship services, special events, wedding ceremonies and more.
Education
Whether it’s lecture capture, live streaming or zooming in nice and close so students can view complicated techniques on a large classroom monitor, RoboSHOT
Elite Series cameras enhance learning in the modern classroom
Training
Make training sessions more effective no matter where
participants are located with cameras that capture demonstrations and keep attendees highly engaged with the instructor.
Limited Warranty: 2 Year
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Vaddio RoboSHOT 12E HDBT OneLINK HDMI System
| Display & Graphics | |
|---|---|
| Effective Resolution | 8.5 Megapixel |
| Interpolated Resolution | 8.6 Megapixel |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Image Sensor Type | Exmor R CMOS |
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 999-99600-100W |
| Brand Name | Vaddio |
| Product Line | RoboSHOT Elite |
| Product Name | RoboSHOT 12E HDBT OneLINK HDMI System |
| Product Type | Video Conferencing Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Lens | |
| Focus Modes | Auto/Manual |
| Physical Characteristics | |
| Product Color | White |
| Height | 6.9" |
| Width | 7.1" |
| Depth | 6.8" |
| Weight (Approximate) | 4.85 lb |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
