Lantronix S4110-4848 Transceiver/Media Converter
11.5 Gigabit Ethernet, Gigabit Ethernet - 1000Base-X - 11.50 Gbit/s - 2 x Expansion Slots - SFP+ - 2 x SFP+ Slots - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant
- SKU
- S4110-4848-EU
- Category
- Transceivers/Media Converters
MSRP$1,431.00
$1,038.83
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- S4110-4848-EU
- Category
- Transceivers/Media Converters
Overview

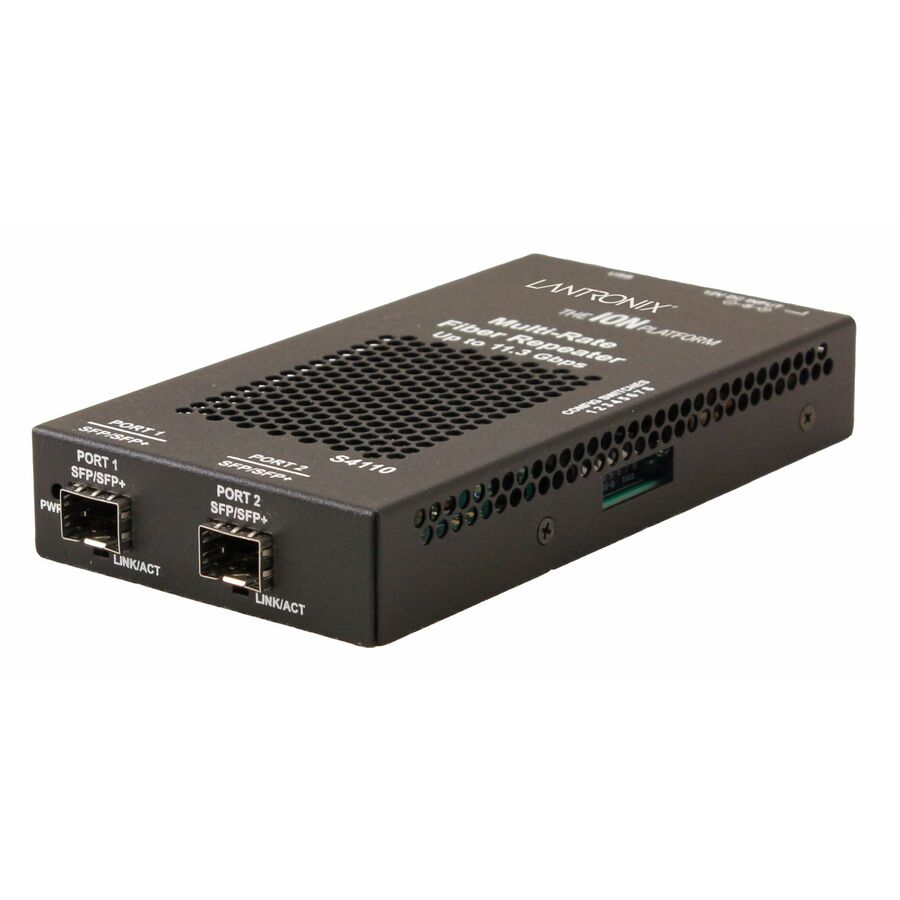

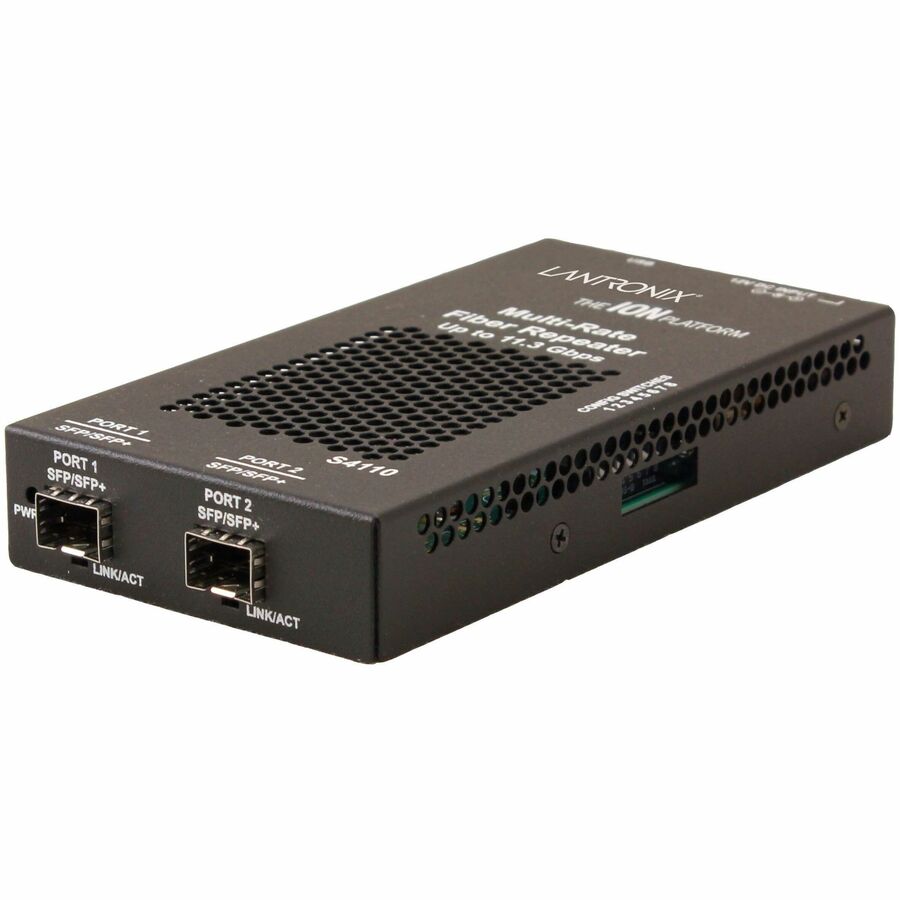

Stand-alone Fiber to Fiber Media Converter
SFP+ to SFP+ for Data Rates from 1 Gbps to 11.5 Gbps
The S4110 is a stand-alone fiber to fiber media converter. It is protocol independent and supports data rates from 1Gbps to 11.5Gbps through two open SFP+ slots. This allows network managers to customize the S4110 with a pair of SFP+ modules to meet their network requirements. The open SFP+ ports support a wide variety of Transition Networks 10GE SFP+ fiber modules. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode conversion or it can be used to provide wavelength conversion in CWDM applications.
Highlights
- Fiber to fiber repeater
- Supports data rates from 1Gbps to 11.5Gbps
- Support any-rate to same-rate
- Protocol Transparent, supports: Ethernet: 10Gig LAN, 10Gig Wan, 1Gig LAN | Fiber Channel: 10, 8, 4, 2, 1Gig | SONET/SDN OC-192, OC-48
- SFP to SFP or SFP+ to SFP+
- Provides conversion between different types of fiber
- Supported transmission distance based on the SFP modules and fiber type used
- Supports 3R (Reamplify, Reshape, and Retime) signal regeneration
- No frame size limitations
- Use as a fiber mode converter
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | S4110-4848-EU |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount |
| Manufacturer | Lantronix, Inc |
| Product Model | S4110-4848 |
| Product Name | S4110-4848 Transceiver/Media Converter |
| Network Technology | 1000Base-X |
| Power Consumption | 4.20 W |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP+ |
| Height | 1" |
| Width | 3.3" |
| Depth | 6.5" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 11.50 Gbit/s |
| Ethernet Technology | 11.5 Gigabit Ethernet, Gigabit Ethernet |
| Number of SFP+ Slots | 2 |
| Media Type Supported | Optical Fiber |
| Total Number of Expansion Slots | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
