Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
E-100BTX-FX-05(SCHT)-EU
Category
Transceivers/Media Converters
Overview

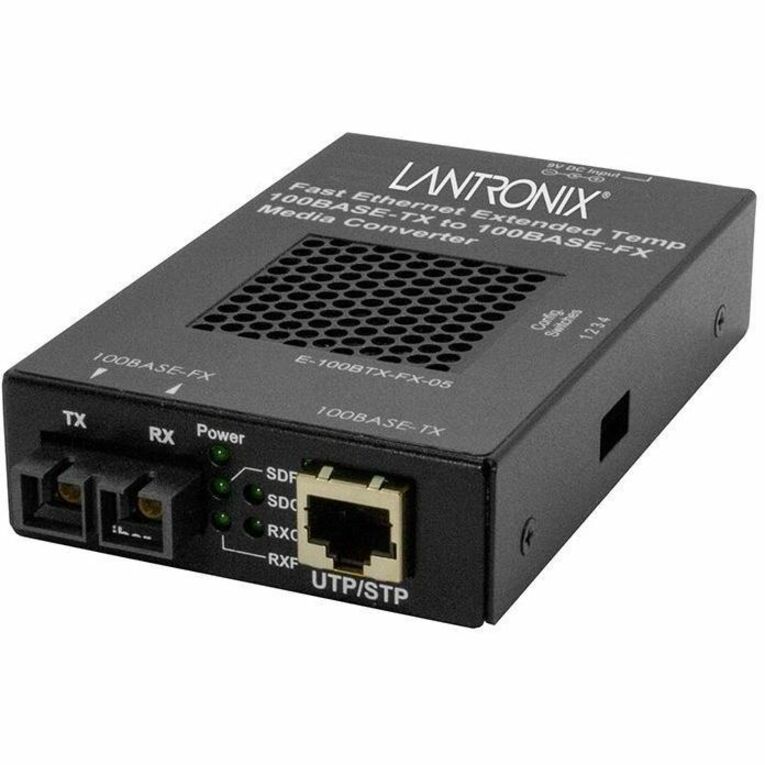

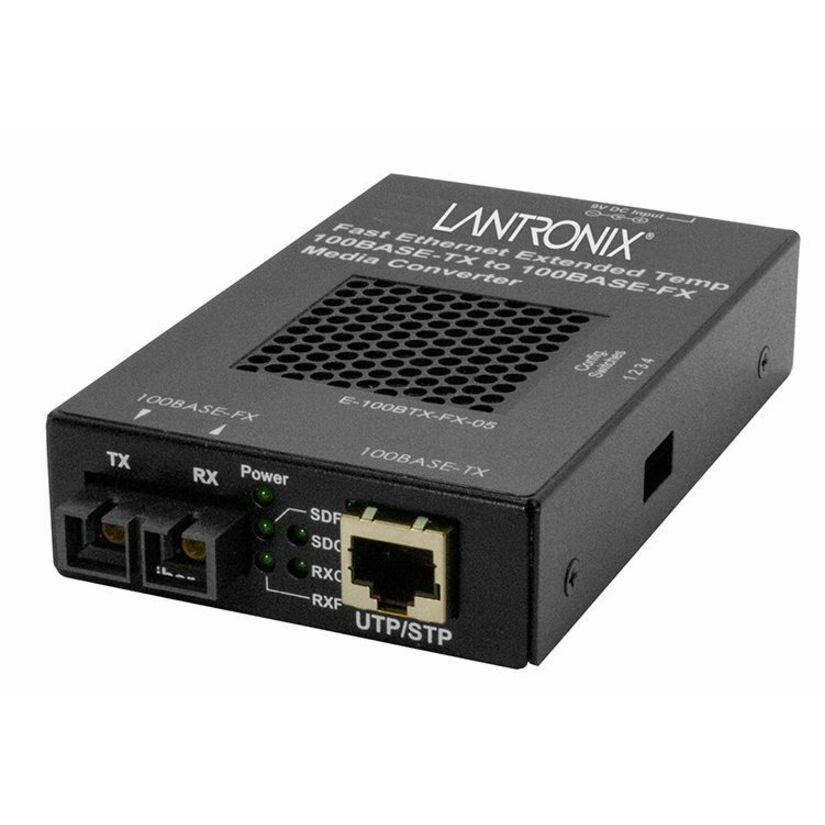

Unmanaged Hardened Fast Ethernet Media Converter
(1) 100Base-TX Port + (1) 100Base-FX Port
The E-100BTX-HT Series is a Hardened Ethernet stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into extreme 100Base-TX copper environments, by supporting an operating temperature range of -25°C to 65°C. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Highlights
Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
Auto-Negotiation
Auto-MDI/MDIX
Link Pass Through
Far-End-Fault Detection
Automatic Link Restoration
Pause
Specifications
Package Contents
E-100BTX-FX-05(SCHT) Transceiver/Media Converter
Power Supply - Europe
Product Type
Transceiver/Media Converter
Manufacturer Part Number
E-100BTX-FX-05(SCHT)-EU
Maximum Distance Supported
2 km
Power Source
AC/DC
Limited Warranty
Lifetime
Weight (Approximate)
2 lb
Form Factor
Standalone, Wall Mountable, DIN Rail Mountable, Shelf Mount
Manufacturer
Lantronix, Inc
Product Model
E-100BTX-FX-05(SCHT)
Product Name
E-100BTX-FX-05(SCHT) Transceiver/Media Converter
Network Technology
100Base-TX, 100Base-FX
Product Series
E-100BTX-HT
Brand Name
Lantronix
Height
1"
Width
3"
Depth
4.7"
Environmentally Friendly
Yes
Maximum Data Transfer Rate
100 Mbit/s
Ethernet Technology
Fast Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of SC Ports
1
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Multi-mode
Total Number of Ports
2
TAA Compliant
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
