Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ADD-GMC-SX-LC
Category
Transceivers/Media Converters
Overview

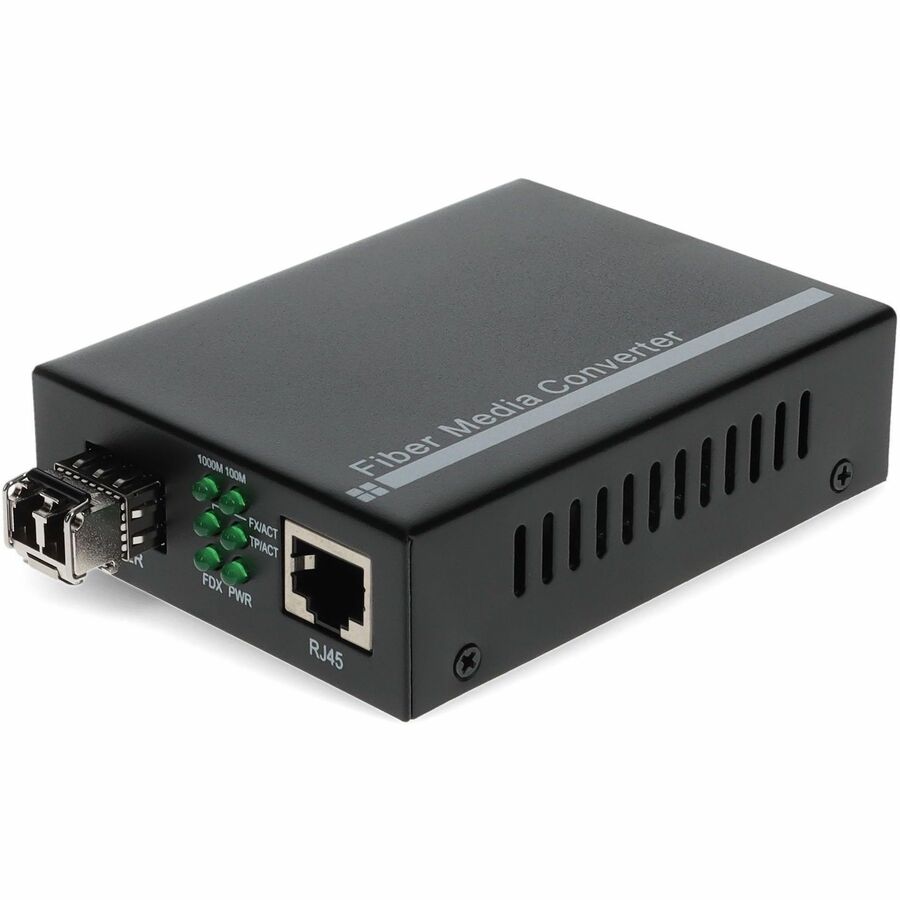

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) via a 850nm multi-mode fiber (MMF) LC connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Highlights
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
Expand your network capabilities with this 2 transceiver/media converter
With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
Specifications
Package Contents
10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) MMF 850nm 550m Mini Media Converter 1 x Transceiver
Product Type
Transceiver/Media Converter
Manufacturer Part Number
ADD-GMC-SX-LC
Maximum Distance Supported
0.55 km
Packaged Quantity
1
Power Source
Power Adapter
Limited Warranty
Lifetime
Manufacturer
AddOn
Product Name
10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) MMF 850nm 550m Mini Media Converter
Network Technology
10/100/1000Base-TX, 1000Base-SX
Brand Name
AddOn
Depth
0.7"
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of LC Ports
1
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Multi-mode
Total Number of Ports
2
TAA Compliant
No
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
