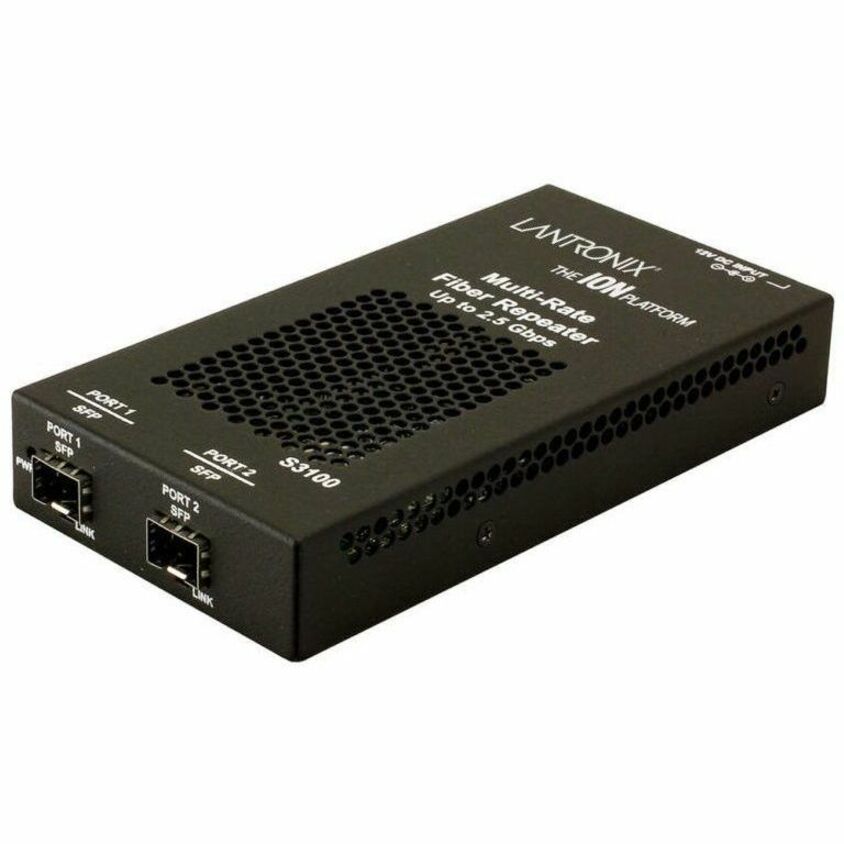

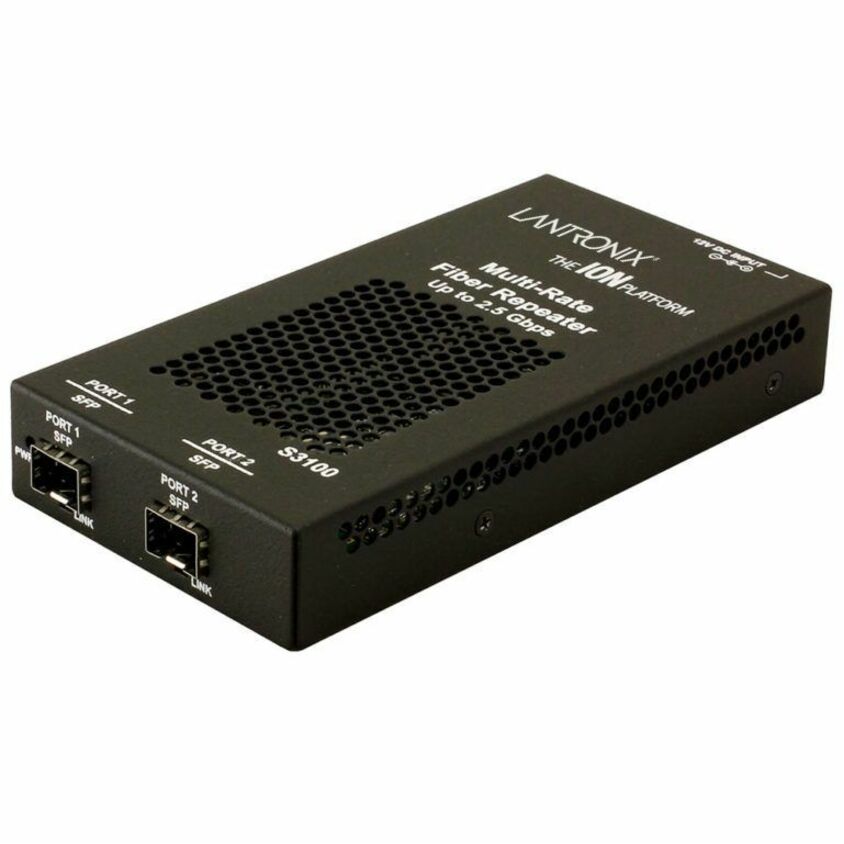

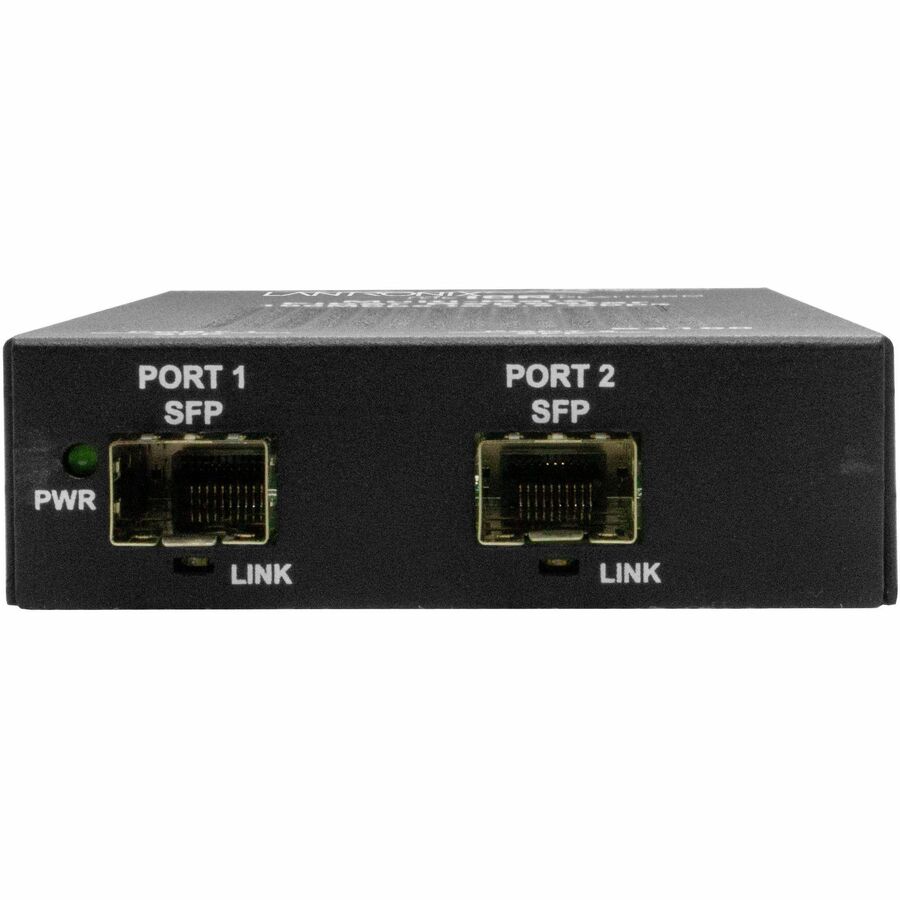

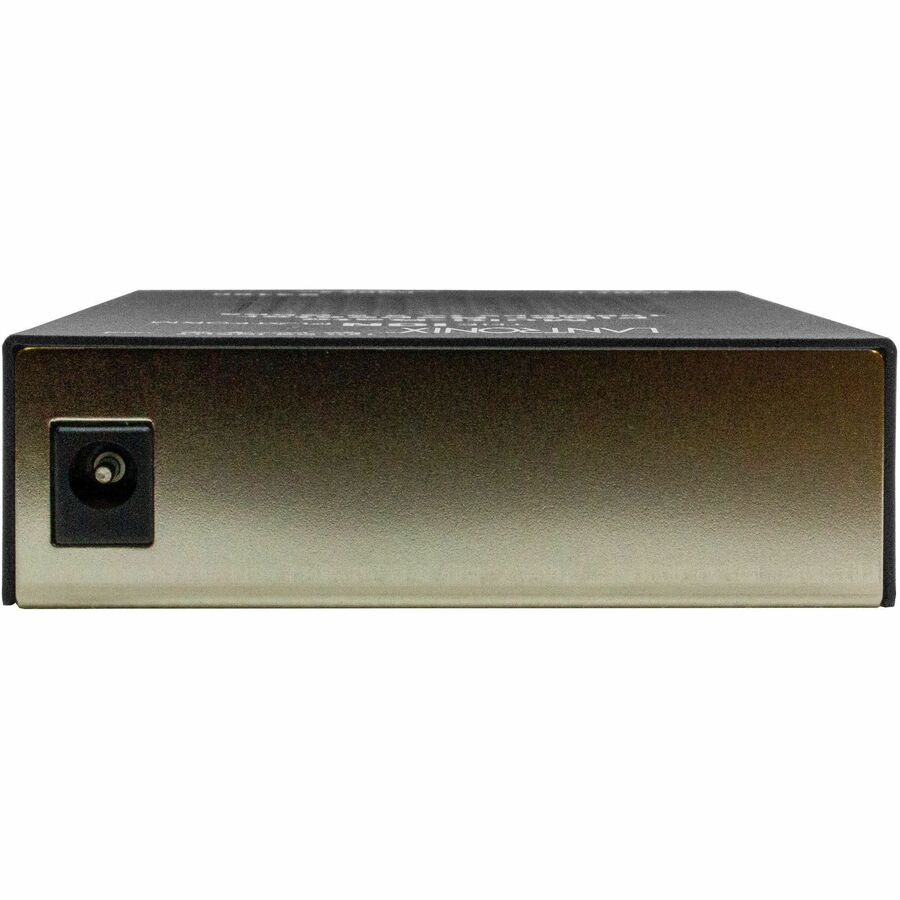

Lantronix S3100-4040 Transceiver/Media Converter
Lantronix

Lantronix S3100-4040 Transceiver/Media Converter

2.5 Gigabit Ethernet, Fast Ethernet - 2.5GBase-X, 100Base-X - 2.50 Gbit/s - 2 x Expansion Slots - SFP - 2 x SFP Slots - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant

SKU
S3100-4040-NA
Category
Transceivers/Media Converters

MSRP$545.00

$396.12

Save 27%

In stock: 5

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
S3100-4040-NA
Category
Transceivers/Media Converters

Overview

Stand-alone Fiber to Fiber Media Converter

SFP to SFP for Data Rates from 100Mbps to 2.5 Gbps

The ION S3100 is a stand-alone fiber to fiber media converter. It is protocol independent and supports data rates from 100Mbps to 2.5Gbps through two open SFP slots. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode fiber conversion or it can be used to provide wavelength conversion in CWDM applications.

Highlights

  • Protocol Transparent
  • Supports data rates from 100Mbps to 2.5Gbps
  • Any-rate to same-rate conversion
  • SFP to SFP Fiber Repeater
  • Specific wavelength CWDM Transponder
  • Supported protocols: Fast Ethernet, Gigabit Ethernet, SONET (OC-3/12/48), 1 & 2 Gig Fiber Channel, 2.5G InfiniBand, FDDI, ESCON/SBCON
  • Link Pass Through
  • Automatic Link Restoration

Specifications

Package Contents
  • S3100-4040 Transceiver/Media Converter
  • Power Supply - North America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberS3100-4040-NA
Power SourceAC/DC
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorStandalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount
ManufacturerLantronix, Inc
Product ModelS3100-4040
Product NameS3100-4040 Transceiver/Media Converter
Network Technology2.5GBase-X, 100Base-X
Power Consumption3 W
Product LineION
Brand NameLantronix
Expansion Slot TypeSFP
Height1"
Width3.3"
Depth6.5"
Environmentally FriendlyYes
Maximum Data Transfer Rate2.50 Gbit/s
Ethernet Technology2.5 Gigabit Ethernet, Fast Ethernet
Number of SFP Slots2
Media Type SupportedOptical Fiber
Total Number of Expansion Slots2
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
