Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Lantronix through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Network Interface Cards
Overview
M.2 Fast Ethernet Fiber Network Interface Card for Dell OptiPlex 7040/7050 & 7080/7090 (35W) Micro PCs & Wyse 7040/7050 Series
100Base-FX

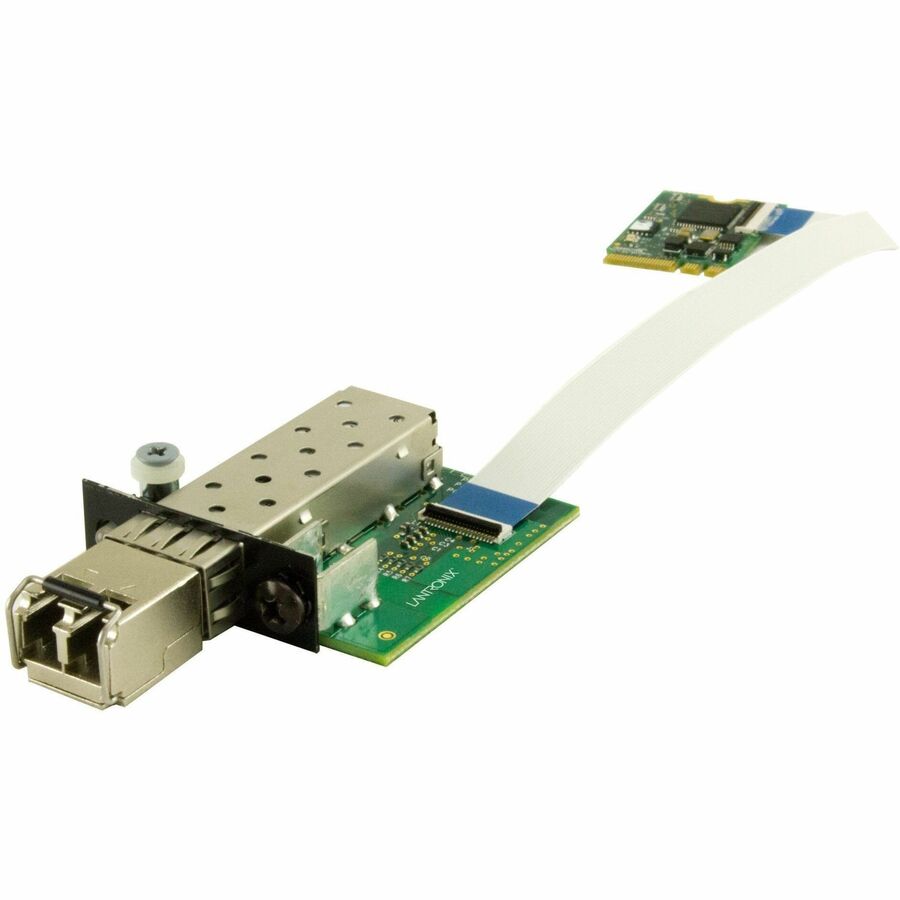

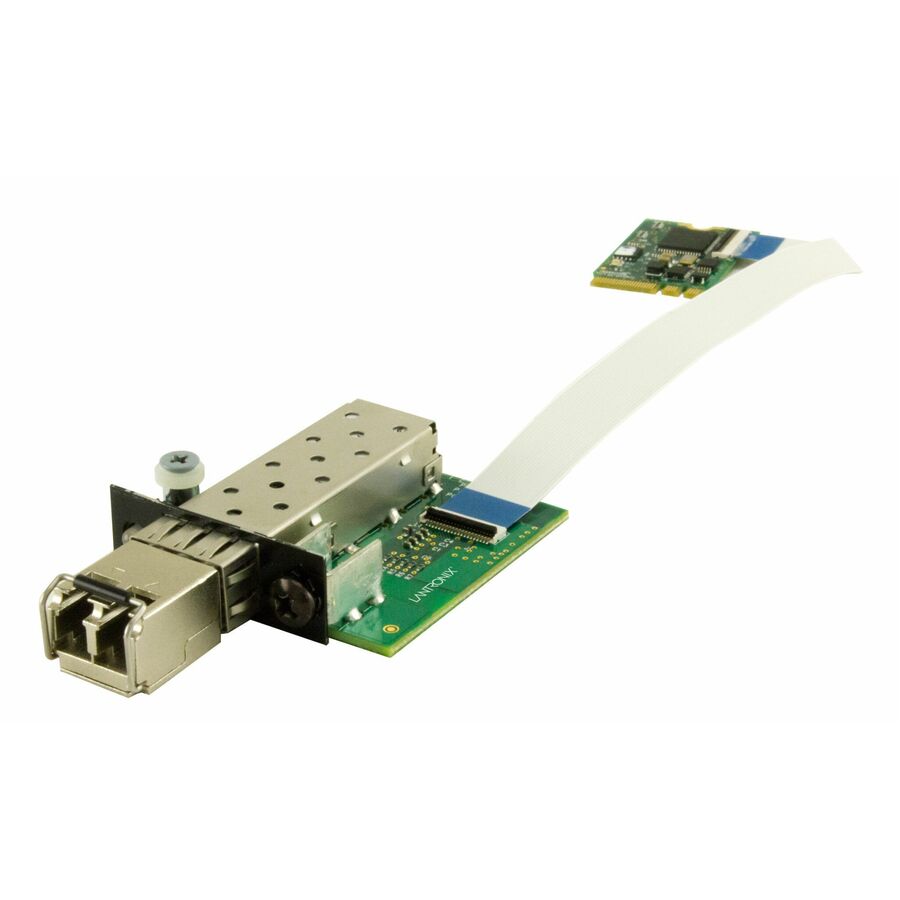

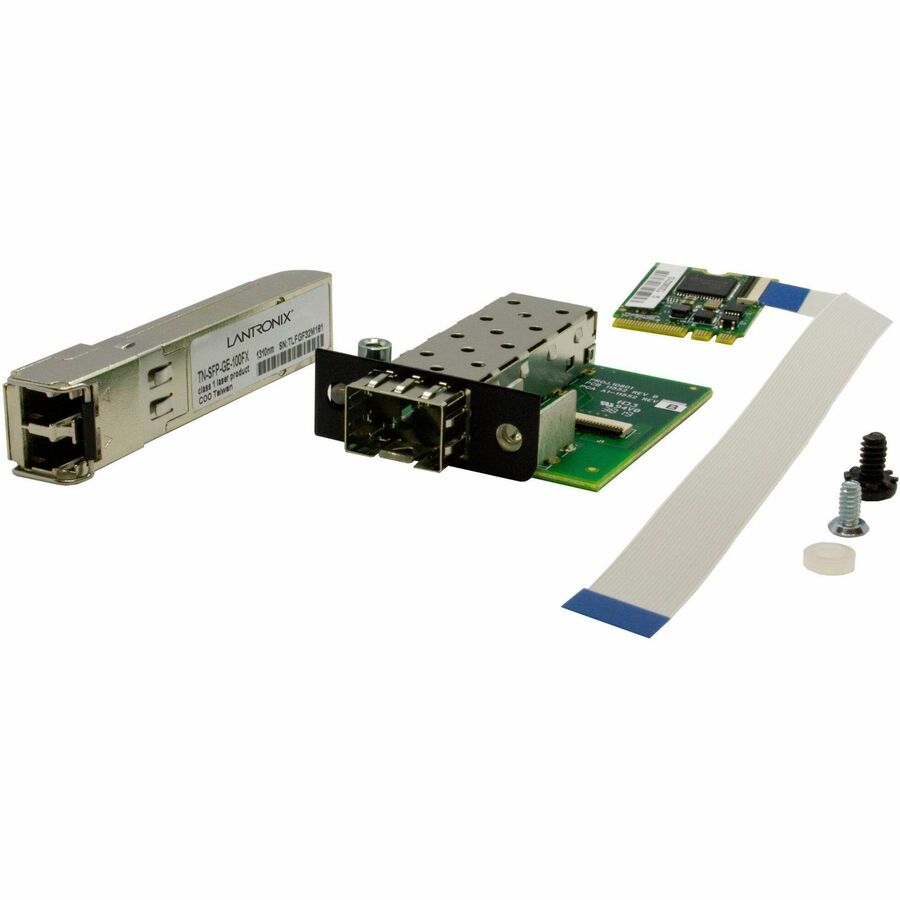

Lantronix M.2 Fast Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex 7040, 7050, and 7080/7090 (35W) Micro PC & Wyse 7040/7050 Series Thin Clients. The NM2-FXS-2230-SFP-01 consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is an open SFP with a 100Base-FX to SGMII SFP Module (included).
Warranty
Limited Warranty: Lifetime
Highlights
This Fast Ethernet card supports an impressive data transfer rate of up to 100Mbps
Enjoy superfast data transfer of up to 250 MB/s with PCI Express card, between the network card and motherboards
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
With the 100Base-FX technology get up to 100Mbps data transfer rate over the optical fiber cable
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
NM2-FXS-2230-SFP-01
Brand Name
Transition Networks
Product Model
NM2-FXS-2230-SFP-01
Product Name
NM2-FXS-2230-SFP-01 Fast Ethernet Card
Product Type
Fast Ethernet Card
I/O Expansions
Expansion Slot Type
SFP
Interfaces/Ports
Host Interface
PCI Express, M.2
Media & Performance
Media Type Supported
Optical Fiber
Maximum Data Transfer Rate
100 Mbit/s
Network & Communication
Network Technology
100Base-FX
Physical Characteristics
Form Factor
Plug-in Card
Height
0.1"
Width
0.9"
Depth
1.2"
Weight (Approximate)
1.60 oz
Technical Information
Features
LED Indicator, Wake on LAN (WOL), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), UEFI Support, PXE Support, Jumbo Frames Support, IPv6
