SKU
ADD-PCIE-LC-FX-X1
Category
Network Interface Cards
Overview

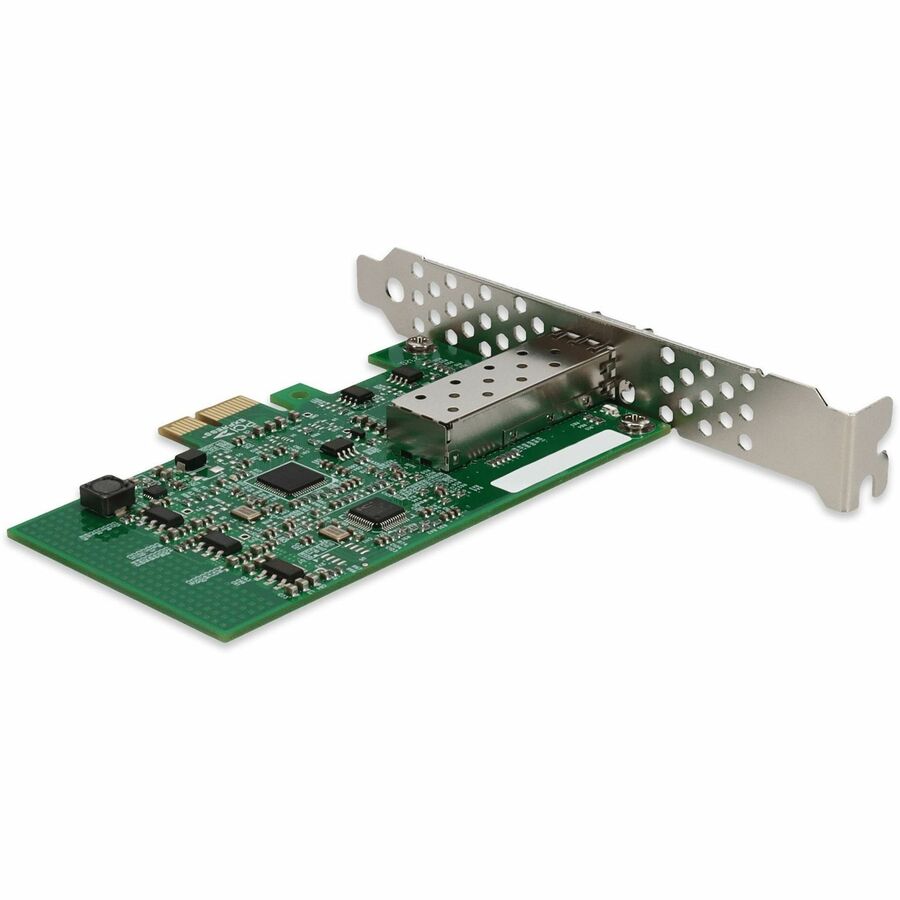

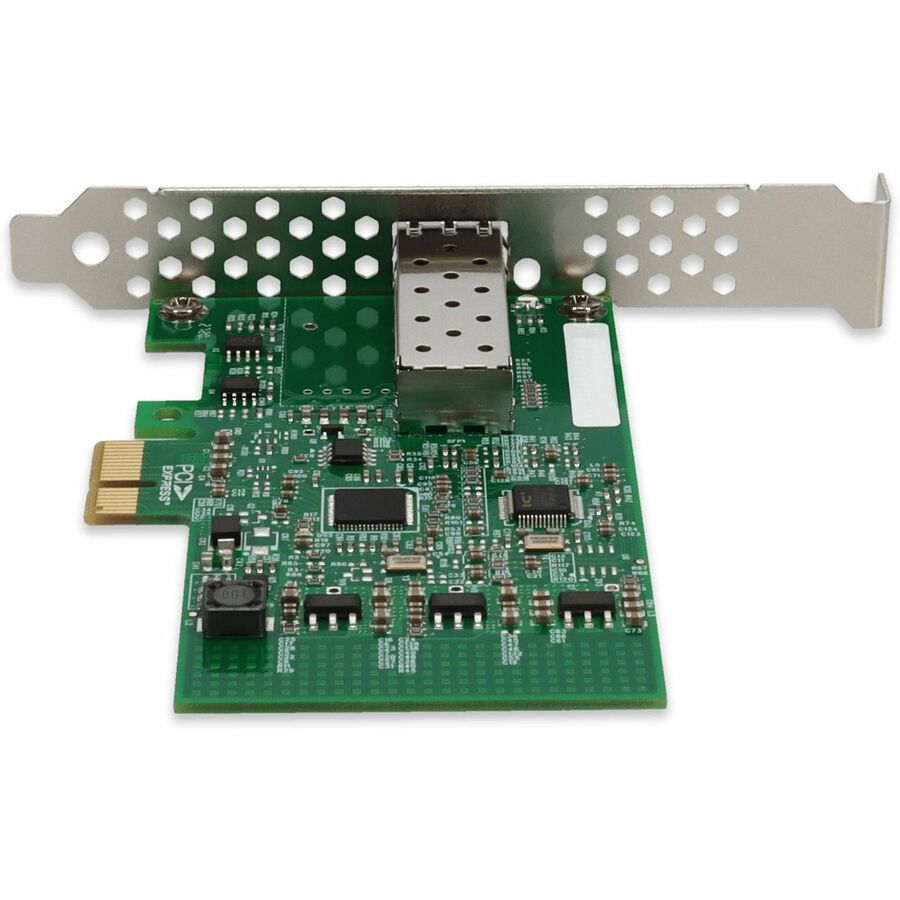

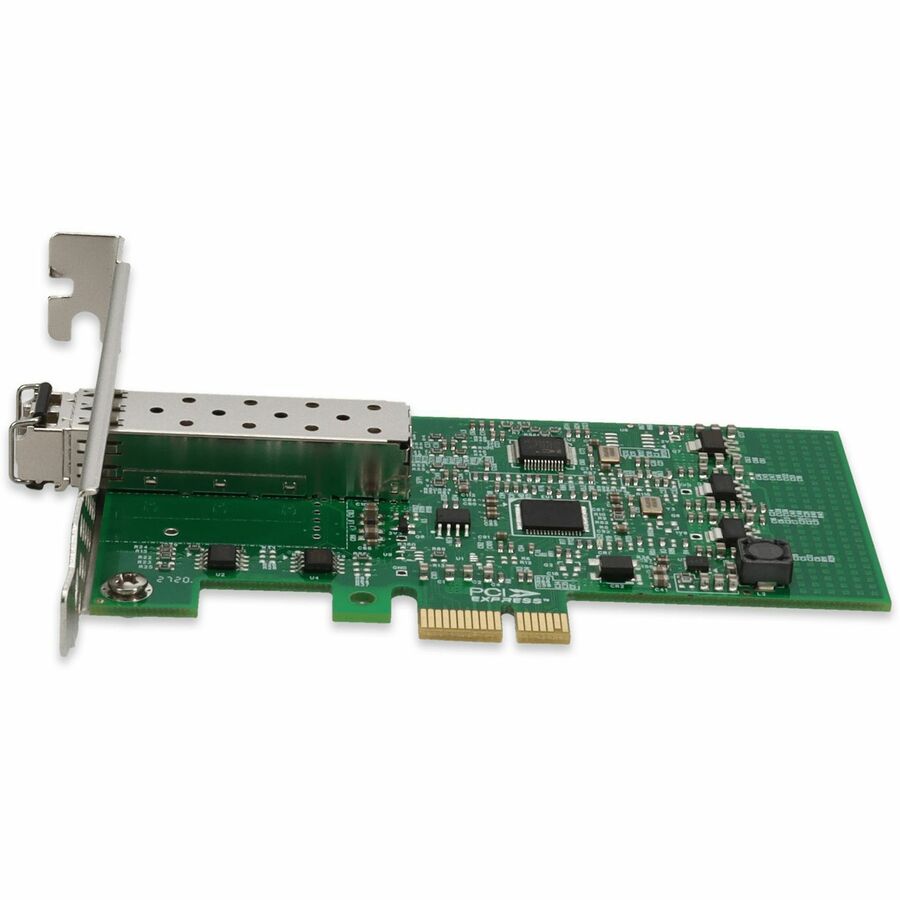

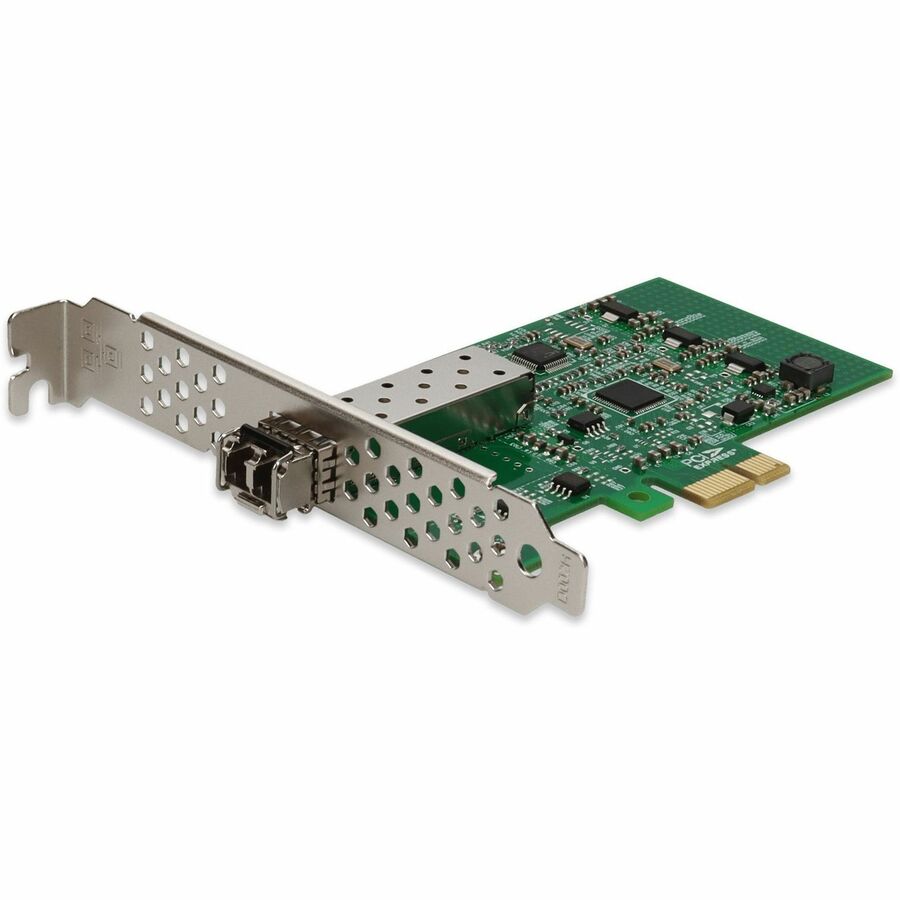

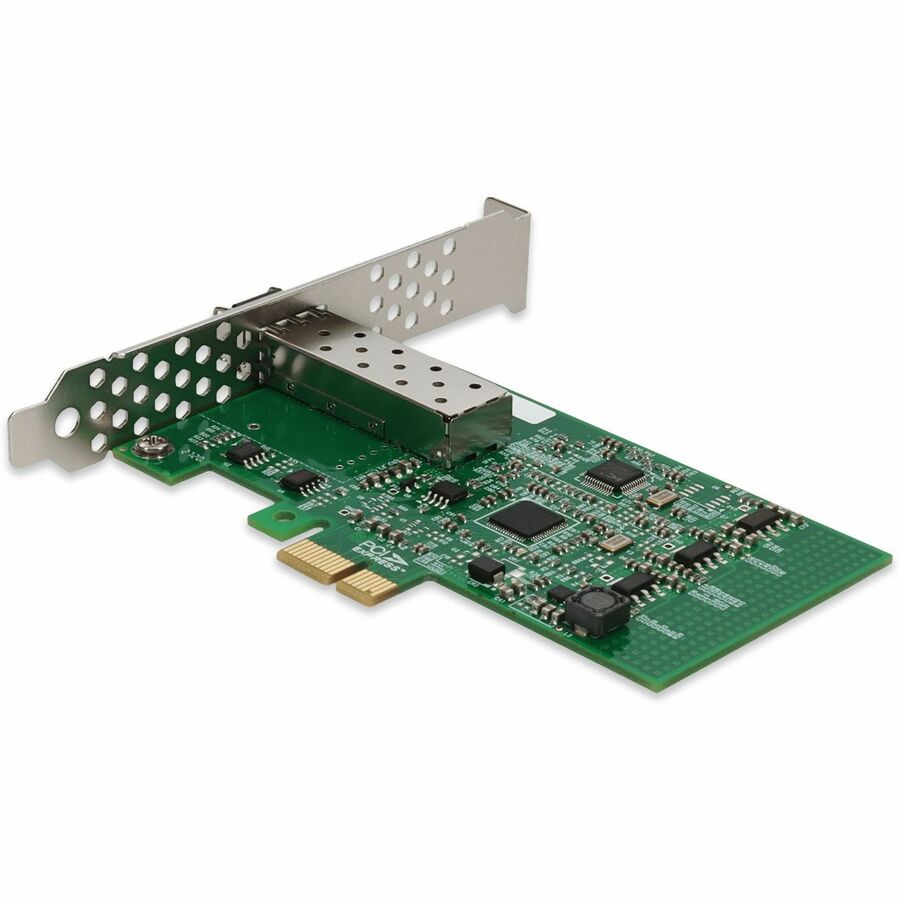

This is a Fast Ethernet PCIe 2.0 x1 network interface card with a single LC port that complies with IEEE 802.3 standards. It is based on an Intel 82574 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 100Mbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single LC port accommodates multi-mode, providing a reach up to 2km. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Highlights
This Fast Ethernet card supports an impressive data transfer rate of up to 100Mbps
This 500 MB/s bandwidth PCI Express 2.0 x1 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
Connect to a wired network with this single port network adapter for a hassle-free and quick response
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
With the 100Base-X technology get up to 100Mbps data transfer rate over the supported network cable
Specifications
Package Contents
100Mbs Single LC Port 2km MMF PCIe 2.0 x1 Network Interface Card Half-height and full-height brackets
Host Interface
PCI Express 2.0 x1
Product Type
Fast Ethernet Card
Device Supported
Server
Manufacturer Part Number
ADD-PCIE-LC-FX-X1
Packaged Quantity
1
Limited Warranty
Lifetime
Form Factor
Plug-in Card
Manufacturer
AddOn
Product Name
100Mbs Single LC Port 2km MMF PCIe 2.0 x1 Network Interface Card
Network Technology
100Base-X
Brand Name
AddOn
Environmentally Friendly
Yes
Chipset Manufacturer
Intel
Chipset Model
82574
Maximum Data Transfer Rate
100 Mbit/s
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode
Total Number of Ports
1
TAA Compliant
No
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
