Transition Networks PCIe Fast Ethernet Fiber Network Interface Cards 100Base-FX

N-FXE-02B Series Overview

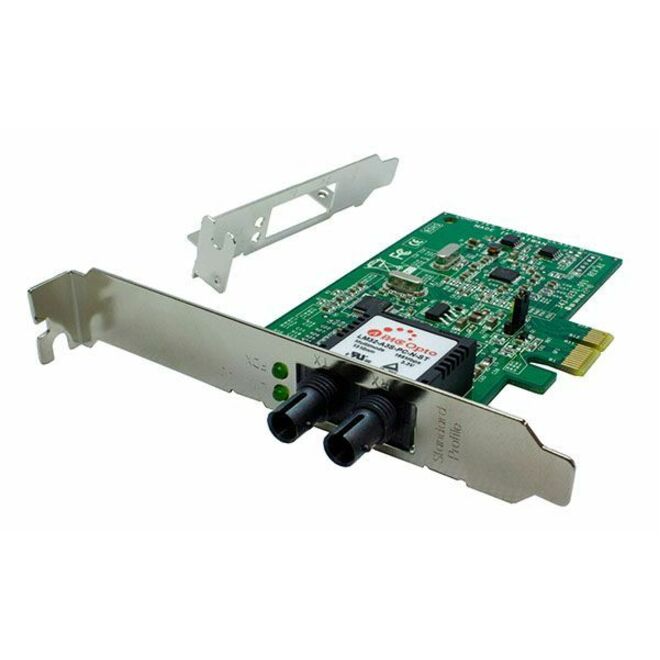

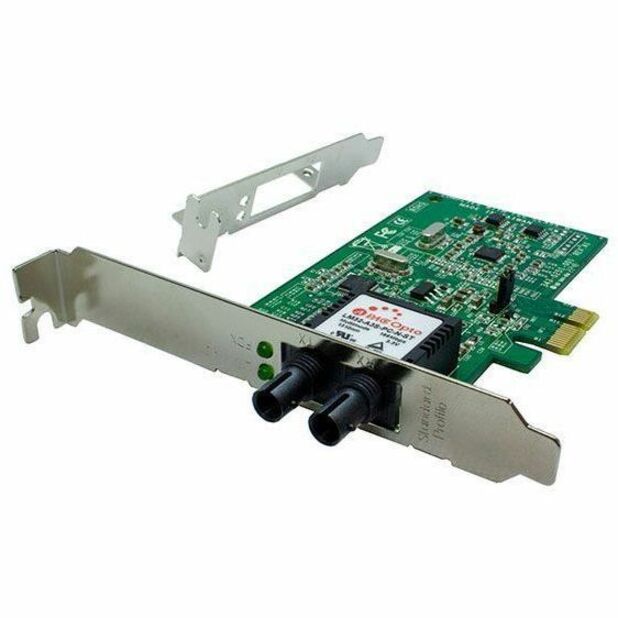

N-FXE-02B Series is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment.

The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.

For users equipped with PCI-Express systems, N-FXE-02B Series provides the ability to easily build or connect to Fast Ethernet fiber networks.

Features

• PCI-Express x1 Interface

• IEEE 802.3x Full-Duplex Flow Control

• Supports IEEE 802.1Q VLAN tagging

• IPv6 Capable

• Wake-on-LAN (WoL) power management

• Microsoft certified drivers

• PXE remote boot support

• RoHS Compliance

• UEFI (PC platform BIOS must support)

• Message Signaled Interrupts (MSI)

• Extended Message Signaled Interrupts (MSI-X)

• TCP Segmentation Offload (large send v1 and large send v2 support)

• Available with ST, SC, LC and MT-RJ multimode fiber connectors

• Standard bracket attached, low-profile bracket included

• Compliant with PCIe Rev 1.1 interface

• Supports Jumbo Frame

• ACPI Supported (if PC BIOS supports)
