M.2 Gigabit Ethernet Fiber Network Interface Card for Dell OptiPlex? 3060/5060/7060/7070 & 7080/7090 Micro PCs 1000Base-X
Lantronix

M.2 Gigabit Ethernet Fiber Network Interface Card for Dell OptiPlex? 3060/5060/7060/7070 & 7080/7090 Micro PCs 1000Base-X

M.2 NIC AND OPEN SFP MEDIA CONVERTER, 30MM

SKU
NM2-GXE-2230-SFP-01
Category
Network Interface Cards

MSRP$312.70

$226.88

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
NM2-GXE-2230-SFP-01
Category
Network Interface Cards

Overview

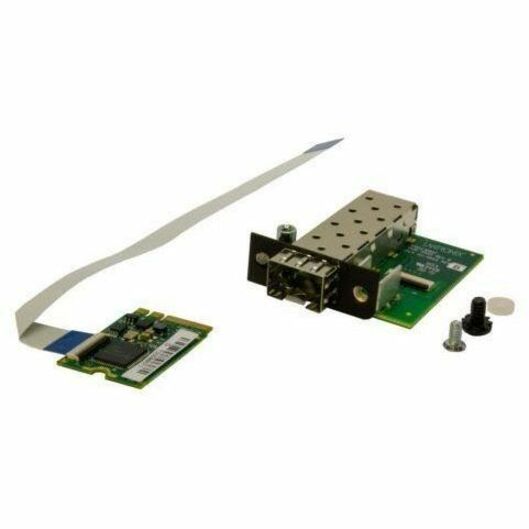

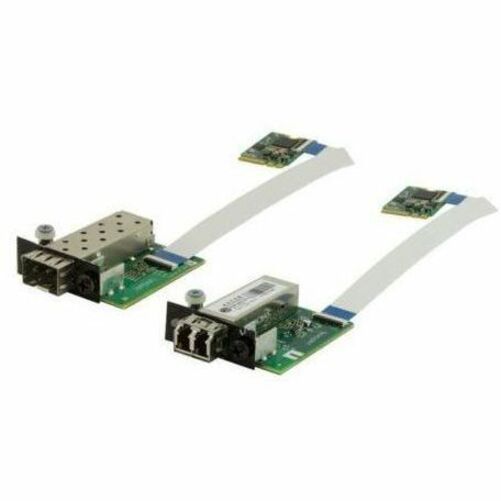

Lantronix M.2 Gigabit Ethernet Fiber Network Interface Card NIC provides a fiber optic interface for the Dell OptiPlex? 3060/5060/7060/7070 and 7080/7090 Micro PCs. The NM2-GXE-2230-xx-201 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable FFC that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC connector or an open SFP SFP module sold separately. Please note the variation in versions within Ordering Information. NDAA Compliant, TAA Compliant

Highlights

  • PCI Express M.2 compliant
  • A + E keyed M.2 interface
  • Full duplex
  • Flow control
  • Wake on LAN WOL
  • Smart Load Balancing SLB
  • TCP Segmentation Offload TSO
  • Message Signaled Interrupts MSI
  • Extended Message-Signaled Interrupts MSI-X
  • LACP support Teaming
  • IPv6 Capable
  • Supports UEFI
  • Supports PXE boot
  • Jumbo frame support 9014 bytes
  • 1000Base-SX multimode LC fiber connector or open SFP interface

Specifications

Host InterfaceM.2
Product TypeGigabit Ethernet Card
Device SupportedServer
Manufacturer Part NumberNM2-GXE-2230-SFP-01
Limited WarrantyLifetime
Weight (Approximate)1.60 oz
FeaturesWake on LAN (WOL), IPv6, PXE Support, Jumbo Frames Support
ManufacturerLantronix, Inc
Product NameM.2 Gigabit Ethernet Fiber Network Interface Card
Network Technology1000Base-X
Product SeriesNM2-GXE-2230-xx-01
Brand NameLantronix
Expansion Slot TypeSFP
Country of OriginTaiwan
Height0.5"
Width1.7"
Depth2.1"
Media Type SupportedOptical Fiber
Total Number of Ports1
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
