Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Lantronix through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Network Interface Cards
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

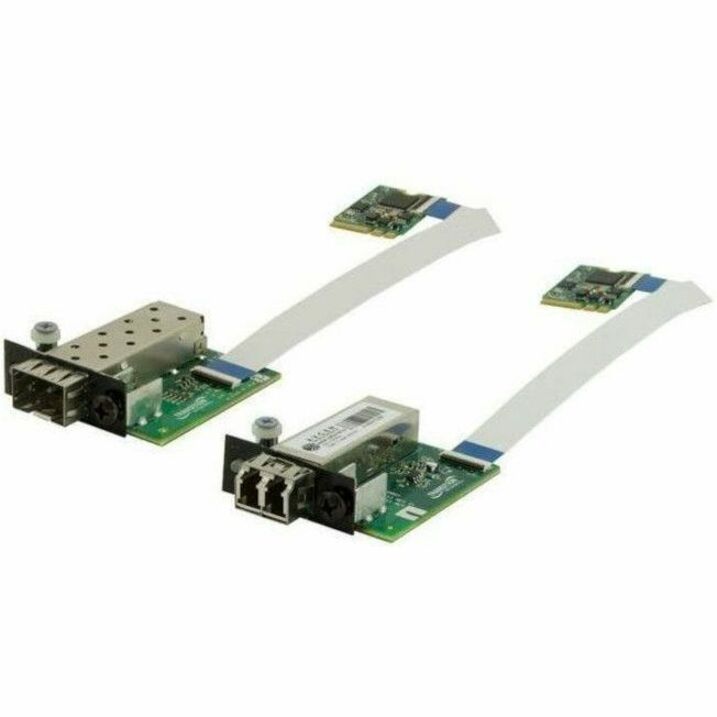

Lantronix M.2 Gigabit Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex 7040 and 7050 Micro PCs and the Wyse 7040/7050 Series thin clients. The NM2-GXE-2230-xx-01 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC optic or open SFP (SFP module sold separately).
Warranty
Limited Warranty: Lifetime
Highlights
This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
This 250MB/s bandwidth adapter is ideal for PCs with PCI Express slots, ensuring top level network connectivity for your desktops
This single port gigabit ethernet card enables you to connect your computer system to your existing network
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
With the 1000Base-SX technology get up to 1000Mbps data transfer rate over the optical fiber cable
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
NM2-GXE-2230-LC-01
Brand Name
Transition Networks
Product Name
Gigabit Ethernet Card
Packaged Quantity
1
Product Type
Gigabit Ethernet Card
I/O Expansions
Expansion Slot Type
SFP
Interfaces/Ports
Host Interface
PCI Express
Total Number of Ports
1
Media & Performance
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode
Maximum Data Transfer Rate
1000 Mbit/s
Network & Communication
Network Technology
1000Base-SX
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Plug-in Card
Height
0.1"
Width
0.9"
Depth
1.2"
Weight (Approximate)
1.60 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Device Supported
Server
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
