2 Computer(s) - 2 Local User(s) - 4096 x 2160 - 1 x Network (RJ-45) - 6 x USB - 6 x HDMI - TAA Compliant
MSRP$449.95
$397.42
Save 12%In stock: 36
Genuine IOGEAR through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Enhance High-End Multi-Monitor Workstation
Maximize your high-end dual HD workstations by connecting them to the 2-Port 4K Dual View KVMP Switch with HDMI(R) Connection, USB 3.0 and Audio. Experience Cinema 4K resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.
A Dual Cinema 4K Experience
Join two 4K HDMI-enabled monitors to your premium desktop or laptop to experience superior screen, image, and video quality. The Dual View HD KVMP delivers a 4K resolution standard of 4096 x 2160 at a frame rate of 60Hz.
Designed for professional film and video production industries, the 2-Port KVMP supports environments requiring cinematic graphics resolution. Superior quality is also ideal for applications in motion graphic design, animation, engineering, architecture, and media design.
Convenient Switching Methods
Switch and access two HDMI-enabled computers from the push-button front panel or hotkey combination on your keyboard. Utilize the latest in mouse port-switching functionality to change ports by simply clicking the wheel button on your 3-button USB mouse.
Expand to Utilize Up to Four 4K Monitors
Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942H). Expand your workstations to accommodate up to four Cinema 4K HDMI-enabled monitors.
Smart Connectivity
Additional smart connectivity features turn your workstation into a convenient, easy-to-use powerhouse. The Power on Detection ensures automatic connection to the next powered-on computer. Expand your workstations to accommodate up to four 4K Cinema HDMI monitors. The built-in USB 3.0 ports provide connectivity speeds up to 5Gbps and compatibility with legacy USB 2.0 and 1.1 devices.
More from the Manufacturer
2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio (TAA)
Maximize your high-end dual HD workstations by connecting them to the 2-Port 4K Dual View KVMP Switch with HDMI(R) Connection, USB 3.0 and Audio. Experience Cinema 4K resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.
Features
Maximize your high-end multi-monitor workstation with superior video resolution
Share dual Cinema 4K HDMI-enabled monitors (4096 x 2160 @60Hz)
Operate 2 HDMI computers with 1 keyboard, mouse, and 2 monitors
Add another GCS1942H to expand up to four 4K monitors
HDMI 2.0 compliant, HDCP 2.2 compliant
Allows independent switching of the KVM, USB, and audio devices
Control/share USB3.0 peripherals between 2 computers; save money on duplicate devices
Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
SuperSpeed 5Gbps transfer rate
Computer selection via front panel pushbuttons, hotkeys, or mouse
Supports 7.1 HD audio through HD
Full bass response for high quality 2.1 channel audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows®7, Windows 8.1, Windows 10, Mac OS®, and Linux®
Multilingual keyboard mapping supports English, French, and German keyboards
Mac® keyboard support and emulation
RS-232 Commands
Auto-Scan Mode to monitor all computers
Power on detection
Hot pluggable
Firmware upgradable

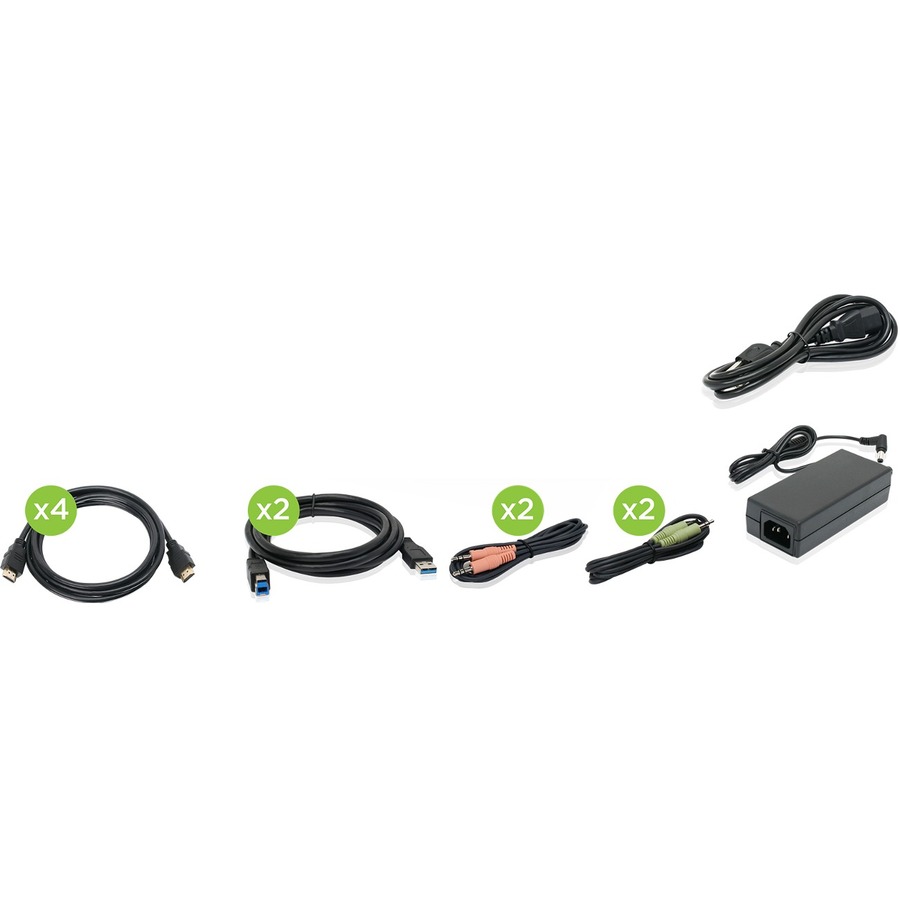

Includes all KVM and audio cables
Dual View for better visual experience
Connect two Cinema 4K HDMI monitors to your desktop or laptop to experience superior screen, image, and video quality. GCS1942H delivers a 4K resolution up to 4096x2160@60Hz on each monitor. Now the desktop can be extended from each connected computer for better viewing and to handle more tasks.
Built-in USB 3.0 Peripheral Sharing
Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.
Convenient Switching Methods
Switch and access two HDMI-enabled computers from the push-button front panel or hotkey combination on your keyboard. Utilize the latest in mouse port-switching functionality to change ports by simply clicking the wheel button on your 3-button USB mouse.
Up to Quad View when daisy-chaining two GCS1942H together
Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942H). Expand your workstations to accommodate up to four Cinema 4K HDMI monitors.
Limited Warranty: 3 Year
Innovate Our Engineers and Product Managers work around the clock to develop the next life-changing technology Desktop and Cable KVMs KVM, short for keyboard, video (monitor), and mouse, is a device used to control multiple PCs using a single set of peripherals. Our KVM solutions is the best of the breed. Engineered for efficiency and offers the best value. Docking Stations Our docking stations offer incredible connectivity for laptops, enhancing productivity without compromising mobility. Gaming Our gaming products is designed to give you the edge while staying productive. We create the best work and play products. Audio-Video Our wireless audio and video solutions is designed to simplify connectivity between AV sources and TVs, projectors, or displays with the latest technology.
| General Information | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1942H |
| Brand Name | IOGEAR |
| Product Model | GCS1942H |
| Product Name | 2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 6 |
| Number of HDMI Ports | 6 |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 2 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
