SKU
CS22H
Category
KVM Switchboxes
Overview

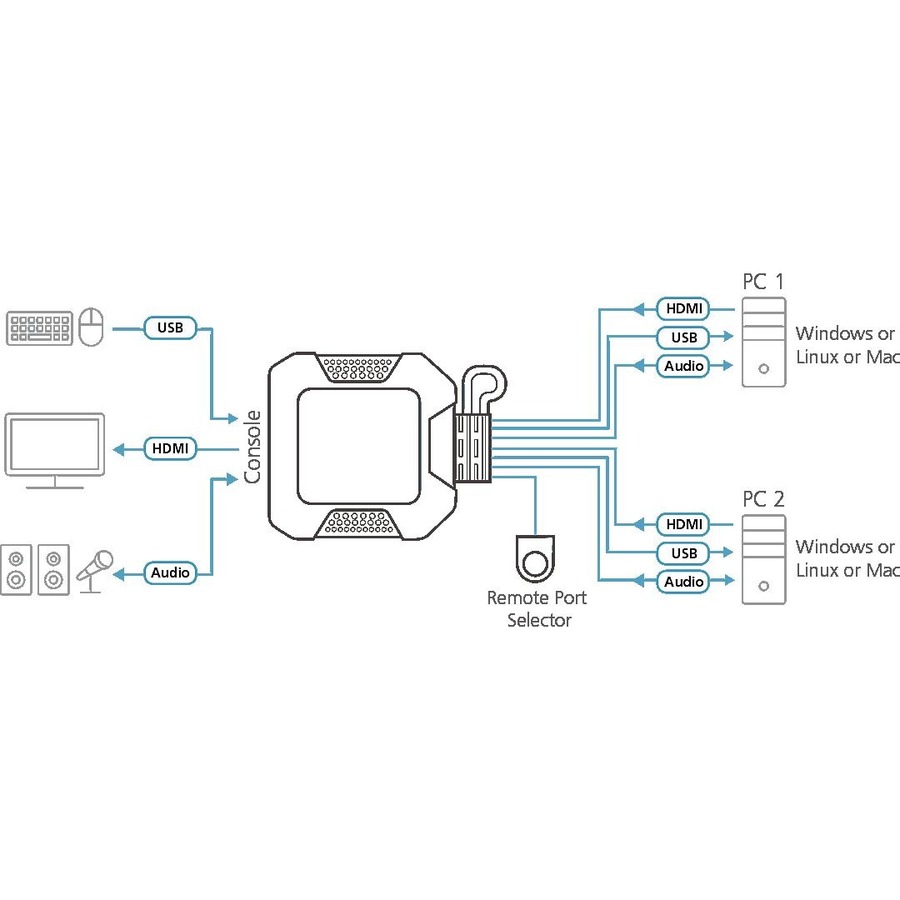

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you're all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.
Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.
Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

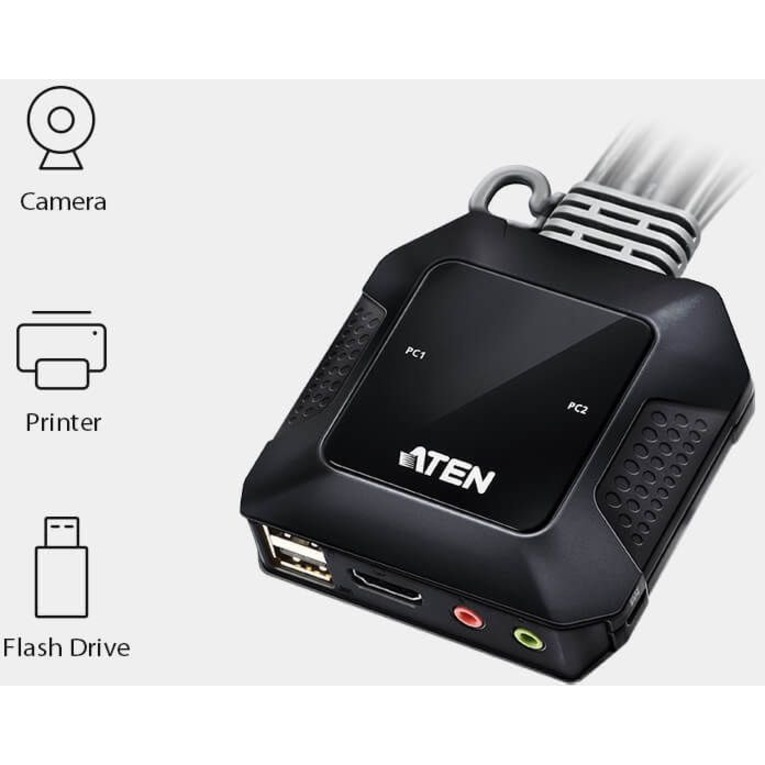

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22H Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
Highlights
One KVM console controls two USB HDMI computers
Superior video quality - up to 4096 x 2160 @ 60 Hz
Hook design for space-saving and organized workstation
Bus-powered design
Specifications
Package Contents

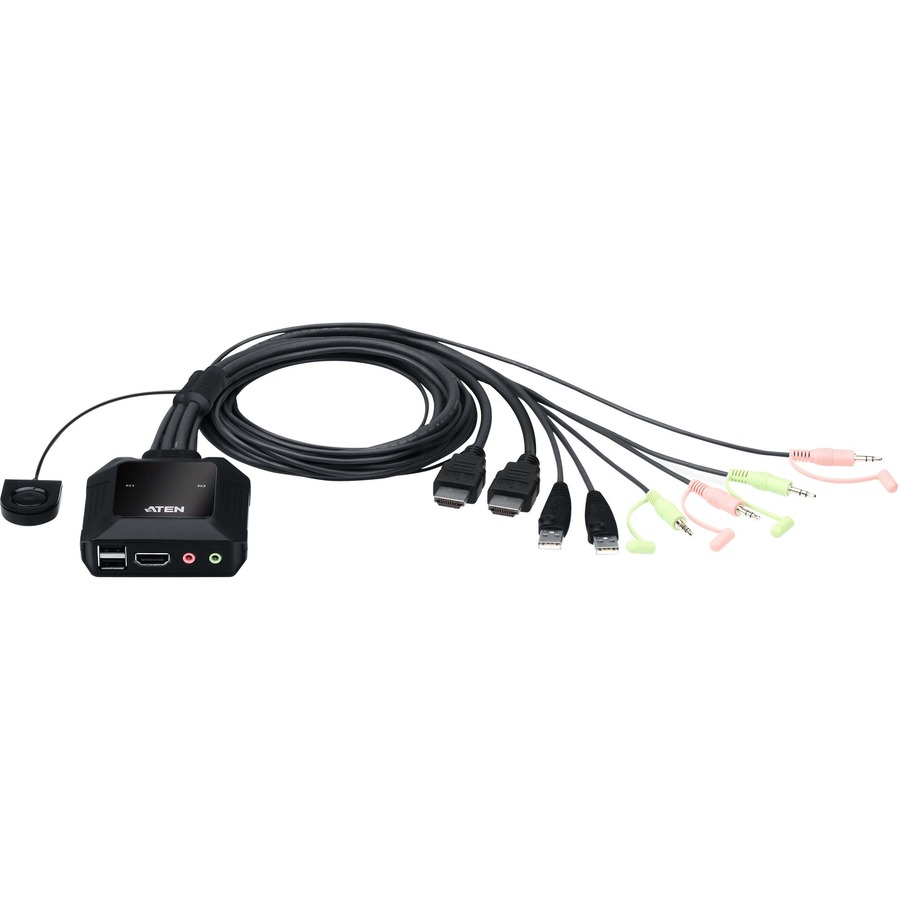

2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
1 User Instructions
Product Type
KVM Switchbox
Manufacturer Part Number
CS22H
Packaged Quantity
1
Weight (Approximate)
11.99 oz
Manufacturer
ATEN Technology, Inc
Product Name
2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
Brand Name
ATEN
Country of Origin
China
Height
1.2"
Width
3.3"
Depth
3.3"
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
USB
Yes
HDMI
Yes
Number of HDMI Ports
3
Number of USB Ports
5
Number of Computers Supported
2
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
