IOGEAR 2-Port 4K Dual View DisplayPort/HDMI KVMP with USB and Audio
2 Computer(s) - 4K - 4096 x 2160 - 1 x Network (RJ-45) - 6 x USB - 6 x DisplayPort - Desktop
- SKU
- GCS1942-UN
- Category
- KVM Switchboxes
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine IOGEAR through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GCS1942-UN
- Category
- KVM Switchboxes
Overview
Dual View for better visual experience
Connect two Cinema 4K DisplayPort monitors to your desktop or laptop to experience superior screen, image, and video quality. GCS1942 delivers a 4K resolution up to 4096 x 2160 at 60Hz on each monitor. Now the desktop can extend from each connected computer for better viewing and to handles more tasks.
Built-in USB3.0 peripheral sharing
Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.
Convenient Switching Methods
3 ways for GCS1942 Port switching. Hotkeys, pushbuttons on the front panel and mouse wheel button, pick the way best fit for your needs.
Up to Quad View when daisy-chaining two GCS1942 together
Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942). Expand your workstations to accommodate up to four Cinema 4K DisplayPort monitors.

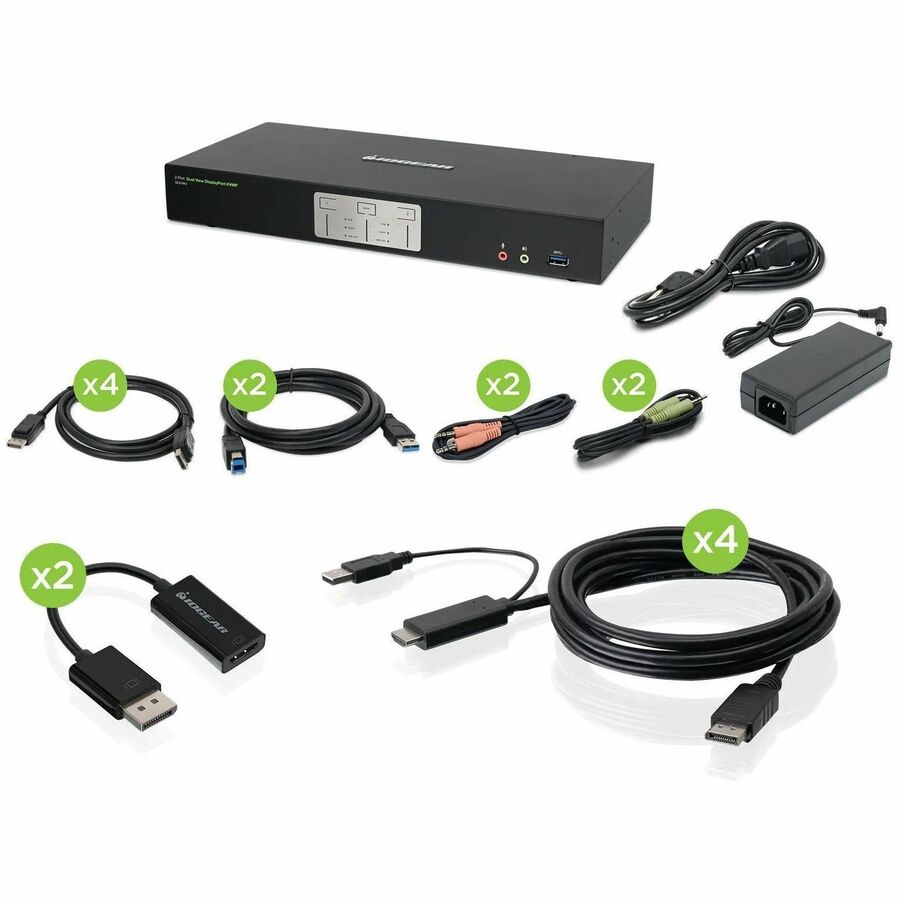

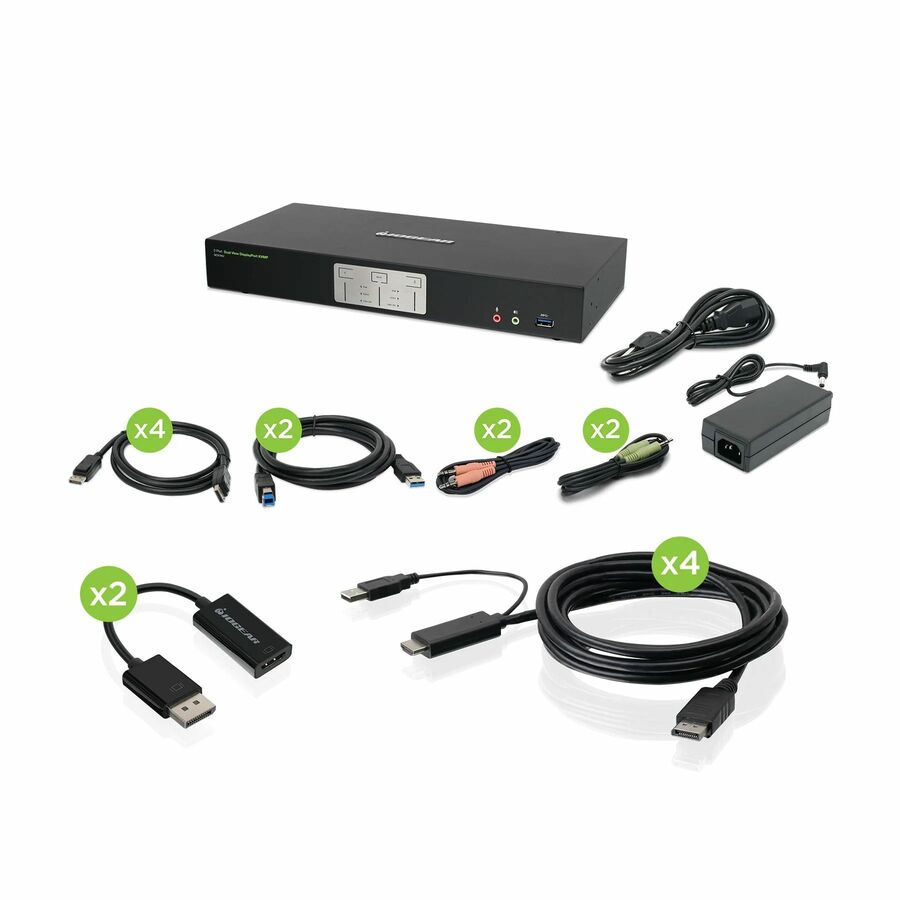

Versatile Adapters Included
Enhance your setup flexibility right out of the box with the IOGEAR GCS1942-UN. Included are essential adapters to ensure seamless integration with a wider range of devices. Now bundled with your KVM switch are an HDMI to DisplayPort adapter and a DisplayPort to HDMI adapter, providing the versatility to easily link gaming consoles or other HDMI-equipped devices.
More from the Manufacturer
Highlights
- Maximize your high-end multi-monitor workstation with superior video resolution
- Share dual Cinema 4K DisplayPort or HDMI monitors (4096 x 2160 @60Hz)
- Operate 2 DisplayPort/HDMI computers with 1 keyboard, mouse, and 2 monitors
- HDMI to DisplayPort adapter for Computer connection and DisplayPort to HDMI adapter for Console connection included.
- Add another GCS1942 to expand up to four 4K monitors
- DisplayPort 1.2 compliant, HDCP compliant
- Allows independent switching of the KVM, USB, and audio devices
- Control/share USB3.0 peripherals between 2 computers; save money on duplicate devices
- Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
- SuperSpeed 5Gbps transfer rate
- MST (Multi-Stream Transport)
- DP++ supports HDMI and DVI output
- Computer selection via front panel pushbuttons, hotkeys, or mouse
- Supports 7.1 HD audio through DisplayPort
- Full bass response for high quality 2.1 channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support - Windows®7, Windows 8.1, Windows 10, Mac OS®, and Linux®
- Multilingual keyboard mapping supports English, French, and German keyboards
- Mac® keyboard support and emulation
- RS-232 Commands
- Auto-Scan Mode to monitor all computers
- Power on detection
- Hot pluggable
- Firmware upgradable
- Includes all KVM and audio cables
Specifications
| Package Contents |
|
|---|---|
| Product Type | KVM Switchbox |
| Manufacturer Part Number | GCS1942-UN |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 3.50 lb |
| Form Factor | Desktop |
| Length | 13.19" |
| Manufacturer | IOGEAR, Inc |
| Product Name | 2-Port 4K Dual View DisplayPort/HDMI KVMP with USB and Audio |
| Brand Name | IOGEAR |
| Height | 2.1" |
| Depth | 6.1" |
| Maximum Video Resolution | 4096 x 2160 |
| Graphic Mode | 4K |
| Maximum Data Transfer Rate | 640 MB/s |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 6 |
| DisplayPort | Yes |
| USB Standard | USB 3.0 |
| Number of DisplayPorts | 6 |
| Number of Computers Supported | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
