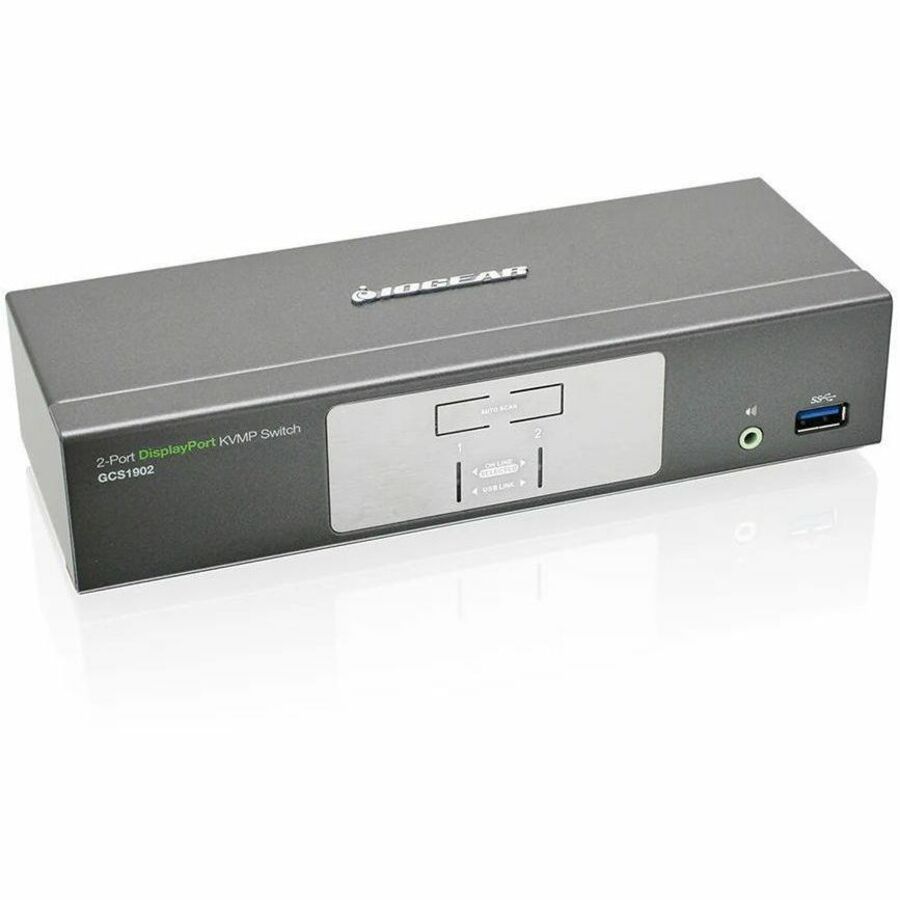

IOGEAR 2-Port DisplayPort/HDMI KVMP Switch with USB 3.0 Hub (TAA Compliant)
2 Computer(s) - 4K UHD - 3840 x 2160 - 5 x USB - 3 x DisplayPort - TAA Compliant
- SKU
- GCS1902-UN
- Category
- KVM Switchboxes
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine IOGEAR through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GCS1902-UN
- Category
- KVM Switchboxes
Overview
4K UHD Experience
The DisplayPort 1.1 KVMP technology delivers up to 4K UHD resolution; 3840x2160 @ 30Hz frame rate. This 2-Port KVMP switch is designed for environments requiring 4K resolution, such as professional film and video production industries. The IOGEAR DisplayPort/HDMI KVMP switch also enhances professional applications in motion graphics design, animation, engineering, architecture, and media design.
Built-in USB3.0 peripheral sharing
Control and share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.
Smart Connectivity
Additional smart connectivity features turn your workstation into a convenient and easy-to-use Plug-N-Play setup. The GCS1902 supports USB hot plugging - Components can be remoted and added back into the installation without the need to shut the unit down. The Built in USB3.0 ports allows connectivity of up to SuperSpeed 5Gbps data transfer speeds and provides backwards compatibility with USB 2.0 and USB 1.1 legacy devices.
Versatile Adapters Included
Enhance your setup flexibility right out of the box with the IOGEAR GCS1902-UN. Included are essential adapters to ensure seamless integration with a wider range of devices. Now bundled with your KVM switch are an HDMI to DisplayPort adapter and a DisplayPort to HDMI adapter, providing the versatility to easily link gaming consoles or other HDMI-equipped devices.
More from the Manufacturer
Highlights
- Control 2 computers using a single keyboard, mouse, and DisplayPort/HDMI video console
- HDMI to DisplayPort adapter for Computer connection and DisplayPort to HDMI adapter for Console connection included.
- Superior video quality - 4K UHD (3840x2160 @ 30Hz)
- DisplayPort 1.1 compliant & HDCP compliant
- 2-Port USB 3.0 Hub with SuperSpeed 5Gbps transfer rate
- DP++ supports HDMI and DVI output*
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Independent switching of the KVM, USB, and 2.1 channel audio
- Supports 7.1 HD audio through DisplayPort
- Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Specifications

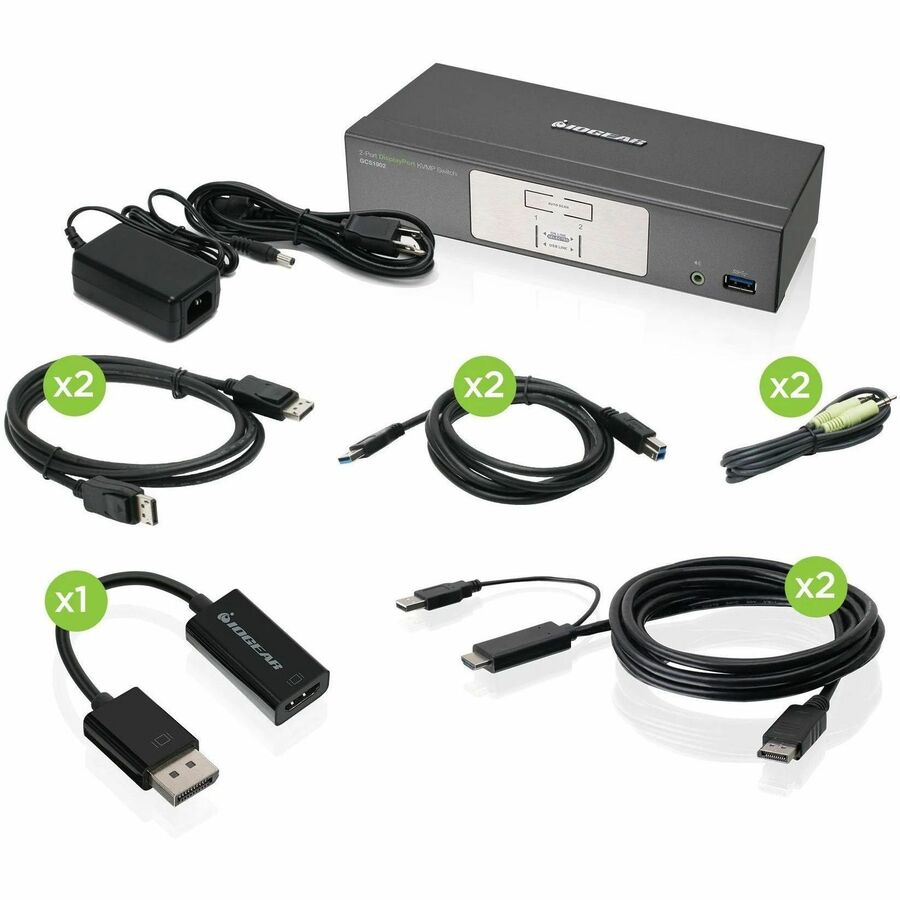

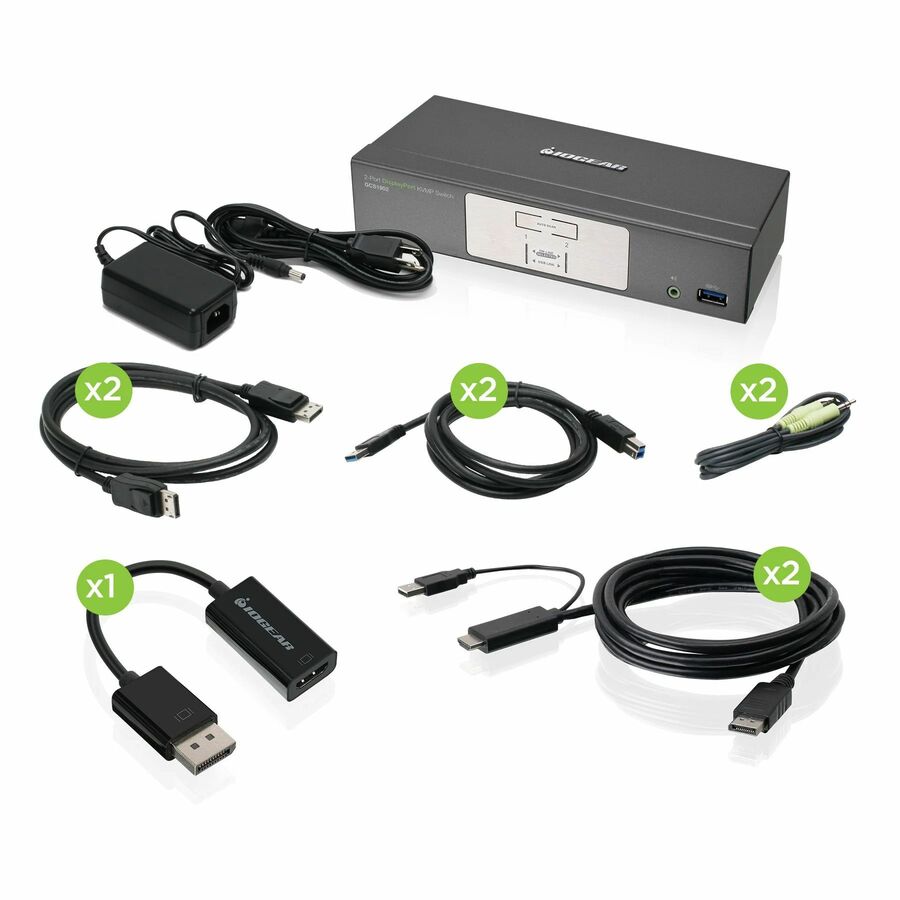

| Package Contents | 2-Port DisplayPort/HDMI KVMP Switch with USB 3.0 Hub (TAA Compliant) 2 x DisplayPort cables (5ft.) 2 x USB 3.0 cables (6ft.) 2 x Audio cables (6ft.) 2 x HDMI to DisplayPort Cables (6ft.) 1 x DisplayPort to HDMI Adapter 1 x Power adapter 1 x Manual |
|---|---|
| Product Type | KVM Switchbox |
| Manufacturer Part Number | GCS1902-UN |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 2 lb |
| Connectivity Technology | Wired |
| Features | LED Indicator |
| Length | 7.87" |
| Manufacturer | IOGEAR, Inc |
| Product Name | 2-Port DisplayPort/HDMI KVMP Switch with USB 3.0 Hub (TAA Compliant) |
| Brand Name | IOGEAR |
| Input Voltage Range | 5v |
| Height | 2.9" |
| Depth | 1.7" |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K UHD |
| USB | Yes |
| Number of USB Ports | 5 |
| DisplayPort | Yes |
| USB Standard | USB 3.0 |
| Number of DisplayPorts | 3 |
| Number of Computers Supported | 2 |
| TAA Compliant | Yes |
