SKU
FGN2410
Category
Video Processing/Capturing Modules
Overview
The NMX-WP-N2410 allows multiple real-time UHD streams to be displayed on a single stream simultaneously. This is a fundamental shift in the way professional AV technologies have traditionally addressed windowing, but one that increases capability and flexibility while reducing installation and support costs. With the NMX-WP-N2410, users can combine up to four HD sources together into a single 4K image, as well as mix 4K and HD sources in any configuration.

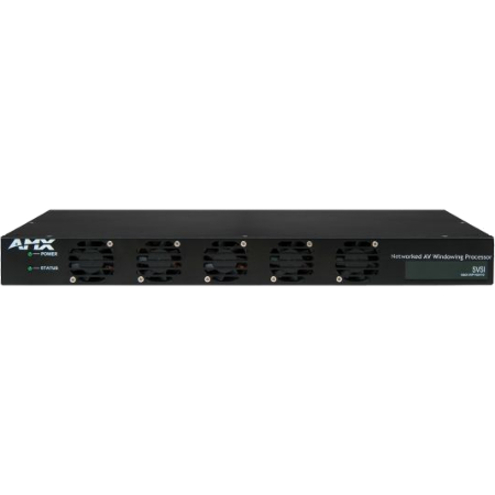

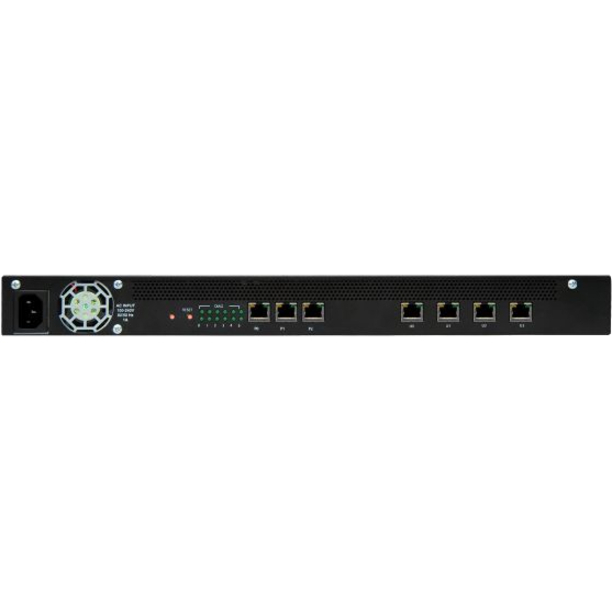

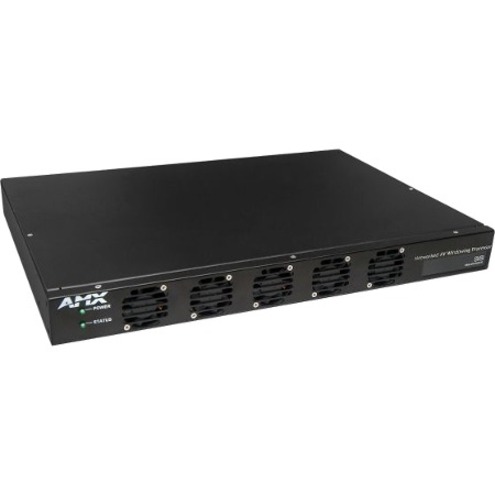

The N2400 Series Windowing Processor is a 1RU rack-mount 4x1 windowing appliance that connects to an N2400 Series Video over IP network and accepts up to four video streams from AMX N2400 Series encoders. Each input can be cropped, scaled, and positioned according to stored presets (such as quad, window-in-window, 3+1, etc.) or in any user-defined configuration. The combined output video stream is then streamed to one or more N2400 Series Decoders at resolutions up to 4K60 4:4:4. Multiple 4×1 windowing processors can be stacked to give 7×1, 10×1, 13×1, 16×1, or higher capability.
Highlights
Up to 4 Video Streams - Accepts up to four independent video streams in addition to user-defined static backgrounds.
4x1 Windowing + Stacking - 4×1 windowing with stacking capability.
4K60 4:4:4 Output - Output to the latest displays with no loss of quality.
Built-In Web Interface - Easy-to-use, built-in web browser interface provides pallets to manipulate each 'window' stream: Crop, scale and position in seconds.
Audio Matrix Switch - Built-in audio matrix switch allows selection of any audio stream for Windowing Processor output.
Locate Anywhere on the Video Network - Networked AV inputs and outputs mean the N2410 does not have to be located near the sources or the displays, which often have space limitations.
Retrofit Capable - Easily retrofits to an existing N2400 Series video network.
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FGN2410
Brand Name
AMX
Product Series
N2400
Product Model
NMX-WP-N2410
Product Name
NMX-WP-N2410 Windowing Processor
Product Type
Video Processor
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Form Factor
Rack-mountable
Height
1.8"
Width
17.3"
Depth
12"
Weight (Approximate)
7.15 lb
Technical Information
Functions
Video Processing, Video Streaming, Audio Embedding, Video Encoding, Video Decoding
