Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AW566-LS
Category
Component Speakers
Overview

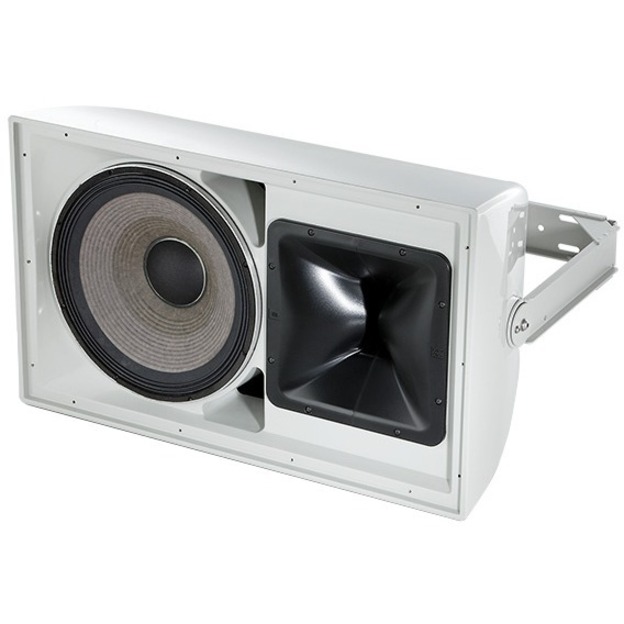

Parts are sealed on LS models (non-LS photo shown).

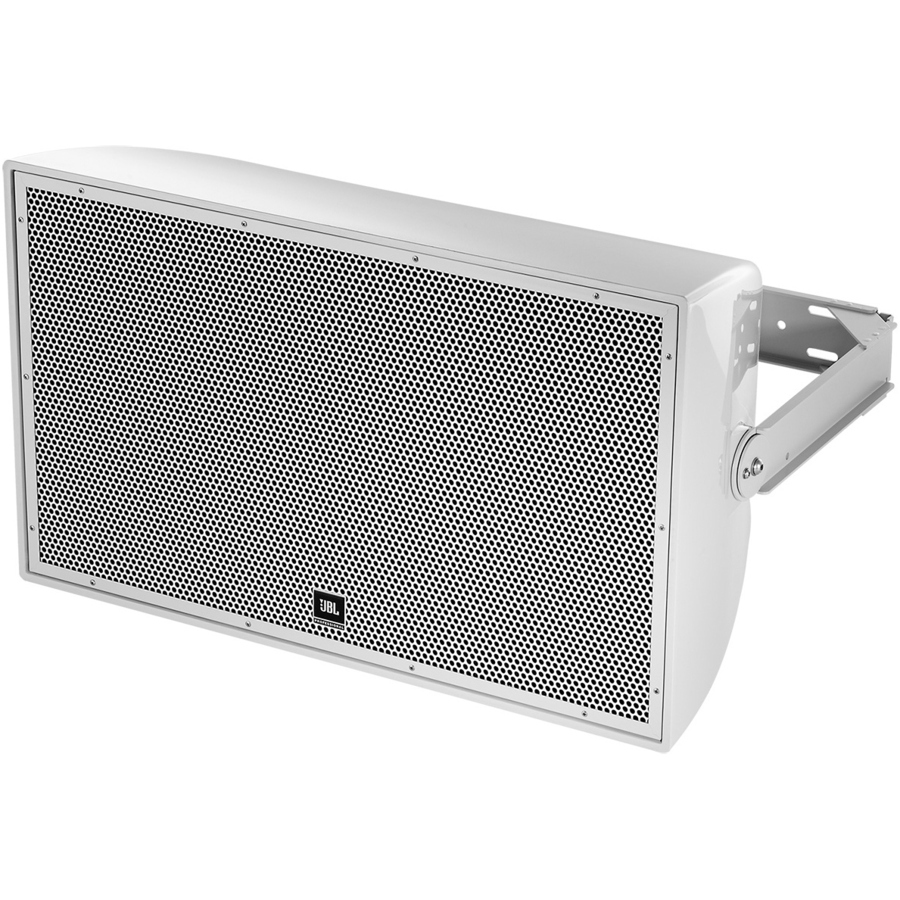

High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF & Rotatable Horn for Life Safety Applications The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications.
About Harman International Industries
JBL Professional: Legendary Audio for Over 70 Years
At JBL, audio technology is at the core of everything we do. For 70 years we have employed the best methodology and tools. As established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, but it also guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. Never straying from this exacting formula, our journey has produced a prolific list of audio achievements, groundbreaking technologies, revolutionary advances in the art and science of professional audio, many patents, and many awards. It’s a journey that is legendary worldwide and has positioned JBL as the world leader in professional audio.
Highlights
Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
The 2-way Outdoor speakers with the 1600 W power handling work terrifically
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Listen to deep lows and euphoric highs with a frequency range of sound from 89 Hz-18 kHz
Experience body-shaking levels without any room-vibrating reverb or excessive heat output with 400 W RMS power
15" woofer driver size allows better stereo imaging with maximum sound feasibility
1.50" tweeter driver size provides crispier, well-detailed sound with maximum productivity
Delivers exceptional sound with 18 kHz maximum frequency response
100 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
Lightweight feature for maximum productivity with added dependability
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
AW566-LS
Brand Name
JBL Professional
Product Model
AW566-LS
Product Name
High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn
Product Type
Speaker
Physical Characteristics
Product Color
Gray
Durability
Weather Resistant, Corrosion Resistant
Speaker Installation
Outdoor
Height
19.1"
Width
31.9"
Depth
18.82"
Weight (Approximate)
62.39 lb
Technical Information
Crossover Type
2-way
RMS Output Power
400 W
PMPO Output Power
1600 W
Woofer Driver Size
15"
Tweeter Driver Size
1.50"
Minimum Frequency Response
89 Hz
Maximum Frequency Response
18 kHz
Impedance
8 Ohm
Sensitivity
100 dB
Features
Lightweight, Dual Voice Coils
Miscellaneous
Package Contents
High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn

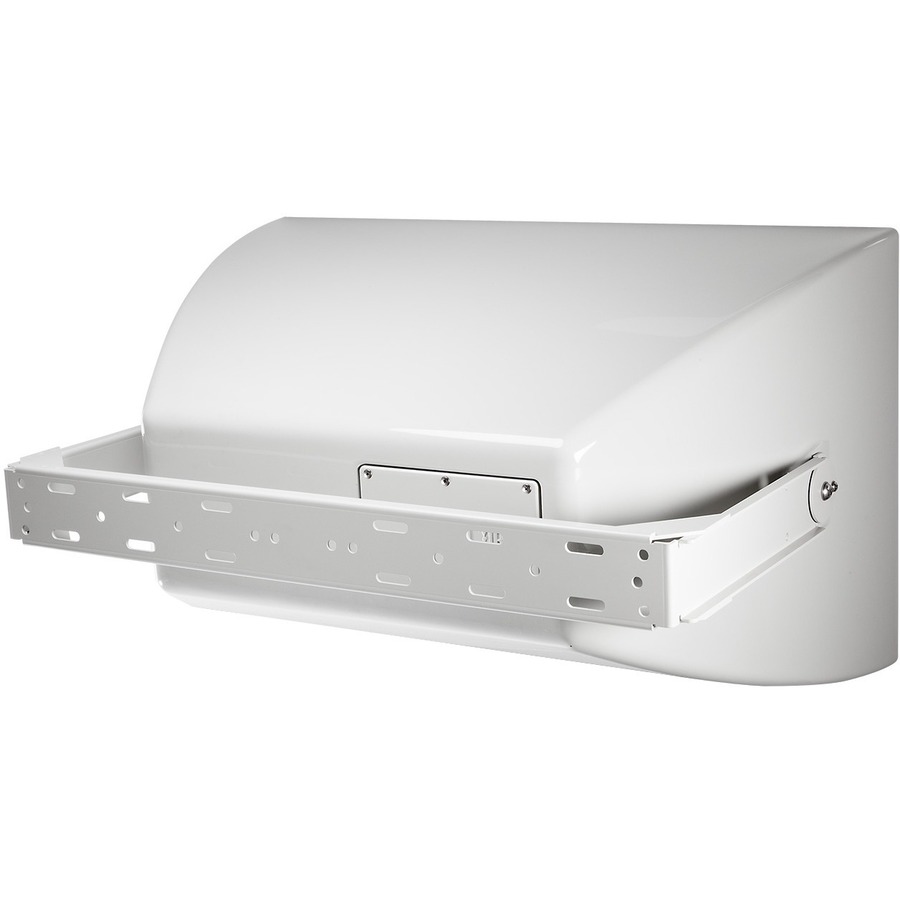

U-type Mounting Bracket
Application/Usage
Sports Field, Theme Bar, Entertainment Center, Cruise Ship, Park
