Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AW526-LS
Category
Component Speakers
Overview

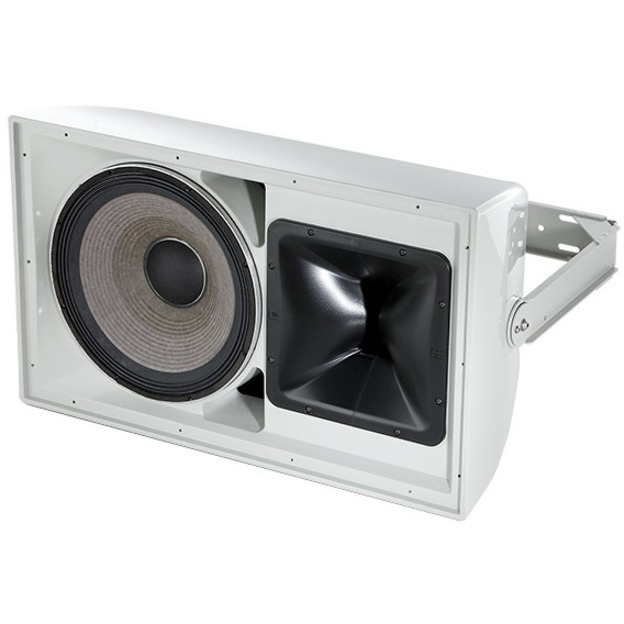

Parts are sealed on LS models (non-LS photo shown).

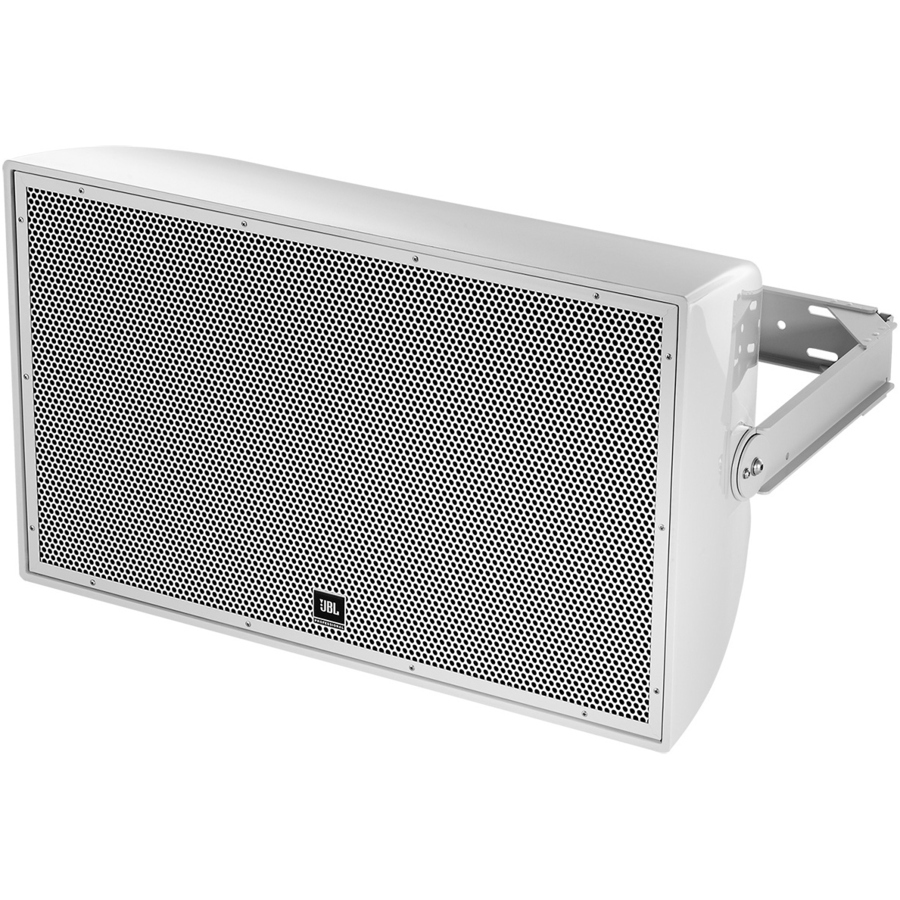

High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF for Life Safety Applications The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. The system is equipped with a 400 W 70/100V transformer.
About Harman International Industries
JBL Professional: Legendary Audio for Over 70 Years
At JBL, audio technology is at the core of everything we do. For 70 years we have employed the best methodology and tools. As established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, but it also guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. Never straying from this exacting formula, our journey has produced a prolific list of audio achievements, groundbreaking technologies, revolutionary advances in the art and science of professional audio, many patents, and many awards. It’s a journey that is legendary worldwide and has positioned JBL as the world leader in professional audio.
Highlights
Weather-Resistant, All Fiberglass Enclosure
EN 54-24 Compliant for life safety applications
120° x 60° Coverage
2265H Differential Drive® Low-Frequency Driver
2432H High Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
AW526-LS
Brand Name
JBL Professional
Product Model
AW526-LS
Product Name
High Power 2-Way All Weather Loudspeaker with 1 x 15" LF
Product Type
Speaker
Physical Characteristics
Product Color
Gray
Durability
Weather Resistant, Corrosion Resistant
Speaker Installation
Outdoor
Height
19.1"
Width
31.9"
Depth
18.82"
Weight (Approximate)
62.39 lb
Technical Information
Crossover Type
2-way
RMS Output Power
400 W
PMPO Output Power
1600 W
Woofer Driver Size
15"
Tweeter Driver Size
1.50"
Minimum Frequency Response
86 Hz
Maximum Frequency Response
17 kHz
Impedance
8 Ohm
Sensitivity
100 dB
Features
Lightweight, Dual Voice Coils
Miscellaneous
Package Contents
High Power 2-Way All Weather Loudspeaker with 1 x 15" LF
U-type Mounting Bracket
Application/Usage
Sports Field, Theme Bar, Entertainment Center, Cruise Ship, Park
