JBL Professional AW266-LS 2-way Outdoor Speaker - 400 W RMS - Gray
Harman International Industries

JBL Professional AW266-LS 2-way Outdoor Speaker - 400 W RMS - Gray

1600 W (PMPO) - 12" - 1.50" - 102 Hz to 18 kHz - 8 Ohm

SKU
AW266-LS
Category
Component Speakers

MSRP$5,150.00

$2,775.35

Save 46%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
AW266-LS
Category
Component Speakers

Overview

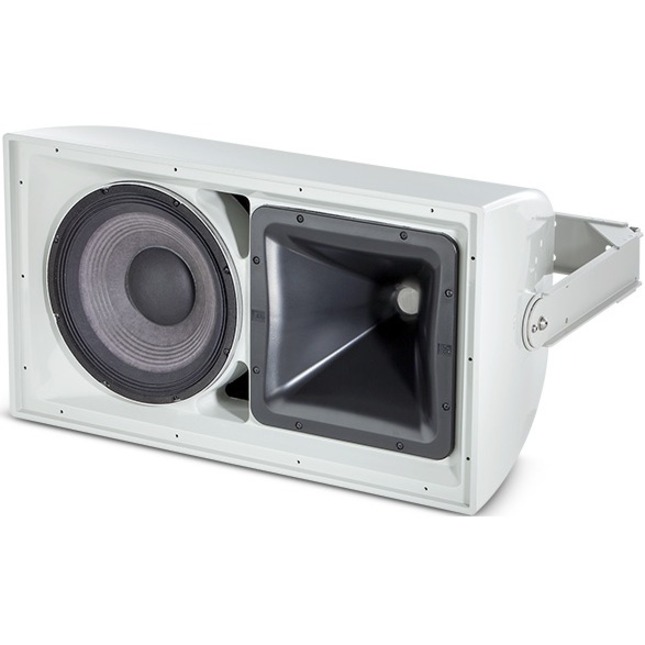

Parts are sealed on LS models (non-LS photo shown).

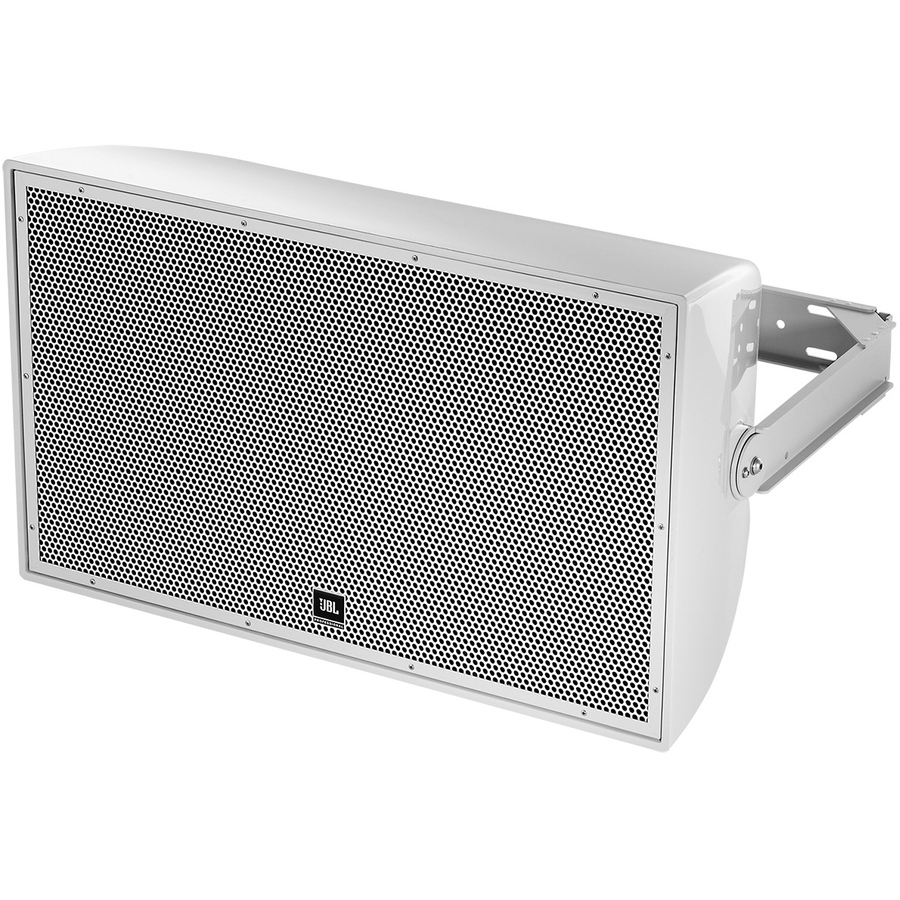

High Power 2-Way All Weather Loudspeaker with 1 x 12"" LF for Life Safety Applications The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.

Highlights

  • Weather-Resistant, All Fiberglass Enclosure
  • EN 54-24 Compliant for life safety applications
  • 60° x 60° Coverage
  • 2262H Differential Drive® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT? Progressive Transition waveguide for excellent pattern control and low distortion
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Specifications

Application/UsageSports Field, Theme Bar, Entertainment Center, Cruise Ship, Park
Package Contents
  • High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
  • U-type Mounting Bracket
Product TypeSpeaker
Impedance8 Ohm
Manufacturer Part NumberAW266-LS
Sensitivity98 dB
Weight (Approximate)55.56 lb
DurabilityWeather Resistant, Corrosion Resistant
FeaturesLightweight, Dual Voice Coils
ManufacturerHarman International Industries, Inc
Product ModelAW266-LS
Product NameHigh Power 2-Way All Weather Loudspeaker with 1 x 12" LF
Brand NameJBL Professional
Height16.1"
Width28.8"
Depth17.80"
Crossover Type2-way
Minimum Frequency Response102 Hz
Maximum Frequency Response18 kHz
RMS Output Power400 W
PMPO Output Power1600 W
Speaker InstallationOutdoor
Product ColorGray
Tweeter Driver Size1.50"
Woofer Driver Size12"
