SKU
APX40TN
Category
Component Speakers
Overview

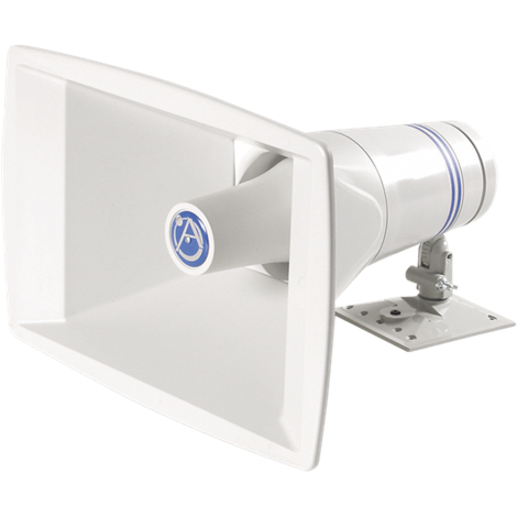

Model APX40TN is a conservatively-rated, 40 watt constant-directivity paging loudspeaker for use in public address or paging applications. It combines constant-directivity with superior engineering design, achieving extraordinary performance with quick and easy installation.
This constant-directivity loudspeaker offer exact positioning flexibility with a simple twist of the wrist. The APX loudspeaker is well-suited for indoor applications including commercial, light industrial, and large retail/distribution applications where clear and pleasant indoor paging/communications and security are required. The speaker is also appropriate for installation in outdoor retail, commercial, recreational, and public use areas where dependable weatherproof performance is needed for communications and security.
The neutral-grey finish compliments most interior or exterior surroundings. It may also be painted to match installation guidelines or cosmetics.
Highlights
40 Watt Model Provides Better Output Over Competitive 15 and 30-Watt Standards
Built-in Screen Protects Against Bug Nesting
Coverage of 60° x 40° Across a Wide Frequency Range for Predictable Beamwidth Control
Loudspeaker is Molded of High-Impact, Neutral-Grey Polycarbonate Resin with UV Light Inhibitor
Rotating Bell Pivots in 15° Increments for Exact On-Site Positioning of Projection Angles Detailed in Acoustic Simulation Programs
Universal 25/70/100V Transformer Includes a Rotary-Dial Selector for Easy Tap Identification
Zinc die cast mounting bracket may be mounted to standard E.O. boxes banded to poles or removed for easy retrofit of existing AP Series loudspeakers.
Specifications
General Information
Manufacturer
AtlasIED
Manufacturer Part Number
APX40TN
Brand Name
AtlasIED
Product Series
APX
Product Model
APX40TN
Product Name
Constant-Directivity 40W Paging Loudspeaker With Rotating Bell
Product Type
Speaker
Physical Characteristics
Product Color
Gray
Form Factor
Pole Mount
Speaker Installation
Indoor/Outdoor
Height
10.3"
Width
14.5"
Depth
13.25"
Weight (Approximate)
6 lb
Technical Information
RMS Output Power
40 W
Minimum Frequency Response
400 Hz
Maximum Frequency Response
7.50 kHz
Sensitivity
124 dB
Miscellaneous
Package Contents
Constant-Directivity 40W Paging Loudspeaker With Rotating Bell
