GIGABYTE Technology

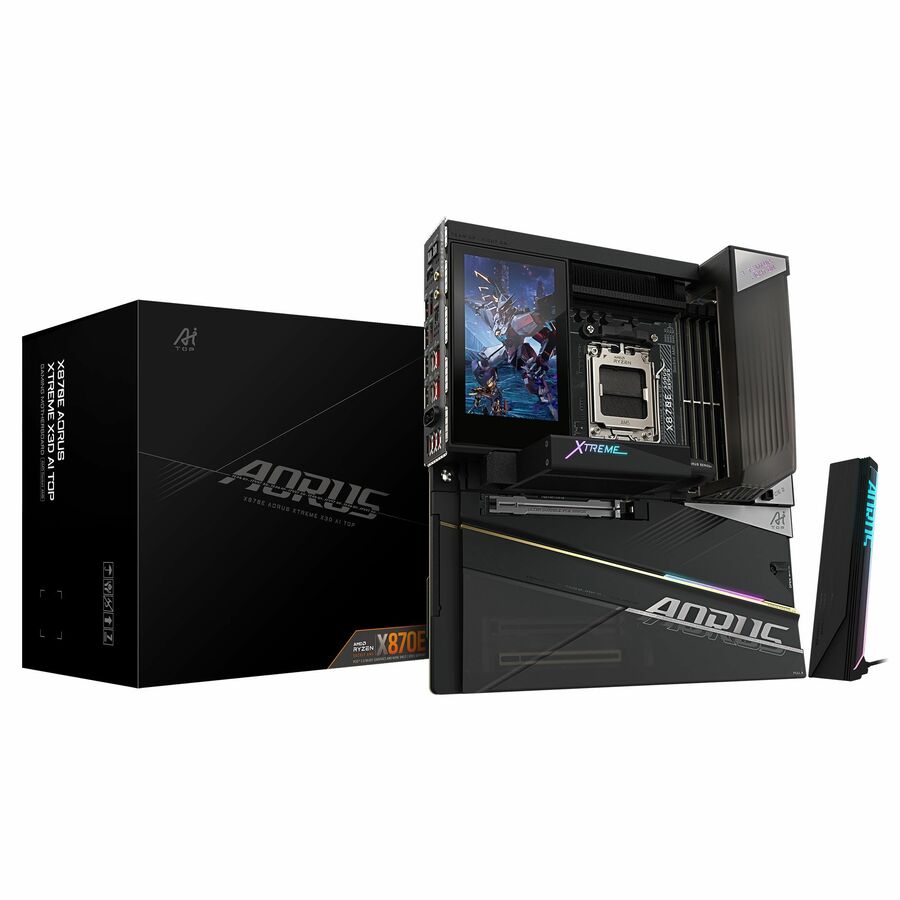

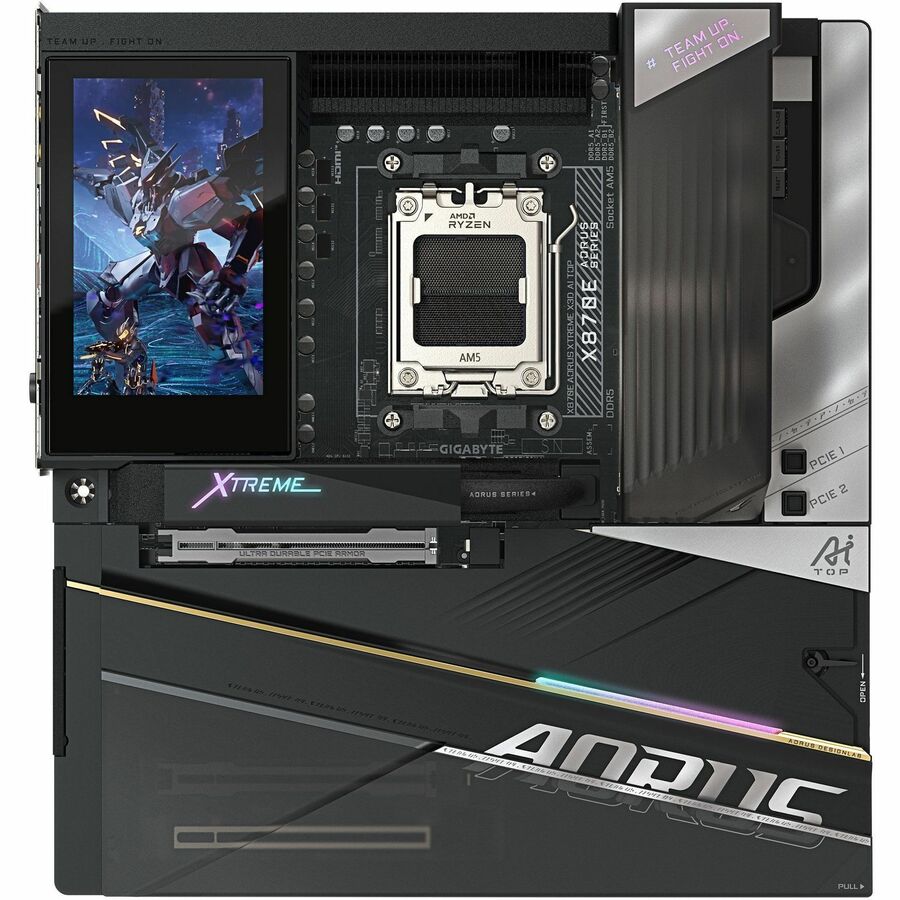

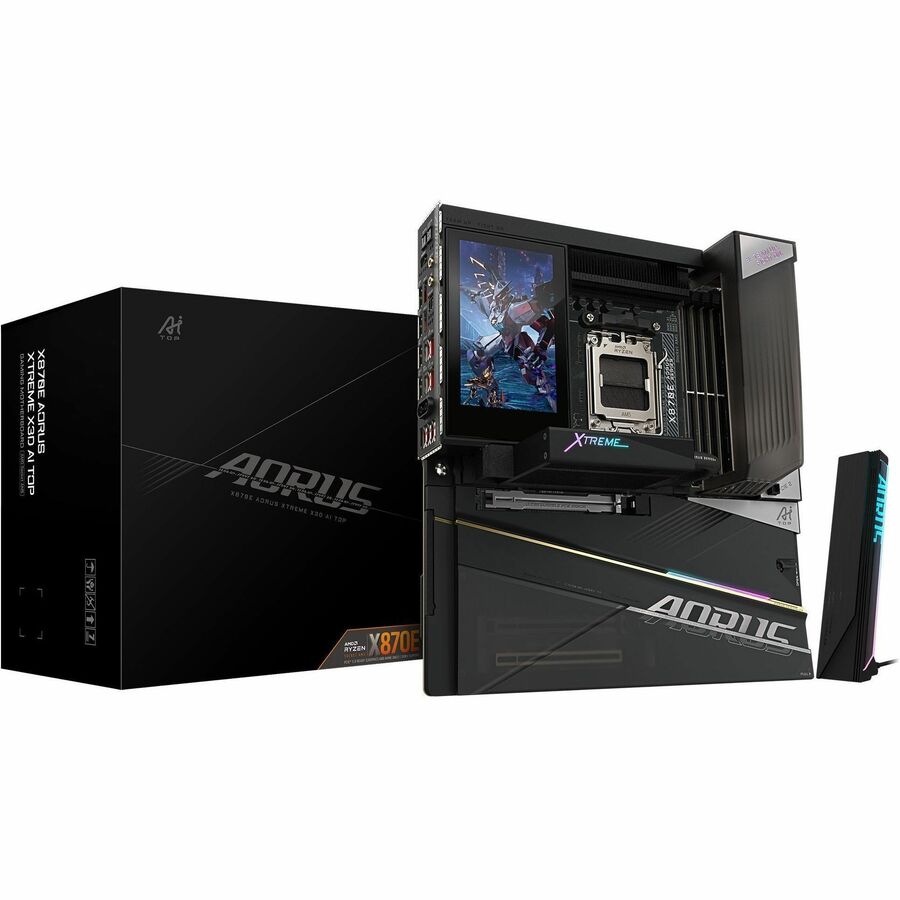

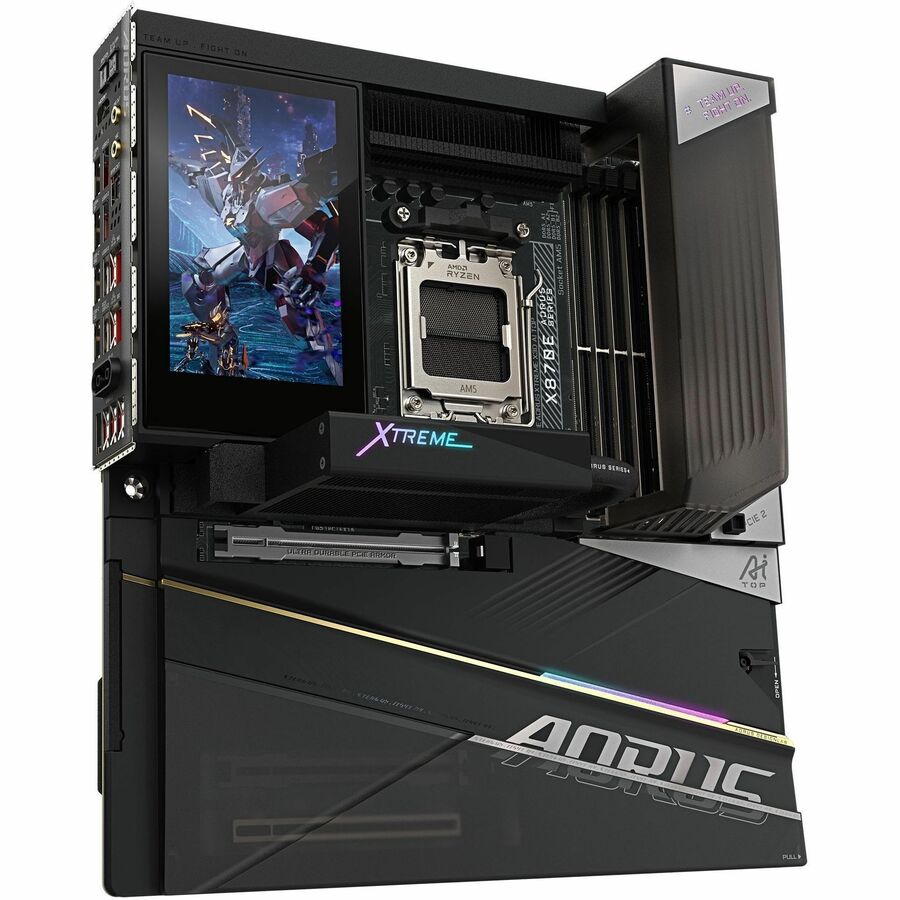

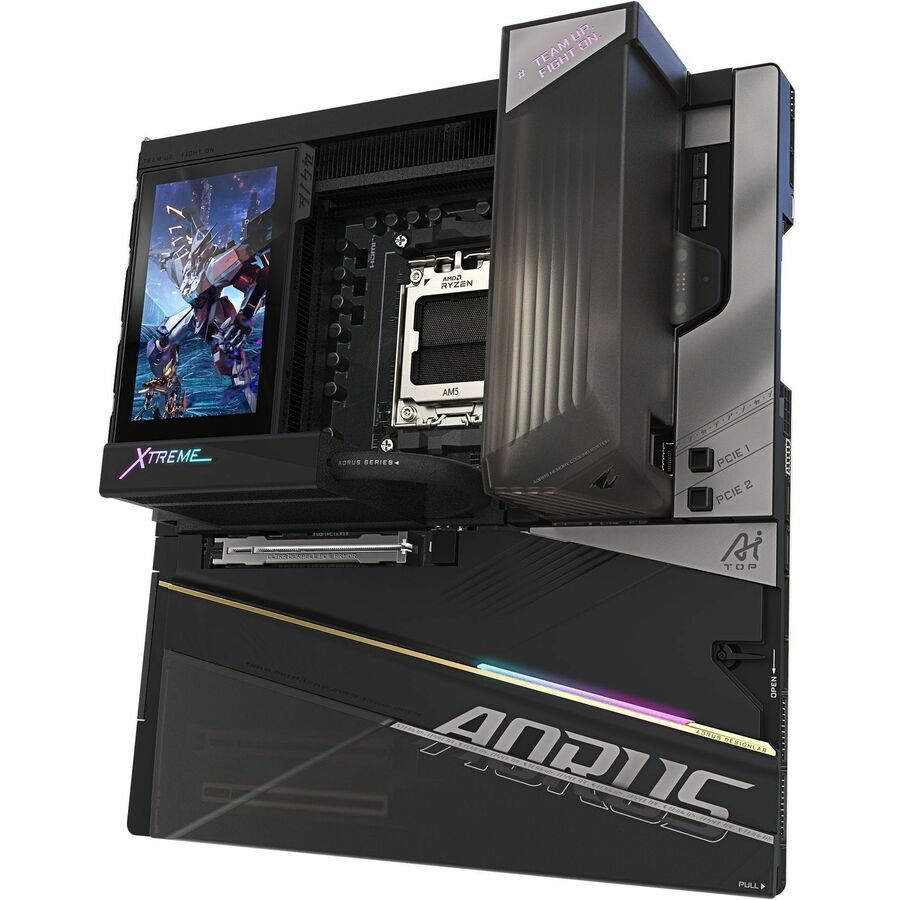

Aorus Ultra Durable X870E AORUS XTREME X3D AI TOP Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - Extended ATX
Ryzen 9, Ryzen 7 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - DisplayPort - 2 x SATA Interfaces
- SKU
- X870E AORUSXTREMEX3DAITOP
- Category
- Motherboards
$1,206.97
Back ordered
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- X870E AORUSXTREMEX3DAITOP
- Category
- Motherboards
Overview
OVERVIEW | X3D Turbo Mode 2.0
Unleash New Era Gaming Performance with One-Click Activation.
Zenith Memory Performance
Advanced AI-enhanced overclocking tech. for DDR5.
D5 Bionic Corsa
Advanced AI-enhanced overclocking tech. for DDR5.
Steady Power
Keeps your computing smooth.
Comprehensive Thermal
Keep your system cool and efficient
Hassle-free Assembly
Ultimate DIY-Friendly experience
Tailored Computing
More superb, user-friendly, customized BIOS & software
Born from Ultra Durable?
Built for longevity and reliability.
Highlights
- X3D Turbo Mode 2.0
- : Incredible X3D performance unleashed by AI
- Training your own AI on your desk
- DDR5 OC up to 9000MT/s
- DriverBIOS
- : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5
- : Supports AMD Ryzen? 9000 / 8000 / 7000 Series Processors
- CPU Thermal Matrix
- : achieve extreme cooling across the VRM & DDR Zone.
- Digital twin 24+2+2 phases VRM solution
- Dual Channel DDR5
- : 4*DIMMs with AMD EXPO?Memory Module Support
- DDR Wind Blade XTREME
- : Enhanced Active Cooling for Memory Modules
- M.2 EZ-Flex
- : high-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design)
- WIFI EZ-Plug
- : Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus Duo
- : PCIe Duo slots with Quick Release & Screwless Design
- EZ-Latch Plus
- : M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click
- : M.2 heatsinks with screwless design
- Friendly UI
- : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage
- : 5*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal
- : VRM Thermal Armor Advanced & M.2 Thermal Guard XTREME & M.2 Thermal Guard Ext.
- Fast Networking
- : Dual 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity
- : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- Titanium PCIe UD Slot X
- : PCIe 5.0 x16 slot with titanium for ultimate protection of graphics cards

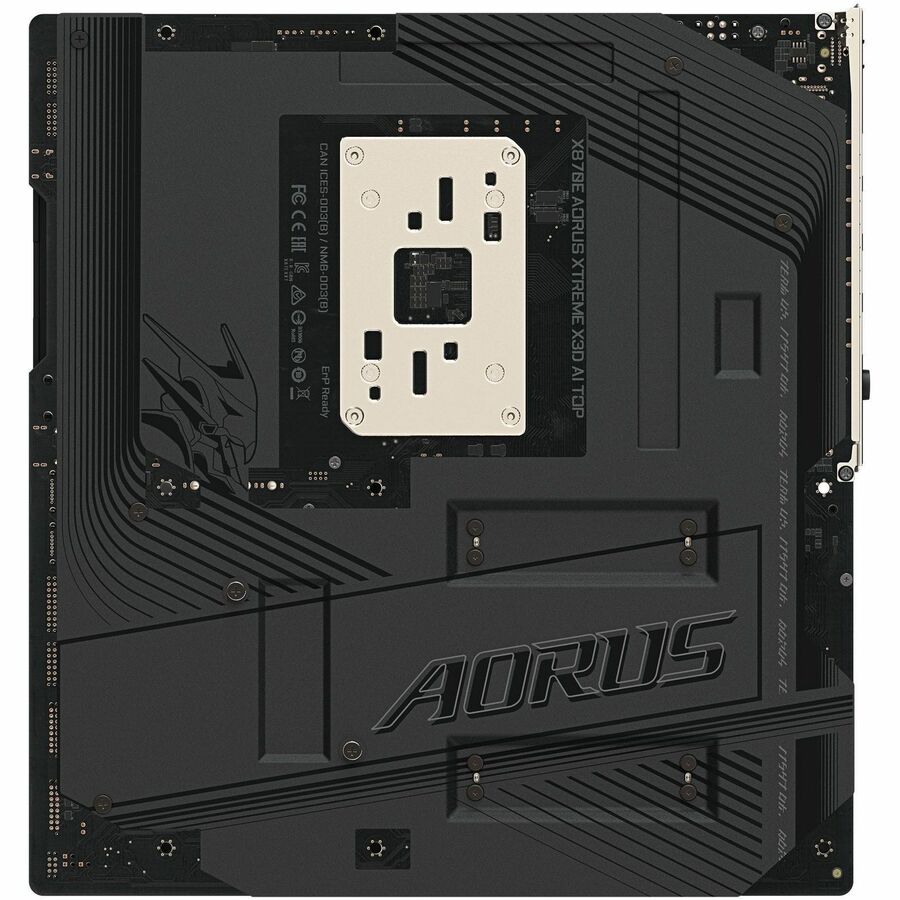

- PCB Thermal Plate
- : 14% thermal improvement and reinforced motherboard stability.
- DTS:X® Ultra Audio
- : ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled
Specifications
| Product Type | Gaming Desktop Motherboard |
|---|---|
| Manufacturer Part Number | X870E AORUSXTREMEX3DAITOP |
| Maximum Memory Supported | 256 GB |
| S/PDIF | Yes |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 8.14 lb |
| Form Factor | Extended ATX |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | X870E AORUS XTREME X3D AI TOP |
| Product Name | Ultra Durable X870E AORUS XTREME X3D AI TOP Gaming Desktop Motherboard |
| Processor Supported | Ryzen 9, Ryzen 7 |
| Product Line | Ultra Durable |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | Aorus |
| Memory Technology | DDR5 SDRAM |
| Height | 0.5" |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Number of Memory Slots | 4 |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Graphics |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 2 |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth Standard | Bluetooth 5.4 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 12 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 5 |
| Memory Speed Supported | 9000 MHz, 8800 MHz, 8600 MHz, 8400 MHz, 8000 MHz, 7800 MHz, 7600 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5200 MHz, 4800 MHz, 4400 MHz |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 8 |
| 2.5Gigabit Ethernet | Yes |
| Number of USB4 Ports | 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
