GIGABYTE Technology

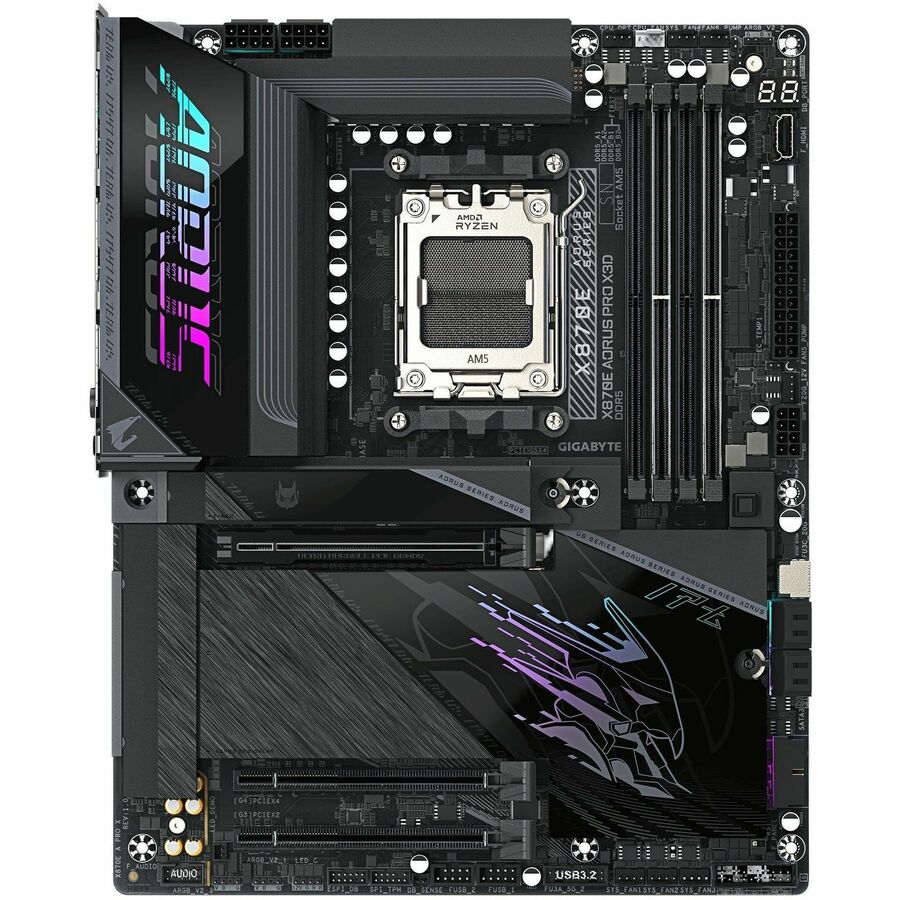

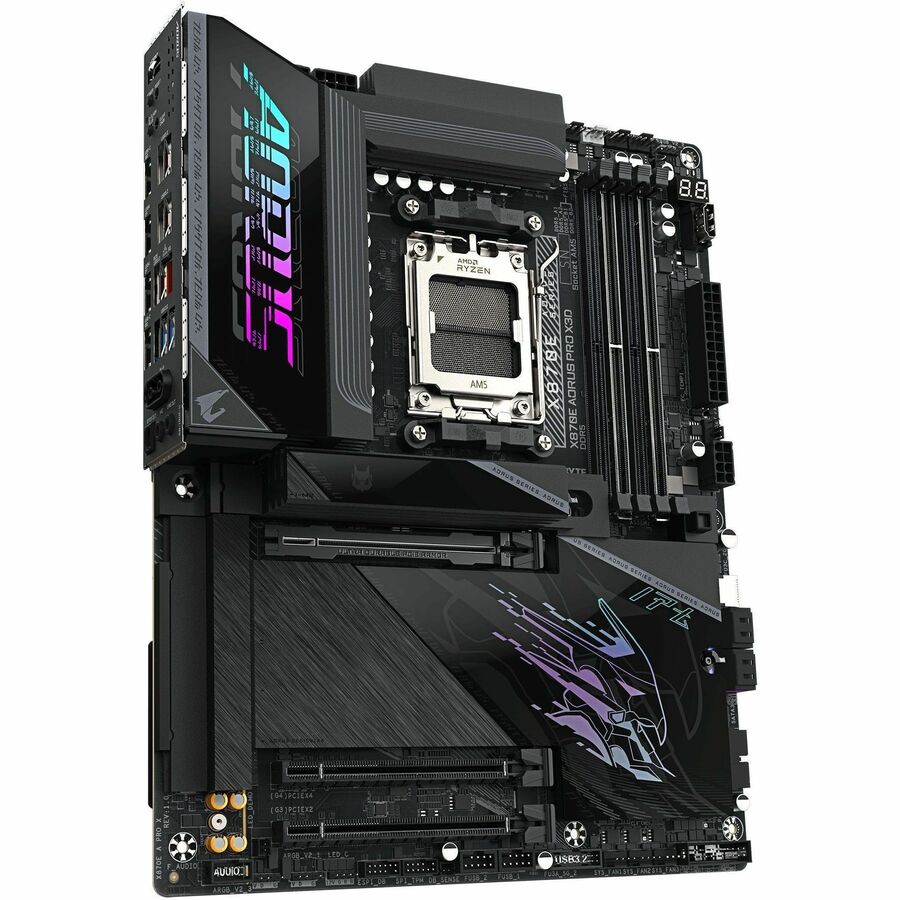

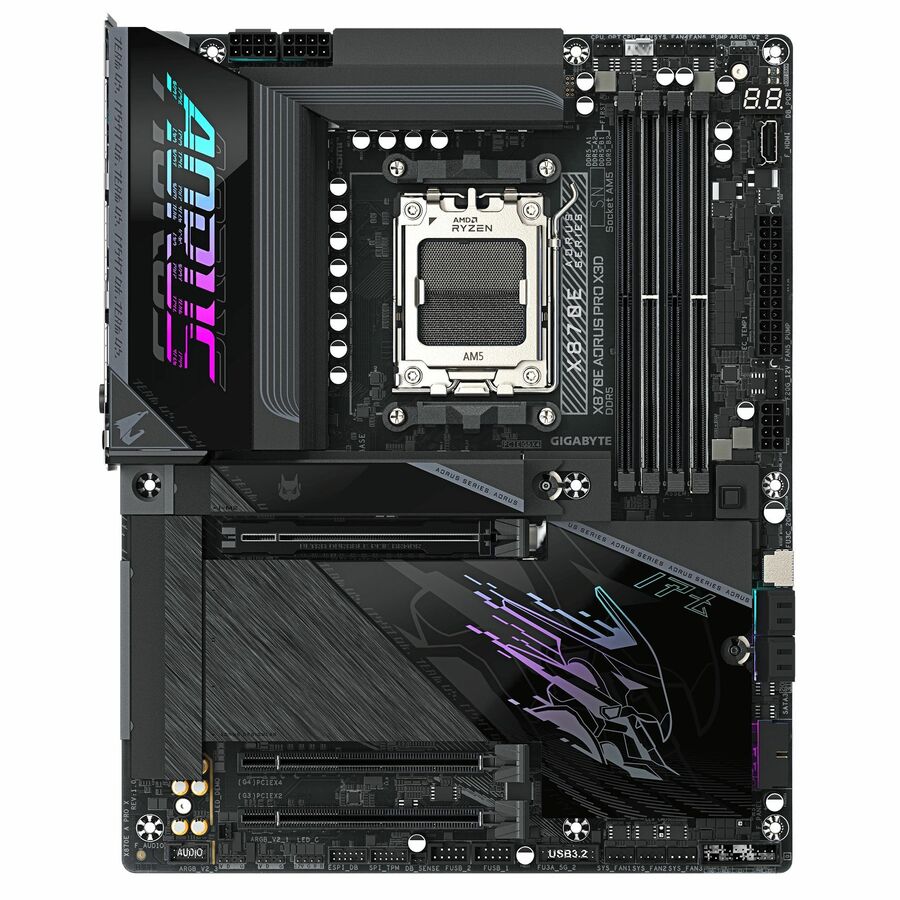

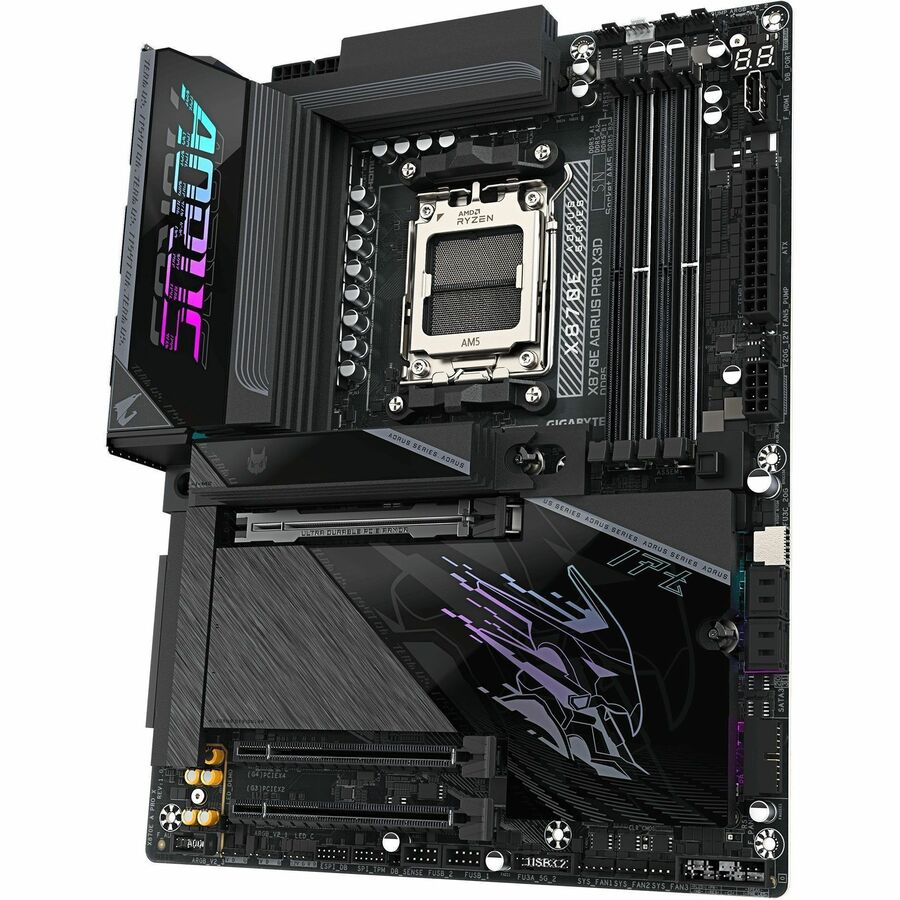

Aorus Ultra Durable X870E AORUS PRO X3D Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX
Ryzen 9, Ryzen 7 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- X870E AORUS PRO X3D
- Category
- Motherboards
$489.55
Back ordered
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- X870E AORUS PRO X3D
- Category
- Motherboards
Overview
OVERVIEW | X3D Turbo Mode 2.0
Unleash New Era Gaming Performance with One-Click Activation.
Zenith Memory Performance
Advanced AI-enhanced overclocking tech. for DDR5.
D5 Bionic Corsa
Advanced AI-enhanced overclocking tech. for DDR5.
Steady Power
Keeps your computing smooth.
Comprehensive Thermal
Keep your system cool and efficient
Hassle-free Assembly
Ultimate DIY-Friendly experience
Tailored Computing
More superb, user-friendly, customized BIOS & software
Born from Ultra Durable?
Built for longevity and reliability.
Highlights
- X3D Turbo Mode 2.0
- : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS
- : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5
- : Supports AMD Ryzen? 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5
- : 4*DIMMs with AMD EXPO?Memory Module Support
- PCIe EZ-Latch Plus Duo
- : One click for screwless & quick release on dual PCIe slots
- M.2 EZ-Flex
- : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug
- : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus
- : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI
- : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage
- : 5*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate
- : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal
- : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking
- : 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

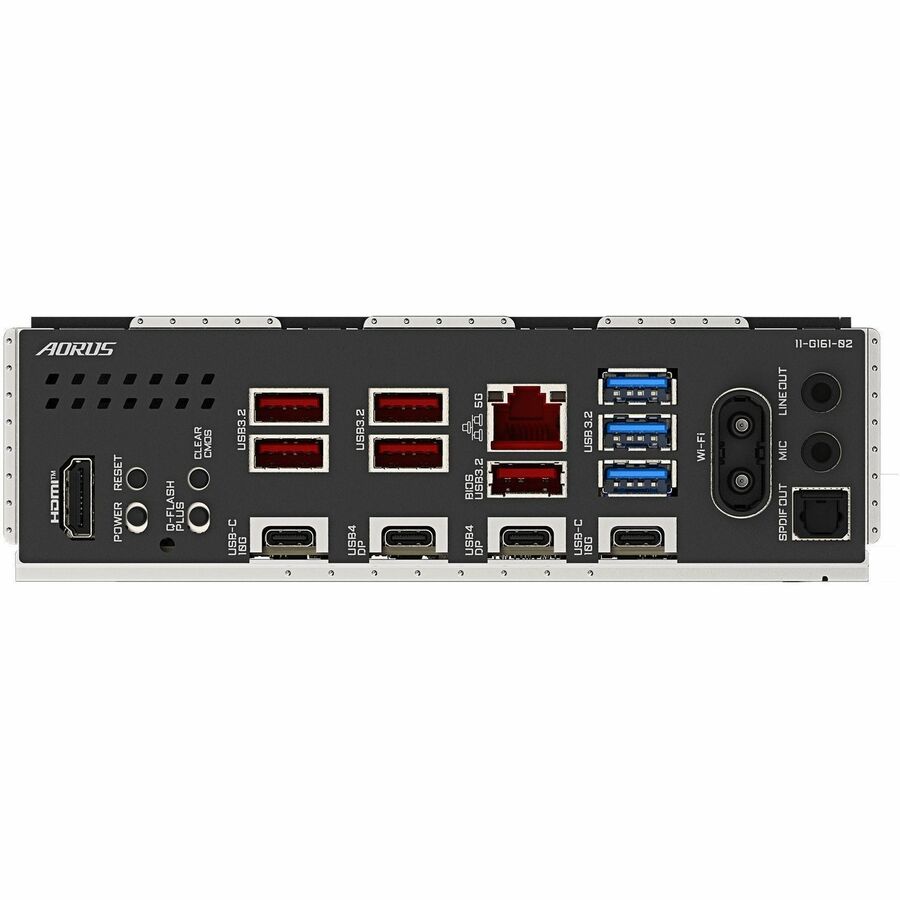

- Extended Connectivity
- : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X
- : PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications
| Product Type | Gaming Desktop Motherboard |
|---|---|
| Manufacturer Part Number | X870E AORUS PRO X3D |
| Maximum Memory Supported | 256 GB |
| S/PDIF | Yes |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 8.22 lb |
| Form Factor | ATX |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | X870E AORUS PRO X3D |
| Product Name | Ultra Durable X870E AORUS PRO X3D Gaming Desktop Motherboard |
| Processor Supported | Ryzen 9, Ryzen 7 |
| Product Line | Ultra Durable |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | Aorus |
| Memory Technology | DDR5 SDRAM |
| Height | 1.4" |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Number of Memory Slots | 4 |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Graphics |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth Standard | Bluetooth 5.4 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 12 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 4 |
| Memory Speed Supported | 9000 MHz, 8800 MHz, 8600 MHz, 8400 MHz, 8000 MHz, 7800 MHz, 7600 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5200 MHz, 4800 MHz |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
| 2.5Gigabit Ethernet | Yes |
| Number of USB4 Ports | 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
