Overview
Product overview: Fluke 378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex | Voltage and current measurements with FieldSense technology

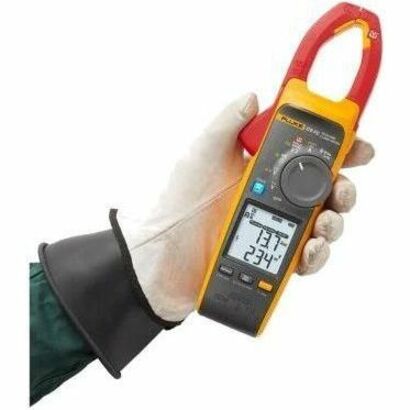

The Fluke 378 FC true-rms clamp meter uses FieldSense technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.
Power quality indicator shows whether a problem is in the equipment or the power line
The 378 FC clamp meter includes a unique PQ function that senses power quality issues automatically. When making FieldSense measurements, the 378 FC will detect and display power quality issues, relating to current, voltage, power factor or any combination of the three. Now you can quickly determine if an upstream supply problem exists, or if there is a downstream equipment problem.
Complete 3-phase measurements in quick, easy steps
• Complete 3-phase voltage and current tests in 3 easy steps
• Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter
• Values are also displayed on your smart phone and saved to the cloud via Fluke Connect software
• Phase rotation auto-calculated and shown on the Fluke Connect software
• No more hand-written notes or complicated math.
Measure extremely high current with iFlex® probe
The included iFlex flexible current probe lets you measure ac current as high as 2500 A. Crowded wiring cabinets and large conductors are easily measured with the iFlex probe.
Easy to see, easy to use with included tools
Your job will get easier when you use the 378 FC clamp meter. The display turns green when a stable FieldSense measurement is detected. Visual Continuity also provides a bright green screen for easy detection of continuity in noisy work areas.

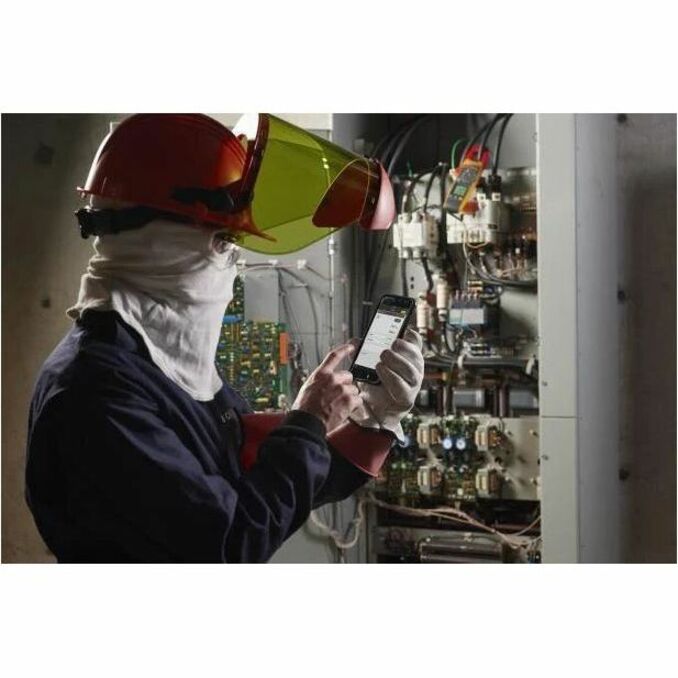

Record, analyze, share results with Fluke Connect® software
With Fluke Connect software you can remotely log, trend and monitor measurements to pinpoint intermittent faults. Fluke Connect also allows you to gather data as the basis for a preventive maintenance program.
Highlights
Measure voltage and current with your clamp jaw
Faster, safer testing - all without touching a live wire - using FieldSense technology
Power quality indicator shows whether equipment or power line is faulty
Complete 3-phase voltage and current tests in 3 quick steps
Specifications
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE-378 FC
Brand Name
Fluke
Product Model
378 FC
Product Name
378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter
Product Type
Clamp Meter
Physical Characteristics
Form Factor
Portable
Height
1.9"
Width
3.4"
Depth
10.8"
Weight (Approximate)
1.02 lb
Technical Information
Measurement Type
AC Voltage, DC Voltage, Resistance, AC Current, Capacitance, DC Current, Frequency, Continuity
True RMS
Yes
Maximum AC Voltage Measurement
1000 V
Maximum DC Voltage Measurement
1000 V
Maximum AC Current Measurement
999.90 A
Maximum DC Current Measurement
999.90 A
Maximum Resistance Measurement
60 Kilo Ohm
Maximum Capacitance Measurement
0.001F
Maximum Frequency Measurement
500 Hz
Jaw Size
1.34"
Miscellaneous

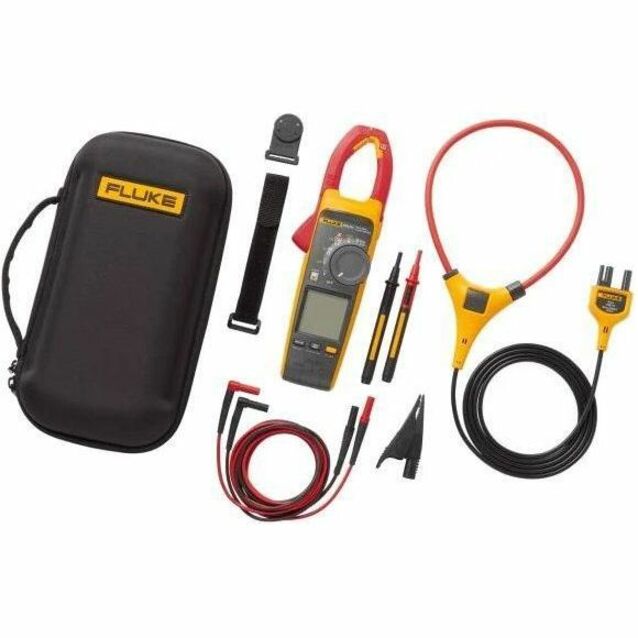

Package Contents
378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter
TL224 Test Leads
TP175 TwistGuard Test Probes
AC285 Black Grounding Clip (1 only)
i2500-18 iFlex Flexible Current Probes 18 inch (48 cm)
