SKU
ACD-14 PLUS
Category
Multimeters
Overview

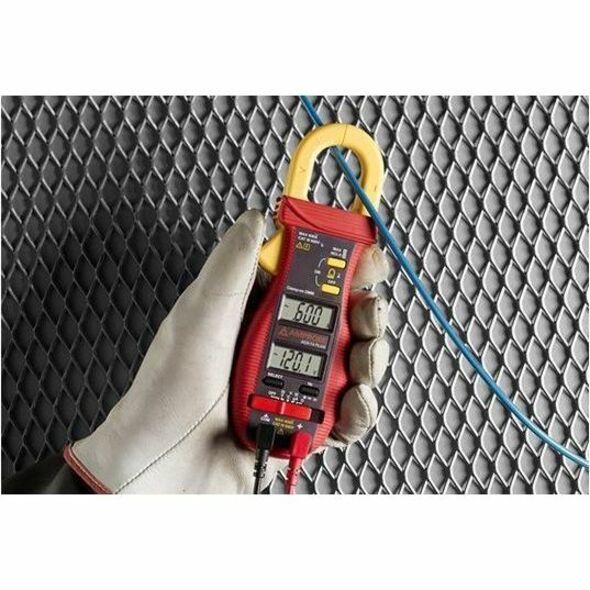

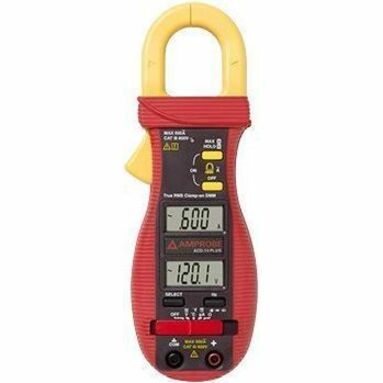

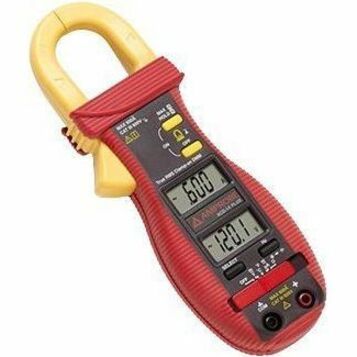

The ACD-14 PLUS clamp meter works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple.
The dual displays show amps and volts simultaneously, useful for measuring voltage drop under load. The thinner jaws of this digital clamp multimeter enable access to tight measurement areas and still handles conductors up to 1" (25 mm).
Highlights
Dual displays permit simultaneous reading of amps and volts
Measures AC Current to 600A and AC/DC Voltage to 600 V
Measures frequency, capacitance to 3000 µF, and resistance to 40M
Measures temperature with K-type thermocouple probe
Includes micro amps measurement for testing flame sensors
Diode test quickly finds voltage drops
Continuity beeper detects opens and shorts
Auto ranging instantly selects correct range
Hold and maximum reading functions
New thin jaws, 5 mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
Accommodates conductors up to 1.0" (25 mm) in diameter
Auto power off and low battery indication helps you make the most of battery life
Rubber, over-molded case absorbs shock
Specifications
Display & Graphics
Display Counts
4000
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
ACD-14 PLUS
Brand Name
Amprobe
Product Model
ACD-14 PLUS
Product Name
ACD-14 PLUS Dual Display Clamp Multimeter with Temperature
Product Type
Clamp Meter
Technical Information
Meter Type
Digital
Measurement Type
AC Voltage, DC Voltage, AC Current, Resistance, Capacitance, Frequency, Temperature, Diode Test, Continuity
Ranging Type
Auto
Maximum AC Voltage Measurement
600 V
Maximum DC Voltage Measurement
600 V
Maximum AC Current Measurement
600 A
Maximum Resistance Measurement
40 Mega Ohm
Maximum Capacitance Measurement
0.003F
Maximum Temperature Measurement
998.6°F (537°C)
Maximum Frequency Measurement
100 kHz
Jaw Size
0.98"
Features
Data Hold, Auto Power Off
Miscellaneous

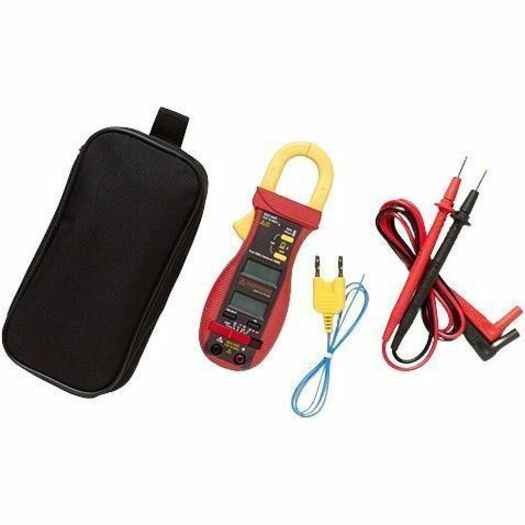

Package Contents
ACD-14 PLUS Dual Display Clamp Multimeter with Temperature
