600 V, 800 A AC - 600 V, 1 kA DC - Data Hold, Backlight, Auto Power Off
SKU
Category
Multimeters
MSRP$355.34
$325.76
Save 8%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine Fluke through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Multimeters
Overview

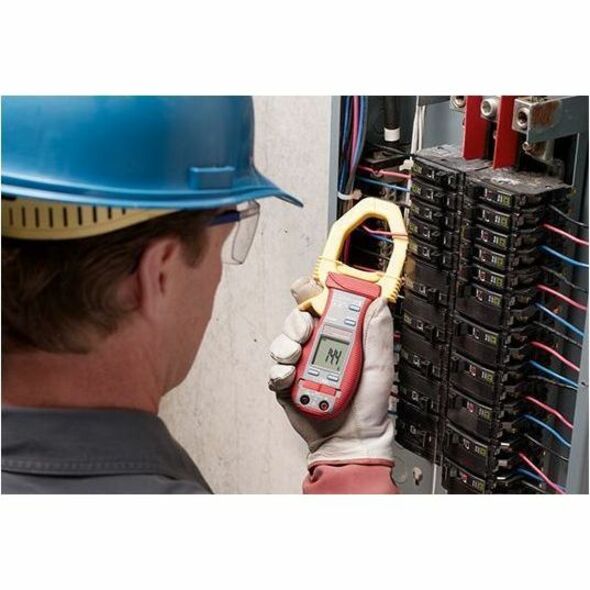

The ACDC-100 TRMS 1000 A digital clamp meter offers superior accuracy, quality and reliability with all the basic measurement capabilities technicians need in an AC/DC current clamp meter. Use it to measure AC current to 800 A, DC current to 1000 A, and AC/DC voltage from 400.0 mV to 600 V.
Its large jaws accommodate conductors up to 2" (50 mm) in diameter and its enhanced ergonomic design make it a great choice for a clamp with professional digital multimeter capabilities.
Highlights
True-rms
Measures AC current to 800A and DC current to 1000A, AC/DC voltage to 600V, plus capacitance, and resistance
Continuity beeper quickly identifies shorts and opens
Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
Data hold freezes the reading on the display for further analysis
Diode test quickly finds voltage drops
MAX capture function measures inrush current (30 mS response)
Combines user friendly features such as a large, easy to read backlit digital display, auto power-off to conserve battery life, and a "third hand" test probe holder
Rubber over-molded case absorbs shock and provides built-in probe storage
Accommodates conductors up to 2.0" (50 mm) in diameter
CAT III 600 V rated
Specifications
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
ACDC-100 TRMS
Brand Name
Amprobe
Product Model
ACDC-100 TRMS
Product Name
ACDC-100 TRMS 1000 A AC/DC Clamp Meter
Product Type
Clamp Meter
Physical Characteristics
Product Material
Rubber
Technical Information
Meter Type
Digital
Measurement Type
AC Current, DC Current, AC Voltage, DC Voltage, Resistance, Capacitance
