Overview

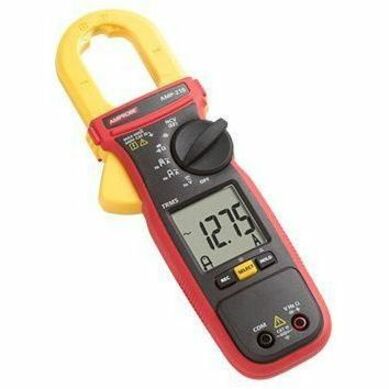

With a full range of AC current, AC/DC voltage, and frequency measurement functions for basic electrical troubleshooting, the AMP-210 clamp meter with its large backlit display is an excellent amp clamp meter choice. Rated CAT III 600 V, the AMP-210 clamp meter offers True-RMS sensing, fast response processor, non-contact voltage detection, capacitance, resistance and continuity measurements to enhance efficiency and safety in today's complex electrical environments. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. A low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).
Highlights
Measures AC Current to 600 A and AC/DC Voltage to 600 V
Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
Amp-Tip delivers precise low AC current measurements - 0 to 60 A
Includes a low pass filter to accurately measure voltage and current on variable frequency drives
Capacitance measurement, continuity beeper and diode test
Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
Offers data hold and relative zero for quick analysis
Maximizes battery life with auto power off and low battery indicator
Backlit display for easy measurement viewing in bright and dim environments
Accommodates conductors up to 1.18 in (30 mm)
Specifications
Display & Graphics
Display Counts
6000
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
AMP-210
Brand Name
Amprobe
Product Series
AMP-200
Product Model
AMP-210
Product Name
AMP-210 600A AC TRMS Clamp Meter
Product Type
Clamp Meter
Physical Characteristics
Height
1.5"
Width
3"
Depth
8.6"
Weight (Approximate)
7.34 oz
Technical Information
Measurement Type
AC Voltage, DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity
True RMS
Yes
Ranging Type
Auto
Maximum AC Voltage Measurement
600 V
Maximum DC Voltage Measurement
600 V
Maximum AC Current Measurement
600 A
Maximum Resistance Measurement
60 Kilo Ohm
Maximum Capacitance Measurement
0.0025F
Maximum Frequency Measurement
999.90 Hz
Jaw Size
1.18"
Features
Data Hold, Auto Power Off, Backlight, Non-contact Voltage Detection
