Overview

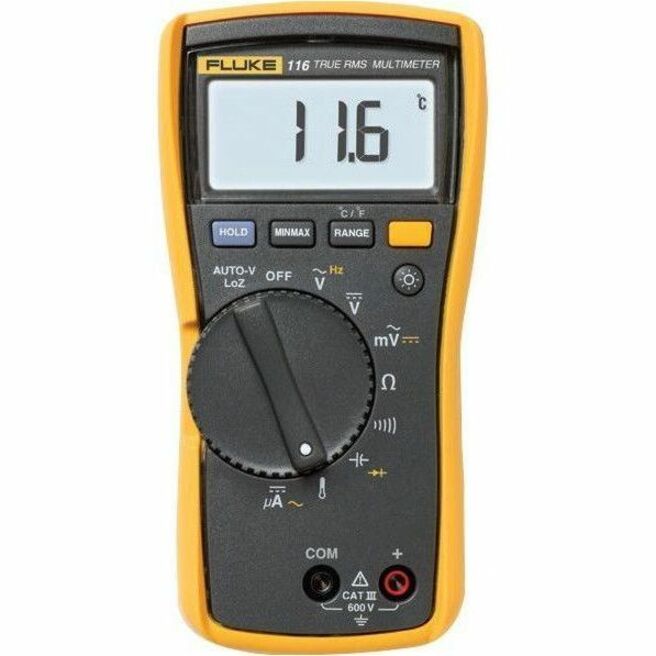

Product overview: Fluke 116 HVAC Multimeter with Temperature and Microamps | Fluke 116 HVAC Multimeter with Temperature and Microamps
The Fluke 116 Digital Multimeter provides the features you need to quickly troubleshoot HVAC equipment
The Fluke 116 HVAC multimeter was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 digital multimeter also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.
The Fluke 110 Series has five true-rms digital multimeters, each for specific users. The compact instruments offer convenient one-handed operation and a backlit display with large, easy-to-read digits.
Other useful features:
• Digital multimeter designed specifically for HVAC professionals
• Includes built-in thermometer to measure temperature from -40°C to z400°C (-40°F to 752°F)
• Provides microamps to test flame sensors
• Features low input impedance to helps prevent false readings due to ghost voltage
• Presents a large white LED backlight for working in poorly lit areas
• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average to record signal fluctuations
• Comes with a holster with probe holders for easy storage
• Features a compact ergonomic design for one-handed operation
• Fits into optional ToolPak magnetic hanger for hands-free operation
• CAT III 600 V safety rated"" For HVAC technicians, building maintenance
Warranty
Limited Warranty: 3 Year
Highlights
Includes built-in thermometer
Microamps to test flame sensors
Large white LED backlight
Specifications
Display & Graphics
Display Counts
6000
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE-116
Brand Name
Fluke
Product Model
116
Product Name
116 HVAC Multimeter with Temperature and Microamps
Product Type
Multimeter
Physical Characteristics
Weight (Approximate)
1.21 lb
Technical Information
Meter Type
Digital
Measurement Type
AC Voltage, DC Voltage, Resistance, Continuity, Capacitance, Diode Test, Temperature, AC Current, DC Current, Frequency
True RMS
Yes
Maximum AC Voltage Measurement
600 V
Maximum DC Voltage Measurement
600 V
Maximum AC Current Measurement
600 µA
Maximum DC Current Measurement
600 µA
Maximum Resistance Measurement
40 Mega Ohm
Maximum Capacitance Measurement
0.009999F
Maximum Temperature Measurement
752°F (400°C)
Maximum Frequency Measurement
50 kHz
Features
Backlight, Built-in Thermometer
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
116 HVAC Multimeter with Temperature and Microamps
