Genuine Fluke through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AMP-330
Category
Multimeters
Overview

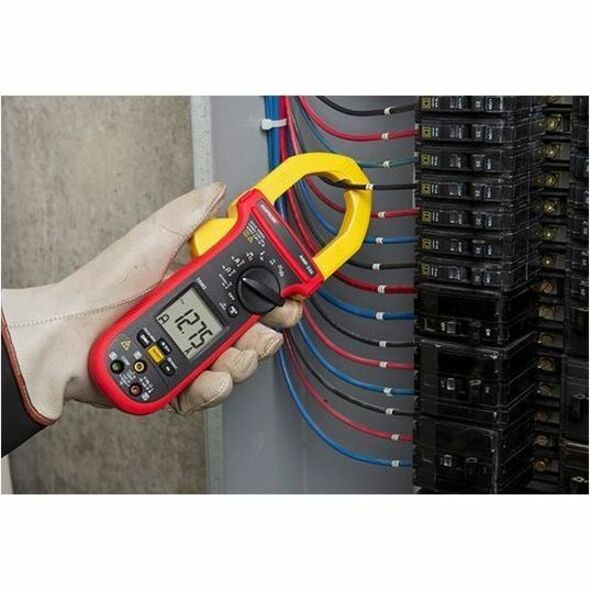

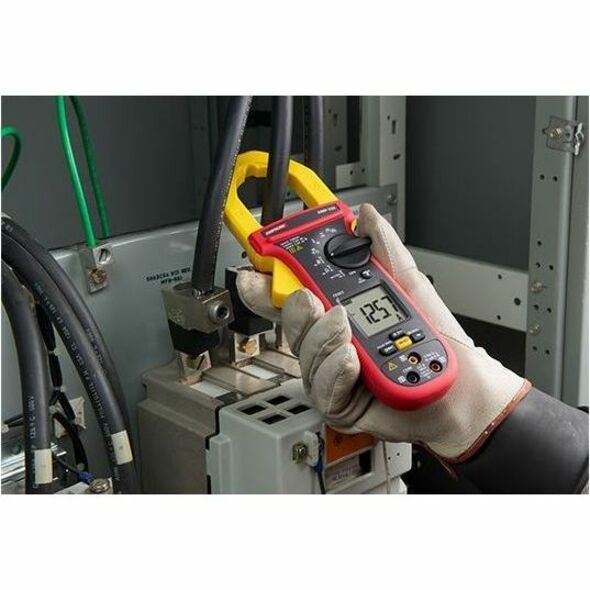

If you're looking for a versatile clamp-on amp meter for electrical motor maintenance and HVAC testing in high voltage industrial environments, the AMP-330 Clamp Meter is the best clamp meter for the job. It is the best clamp meter in the AMP-300 Series line including all the features of the AMP-320 plus a work light, peak hold, CAT IV 600 V, CAT III 1000 V safety rating and large 2.0 inch (51 mm) jaw. HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring. The low pass filter allows you to accurately measure current and voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, and continuity.
Highlights
Measures AC/DC Current to 1000 A and AC/DC Voltage to 1000 V
Measures temperature from -40° to 752°F, (-40° to 400°C)
Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
Measures capacitance, test diodes, and features a continuity beeper
Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
Monitors inrush current during motor start-up
Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
Amp-Tip function delivers precise low AC current measurements - 0 to 60 A
Includes a low pass filter to accurately measure voltage and current on variable frequency drives
Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
Specifications
Display & Graphics
Display Counts
6000
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
AMP-330
Brand Name
Amprobe
Product Series
AMP-300
Product Model
AMP-330
Product Name

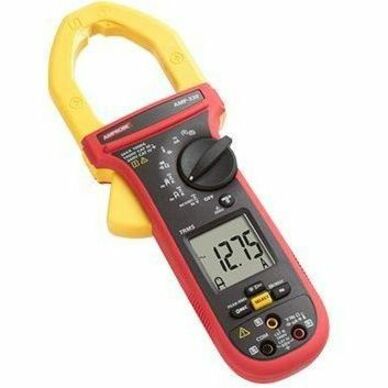

AMP-330 1000A AC/DC TRMS Motor Maintenance Clamp Meter
Product Type
Clamp Meter
Physical Characteristics
Height
1.7"
Width
3.7"
Depth
10.2"
Weight (Approximate)
14.82 oz
Technical Information
Measurement Type
AC Voltage, DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity, Temperature, DC Current
True RMS
Yes
Ranging Type
Auto
Maximum AC Voltage Measurement
1000 V
Maximum DC Voltage Measurement
600 V
Maximum AC Current Measurement
600 A
Maximum DC Current Measurement
1 kA
Maximum Resistance Measurement
60 Kilo Ohm
Maximum Capacitance Measurement
0.0025F
Maximum Temperature Measurement
752°F (400°C)
Maximum Frequency Measurement
999.90 Hz
Jaw Size
2.01"
Features
Data Hold, Auto Power Off, Backlight, Non-contact Voltage Detection
Miscellaneous

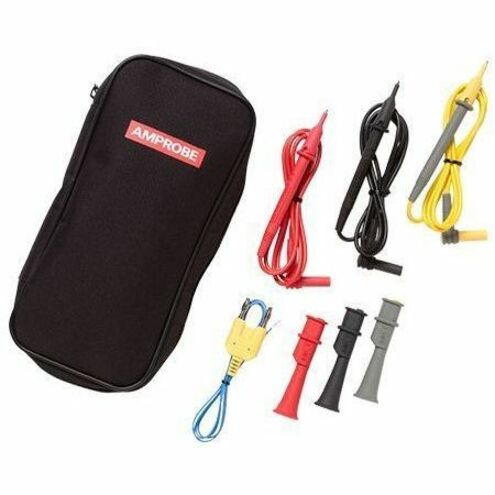

Package Contents
AMP-330 1000A AC/DC TRMS Motor Maintenance Clamp Meter
