3U Rack/Tower - AVR - 3 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC, 208 V AC, 200 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R - Dry Contact, DB-9 RS-232, SNMP/HTTP Remote Monitoring, Network Card - TAA Compliant
MSRP$8,711.82
$8,014.87*
Save 8%In stock: 1
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

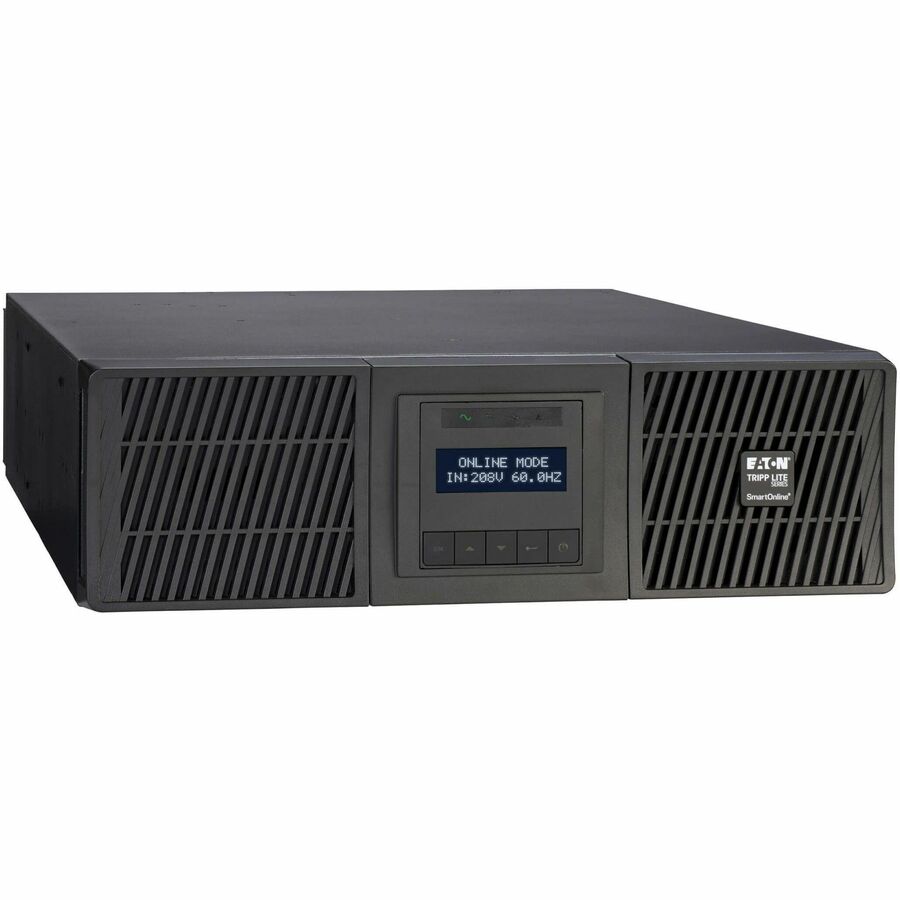

6kVA/5.4kW/208V Battery Backup for IT Installations and Edge Networks
This SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The SU6000RT3UTAA provides reliable power management for government, education, commercial, financial or healthcare networking components, including Cisco switches and servers.
Reliable, Expandable Internal Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. Hours of extra runtime can be achieved by connecting up to four optional extended battery modules (BP180RT3UTAA, sold separately).
Pre-Installed Network Management Card Allows 24/7 Remote Access
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. Note : The SU6000RT3UTAA is not compatible with WEBCARDLX.

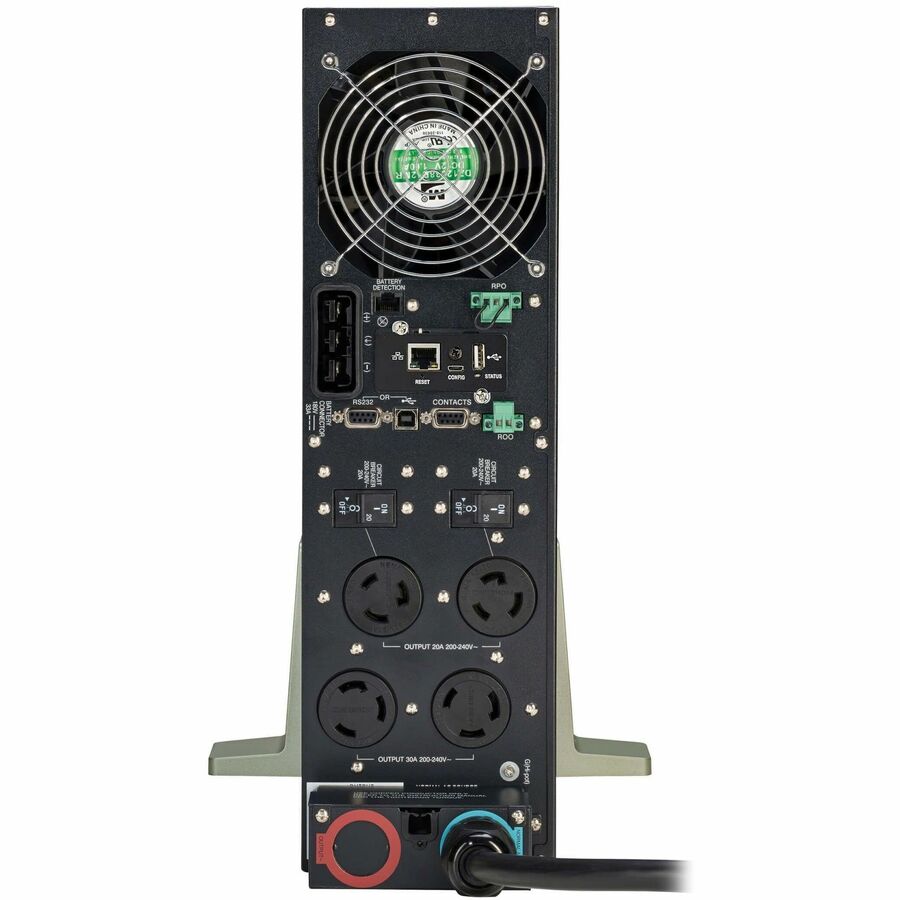

NEMA Outlets Protect Your Connected Components
Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The SU6000RT3UTAA also supports hardwired output.

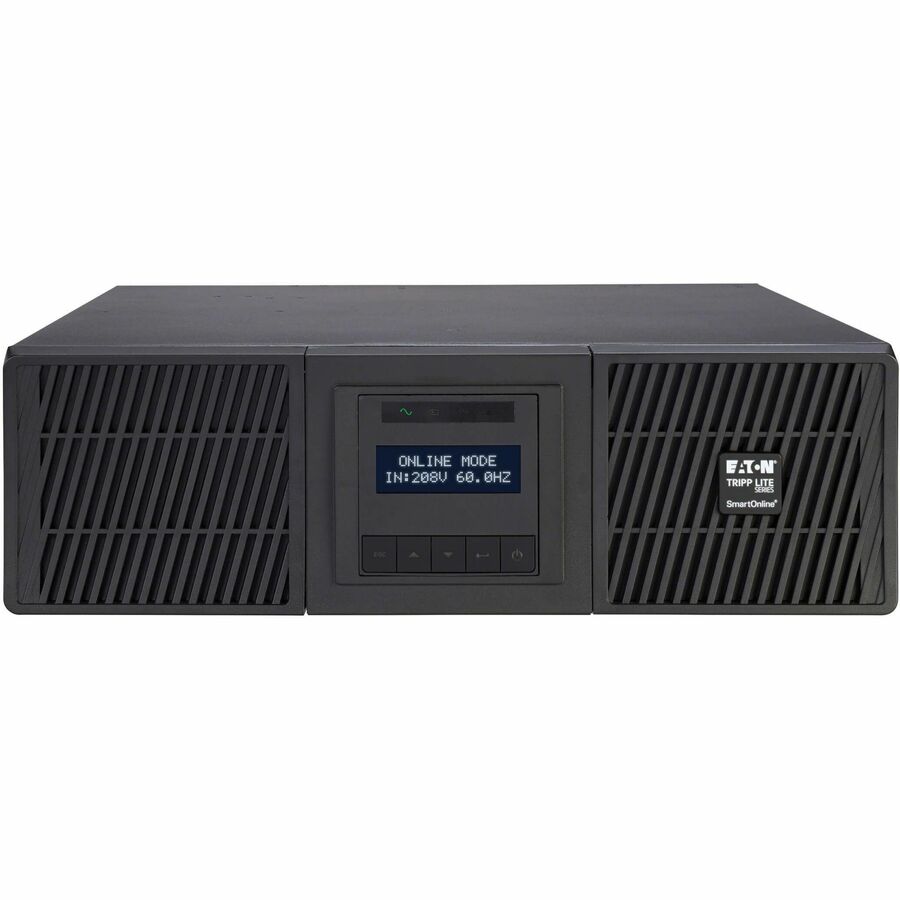

Intuitive LCD Interface Keeps You Informed at a Glance
The menu-driven LCD provides control settings and critical information to help diagnose any issues, including alarm and fault notifications. The interface rotates to accommodate both rack-mount and tower configurations, and tilts up to 45 degrees for more comfortable viewing.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment.

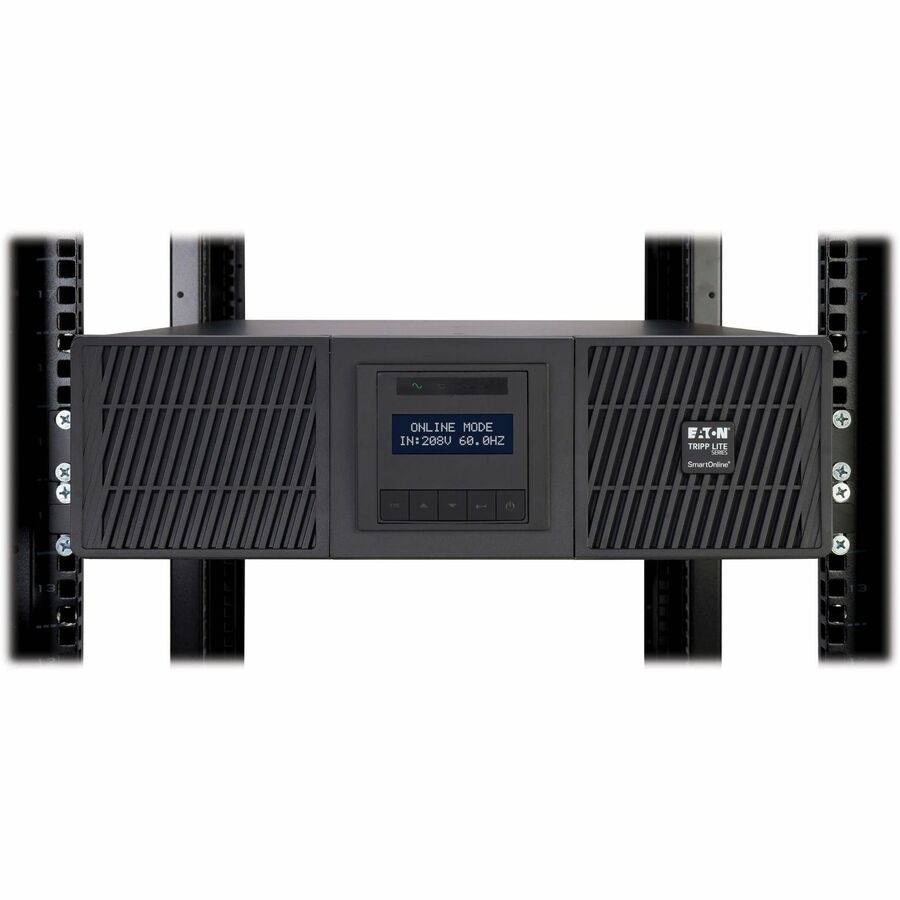

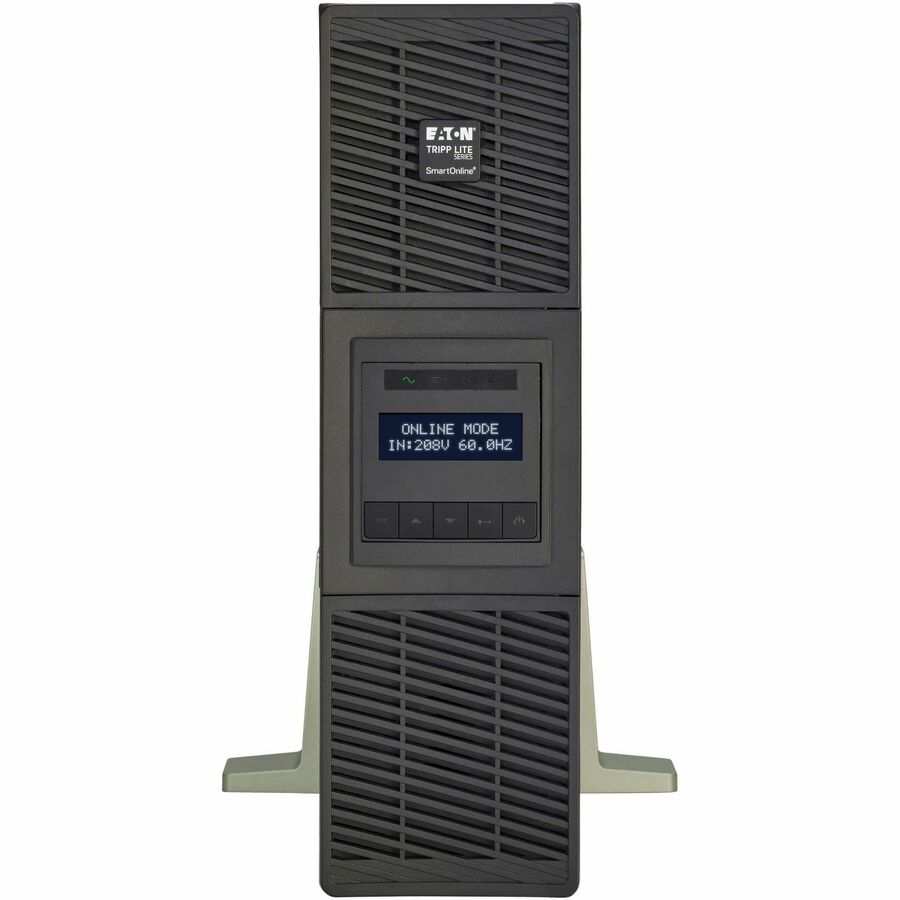

Versatile Installation Options
You can mount the SU6000RT3UTAA in just 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input.
TAA-Compliant for GSA Schedule Purchases
The SU6000RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Battery Information | |
|---|---|
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LED Indicators: 4 Status-indicating LEDs |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Elevation | 3280 ft |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 555.37 W |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU6000RT3UTAA |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU6000RT3UTAA |
| Product Name | SmartOnline SU6000RT3UTAA 6000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Number of USB Ports | 1 |
| Management | |
| Network Management | Dry Contact, DB-9 RS-232, SNMP/HTTP Remote Monitoring, Network Card |
| Alarm | Low Battery, Overload, UPS Fault, Remote Shutdown, Utility Power Failure, Battery Fault |
| Physical Characteristics | |
| Height | 5.10" |
| Width | 17.30" |
| Depth | 27.03" |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 106 lb |
| Power Description | |
| Load Capacity (VA) | 6000 VA |
| Load Capacity (Watt) | 5400 W |
| Input Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Input Current | 24.80 A |
| Output Voltage | 220 V AC, 230 V AC, 240 V AC, 208 V AC, 200 V AC |
| Output Frequency | 60 Hz, 50 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Output Power Factor | 0.9 |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hardwired, NEMA L6-30P |
| Receptacle Type | NEMA L6-20R, NEMA L6-30R, Hardwired |
| Receptacle Detail | 2 x NEMA L6-20R, 2 x NEMA L6-30R |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Green Energy-Saving |
| Efficiency Detail | 93% (AC Mode), 98% (ECO Mode) |
| Application/Usage | Mission Critical Equipment, IT, Network, Education, Healthcare, Military, Government, Network Device, IT Equipment, Non-critical Device, Industrial Equipment |
| Surge Suppression | Yes |
| Features | Audible Alarm, Cold Start Function |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
