2U Rack/Tower - AVR - 9 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 100 V AC, 120 V AC, 125 V AC Output - Single Phase - Sine Wave, Pure Sine Wave - Serial Port - LCD Display - 6 x NEMA 5-15/20R, 1 x NEMA L5-30R Receptacle(s) - Network-M3 Card, RS-232
MSRP$1,634.00
$1,345.58
Save 18%In stock: 1
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Features | 3kVA/3kW/120V Battery Backup for Edge Computing
This 5P G2 line-interactive UPS system provides reliable battery backup and AC power protection for servers, switches and other mission-critical IT equipment in edge computing environments, server rooms and network closets. The 5P3000RTG2 protects more connected devices by providing 20 percent more wattage compared to traditional UPS systems. Pure sine wave output provides stable, high-quality power, while unity power factor (1.0) ensures maximum usable watts at each power rating.
Reliable Battery Backup with Enhanced Management
Exclusive ABM technology increases battery life by 50 percent by optimizing the charging process. It also closely monitors battery health to provide advanced notice when batteries need replacing.
Optional Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M3 cybersecure network management card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect businesses from these risks.
NEMA Outlets Protect Your Connected Components

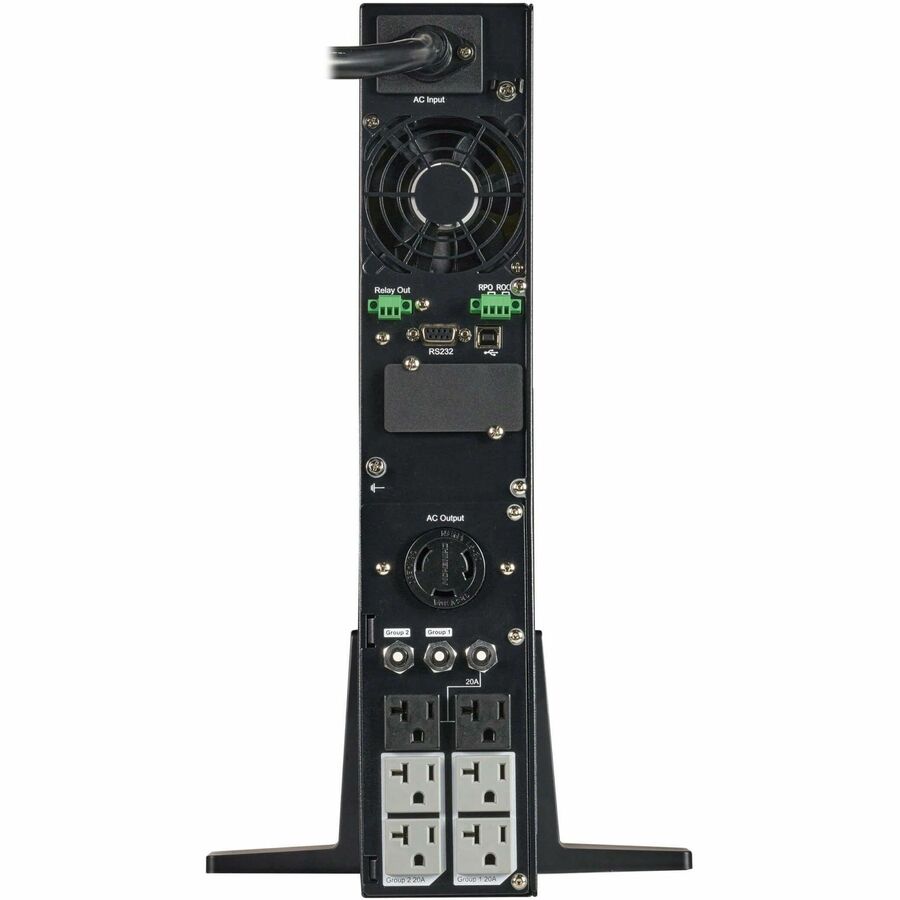

One L5-30R and six 5-15/20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four 5-15/20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The 5P3000RTG2 can correct brownouts as low as 89V and overvoltages as high as 151V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
LCD Interface Keeps You Informed at a Glance

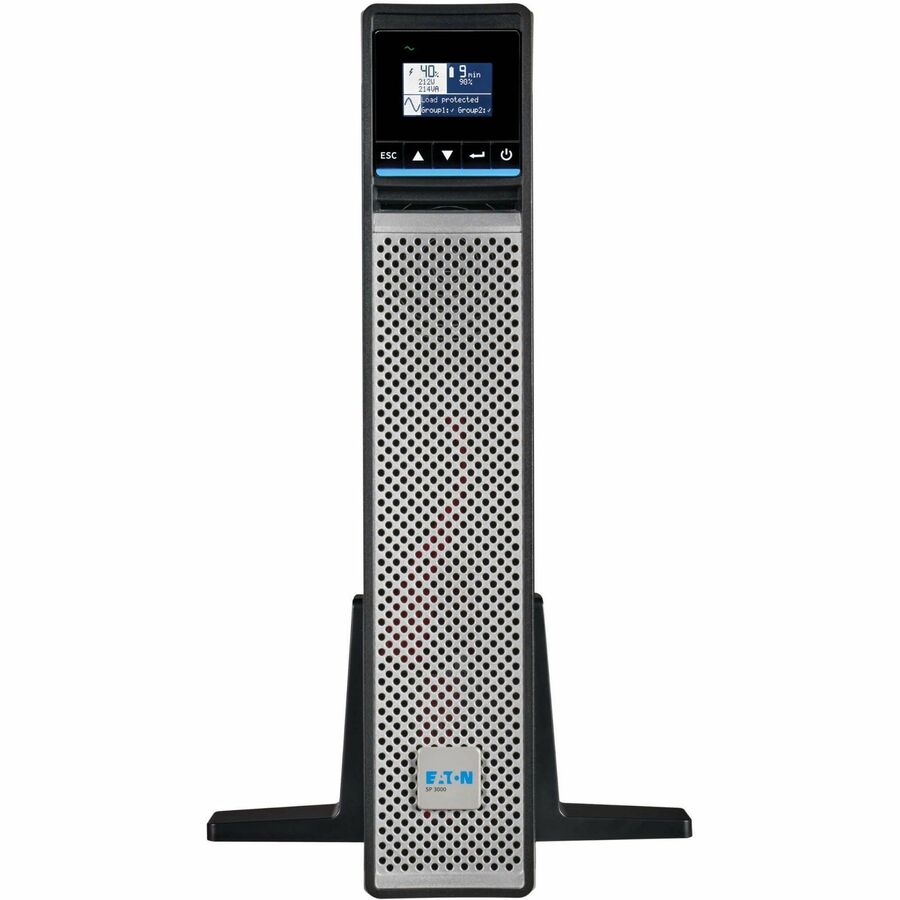

The five-button graphical LCD provides useful information about the UPS itself, load status, events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The multi-color LED status bar stays illuminated so you can always check power status at a glance.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment.
Easy Installation Options

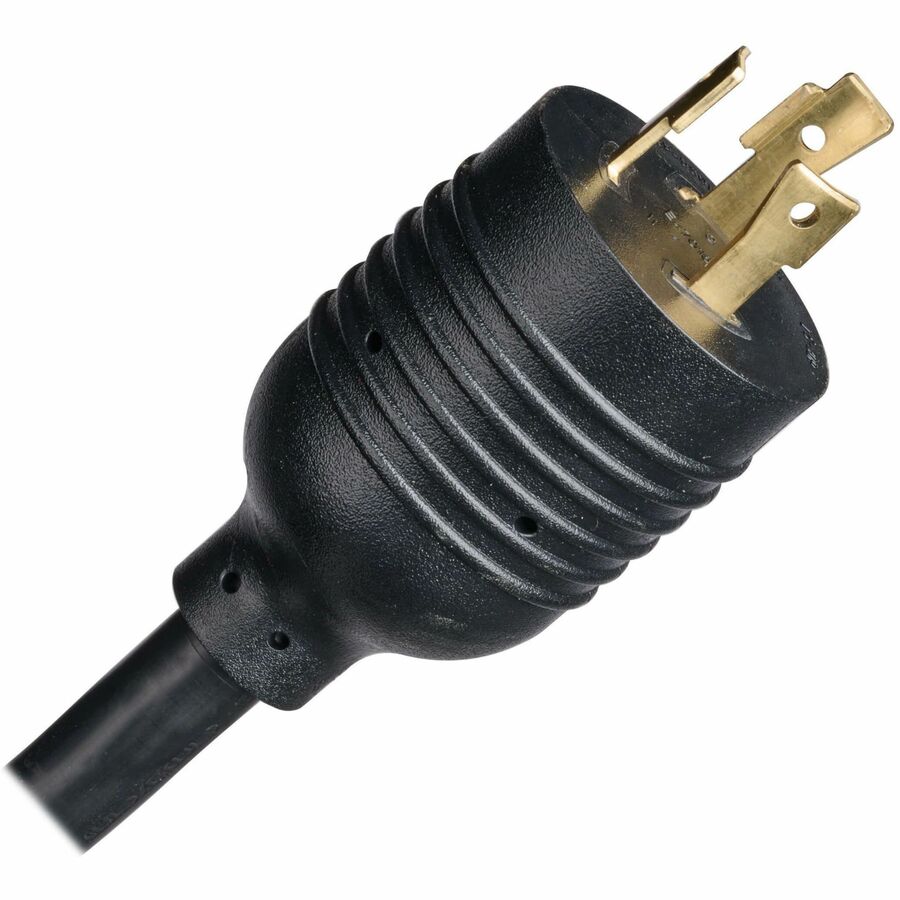

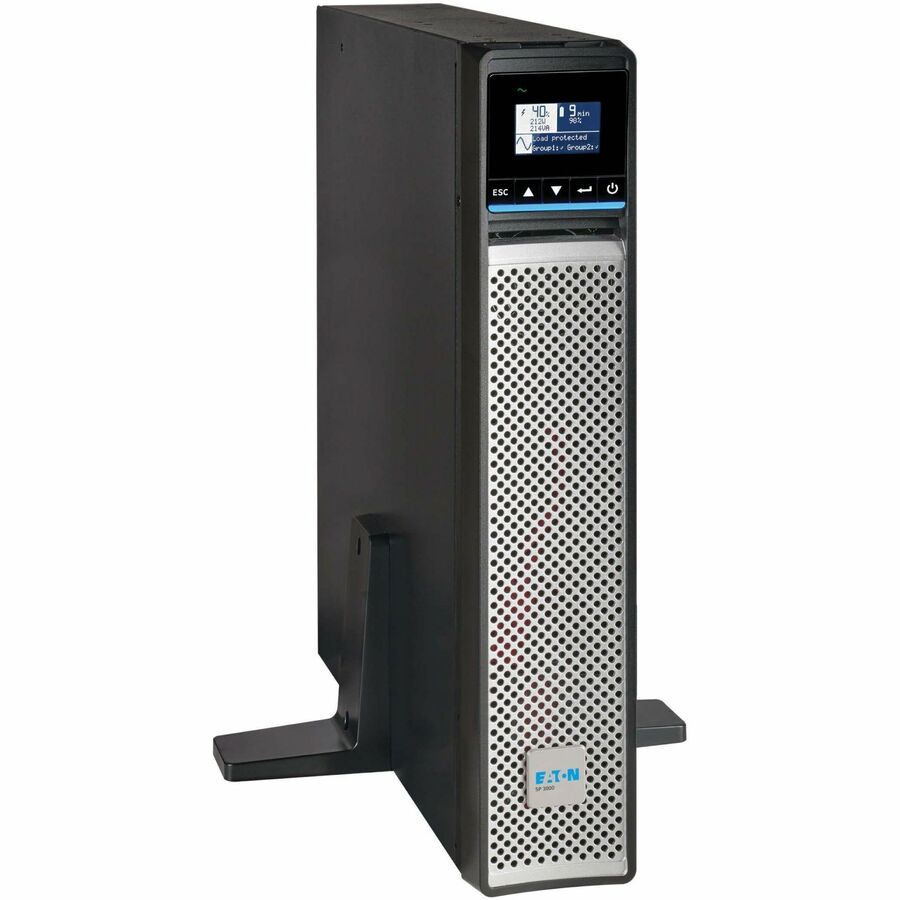

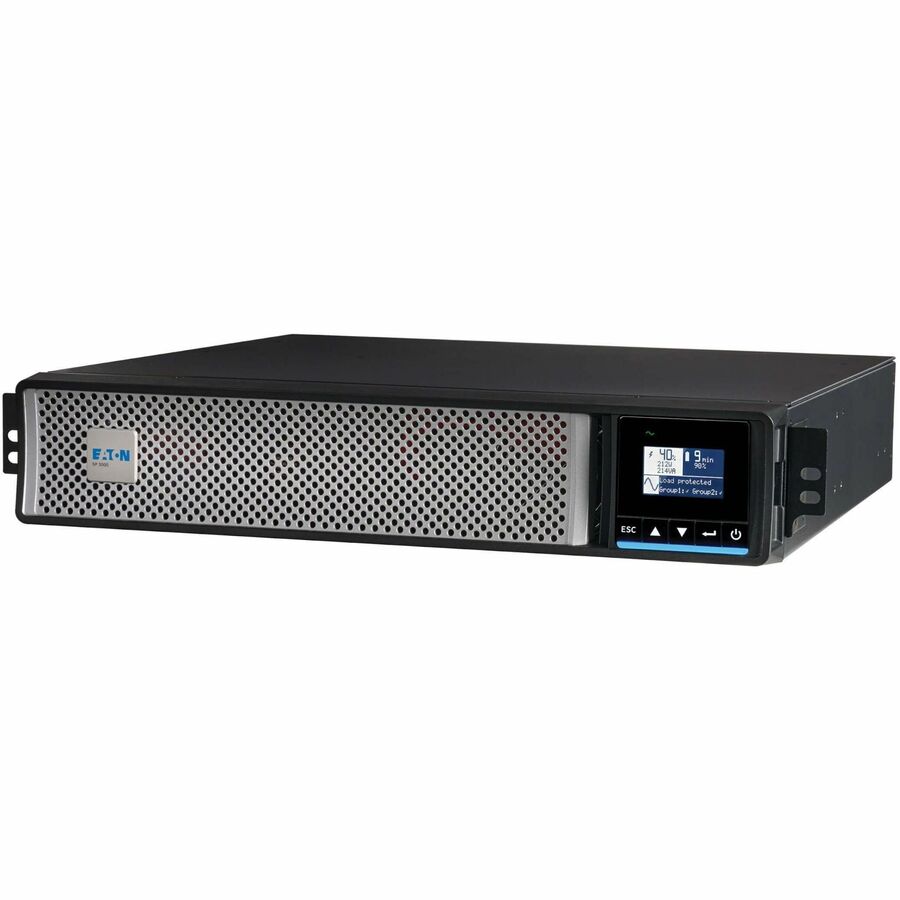

You can mount the 5P3000RTG2 in just 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also install the UPS in a tower format with the included support stands. The 10-foot (3-meter) power cord with NEMA L5-30P plug connects to a compatible AC outlet.
Limited Warranty: 3 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| Application/Usage | Retail, POS, Hospital, Desktop, Network, Server, Switch, Edge Computing, Network Equipment, IT, Mission Critical Equipment, IT Equipment, Server Room, Network Closet |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Display | LCD |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | 5P3000RTG2 |
| Sound Emission | 40 dB |
| Limited Warranty | 3 Year |
| Output Voltage | 100 V AC, 120 V AC, 125 V AC |
| Weight (Approximate) | 74.52 lb |
| Features | Advanced Battery Management (ABM), Audible Alarm, Cold Start Function |
| Form Factor | Rack/Tower |
| Status Indicators | LED Indicators: Normal Battery mode Alarm |
| Input Current | 24 A |
| Manufacturer | Eaton Corporation |
| Product Model | 5P3000RTG2 |
| Product Name | 5P Gen2 5P3000RTG2 3000VA Rack/Tower UPS |
| Network Management | Network-M3 Card, RS-232 |
| Surge Energy Rating | 380 J |
| Surge Suppression | Yes |
| Waveform Type | Sine Wave, Pure Sine Wave |
| Product Series | 5P Gen2 |
| Rack Height | 2U |
| Brand Name | Eaton |
| Plug/Connector Type | NEMA L5-30P |
| Input Voltage Range | 89 V AC - 151 V AC, 70 V AC - 153 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Utility Power Failure, Low Battery, Overload, UPS Fault, Battery Fault, Remote Shutdown |
| Cord Length | 10 ft |
| Height | 3.67" |
| Width | 17.24" |
| Depth | 23.74" |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R, NEMA L5-30R |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve-regulated |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 3000 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| DC System Voltage | 72 V DC |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Number of Load Management Outlets | 4 |
| Maximum Operating Elevation | 9842 ft |
| Maximum Storage Elevation | 9842 ft |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 9 Hour |
| Output Power Factor | 1 |
| Receptacle Detail | 6 x NEMA 5-15/20R, 1 x NEMA L5-30R |
| Efficiency Detail | 97.5% (Hi-efficiency Mode) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
