Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
N484-3M8-LC12
Category
Patch Panels
Overview

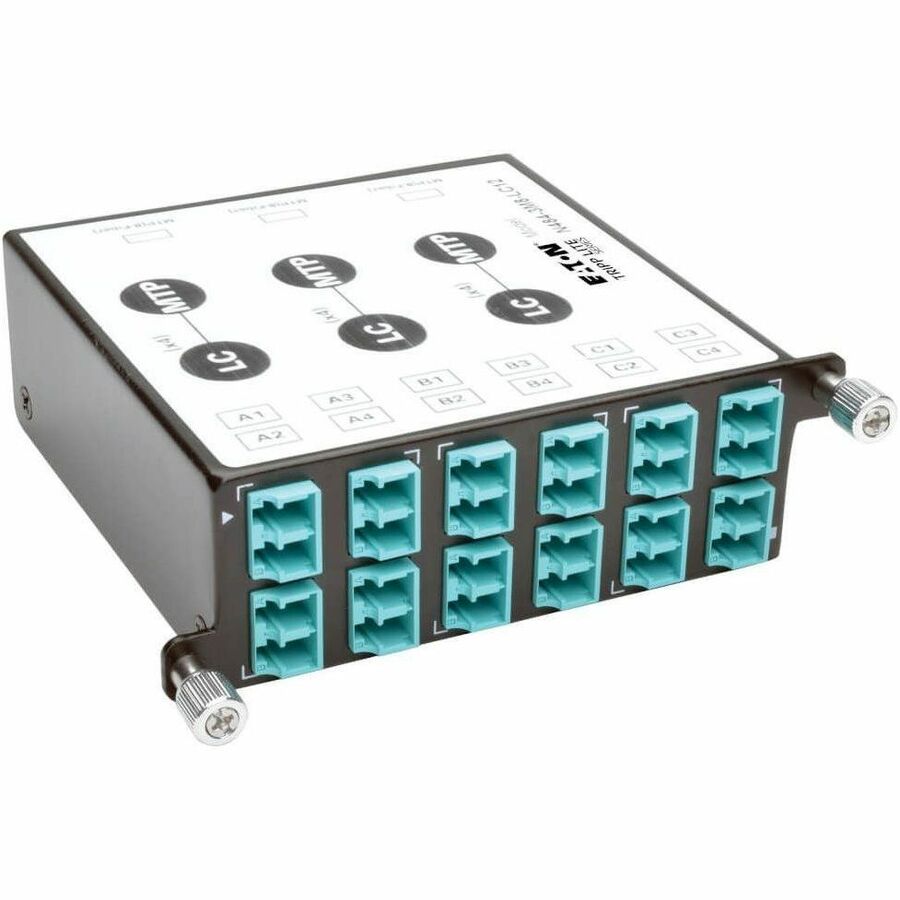

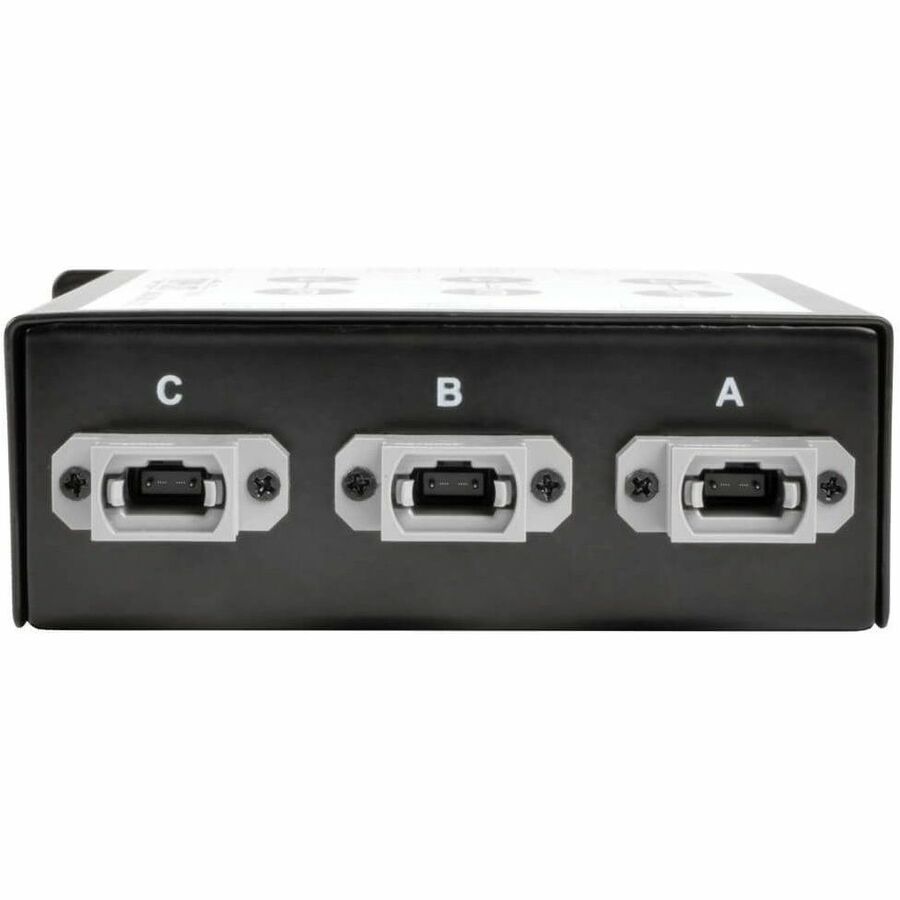

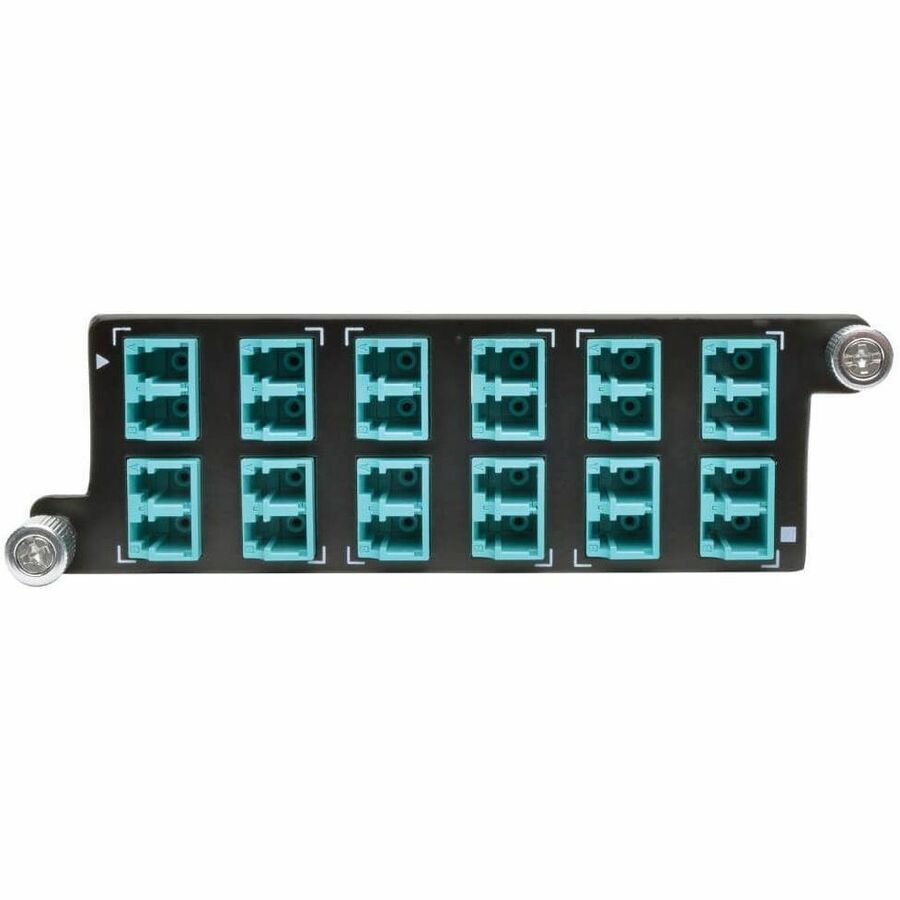

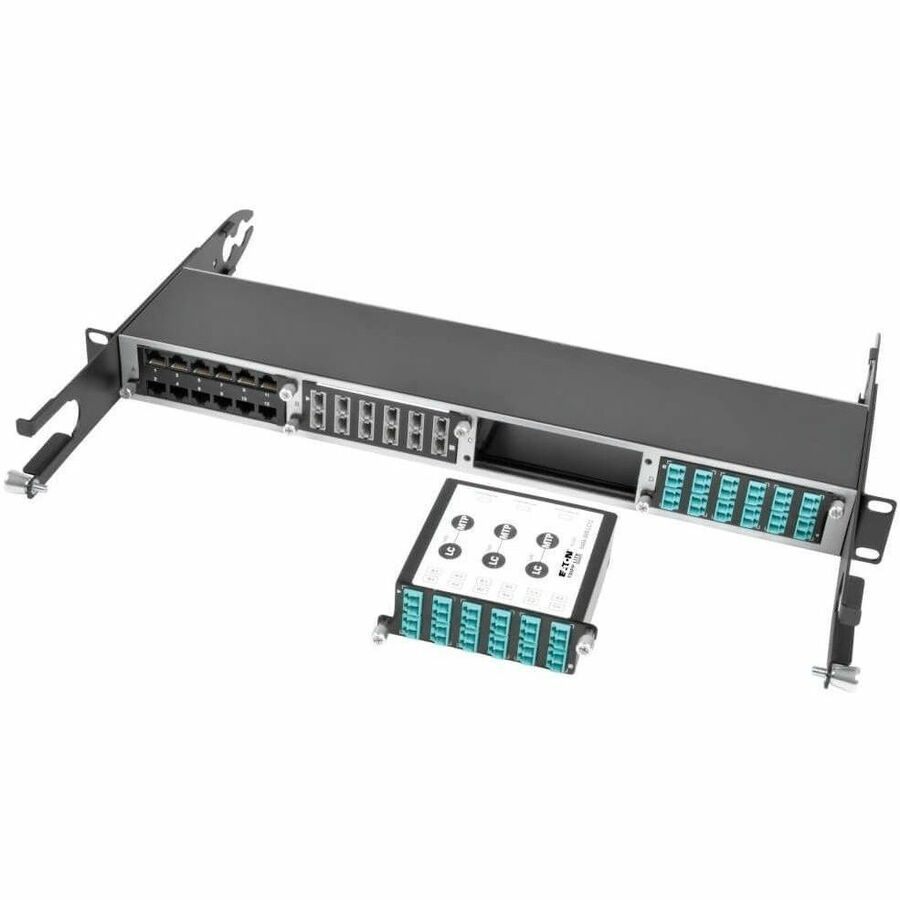

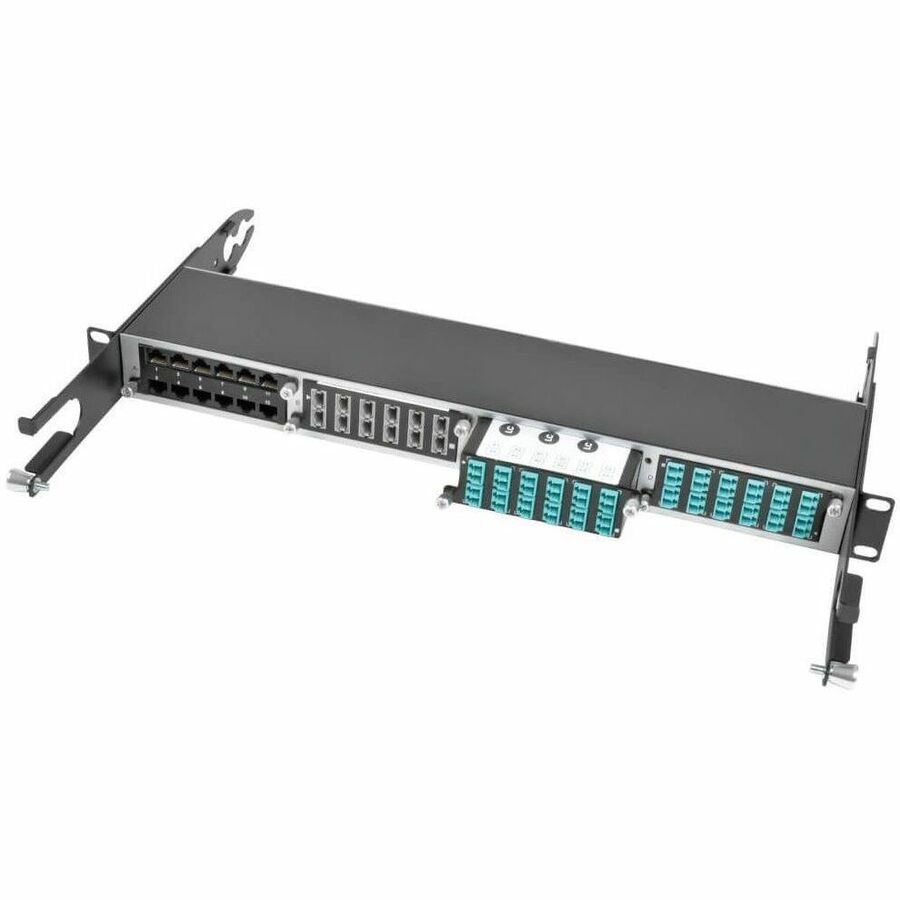

The N484-3M8-LC12 40 GB to 10 GB Breakout Cassette works in tandem with Tripp Lite's N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. It's compatible with recommended Tripp Lite cabling, including the N820-, N821-, N844- and N858 Series. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity.The cassette's modular design installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC patch cables, such as Tripp Lite's N820-01M-T cables, into the cassette using the cable's convenient push/pull tabs. Up to four N484-3M8-LC12 cassettes fit in the N484-01U 1U enclosure panel, and one cassette fits in the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.The N484-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of More from the Manufacturer
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
For use with Tripp Lite N484-01U or N484-00U chassis
Simple installation with no tools required
Factory-terminated OM4 connectors
Supports 40 GbE internally using OM4 fiber optic cable
Complies with IEEE 802.3ae and ANSI T11.2 requirements
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N484-3M8-LC12
Brand Name
Tripp Lite series
Product Model
N484-3M8-LC12
Product Name
40 GB to 10 GB Breakout Cassette, (x3) 8-Fiber OM4 MTP/MPO to (x12) LC Duplex
Product Type
Network Patch Panel
Physical Characteristics
Product Material
Cold Rolled Steel
Warranty
Limited Warranty
Lifetime
Interfaces/Ports
Total Number of Ports
15
Number of LC Ports
12
LC Port Type
Duplex
Number of MT Ports
3
Miscellaneous
Package Contents
40 GB to 10 GB Breakout Cassette, (x3) 8-Fiber OM4 MTP/MPO to (x12) LC Duplex
