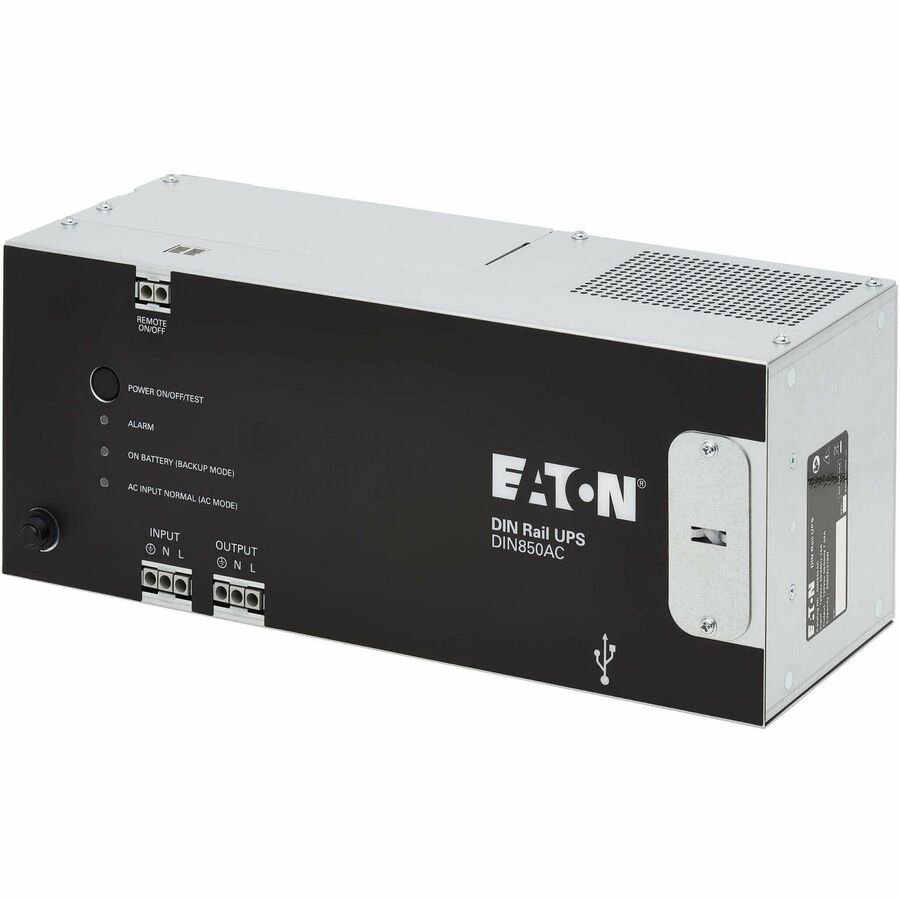

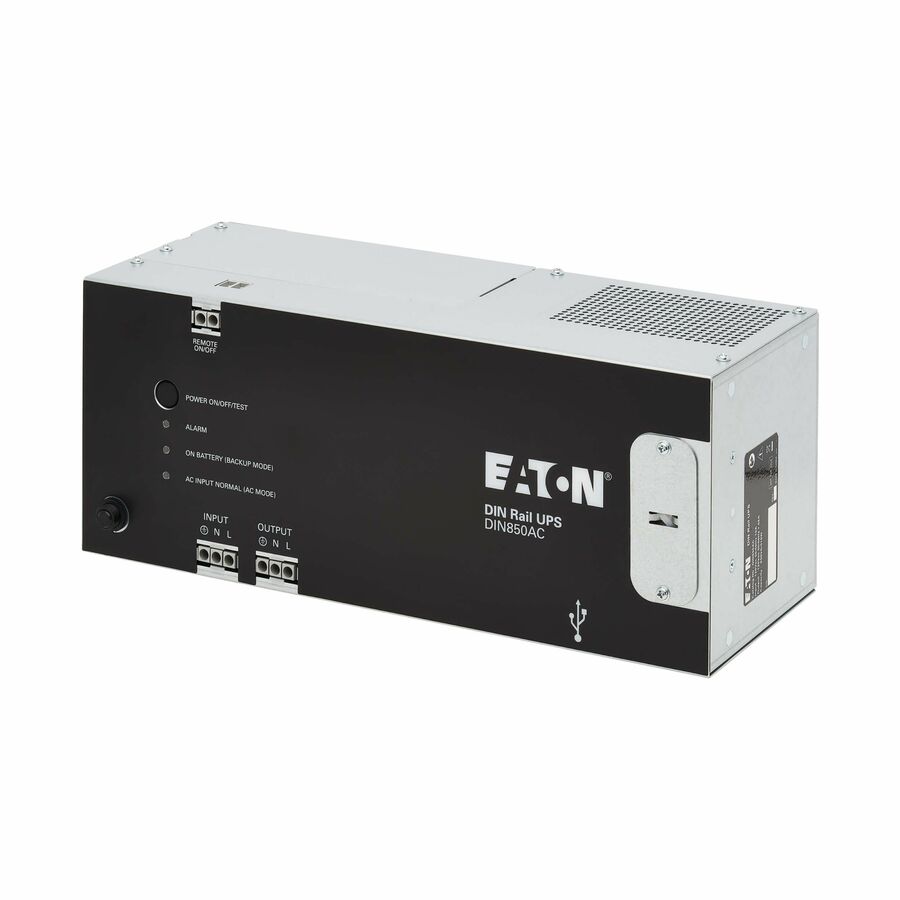

Eaton DIN850AC 850VA DIN Rail UPS
DIN Rail - 2 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - LED Display - 1 x Hardwired Receptacle(s)
- SKU
- DIN850AC
- Category
- General Purpose UPS
MSRP$1,040.25
$674.41
Save 35%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DIN850AC
- Category
- General Purpose UPS
Overview
Not for sale in the USA until further notice.
Flexible Power Protection for Smart Industrial Applications
The DIN850AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.
Ideal for Factory Floors and Extreme Temperatures

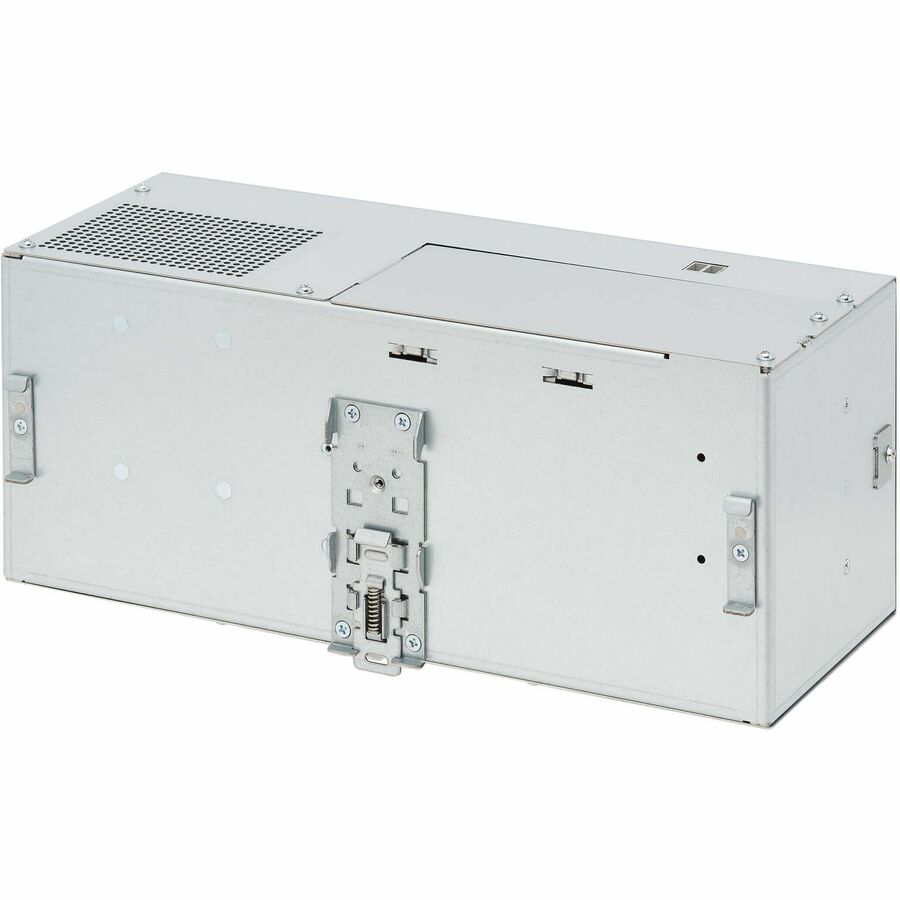

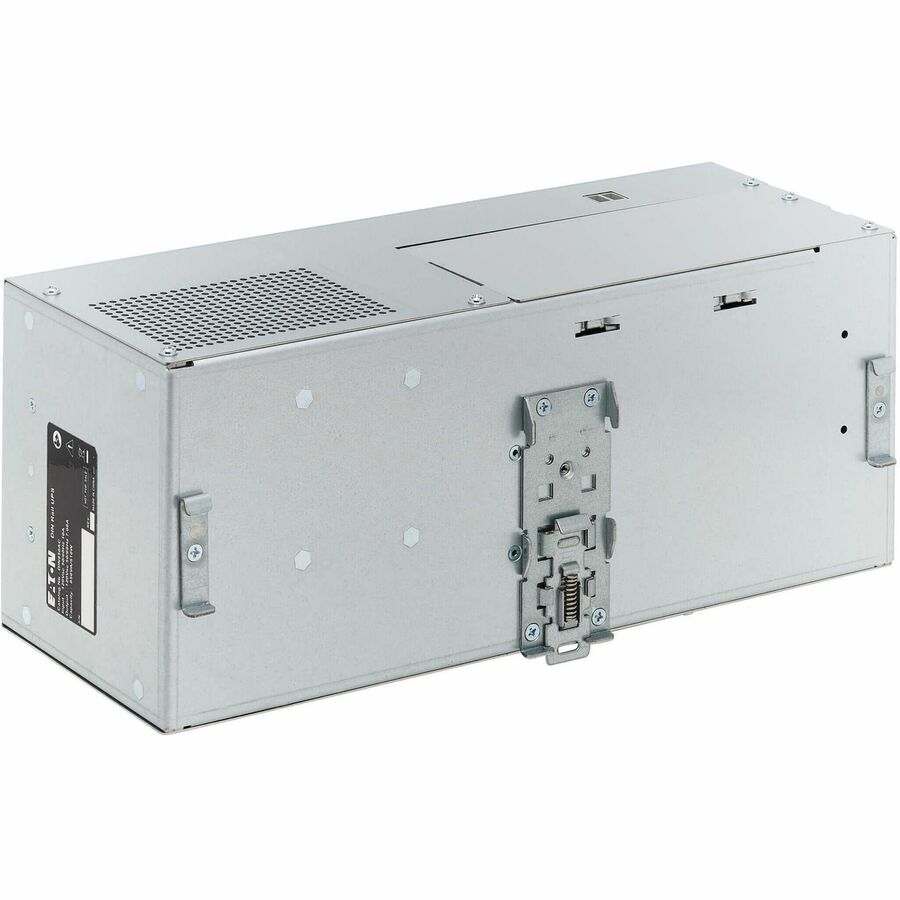

Get full use of the DIN850AC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN850AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.
Reliable Battery Backup Keeps You Operational Through Power Outages
Power outages not only drain productivity from the factory floor, but they also damage expensive equipment. The DIN850AC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts, overvoltages, surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.
Convenient Automatic Restart
The DIN850AC automatically restarts when AC power is restored after an outage, eliminating the need for a costly site visit.
Stay in Control of Your Operation

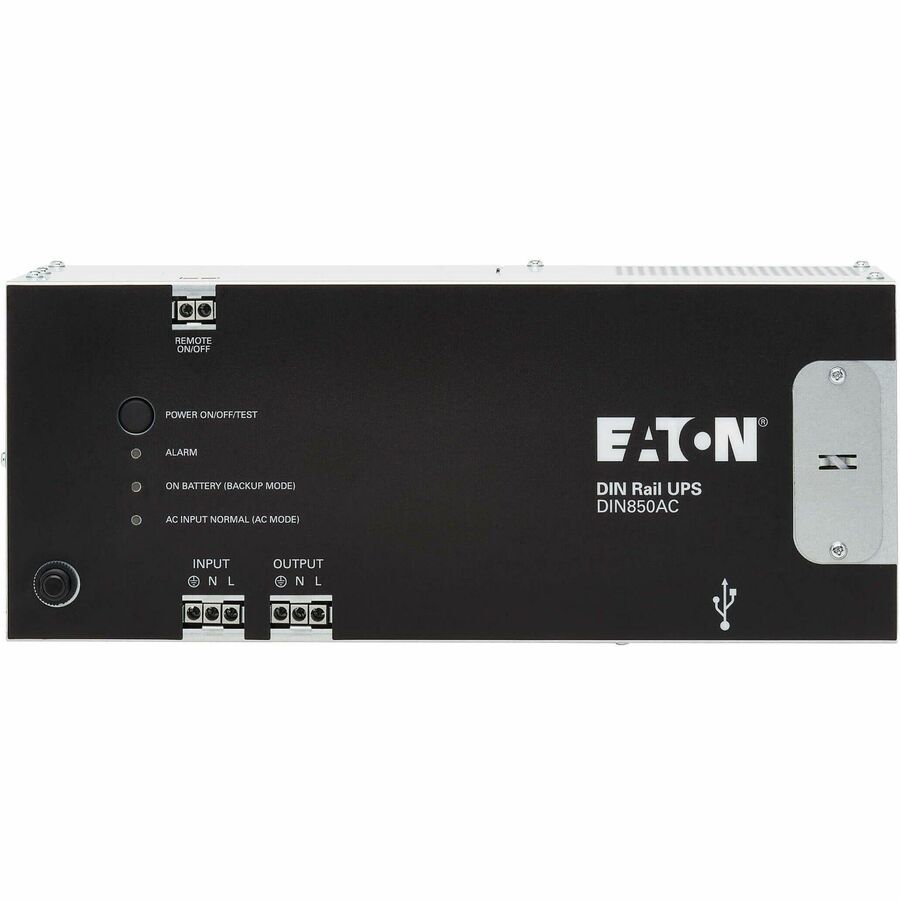

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off and a battery indicator mode can help you avoid maintenance surprises. The DIN850AC is compatible with PowerAlertOffice software for UPS monitoring and control via USB connection.
Easy Preventative Maintenance and Initial Troubleshooting
The DIN850AC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
Warranty
Limited Warranty: 2 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Not for sale in the USA until further notice.
- Recommended for industrial locations where temperatures range within 0°C and 50°C
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps power running during brief outages to allow time for safe system shutdown
- Restarts automatically when power is restored, eliminating a costly site visit

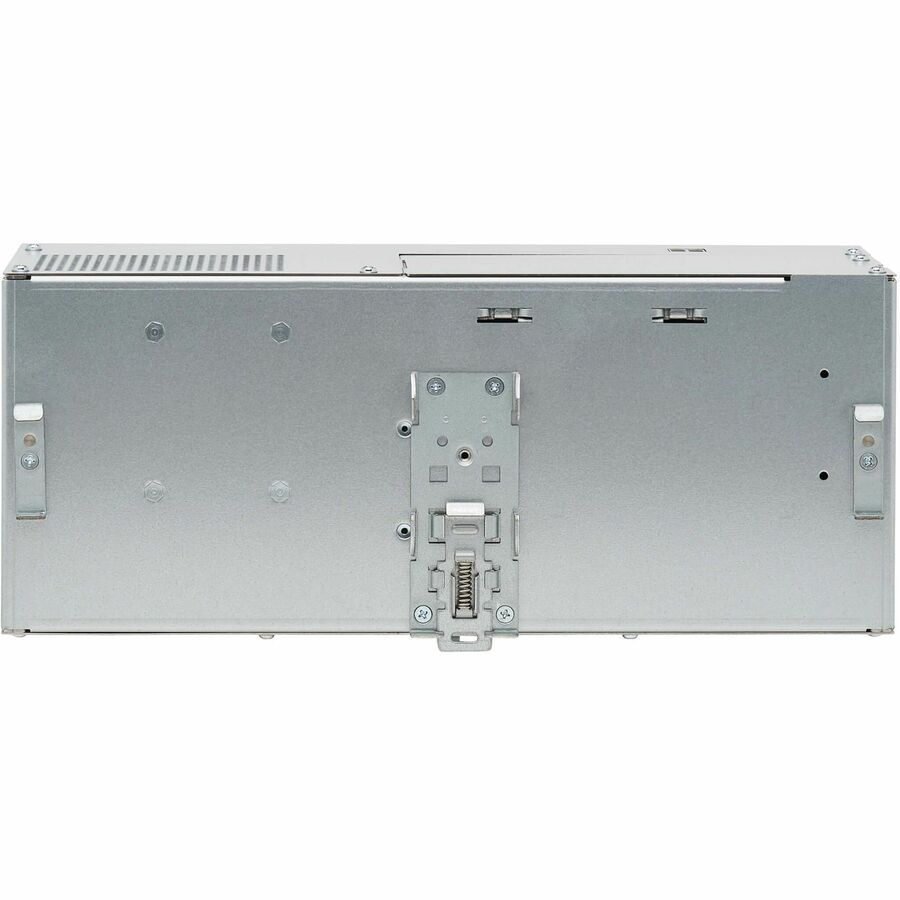

- Built-in clamp mounts easily to a "top hat" 35mm DIN rail with no mounting screws or brackets required
Specifications
| Application/Usage | Edge Computing, Network, Storage Device, Factory, Automation Industry, Manufacturing Facility, IT System, Industrial, Machine Control |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Standby UPS |
| Display | LED |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | DIN850AC |
| Limited Warranty | 2 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 12.10 lb |
| Form Factor | DIN Rail |
| Status Indicators | LED Indicators: ALARM - RED - Flashes when the battery needs to be recharged and tested. SOLID RED when the unit is subjected to an overload condition. YELLOW - ON SOLID when the UPS is supplying battery power to the loads. GREEN - ON SOLID GREEN when the line input voltage is normal. |
| Manufacturer | Eaton Corporation |
| Product Model | DIN850AC |
| Product Name | DIN850AC 850VA DIN Rail UPS |
| Surge Energy Rating | 588 J |
| Thermal Dissipation | 15.27 W |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Brand Name | Eaton |
| Plug/Connector Type | Hardwired |
| Output Frequency | 60 Hz |
| Country of Origin | China |
| Height | 5.20" |
| Width | 12.20" |
| Depth | 5.50" |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 122°F (50°C) |
| Backup/Run Time (Half Load) | 7 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Battery Characteristics | Valve-regulated |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 510 W |
| EMI/RFI Noise Filter | Yes |
| DC System Voltage | 12 V DC |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9843 ft |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Transfer Time | 10 ms |
| Output Power Factor | 0.6 |
| Receptacle Detail | 1 x Hardwired |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
