Tripp Lite by Eaton 8-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U

The B022-U08-IP NetDirector IP KVM Switch allows secure access to multiple computers from a single KVM (keyboard, monitor and mouse) console. A single KVM can directly control up to 8 computers. Built-in IP access allows the B022-U08-IP to be accessed from any computer on the LAN, WAN or Internet, whether that computer is located down the hall or halfway around the world. Simply log on via web browser using the Windows- and Java-based browser clients; or, access the KVM without a browser using the included Windows- and Java-based non-browser applications. Remote authentication is also supported via RADIUS and LDAP/S.A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, Spanish, French, German, and Japanese. Critical events on the installation can be tracked via the Log in the web interface, or the included Windows-based Log Server can be installed for more robust tracking. Once a remote session is initiated, you will be able to control the connected computers as if they were physically connected to your keyboard, monitor, and mouse. You can manually switch between computers using keyboard hotkeys, the remote session toolbar, or the KVM's OSD interface; or, you can automatically scan through each port using Auto Scan or Panel Array modes. Constructed of heavy-duty steel housing. The B022-U08-IP includes two 6-ft Tripp Lite USB/PS2 combo KVM cable kits. All other cable kits can be ordered separately. More from the Manufacturer

Flexible Network Control & Built-In IP Access with Advanced Security Features

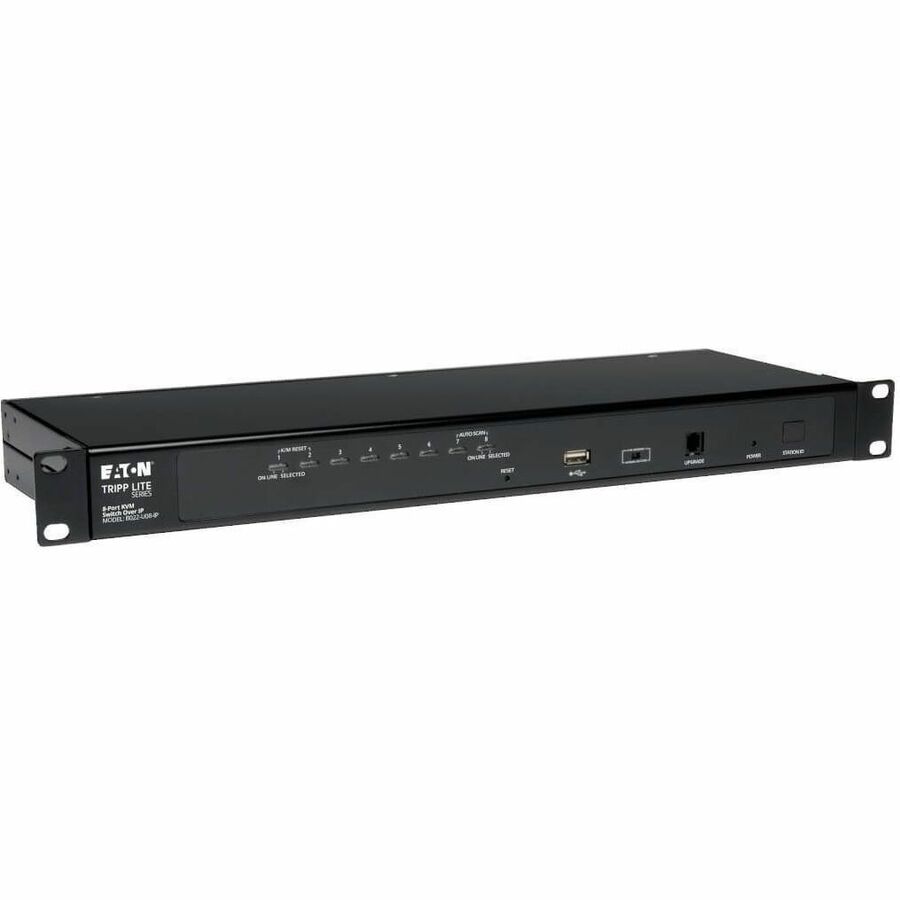

The B022-U08-IP eases multi-server management in data centers, server rooms and other high-density environments. An advanced on screen display (OSD) with high-resolution video (up to 2048 x 1536 supported by the local console and up to 1600 x 1200p supported by the remote console) provides a graphical user interface with a variety of management tools. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate when a computer is connected, powered on and selected.

Built-in IP access allows the B022-U08-IP to be accessed from any computer on the LAN, WAN or Internet, whether that computer is located down the hall or halfway around the world. Simply log on via a Web browser using the Windows- and Java-based browser clients—or access the KVM without a browser using the included Windows- and Java-based non-browser applications. The B022-U08-IP also features advanced encryption technologies, like 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES. Remote authentication is also supported via RADIUS and LDAP/S.

Support for the Latest Standards, Heavy-Duty Construction & 3-Year Warranty

The B022-U08-IP supports both IPv4 and IPv6 as well as Link Local IPv6 Address and Stateless auto configuration protocol. Its web-management interface features a full graphical OSD that can be displayed in English, Spanish, French, German and Japanese. Flash firmware is upgradable with the included firmware upgrade cable.

Made with heavy-duty steel, the B022-U08-IP is designed to withstand the rigors of everyday use in high-density IT applications. Its scratch-resistant black finish easily blends into existing rack setups.

The B022-U08-IP comes with a three-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.
