Tripp Lite by Eaton 8-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing 4K 60 Hz 1U Rack-Mount

Features l Connects 8 DisplayPort Devices to a Single DisplayPort Monitor, Keyboard and Mouse

This rack-mount KVM switch lets you access, control, boot and reboot up to eight computers or other devices with DisplayPort connectors at the same time. In addition to desktop and notebook computers, the KVM also connects up to eight media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All eight computers share one DisplayPort and/or HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Connect up to 128 Computers to One Original Console

You can also cascade two levels of B024-DPU08 KVM switches, allowing centralized access to as many as 128 computers using a single monitor, keyboard and mouse.

Switching Between Computers Is Fast and Easy

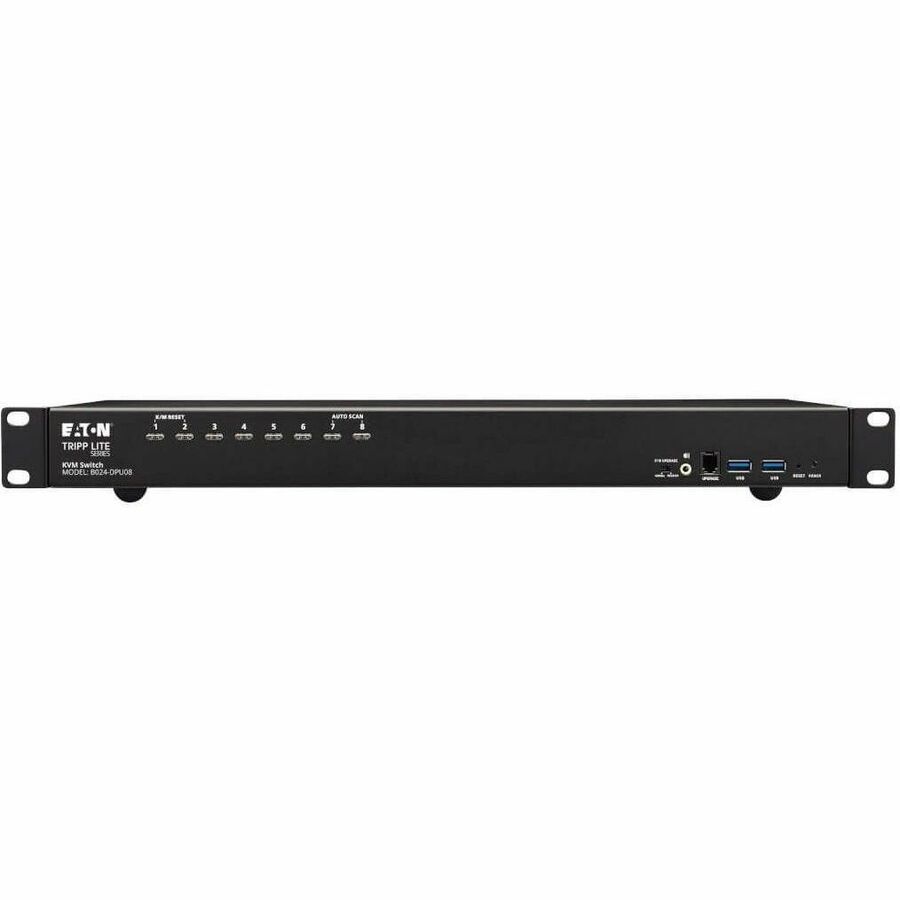

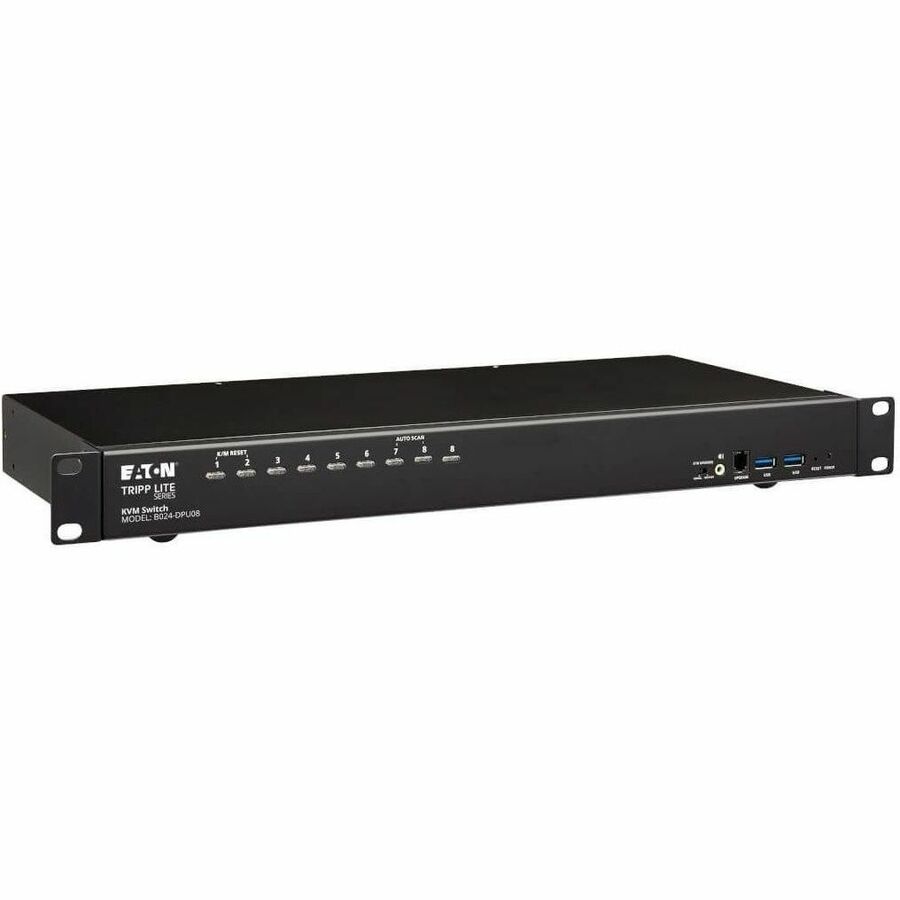

Use the front-panel pushbuttons, RS-232 commands, hotkeys or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup

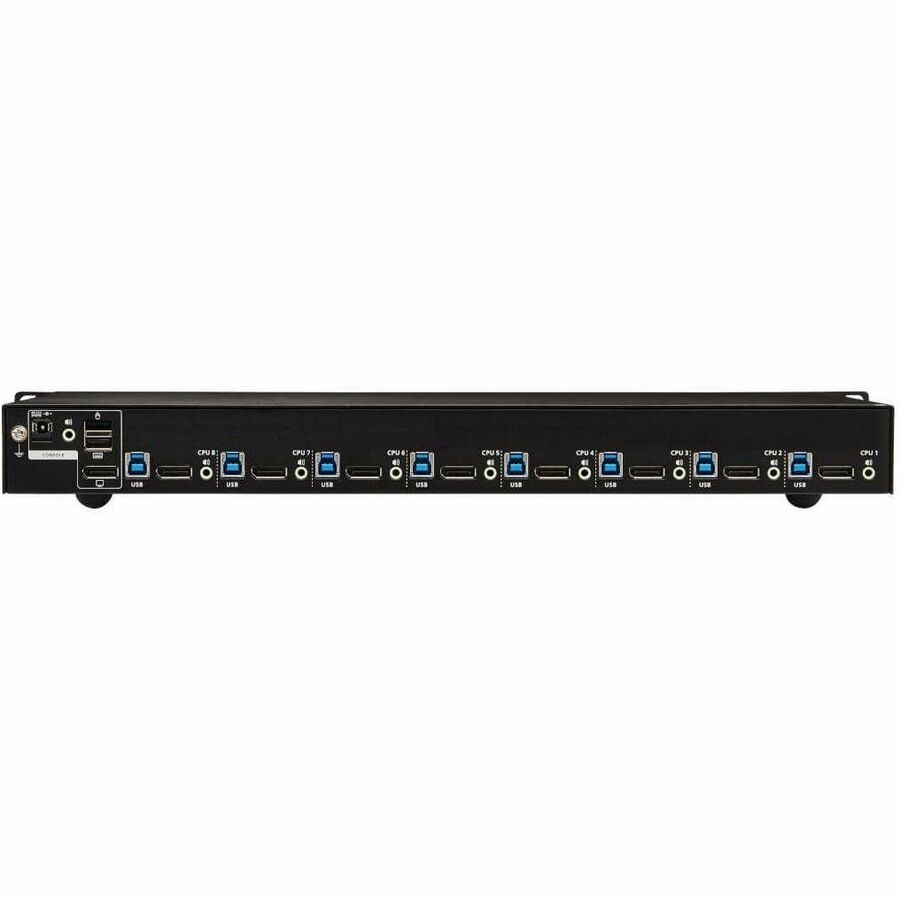

Connect your DisplayPort and/or HDMI monitor, keyboard, mouse, and (optional) speakers to the KVM's console ports. Then, use the included DisplayPort and USB cables to connect your computers to the KVM. The plug-and-play B024-DPU08 requires no software, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS, Sun and Linux.

USB Hub Lets You Share Peripherals between Computers

The built-in dual-port USB 3.1 Gen 1 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with earlier USB generations. LEDs indicate which computer is using the connected USB device.

Transmits Crystal-Clear 4K Video and High-Definition Audio

The B024-DPU08 supports true 4K video (4096 x 2160) at 60 Hz and 2.1-channel surround sound with full bass response. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

Stack Units to Expand Your Workstation and Enhance Your Productivity

Stack as many as eight B024-DPU08 KVM switches on a level surface to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation may offer dual-display, triple-display, quad-display or multi-display scenarios, up to eight stages.

Designed for Convenient Mounting with Included Hardware

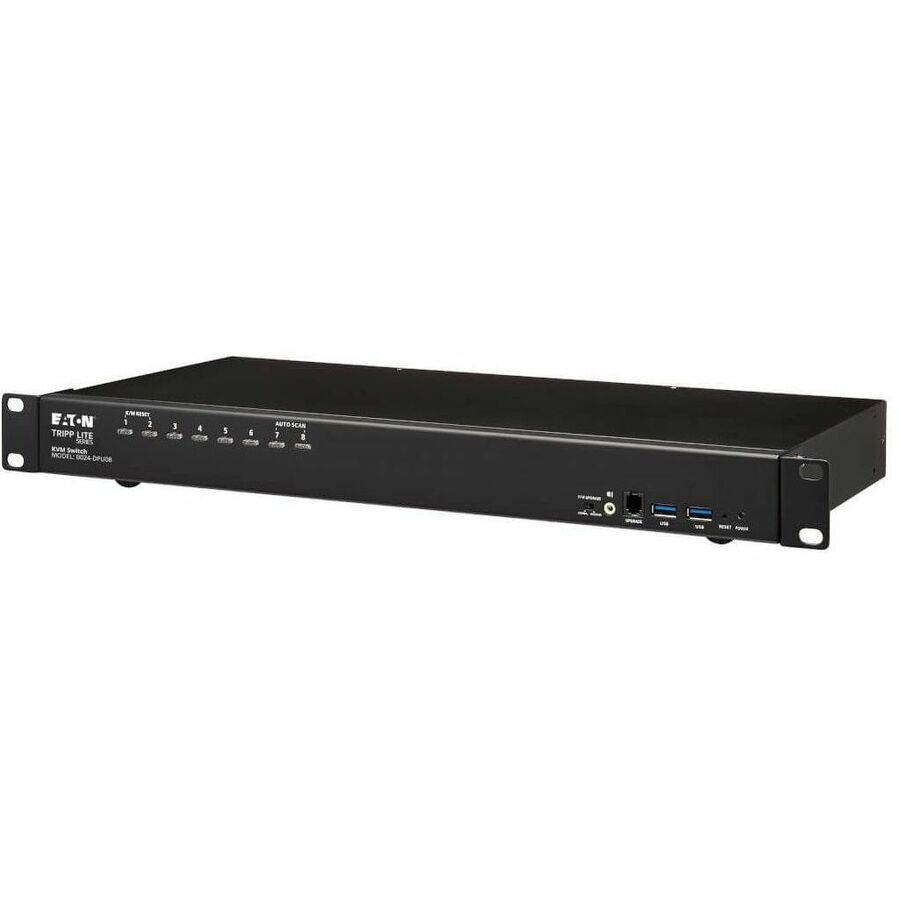

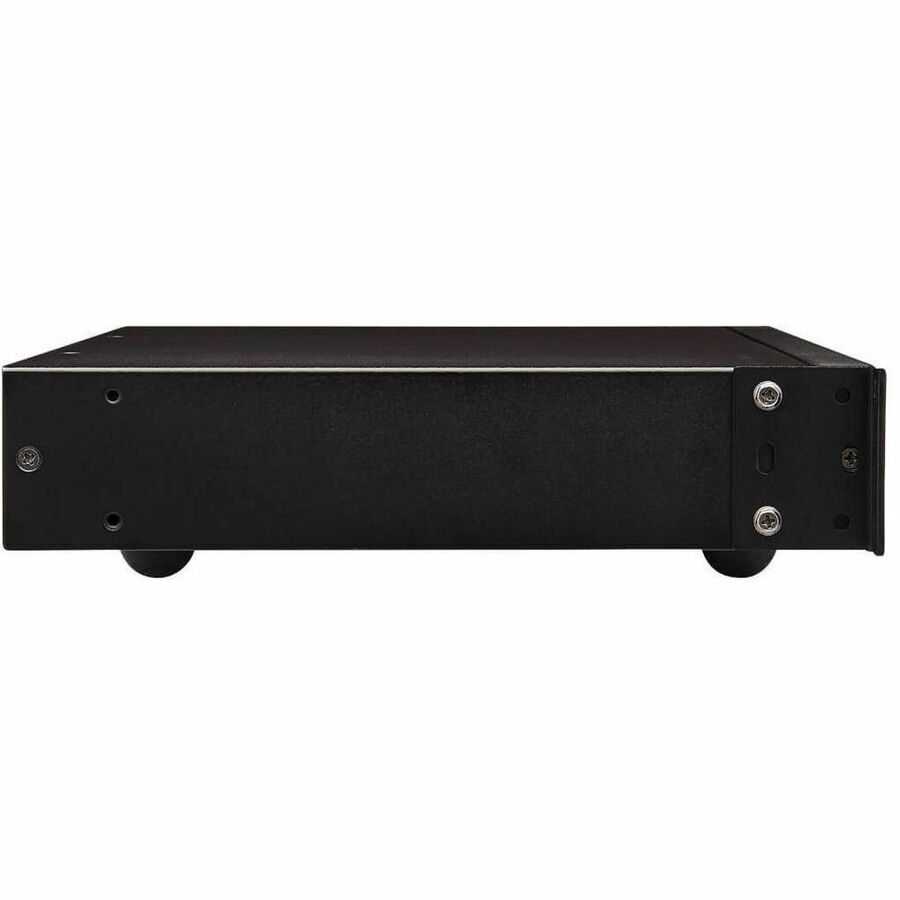

The heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply comes with a detachable C13-to-C14 cord.

Typical Applications

• Share the keyboard, mouse and DisplayPort screen of a laptop or notebook computer with multiple computers

• Connect up to 8 gaming consoles, media centers and other A/V devices for a home theater system with 4K resolution

• Save money and space by sharing USB peripherals, such as a printer and external hard drive, among all connected computers

• Control up to 128 computers by cascading the B024-DPU08

Control multiple computers from a single keyboard, monitor and mouse!

Rack-Mount KVM Switches centralizes control of your devices

This rack-mount KVM switch is the smart solution for controlling up to eight DisplayPort devices simultaneously. In addition to desktop and laptop computers, the B024-DPU08 connects media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and any other devices with DisplayPort connectors. All eight share a single keyboard, monitor and mouse, saving space on your desk or workstation.

Innovative features for premium performance

Expansion capabilities

While one B024-DPU08 KVM switch can control up to eight DisplayPort devices, cascading two levels of switches provides centralized access to as many as 128. Additionally, by stacking up to eight units on a level surface, you can display video on up to eight monitors simultaneously.

Included cable sets (two DisplayPort, two USB-A-to-B and two 3.5 mm audio) simplify connection of cascaded switches.

Depending on the number of switches included, stacked installations can support dual-display, triple-display, quad-display or multi-display scenarios.

Switches can be placed on any level surface that will safely support their combined weight.

Easy installation and use

The plug-and-play B024-DPU08 mounts easily into 1U of rack space with included brackets. Use the front-panel pushbuttons, keyboard hotkey commands or multi-lingual On-Screen Display (OSD) to quickly toggle between connected computers. Use the Auto Scan feature to scan all connected computers in five-second intervals automatically.

Supports Windows, Mac, Linux and Sun operating systems.

Computers or servers can be quickly added or removed without powering down the switch.

Orange LEDs indicate which computer or server is currently selected.

A built-in dual-port USB 3.1 Gen 1 hub lets you share peripherals, including printers, webcams and flash drives, between computers.

Crystal-clear video and high-definition audio

The B024-DPU08 supports true 4K (4096 x 2160 @ 60 Hz) video and 2.1-channel surround sound with full bass response. Independent audio switching lets you listen to audio from one computer while working on another.

Supports DisplayPort video output.

Video DynaSync eliminates bootup display problems and optimizes the resolution when switching between ports.

EDID Expert selects optimum EDID mode for smooth power-up and highest video quality.

Smooth, secure operation

This KVM switch maintains constant keyboard and mouse emulation for smooth, no-delay switching. Two levels of password protection (administrator and user) prevent unauthorized people from gaining access to computers.

Multilingual keyboard mapping—supports English, German, French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Simplified Chinese.

Supports secure video emulation and EDID learning, preventing unwanted data from transmitting through the DDC lines.

Compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
