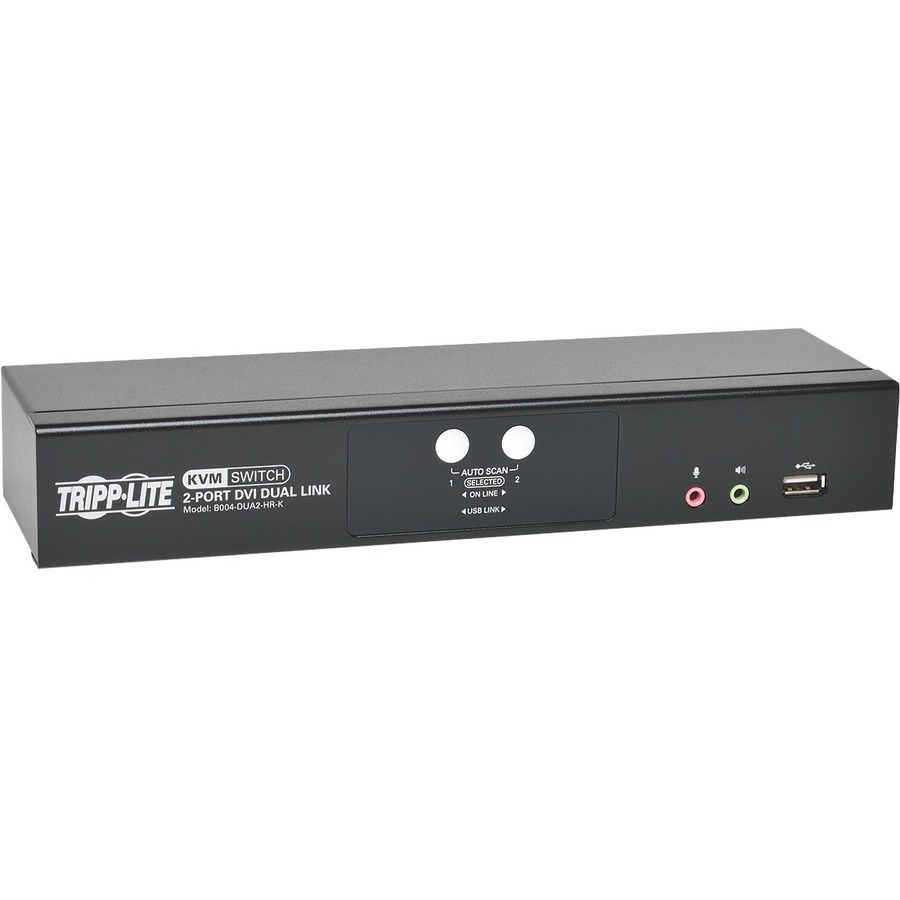

Eaton Tripp Lite Series 2-Port DVI Dual-Link / USB KVM Switch with Audio and Cables, TAA

The B004-DUA2-HR-K is a 2-Port, DVI Dual Link / USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot two computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.The B004-DUA2-HR-K uses DVI-I technology, allowing for the transmission of a Dual Link digital (up to 2560x1600) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Compatible with all major operating systems. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. More from the Manufacturer

Control 2 Computers Plus Audio, Audio Switching and Quick Setup

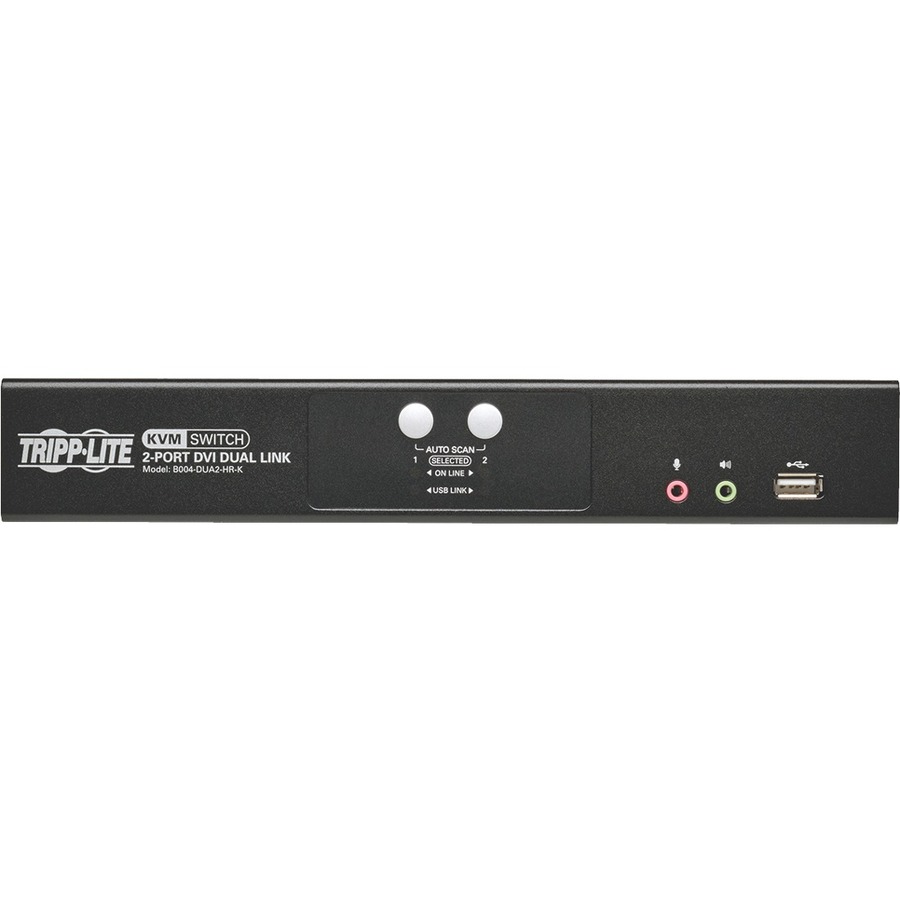

The B004-DUA2-HR-K’s keyboard hot keys and front-mounted port selection buttons give you two convenient ways to select a computer. In Auto Scan mode, the B004-DUA2-HR-K automatically cycles between the ports at regular 5-second intervals, allowing you to monitor computer activity with no need to manually switch between computers.

The B004-DUA2-HR-K features independent audio switching so you can listen to audio from one computer as you switch to another connected computer. An additional set of console audio jacks located on the KVM’s front panel make it ideal for use with IP phones. The B004-DUA2-HR-K also supports 7.1 channel surround sound for an uninterrupted and immersive audio experience.

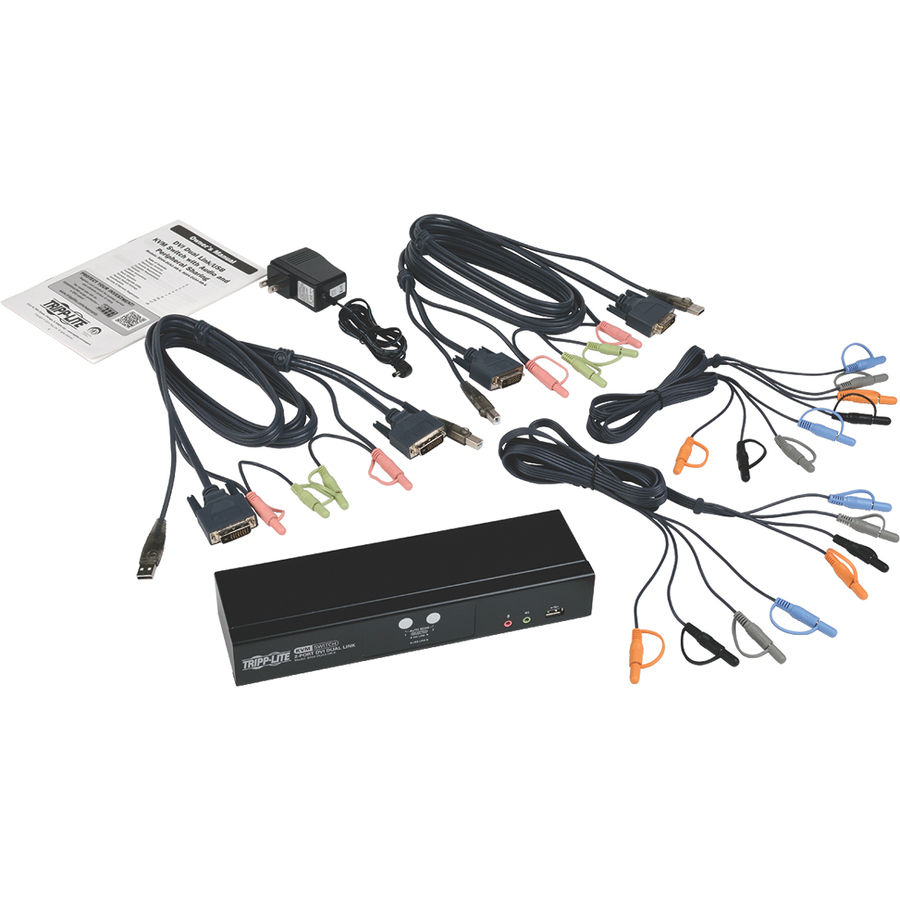

The B004-DUA2-HR-K is easy to configure with your system. Just connect your computers and audio components to the switch using the included USB KVM cable kits and audio cable kits, plug in the power adapter and you’re ready to go!

Sharing of USB Peripherals, Hot Plug Capability and Universal Compatability

Two USB 2.0 ports allow connected computers to share USB peripherals, like flash drives, printers and scanners.

The B004-DUA2-HR-K’s KVM ports are hot-pluggable, allowing you to add or remove computers without powering down either the KVM switch or computers. This handy feature enables you to swap out a computer without disrupting the overall system. The B004-DUA2-HR-K contains power-on-detection, which recognizes when a connected computer has been powered-off and automatically switches to the next powered-on computer.

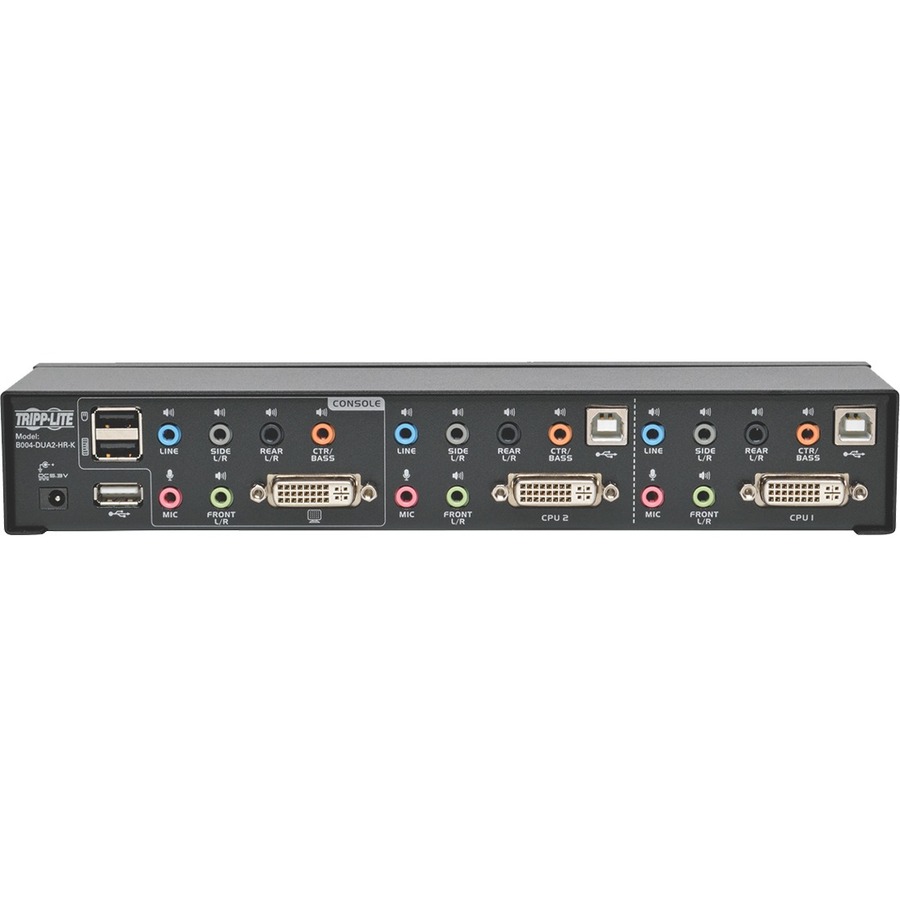

The B004-DUA2-HR-K is compatible with all major operating systems and supports port switching functionality with a mouse’s clickable scroll wheel. The B004-DUA2-HR-K incorporates DVI-I technology that supports Dual Link digital resolutions up to 2560 x 1600 or analog resolutions up to 2048 x 1536 (analog connections require Tripp Lite’s P556-Series DVI to VGA adapter cables, sold separately). The KVM switch also stores the monitor’s EDID (Extended Display Identification Data) to optimize display resolution.

Three-Year Warranty and Why Choose Tripp Lite

The B004-DUA2-HR-K comes backed by a three-year warranty. For peace of mind, it is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
