2 Computer(s) - 1 Local User(s) - 2560 x 1600 - 6 x USB - 3 x DisplayPort
MSRP$448.95
$353.80
Save 21%In stock: 91
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

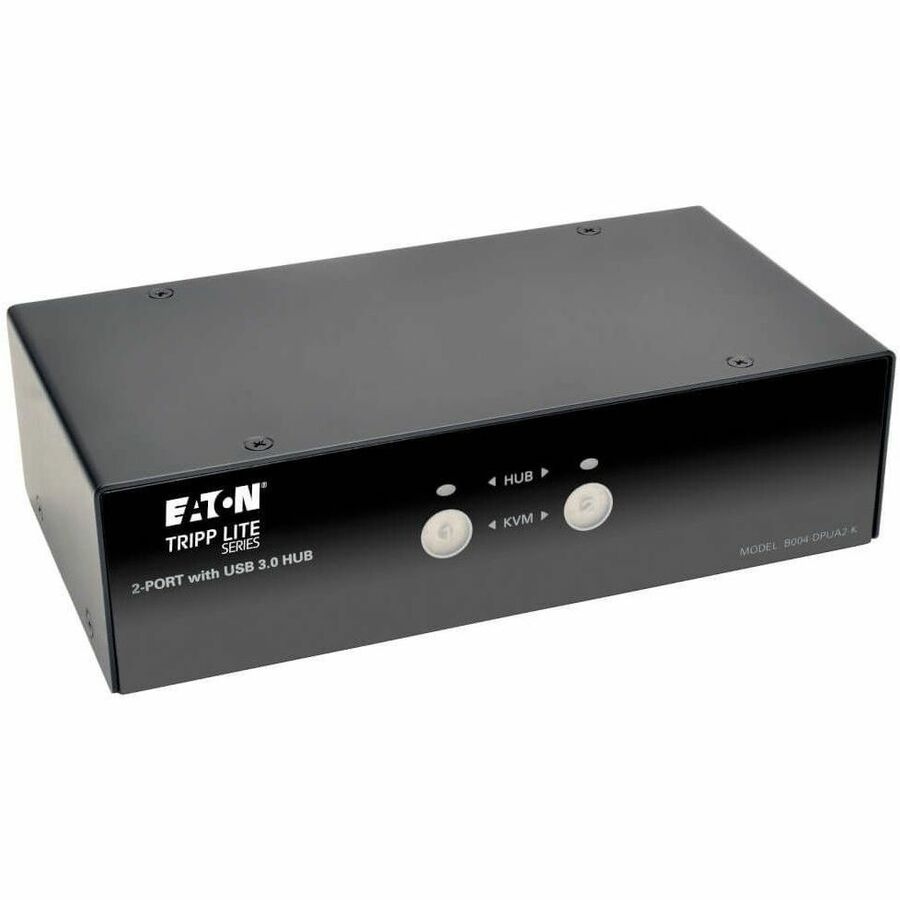

The desktop B004-DPUA2-K 2-Port DisplayPort KVM Switch lets you access, control, boot and reboot two DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Switching between DisplayPort computers is quick and simple using keyboard hotkeys or buttons on the unit.

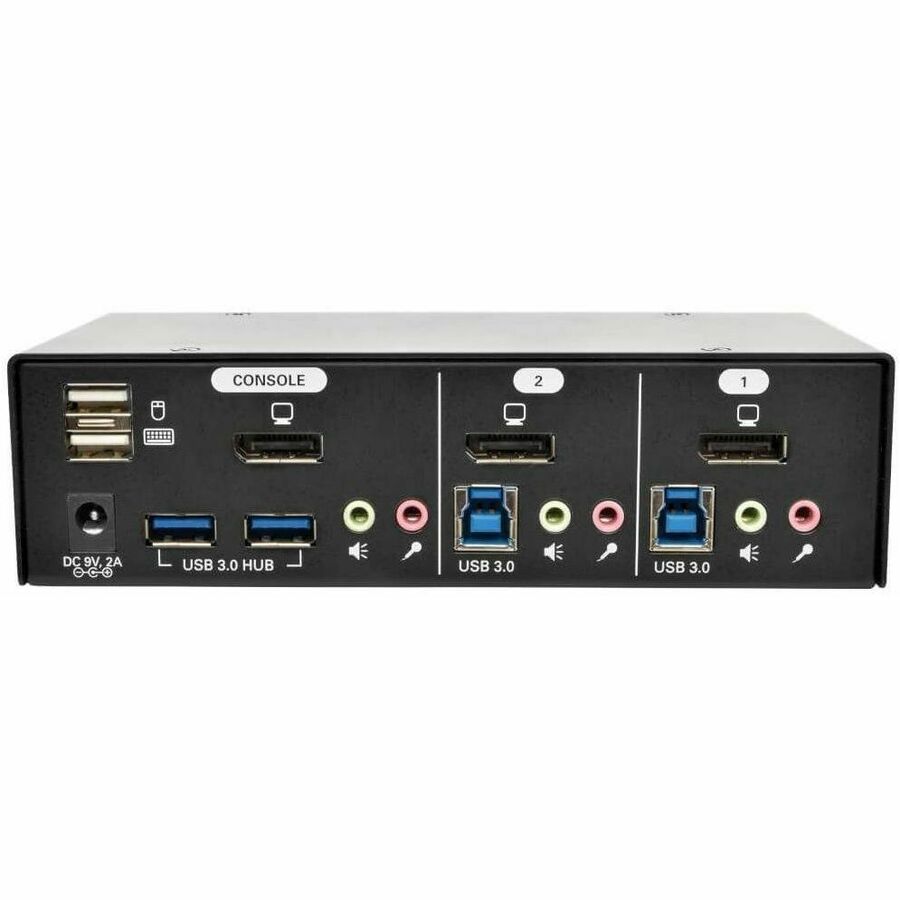

You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks, and the two-port USB 3.0 SuperSpeed hub allows you to connect peripherals, such as a webcam, flash drive, printer or scanner, and share them with both computers. Because the audio and USB 3.0 hub ports can be accessed independently, you can, for instance, use a printer connected to the hub to print data from one computer while also listening to music from the other computer.
All necessary cables are included. The B004-DPUA2-K supports digital video resolutions up to 2560 x 1600 (including 1080p), 2-channel stereo audio and data transfer rates up to 5 Gbps. The built-in DDC emulator sends the console monitor's EDID information to all connected computers to ensure top video quality and prevent any delay or change in video resolution when switching computers.
The B004-DPUA2-K is easy to set up with no software to install and supports Windows, Mac, Linux and Sun. The USB 3.0 hub is backward-compatible with USB 2.0 and USB 1.1 devices. More from the Manufacturer
2-Port DisplayPort KVM Switch with Audio and USB 3.0 SuperSpeed Hub
The desktop B004-DPUA2-K 2-Port DisplayPort KVM Switch lets you access, control, boot and reboot two DisplayPort-enabled computers using one DisplayPort monitor, USB keyboard and USB mouse. Switching between DisplayPort computers is quick and simple, and you’ll save money by not needing to purchase a second monitor, keyboard and mouse.
One KVM Switch Lets You Access Two Computers

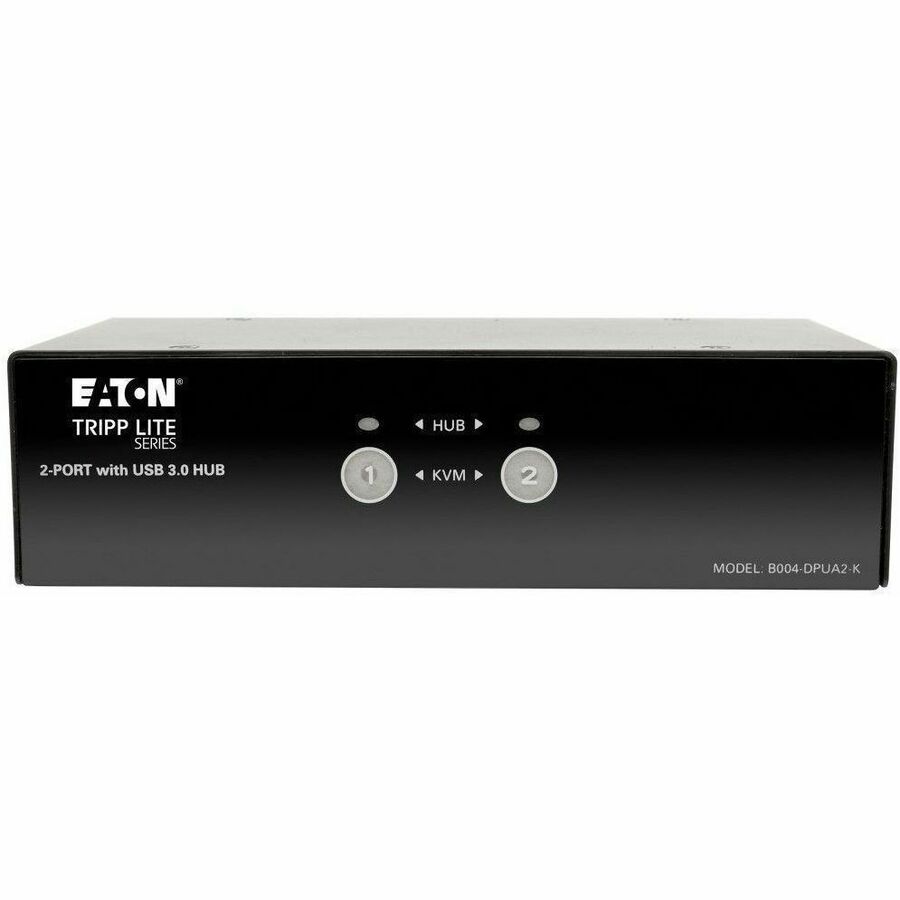

With the B004-DPUA2-K, you can switch between two DisplayPort computers using keyboard hotkeys or front-panel buttons. The switch’s built-in DDC emulator sends the console monitor’s Extended Display Identification Data (EDID) to the other connected computer for top-quality video without delay. Digital video resolutions up to 2560 x 1600 are supported, including 1080p. The Auto-Scan feature cycles between computers at regular intervals for observation of activity at a glance.
Independent Audio Switching
Built-in 3.5 mm mini-stereo speaker and microphone jacks allow you to share audio equipment between the two computers. You can listen to audio files on one computer while accessing the other. The B004-DPUA2-K supports 2-channel stereo audio.
Share Peripherals Across Two Computers at USB 3.0 Transfer Rates
With its 2-port USB 3.0 SuperSpeed hub, the B004-DPUA2-K lets you share peripherals such as printers, scanners, webcams or flash drives and print documents from one computer while accessing the other. The SuperSpeed hub supports data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices.
Plug-and-Play Design Gets You Up and Running Right Away

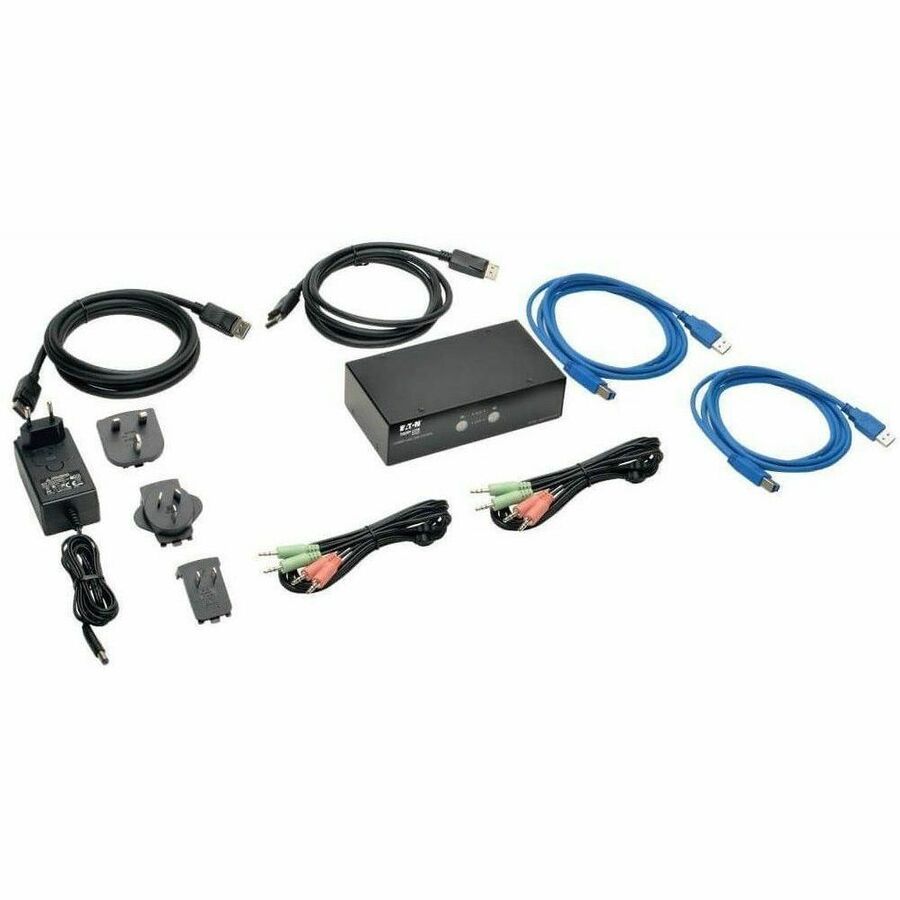

This KVM switch is easy to set up with no software or drivers to install. It is compatible with all major operating systems. We even include all necessary cables to get you started without delay.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B004-DPUA2-K |
| Brand Name | Tripp Lite series |
| Product Model | B004-DPUA2-K |
| Product Name | 2-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 6 |
| Number of DisplayPorts | 3 |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 2560 x 1600 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
