2 Computer(s) - 1 Local User(s) - 3840 x 2160 - 5 x USB - 1 x HDMI - TAA Compliant
MSRP$230.00
$181.25
Save 21%In stock: 24
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Connects 2 USB-C Sources to a Single HDMI Monitor, Keyboard and Mouse
This Desktop KVM/Docking Station lets you access, control, boot and reboot 2 USB-C sources at the same time. Both USB-C sources share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

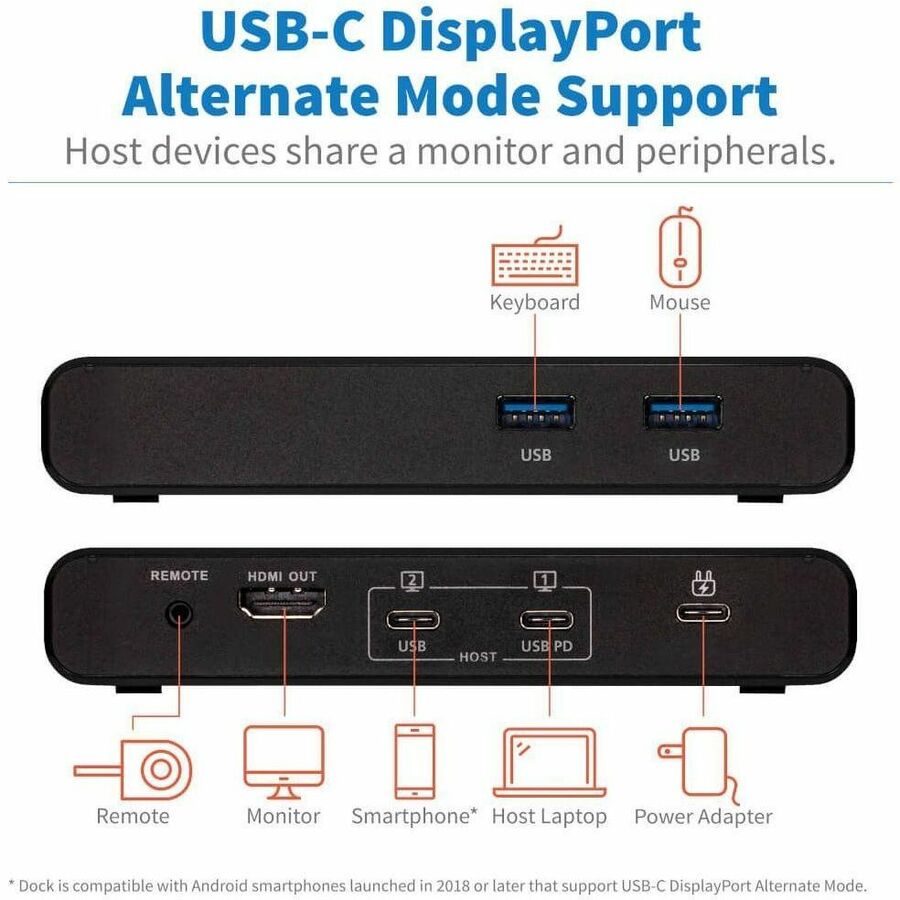

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the included USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. The B003-HC2-DOCK1 lets you build a workstation for multitasking by giving you the ability to extend screens, connect USB peripherals and switch between sources with ease.
Transmits Crystal-Clear 4K Video
The HDMI port support true 4K resolutions up to 3840 x 2160 at 30 Hz.
USB Hub Lets You Share Peripherals between Computers
The built-in two-port USB 3.1 Gen1 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers/sources. The hub is backward compatible with USB 2.0 and 1.1 devices.
USB-C PD 3.0 Charging Port Charges the Connected Notebook, Tablet or Other Device
The USB-C Power Delivery 3.0 port supports power output up to 85W, which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device's AC wall charger to the USB-C PD port.

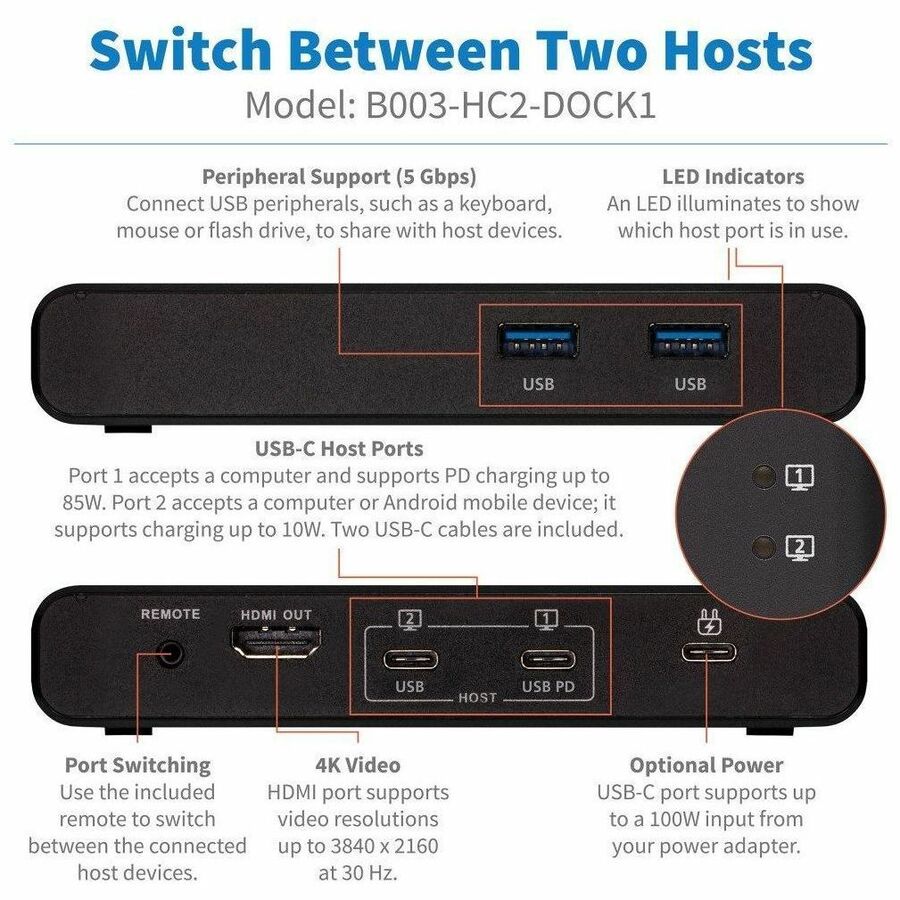

Switching Between Computers Is Fast and Easy
Connect the included remote port selector to the specified port on the B003-HC2-DOCK1 and simply press the button anytime you want to switch between your USB-C sources. White LEDs indicate which computer is currently selected.

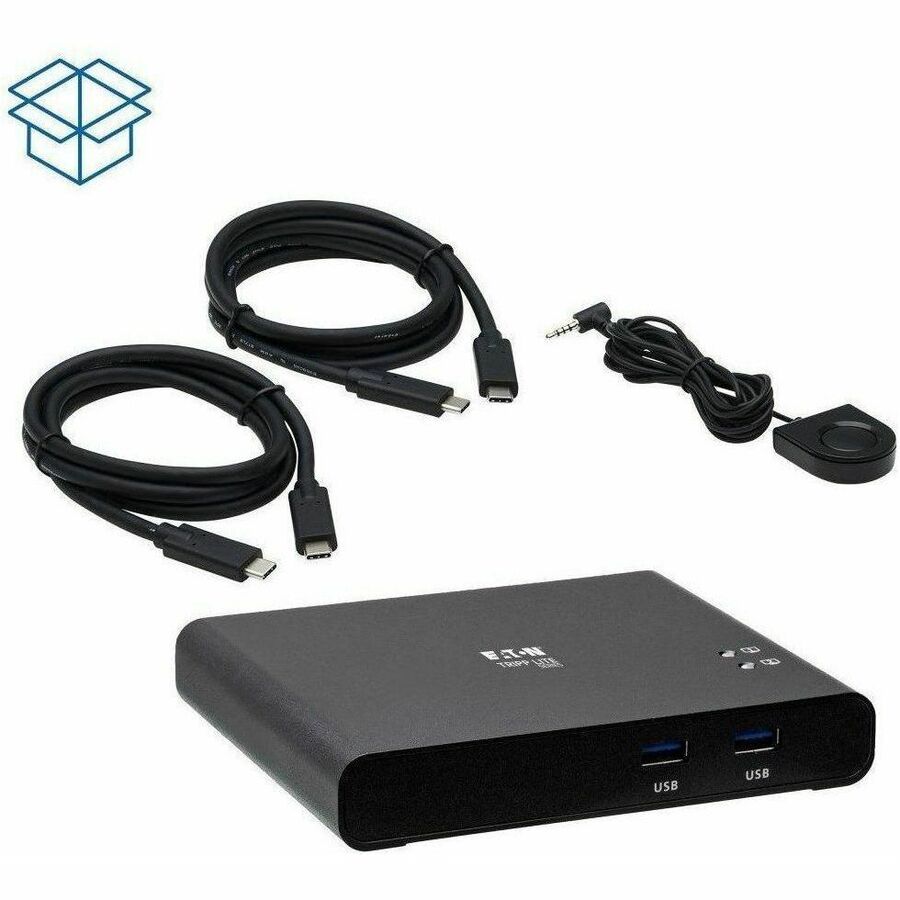

Cables Are Included for Fast and Simple Setup
Connect your two USB-C sources using the included USB-C (M/M) cables. The plug-and-play B003-HC2-DOCK1 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows and Mac.
Typical Applications
• Control 2 USB-C devices using one keyboard, mouse and HDMI display
• Extend or mirror your laptop or PC monitor on multiple displays to aid in multitasking and increase productivity
• Save money and space by sharing USB peripherals, such as a printer and external hard drive, between 2 connected computers
System Requirements
• Source device(s) with USB-C output
• Display device with HDMI input
• Computer with Windows 10 and above, USB-C port and USB-C DisplayPort Alt Mode compliance
• Computer with Mac OS X 10.12 and above and USB-C port
• Smartphone with Android 8.0 and above, USB-C port and USB-C DisplayPort Alt Mode compliance
• iPad Pro 3rd gen (2018) with iOS 12.1 and above
• This USB-C KVM dock does not support Apple iPhone
More from the Manufacturer
USB-C KVM Docking Station Allows Centralized Access to 2 USB-C Devices
Access, control, boot and reboot two USB-C source devices. You can connect a combination of two PCs, laptops, tablets and Android smartphones, and transfer files between them. Both USB-C devices share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Typical Applications
Control 2 USB-C devices using one keyboard, mouse and HDMI display
Extend or mirror your laptop or PC monitor on multiple displays to aid in multitasking and increase productivity
Save money and space by sharing USB peripherals, such as a printer and external hard drive, between 2 connected computers
Switching Between Computers Is Fast and Easy
A remote port selector is included to quickly toggle between both source devices. LEDs indicate which device is currently selected. This dual-port workstation encourages multitasking by allowing you to extend screens, connect USB peripherals and switch easily between connected sources.
Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the included USB-C cables to source devices that support USB DisplayPort Alt Mode, you can output 4K video and digital audio to an HDMI monitor, television or projector without installing special software drivers.
Use the included USB-C cables to connect your computer, laptop, tablet and/or smartphone to the USB-C KVM docking station. The plug-and-play B003-HC2-DOCK1 requires no drivers to download and install, so you can connect and use it immediately.
Connect 2 USB Peripherals and Share Them Between Devices
The dual-port USB 3.2 Gen 1 hub lets you share printers, hard drives, scanners, webcams, flash drives and other peripherals between both source devices. Both USB ports support fast data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices.
The USB-C Power Delivery 3.0 port supports power output up to 85W (at 5/9/15/20V power profiles), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B003-HC2-DOCK1 |
| Brand Name | Tripp Lite series |
| Product Name | B003-HC2-DOCK1 2-Port USB-C KVM Dock, Black |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of USB Ports | 5 |
| Number of HDMI Ports | 1 |
| Physical Characteristics | |

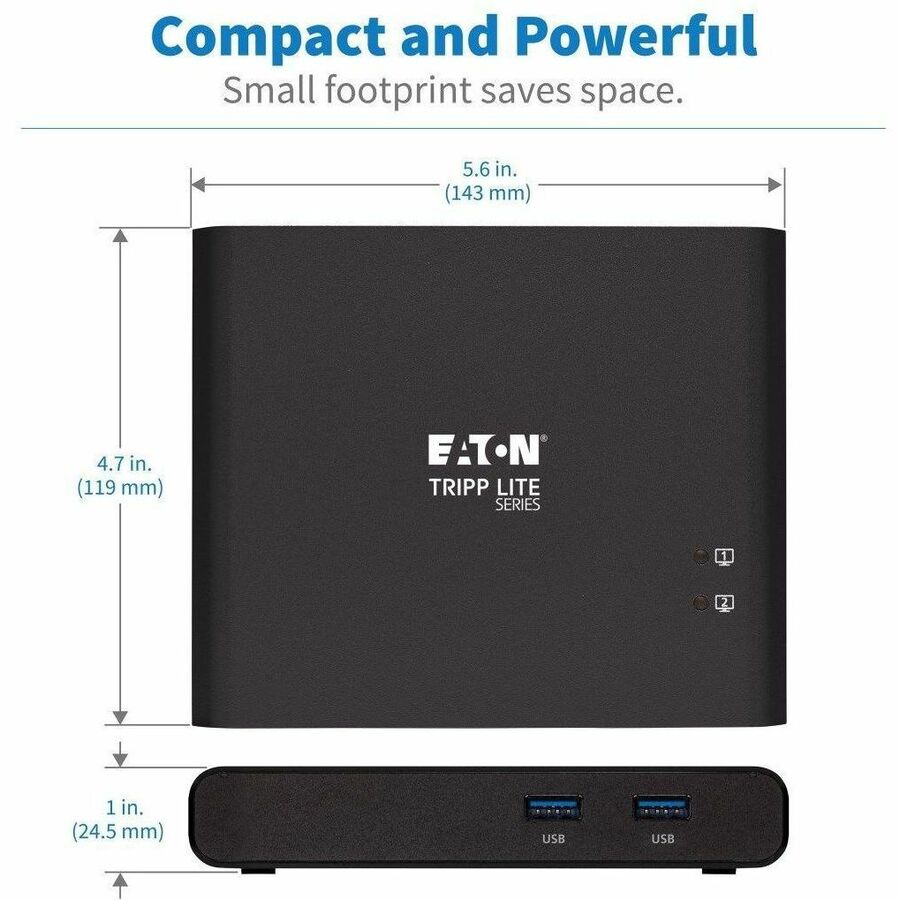

| Height | 5.6" |
| Width | 4.7" |
| Depth | 1" |
| Weight (Approximate) | 13.28 oz |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
