Overview

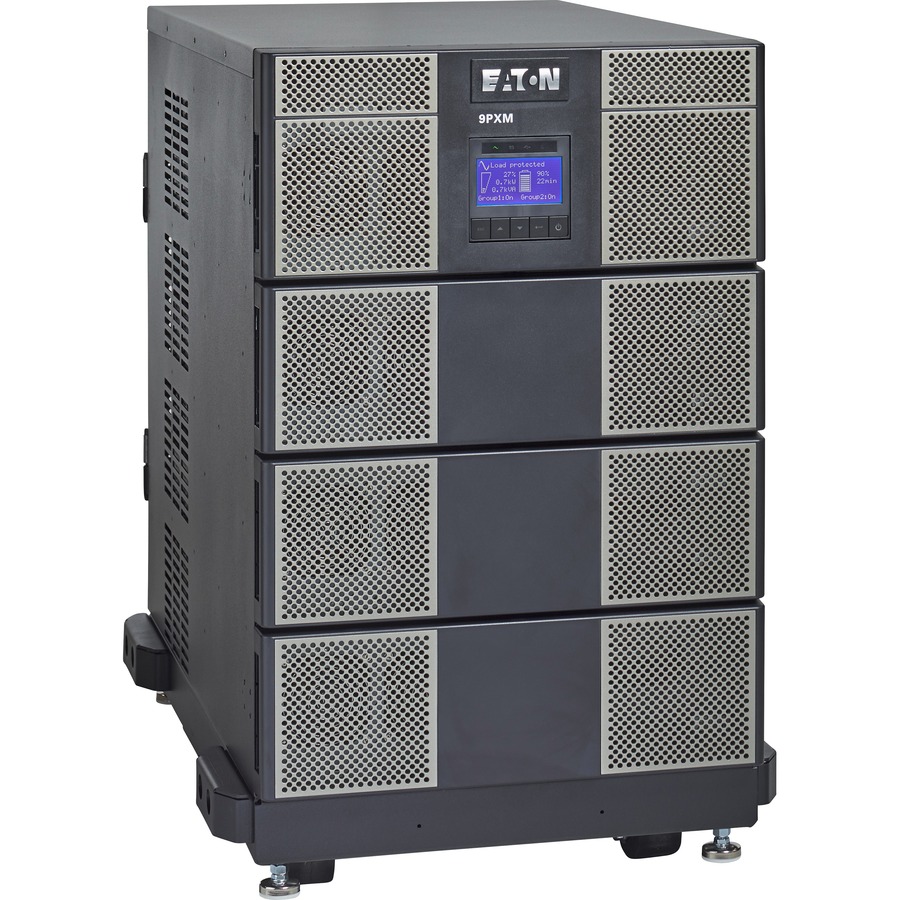

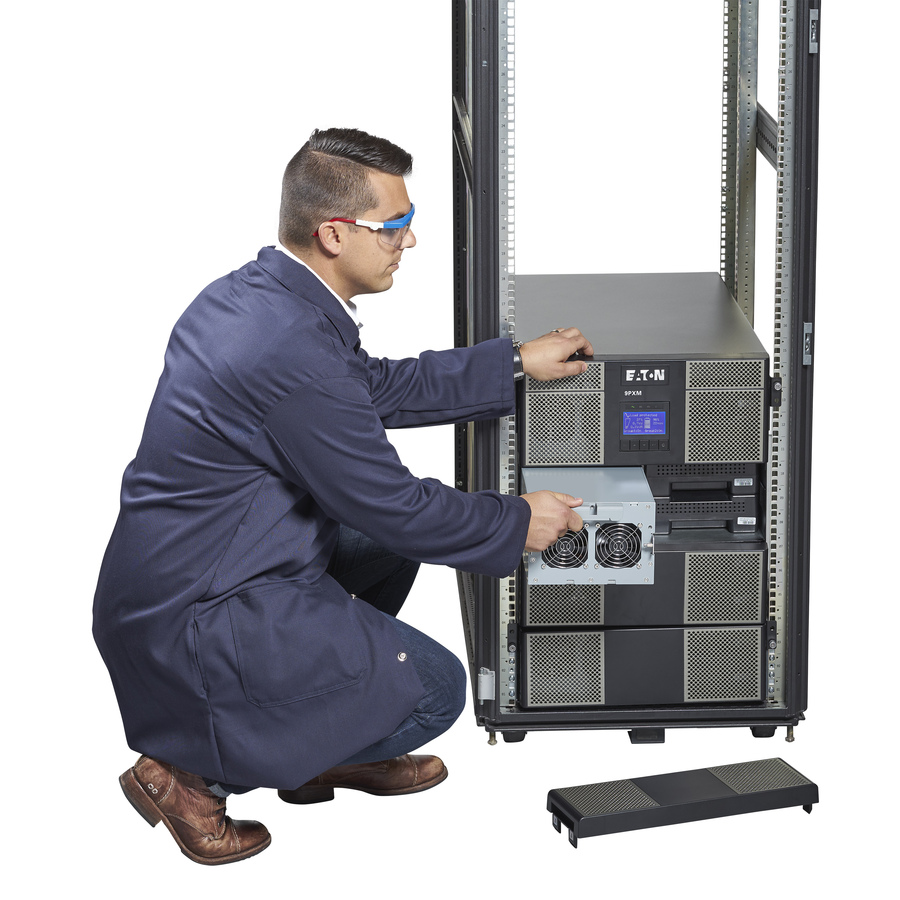

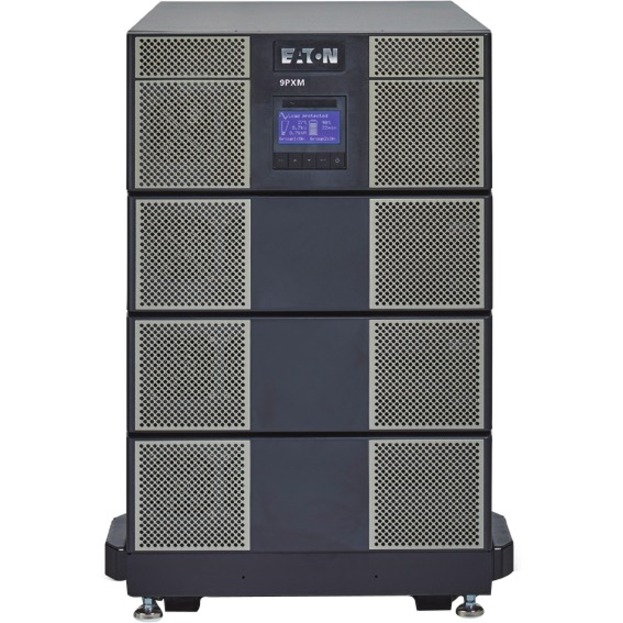

The Eaton 9PXM UPS is a scalable, modular UPS that combines the highest level of reliability with the lowest cost of ownership. Through 4 kVA plug-and-play power modules, the 9PXM delivers an expandable level of N+X redundancy. The 9PXM fits eight or twelve-slot tower enclosures which are easily converted into 14U and 21U rackmount solutions.
Warranty
Limited Warranty: 2 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
3600 W load capacity - backup power for your valuable electronics
4000 VA load capacity provides sufficient backup during power failures
4 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
Hardwired plug/connector type for maximum usability with added reliability
NEMA 5-20R receptacle type offers ease of operation with maximum efficiency
Double Conversion Online UPS with network device application/usage to ensure maximum dependability and optimal performance
230 V AC input voltage for better reliance and maximum dependability
Rack/Tower form factor allows hassle-free and easy usage with increased efficiency
Specifications
Battery Information
Backup/Run Time (Full Load)
6 Minute
Hot Swappable
Yes
Typical Battery Recharge Time
4 Hour
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
9PXM8S4K-PD
Brand Name
Eaton
Product Model
9PXM8S4K-PD
Product Name
9PXM UPS
Packaged Quantity
1
Product Type
Double Conversion Online UPS
Management
Network Management
SNMP/HTTP Remote Monitoring
Physical Characteristics
Height
25"
Width
17.50"
Depth
34.50"
Form Factor
Rack/Tower
Weight (Approximate)
229 lb
Power Description
Load Capacity (VA)
4000 VA
Load Capacity (Watt)
3600 W
Input Voltage
230 V AC
Input Voltage Range
208 V AC - 240 V AC
Technical Information
Plug/Connector Type
Hardwired
Receptacle Type
NEMA 5-20R, NEMA L6-30R
Receptacle Detail
4 x NEMA 5-20R, 2 x NEMA L6-30R
Application/Usage
Network Device, Server, Banking, Voice/Data Network, Office, IT System, Data Center, Computer Room, POS Terminal, Call Center, Commercial
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
9PXM UPS
1 x 9PXM Tower UPS 8-slot Cabinet - Convertible to Rackmount
