2U Tower/Rack Convertible - 230 V AC Input - 230 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x IEC 60320 C13 (10A), 1 x IEC 60320 C19 (16A) Receptacle(s) - SNMP/Webcard, RS-232, NMC ModBus/JBus, MC Contacts/Serial
Request pricing
Confirmed with stock before any payment. TAA verified on request.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Exceptional efficiency, manageability and energy metering capabilities for IT managers
Manageability
• The new graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys.
• For the first time in the industry the 5PX can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software Suite.
• Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
• The 5PX offers Serial and USB connectivity, plus an extra slot for an optional communication card (including SNMP/Web card or relay contact card). Eaton's Intelligent Power Software compatible with all major OS including virtualization software such as VMware and Hyper-V is included with each UPS.
Performance and Efficiency
• With an optimised electrical design, the 5PX can provide up to 99% efficiency, reducing cooling and utility costs.
• With a power factor of 0.9, the 5PX delivers more real output power. It powers more servers than other UPSs with equivalent VA ratings and lower power factors. The 5PX is compatible with all modern IT equipment.
• When operating in battery mode the 5PX provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
Availability and Flexibility

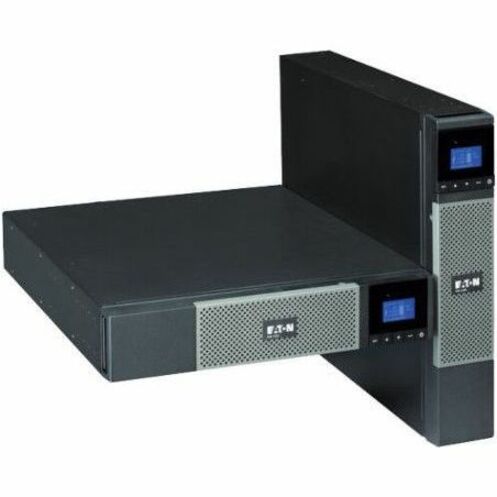

• The 5PX is available in a rack/tower convertible version - pedestal and rail kits are included with all models at no extra charge.
• Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that only recharges the battery when necessary, so the battery experiences less corrosion and service life is prolonged by up to 50%.
• Batteries can be hot-swapped without ever having to shut down connected equipment. With an optional, hot-swap maintenance bypass module, you can even replace the entire UPS.
• There is also the possibility to add more runtime with up to four external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognised by the UPS.
Additional Warranty Information: 3 years on electronics, 2 years on batteries Limited Warranty: 3 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| Battery Information | |
|---|---|
| Backup/Run Time (Half Load) | 14 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5PX3000IRT2UG2V |
| Brand Name | Eaton |
| Product Series | 5PX |
| Product Name | 5PX 3000VA Tower/rack convertible UPS |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Management | |
| Network Management | SNMP/Webcard, RS-232, NMC ModBus/JBus, MC Contacts/Serial |
| Physical Characteristics | |
| Height | 3.39" |
| Width | 17.36" |
| Depth | 25.47" |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Power Description | |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 2700 W |
| Input Voltage | 230 V AC |
| Input Voltage Range | 160 V AC - 294 V AC, 150 V AC - 294 V AC |
| Output Voltage | 230 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC |
| Input Frequency | 47 Hz, 70 Hz, 50 Hz, 56.50 Hz, 60 Hz, 40 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Pure Sine Wave |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 (16A) |
| Receptacle Type | IEC 60320 C13 (10A), IEC 60320 C19 (16A) |
| Receptacle Detail | 8 x IEC 60320 C13 (10A), 1 x IEC 60320 C19 (16A) |
| Phase | Single Phase |
| Application/Usage | Network, Server, Switch, Router, Storage Device, IT Equipment |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years on electronics, 2 years on batteries |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
