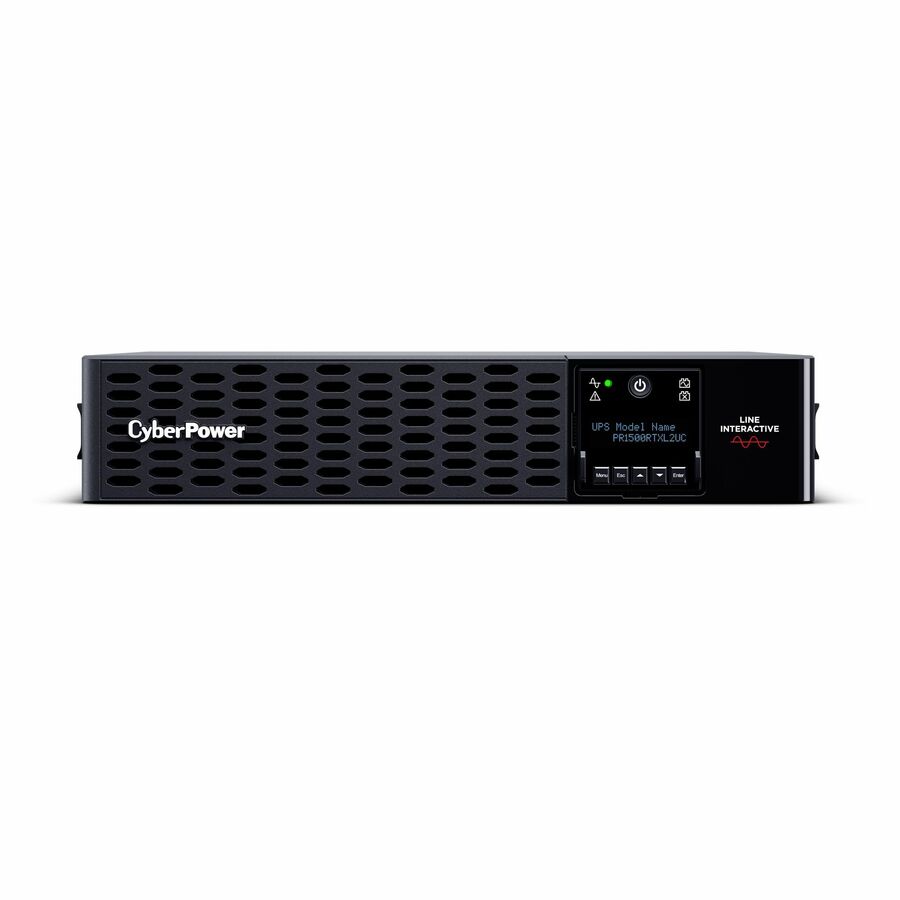

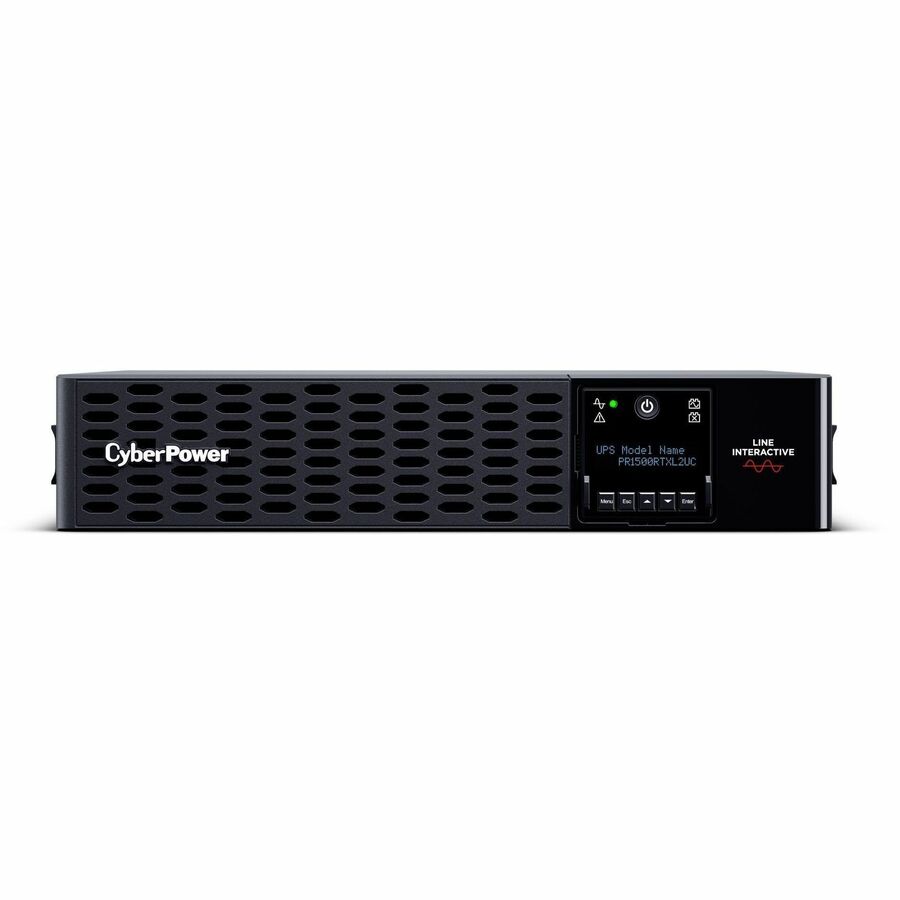

CyberPower PR1500RTXL2UC Smart App Sinewave UPS Systems
1500VA/1500W, 120 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
- SKU
- PR1500RTXL2UC
- Category
- General Purpose UPS
MSRP$1,500.00
$1,090.33
Save 27%Back ordered — ships when restocked.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PR1500RTXL2UC
- Category
- General Purpose UPS
Overview
The PR1500RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

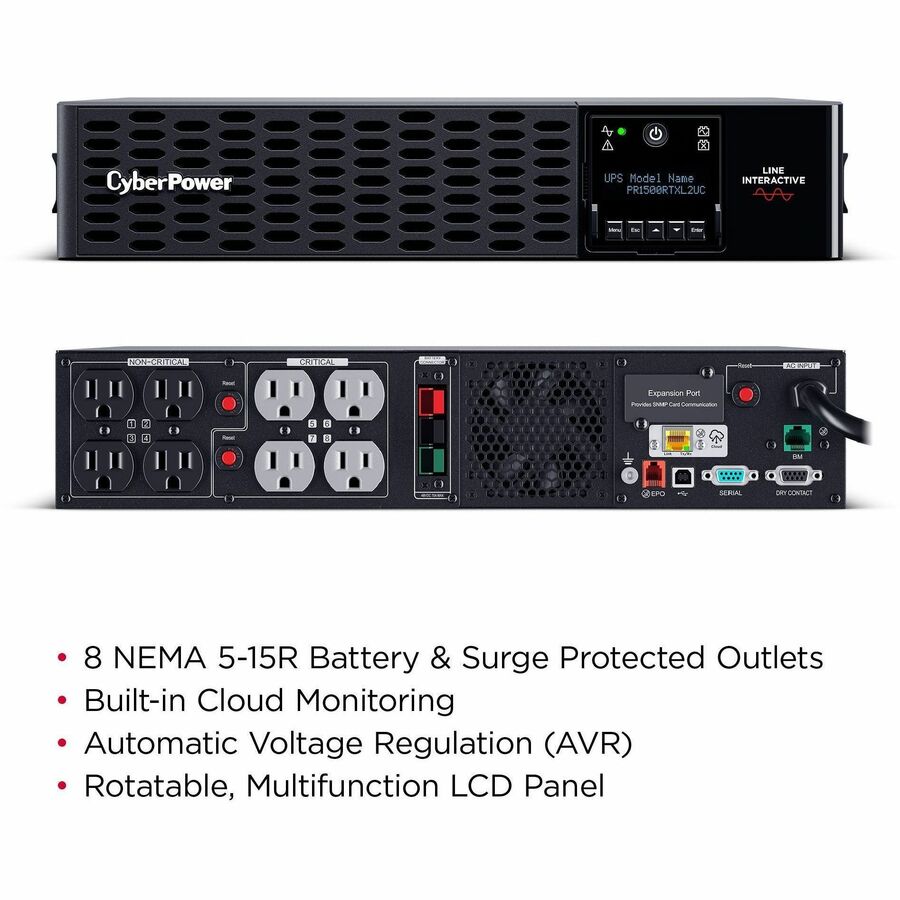

The Smart App Sinewave PR1500RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1500RTXL2UC.
More from the Manufacturer
Highlights
- Capacity: 1500 VA / 1500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-125 VAC ± 5%
- Runtime (half/full): 17.9 minutes / 6.5 minutes
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Built in Cloud, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, with optional RMCARD205, Built-in Cloud Monitoring
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® qualified: Yes
Specifications
| Additional Warranty Information | Connected Equipment Guarantee: Lifetime |
|---|---|
| Application/Usage | Server, Storage Device, VoIP, Network Device, Telecommunication, Equipment, Corporate |
| Battery Chemistry | Lead Acid |
| Product Type | Line-interactive UPS |
| Circuit Breaker | Yes |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | PR1500RTXL2UC |
| Limited Warranty | 3 Year |
| Output Voltage | 100 V AC, 110 V AC, 120 V AC, 125 V AC |
| Weight (Approximate) | 67.70 lb |
| Form Factor | Rack/Tower |
| Status Indicators | Power On |
| Length | 24.3" |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR1500RTXL2UC |
| Product Name | PR1500RTXL2UC Smart App Sinewave UPS Systems |
| Network Management | SNMP/HTTP Remote Monitoring, Dry Contact |
| Overload Protection | Yes |
| Product Line | Smart App Sinewave |
| Surge Energy Rating | 2430 J |
| Surge Suppression | Yes |
| Thermal Dissipation | 28.34 W |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | CyberPower |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 100 V AC - 125 V AC, 70 V AC - 155 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Battery Mode, Low Battery, Overload, Over-charge, Fault |
| Country of Origin | China |
| Cord Length | 10 ft |
| Height | 3.40" |
| Width | 17.10" |
| Depth | 19.70" |
| Input Frequency | 50 Hz, 60 Hz |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Battery Capacity | 9000 mAh |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 17.90 Minute |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1500 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS? Bypass Technology |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9843 ft |
| Maximum Storage Elevation | 49213 ft |
| Operating Humidity | 0% - 95% |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 6 ms |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Output Power Factor | 1 |
| Receptacle Detail | 8 x NEMA 5-15R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
