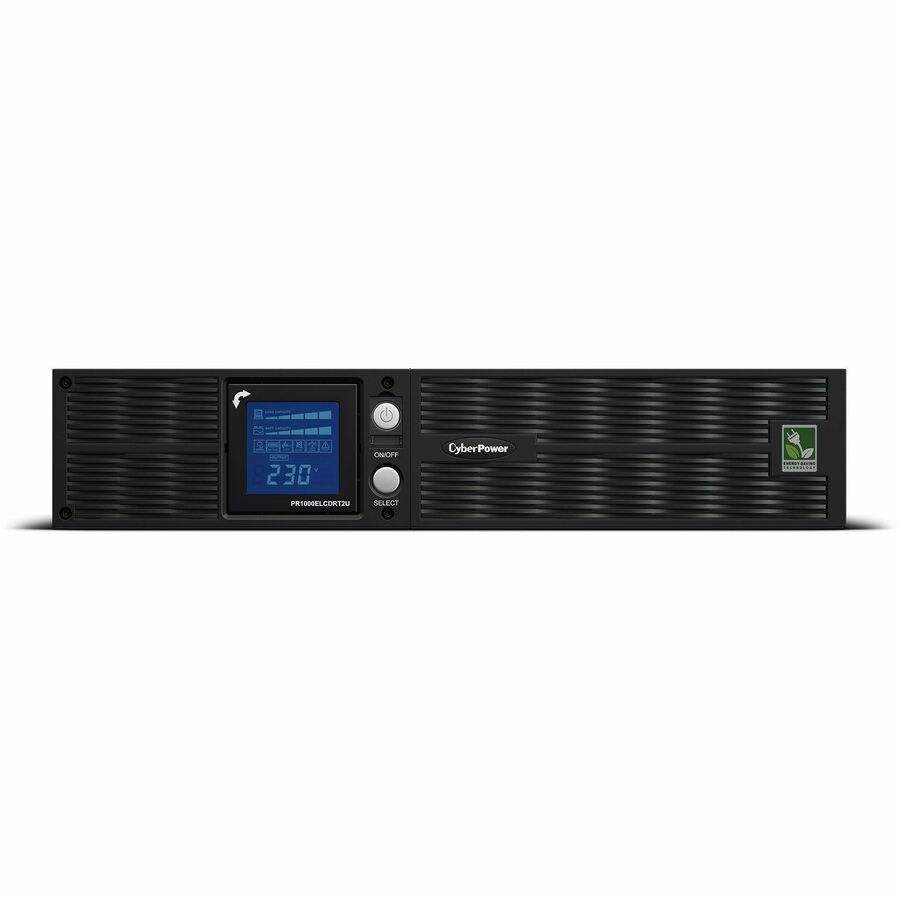

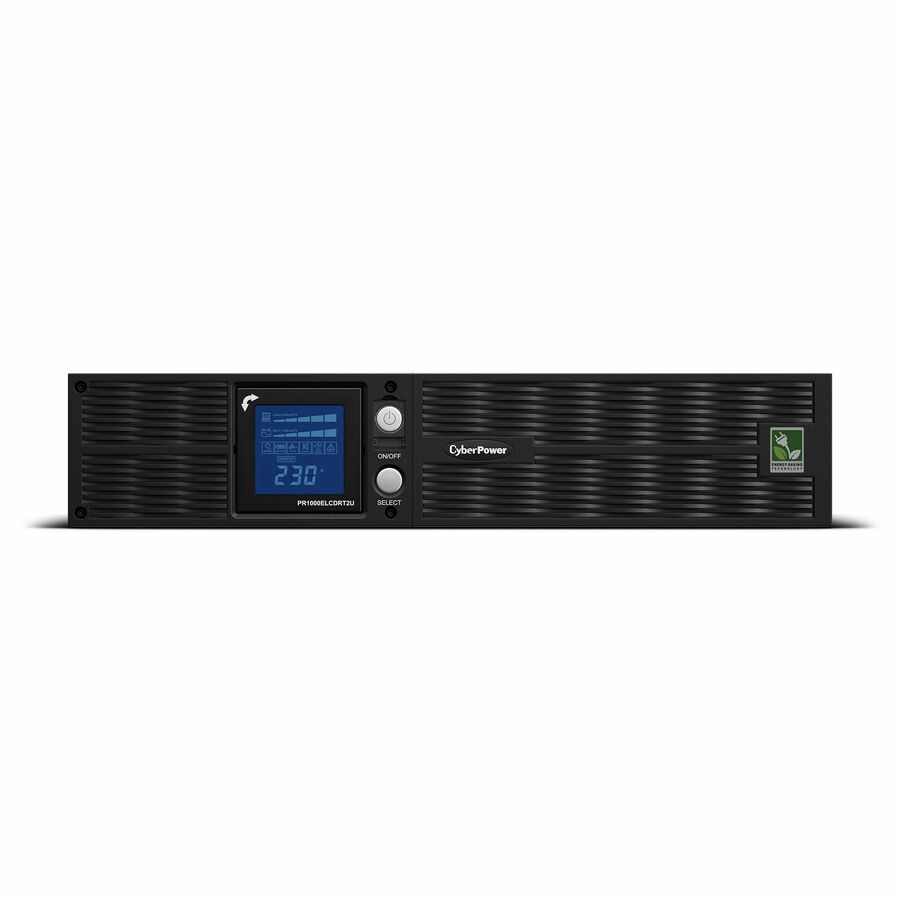

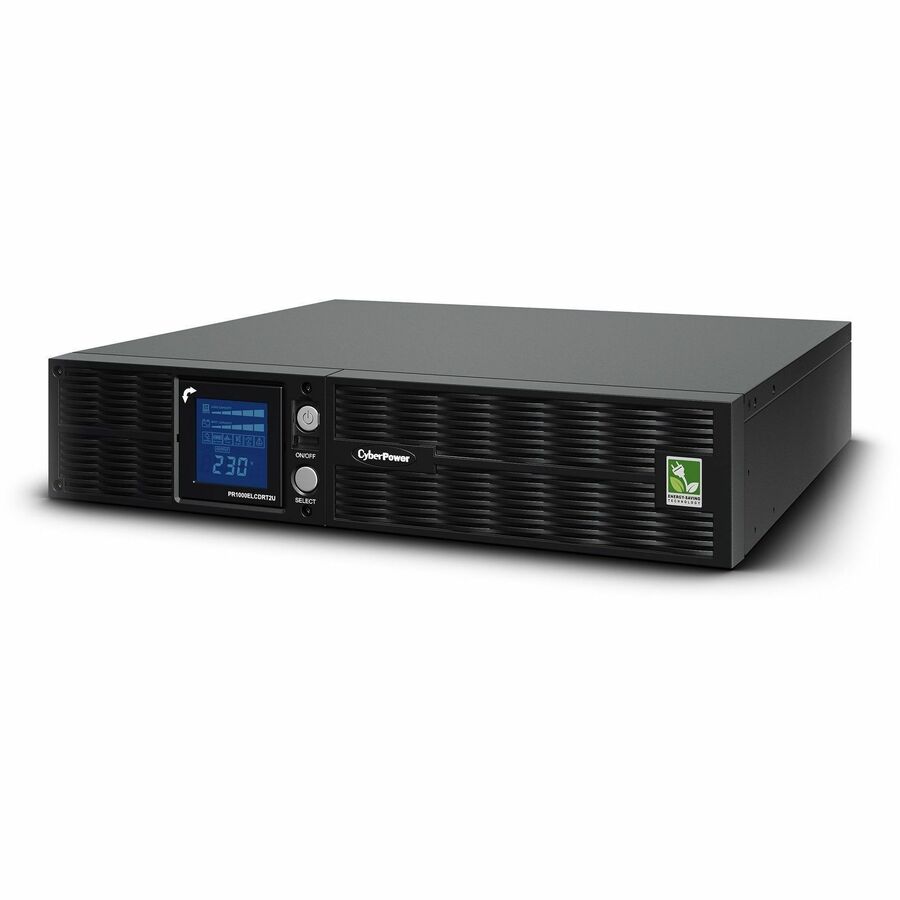

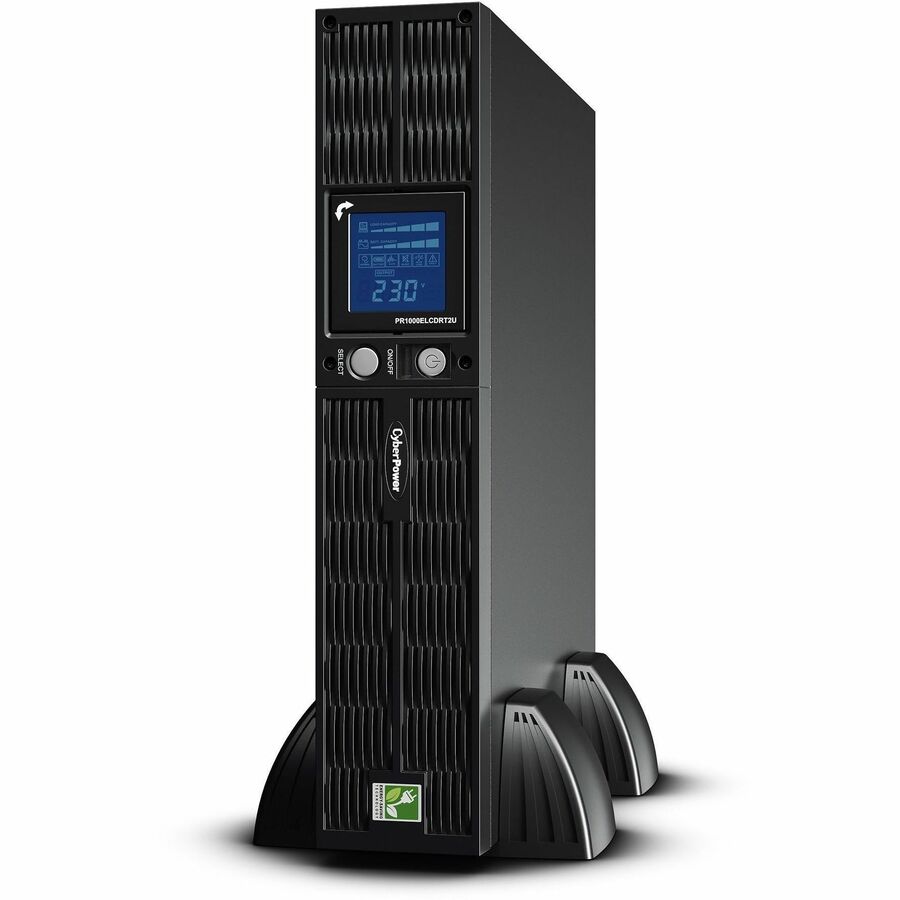

CyberPower PR1000ELCDRT2U Smart App Sinewave UPS Systems
1000VA/900W, 230 VAC, IEC-320 C14, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
- SKU
- PR1000ELCDRT2U
- Category
- Industrial UPS
MSRP$770.00
$643.71
Save 16%Back ordered — ships when restocked.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PR1000ELCDRT2U
- Category
- Industrial UPS
Overview
A high-voltage rack/tower convertible UPS with line interactive topology and an adjustable output of either 220, 230 or 240 VAC, the CyberPower Smart App Sinewave PR1000ELCDRT2U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1000ELCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1000ELCDRT2U comes with a $400,000 Connected Equipment Guarantee.
More from the Manufacturer
Highlights
- Capacity: 1000 VA / 900 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 220/230/240 VAC ± 5%
- Plug type & cord: IEC320 C14 6 ft. cord

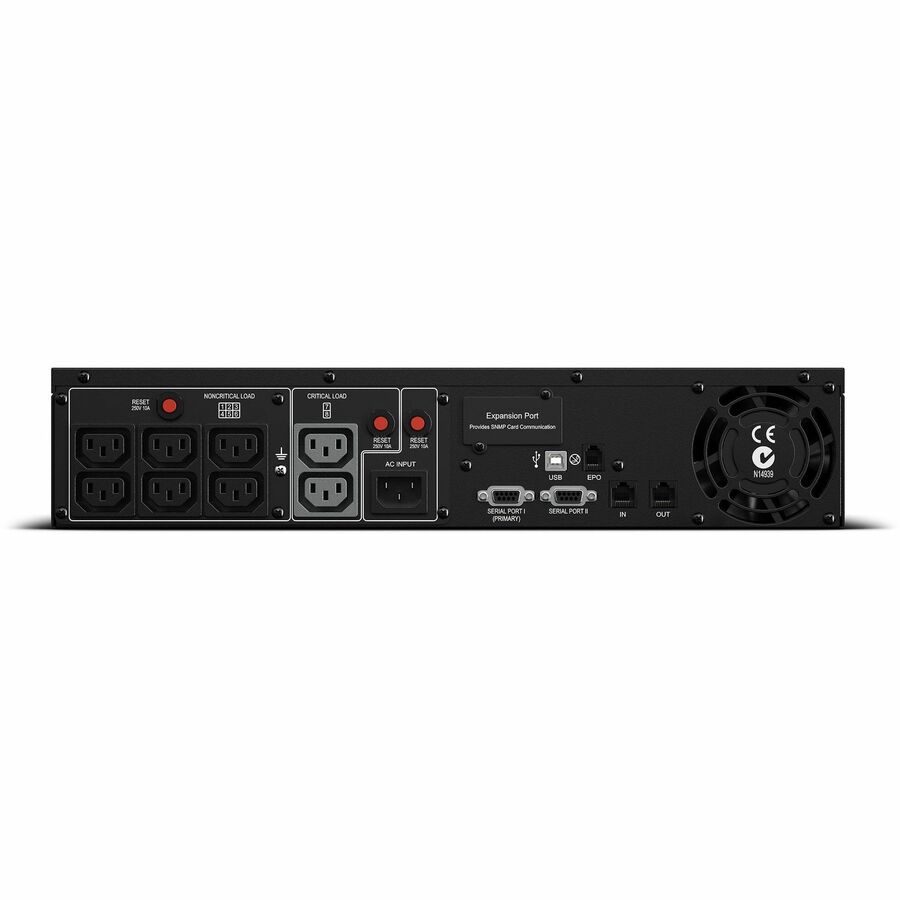

- Outlet types: 8 × IEC320 C13
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes
- Warranty: 3 year
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Display | LCD |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | PR1000ELCDRT2U |
| Limited Warranty | 3 Year |
| Output Voltage | 220 V AC, 230 V AC, 240 V AC |
| Weight (Approximate) | 56.20 lb |
| Dataline Protection | RJ-11, RJ-45 |
| Form Factor | Rack/Tower |
| Status Indicators | LED Indicators: Power On |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR1000ELCDRT2U |
| Product Name | PR1000ELCDRT2U Smart App Sinewave UPS Systems |
| Network Management | SNMP/HTTP Remote Monitoring |
| Overload Protection | Yes |
| Surge Energy Rating | 810 J |
| Thermal Dissipation | 15.01 W |
| Waveform Type | Sine Wave |
| Product Series | Smart App Sinewave UPS |
| Rack Height | 2U |
| Brand Name | CyberPower |
| Plug/Connector Type | IEC 320-C14 |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Battery Mode |
| Country of Origin | China |
| Cord Length | 72" |
| Height | 3.5" |
| Width | 17.1" |
| Depth | 15.7" |
| Input Frequency | 50 Hz, 60 Hz |
| Battery Size | 12V |
| Receptacle Type | IEC 60320 C13 |
| Environmentally Friendly | Yes |
| Battery Capacity | 7000 mAh |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 22 Minute |
| Backup/Run Time (Full Load) | 7 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 900 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| Energy Star | No |
| AVR | Yes |
| Energy Saving | GreenPower UPS? Bypass Technology |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 2 |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 6 Hour |
| Product Color | Black |
| Output Power Factor | 0.8 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Sound Emission (A-Weighted) | 34.5 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Circuit Breaker Current Rating | 15 A |
