2100VA/1650W, 120 VAC, NEMA 5-20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
MSRP$1,039.95
$988.96
Save 5%In stock: 3
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

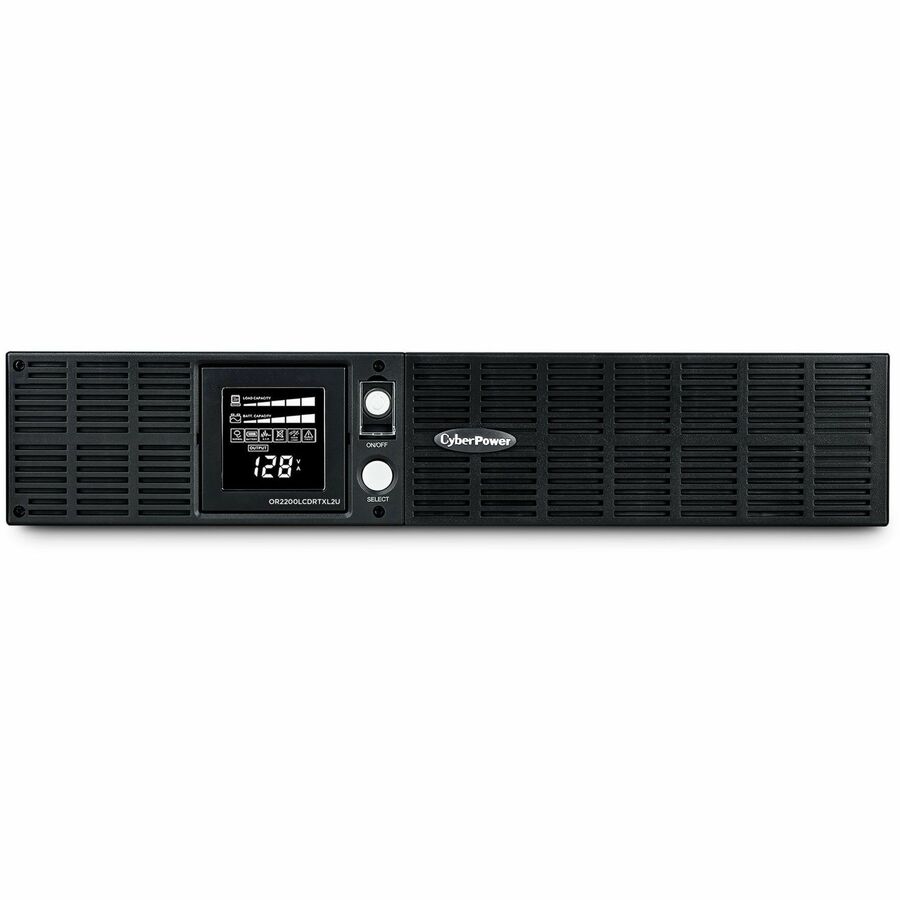

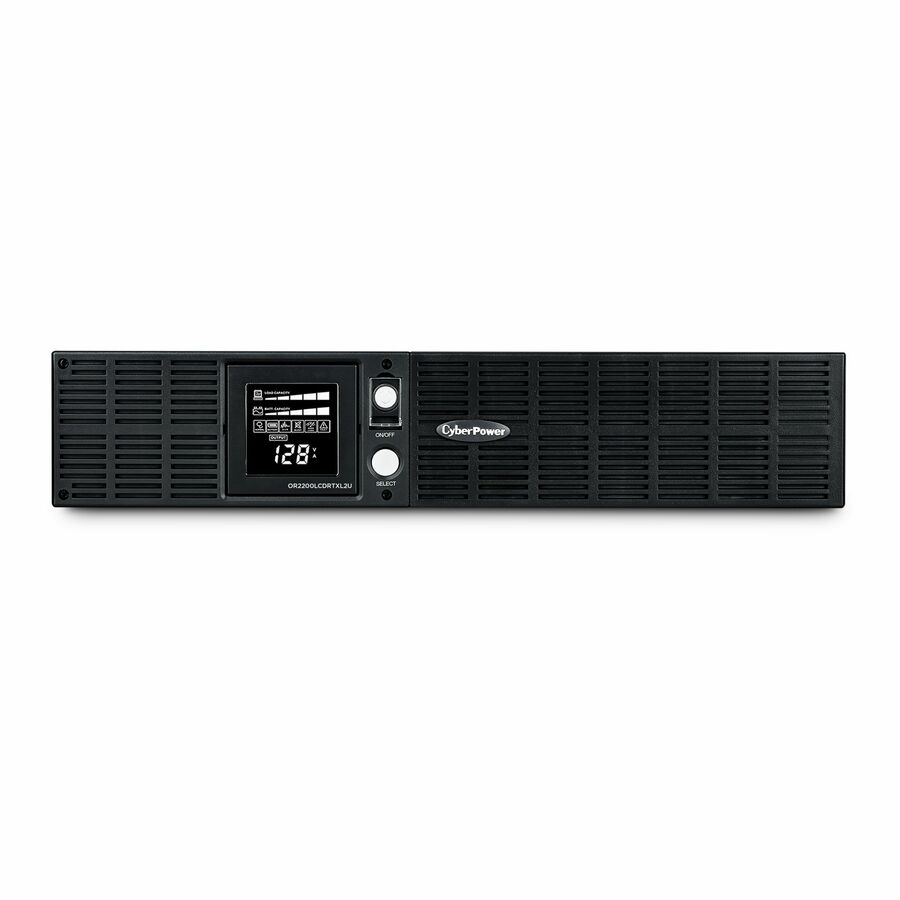

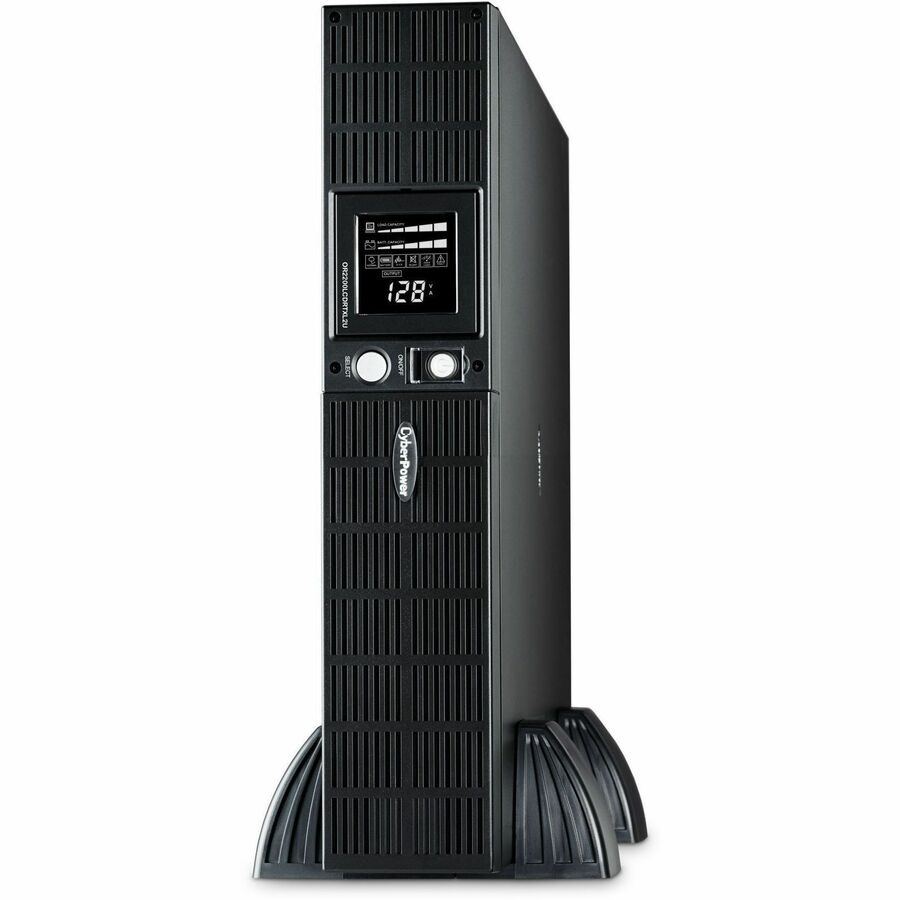

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart LCD OR2200LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR2200LCDRTXL2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
More from the Manufacturer
Why Do You Need a UPS System?
Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.
Workstations
Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.
Network Devices
Keep smart devices connected and running during power outages and brownouts.
Corporate & Department Servers
Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.
Product Q&A
How long will the UPS power my systems after the power goes out?

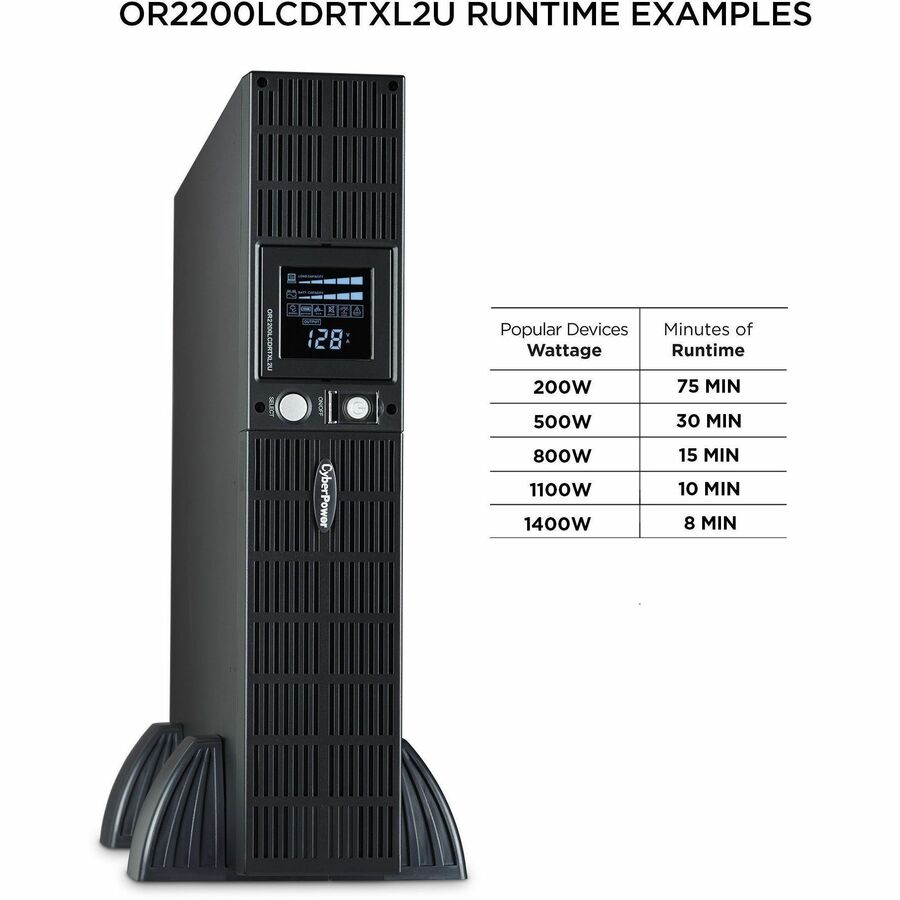

Run times vary based on the power required by connected devices. This system is estimated run for 15 minutes at half load, 6 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can the battery capacity be expanded?
Yes, the OR2200LCDRTXL2U can support the BP48V75ART2U extended battery module to help extend the UPS runtime.
Can this UPS model be monitored over a network?
The OR2200LCDRTXL2U can be monitored over a network with the addition of the RMCARD205. It also comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Does this come with rackmount hardware?
Yes, all CyberPower rackmount units come with the necessary hardware to mount the UPS. However, the unit does not have to be mounted to work. It can operate in any well-ventilated environment within 32 °F to 104 °F (0 °C to 40 °C).
How do I mute the alarms?
Press the SELECT button for 3 seconds to access the Audible Alarm within the set-up mode functions. Use the same button to select OFF within the Audible Alarm function and hold for 3 seconds to mute the alarm. Repeat this step to enable the alarms.
Proposition 65 Warning:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| Number of Batteries | 4 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR2200LCDRTXL2U |
| Brand Name | CyberPower |
| Product Series | Smart App LCD UPS |
| Product Model | OR2200LCDRTXL2U |
| Product Name | OR2200LCDRTXL2U Smart App LCD UPS Systems |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Battery Mode, Low Battery, Overload |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |

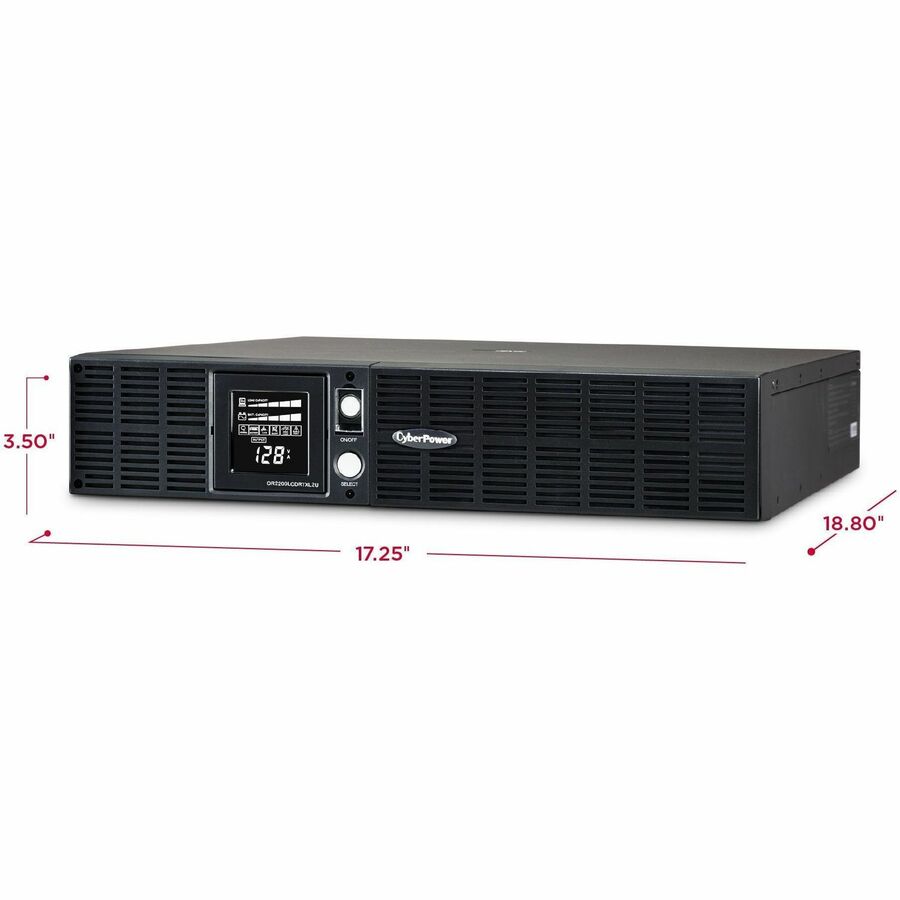

| Height | 3.5" |
| Width | 17" |
| Depth | 18.8" |
| Weight (Approximate) | 90 lb |
| Power Description | |
| Load Capacity (VA) | 2190 VA |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Simulated Sine Wave |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |

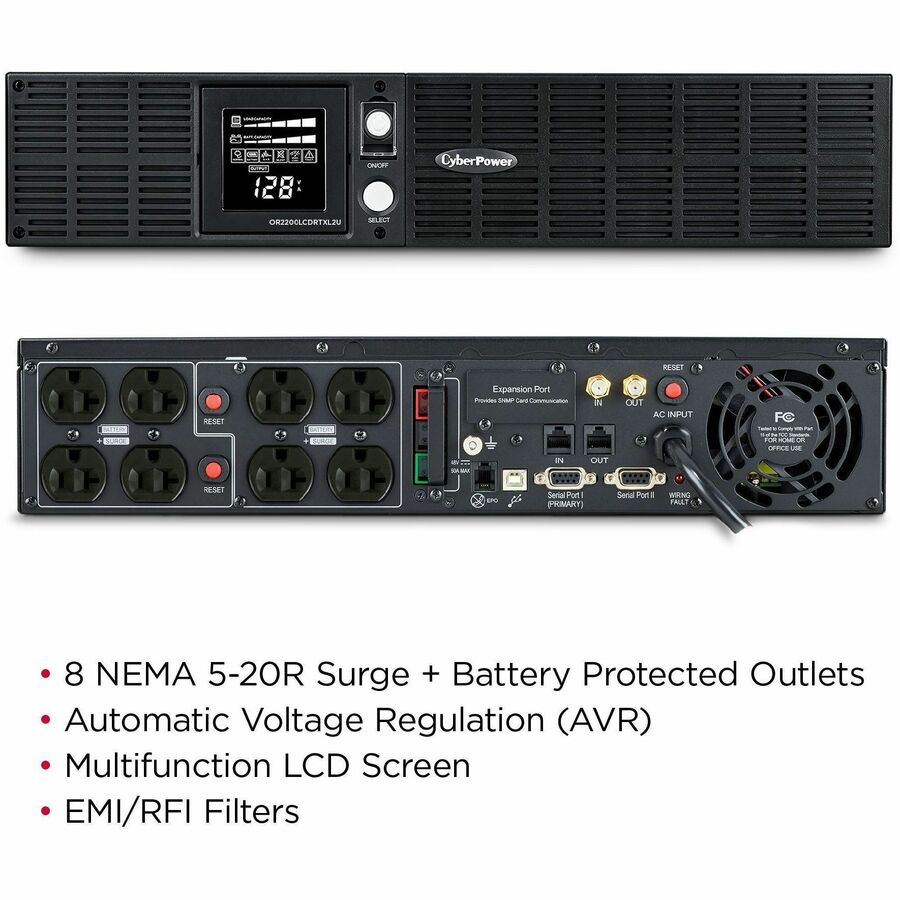

| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 4 ms |
| Dataline Protection | RJ-11, RG-6 |
| Overload Protection | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Application/Usage | Workstation, Server, Network Device, Telecommunication |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel Business Edition Software |
| Energy Star | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
